Home >> Subaru >> 2007 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

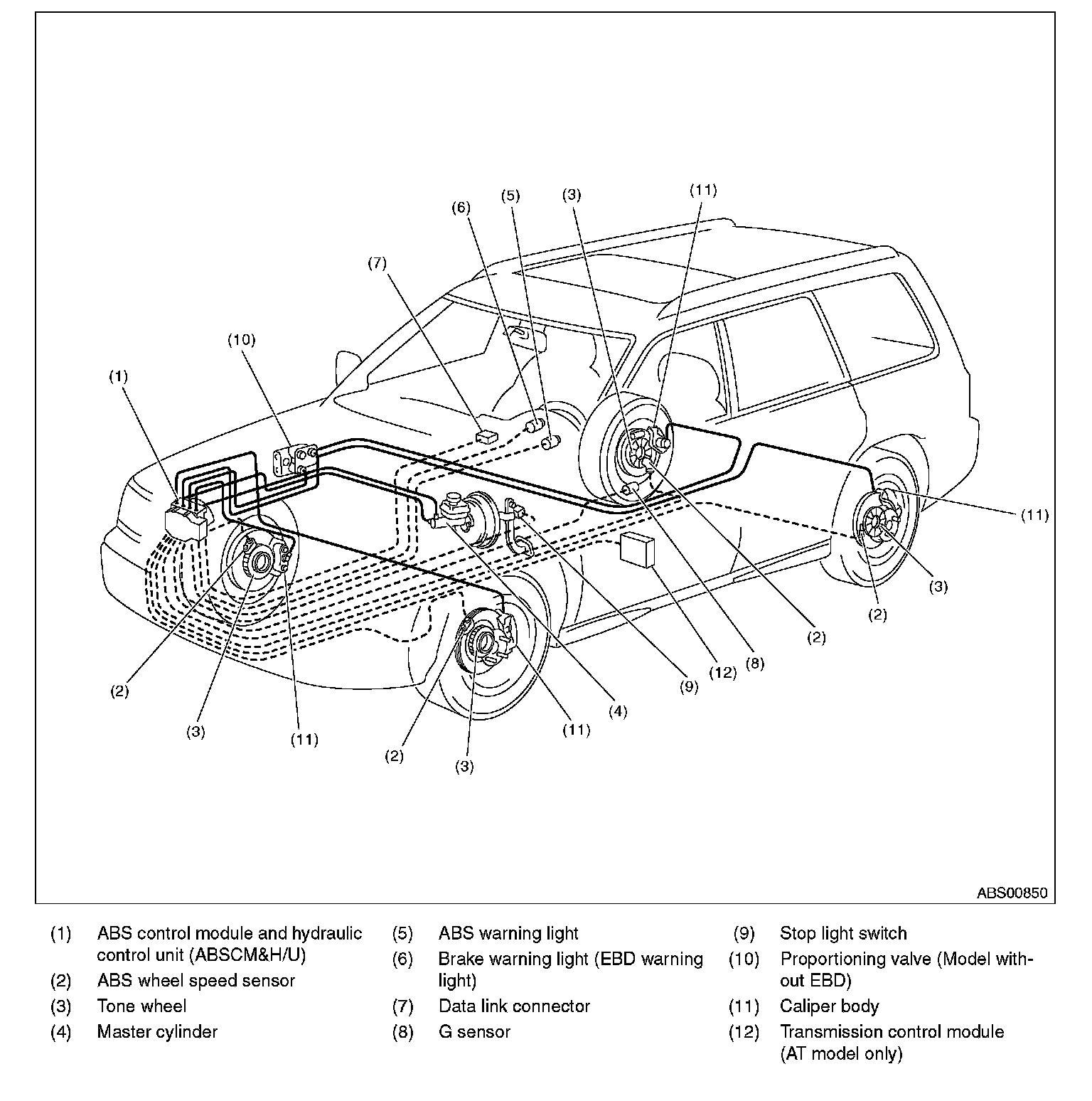

Electrical Component Location:

Electrical Component Location:

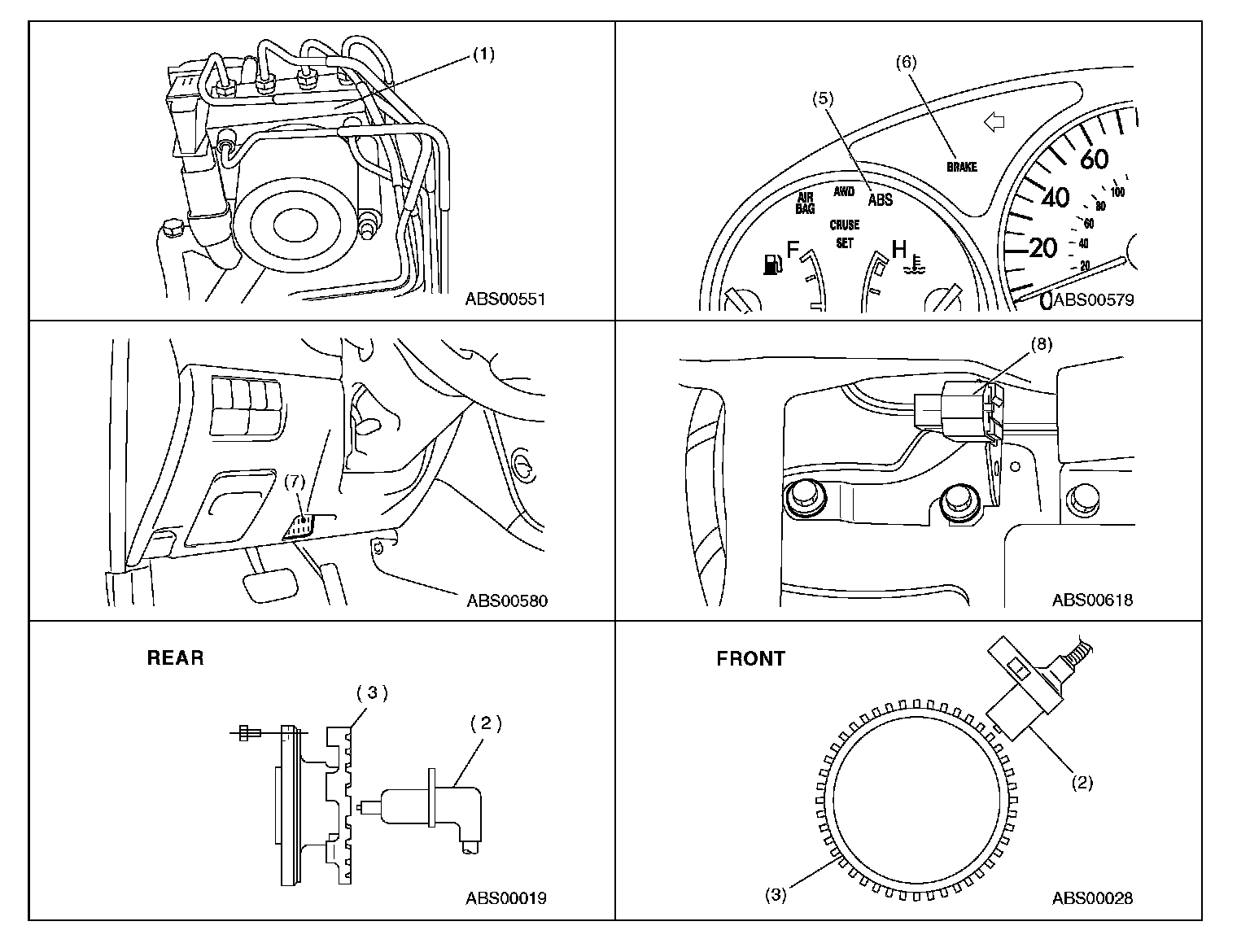

CONTROL MODULE:

CONTROL MODULE:
