Rear Inner Remote

Rear Inner Remote

REMOVAL
1. Remove the rear door trim.
2. Remove the sealing cover.

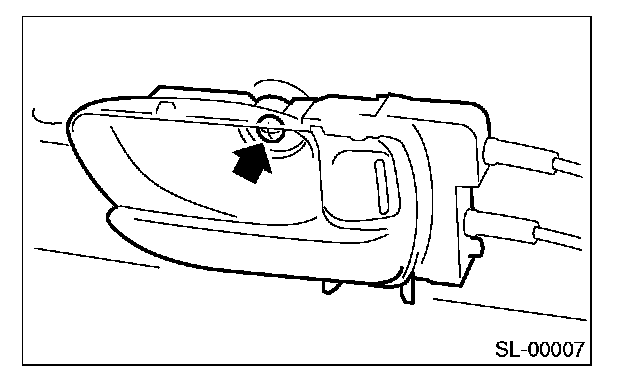

3. Remove the one screw and two cables.




4. Remove the inner remote.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 1.5 N.m (0.15 kgf-m, 1.1 ft-lb)

NOTE: Make sure the inner remote works properly after installation.
