Front Inner Remote
Front Inner RemoteREMOVAL
1. Remove the door trim.
2. Remove the sealing cover.

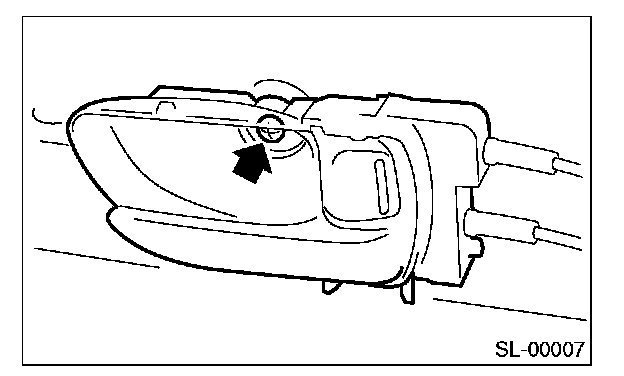

3. Remove the one screw and two cables.
4. Remove the front inner remote.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 1.5 N.m (0.15 kgf-m, 1.1 ft-lb)
NOTE: Make sure the inner remote works properly after installation.
