Fuel Sub Level Sensor

FUEL SUB LEVEL SENSOR

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel.

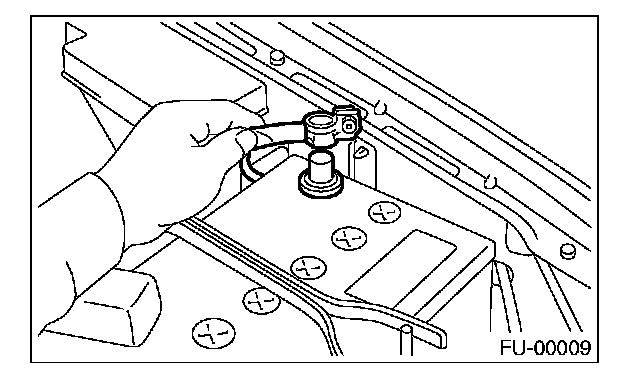

1. Disconnect the ground cable from battery.
2. Lift-up the vehicle.
3. Drain fuel from fuel tank.
4. Remove the luggage floor mat.

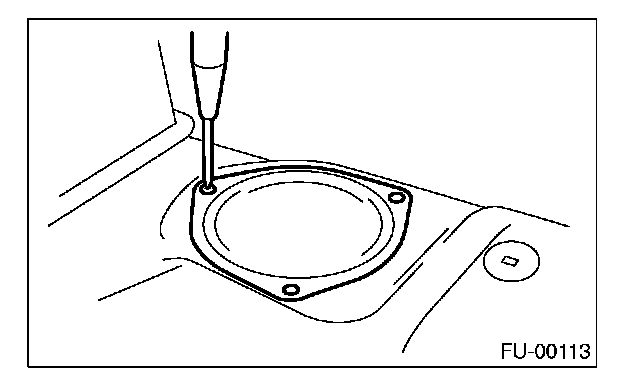

5. Remove the service hole cover.

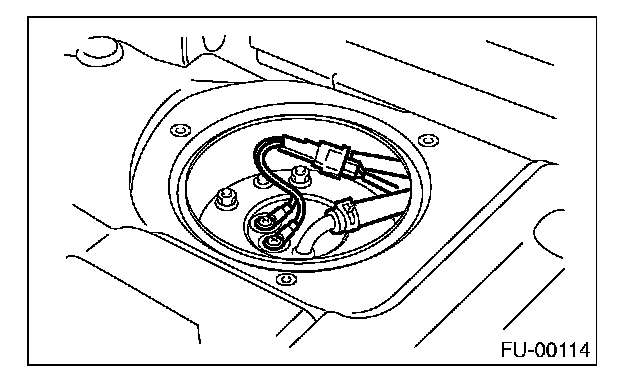

6. Disconnect the connector from fuel sub level sensor.

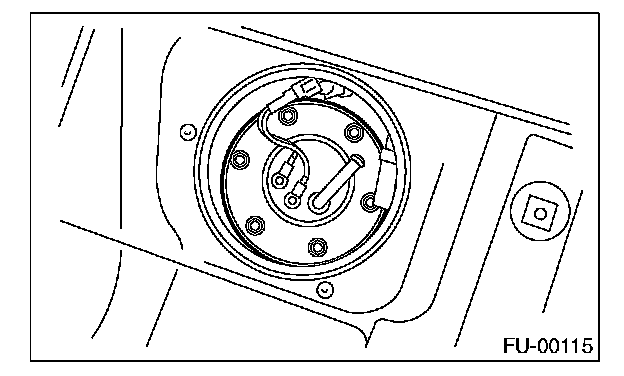

7. Disconnect the fuel jet pump hose.




8. Remove the bolts which install fuel sub level sensor on fuel tank.




9. Remove the fuel sub level sensor.

INSTALLATION

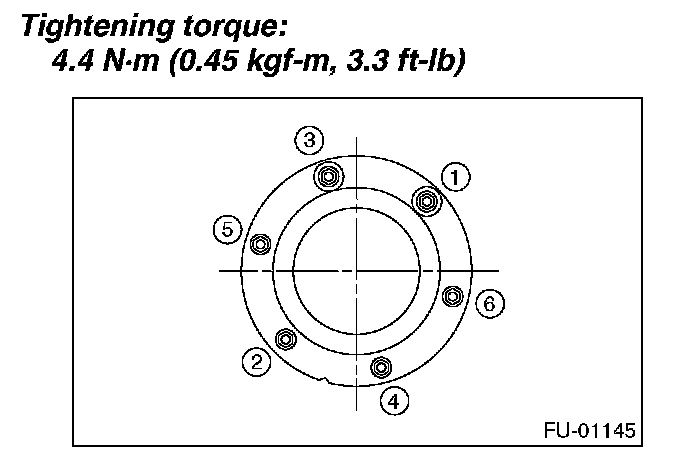

Install in the reverse order of removal.

NOTE: Use a new gasket.
