Home >> Subaru >> 2007 >> Forester F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

COMPONENT

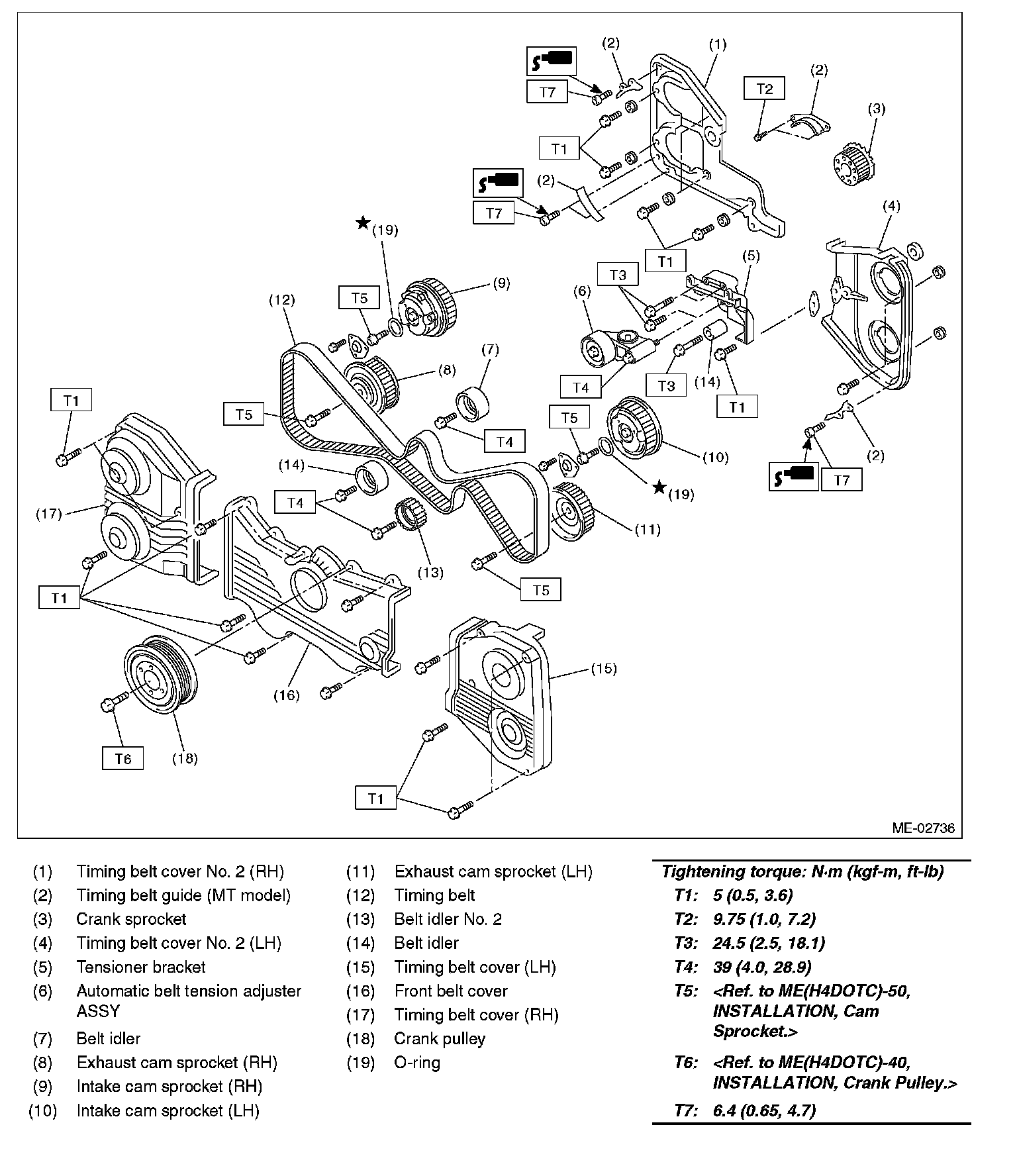

TIMING BELT:

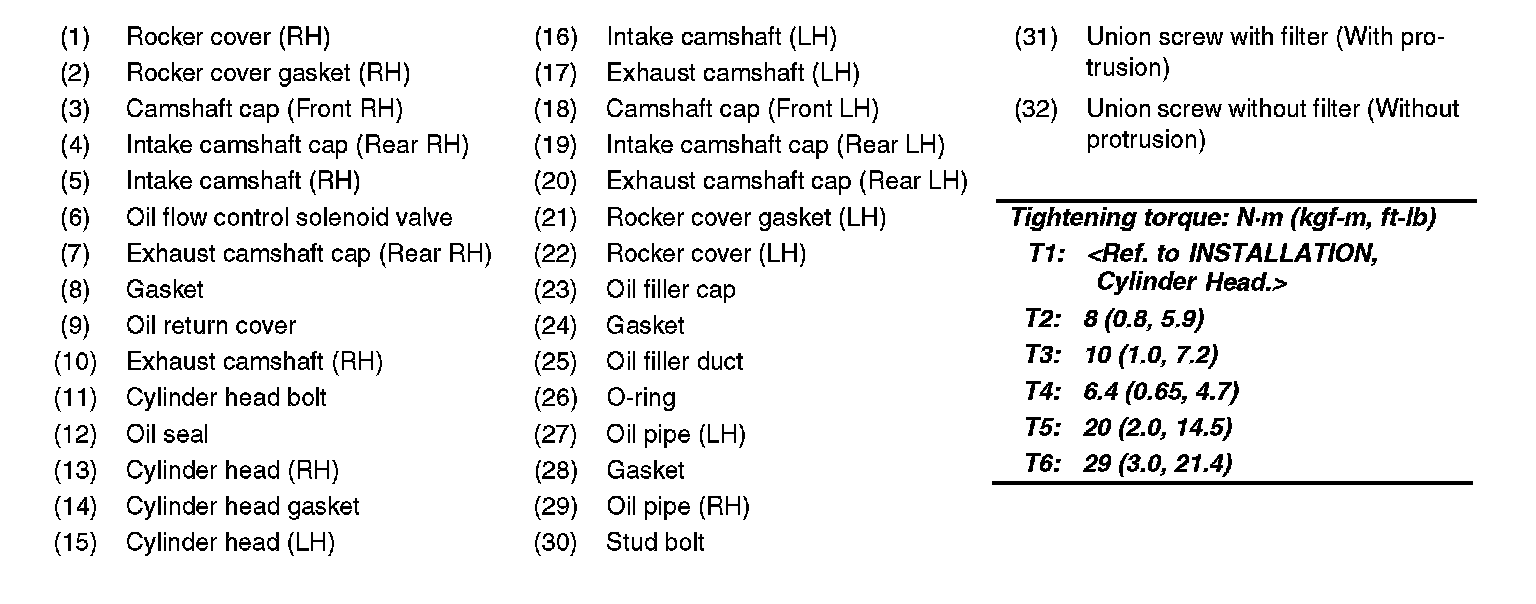

CYLINDER HEAD AND CAMSHAFT:




CYLINDER HEAD AND CAMSHAFT:

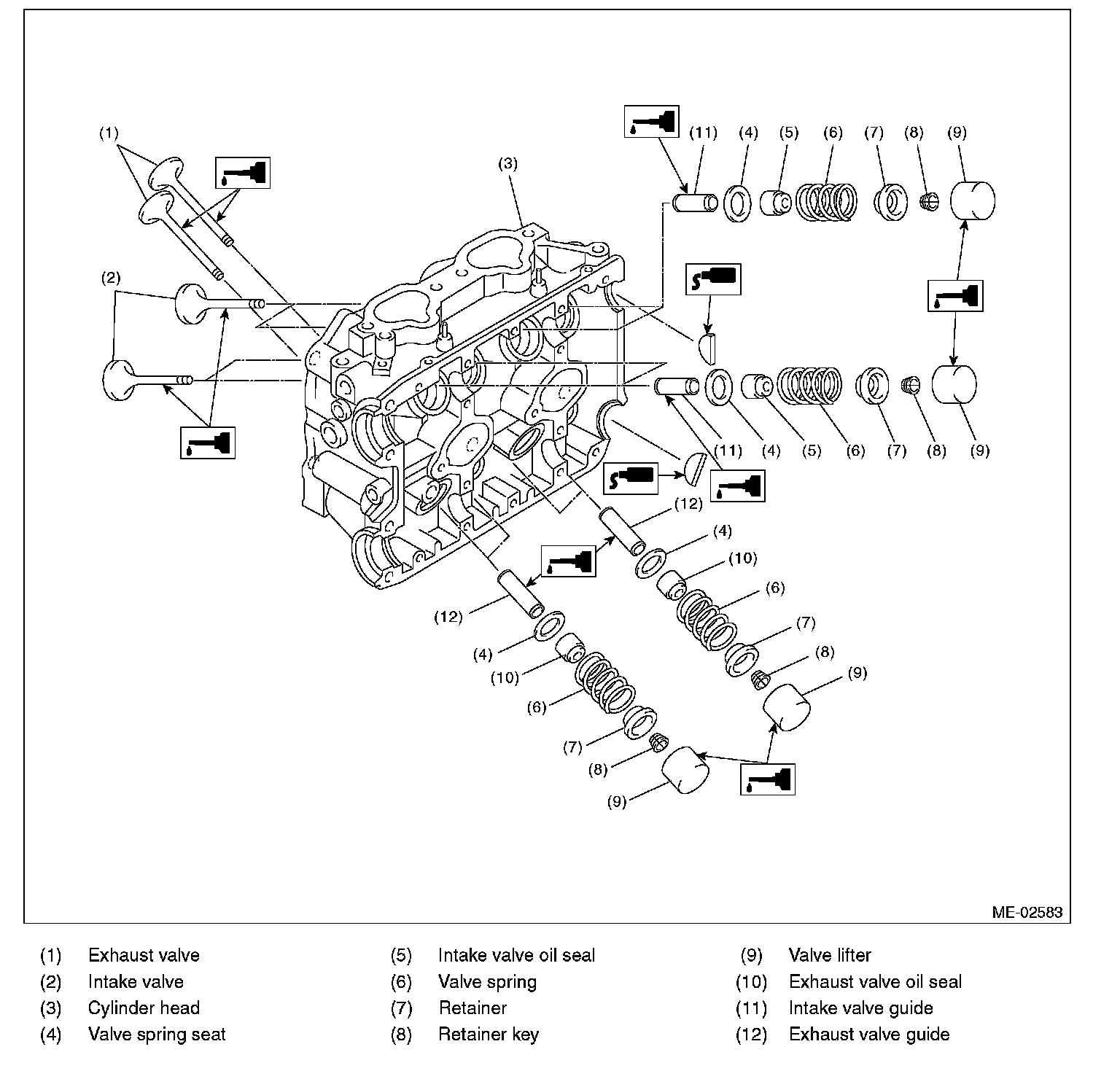

CYLINDER HEAD AND VALVE ASSEMBLY:

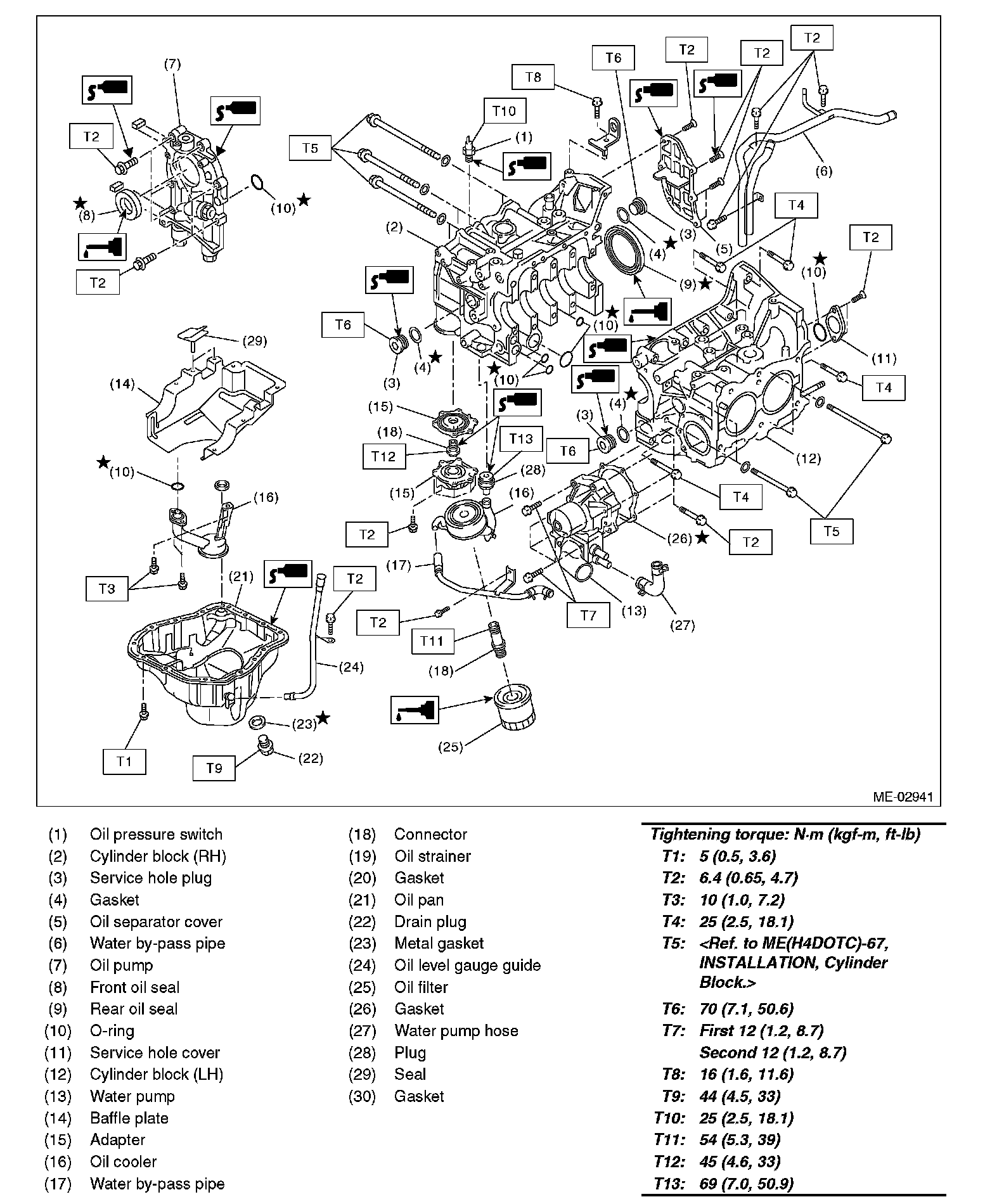

CYLINDER BLOCK:

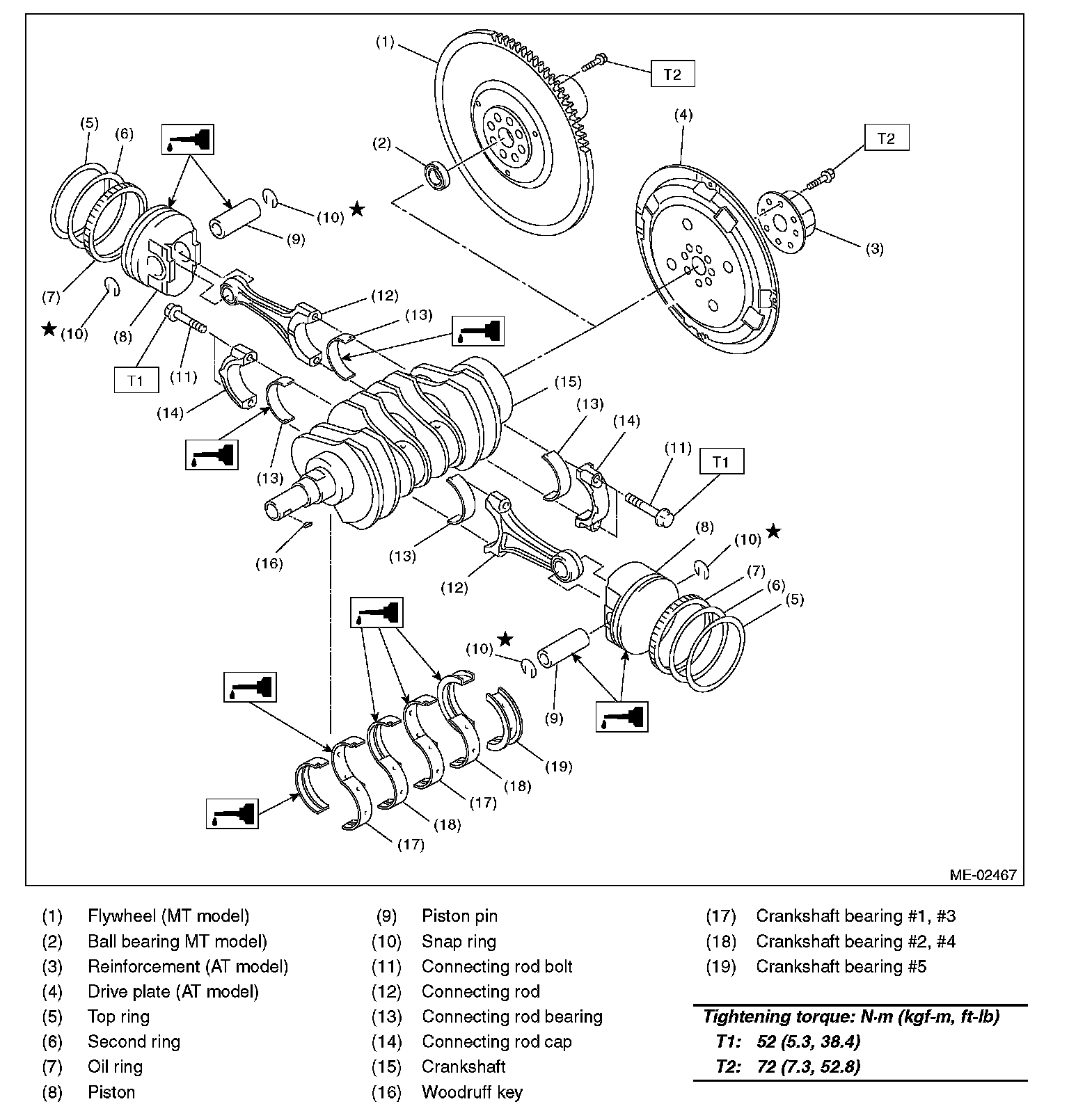

CRANKSHAFT AND PISTON:

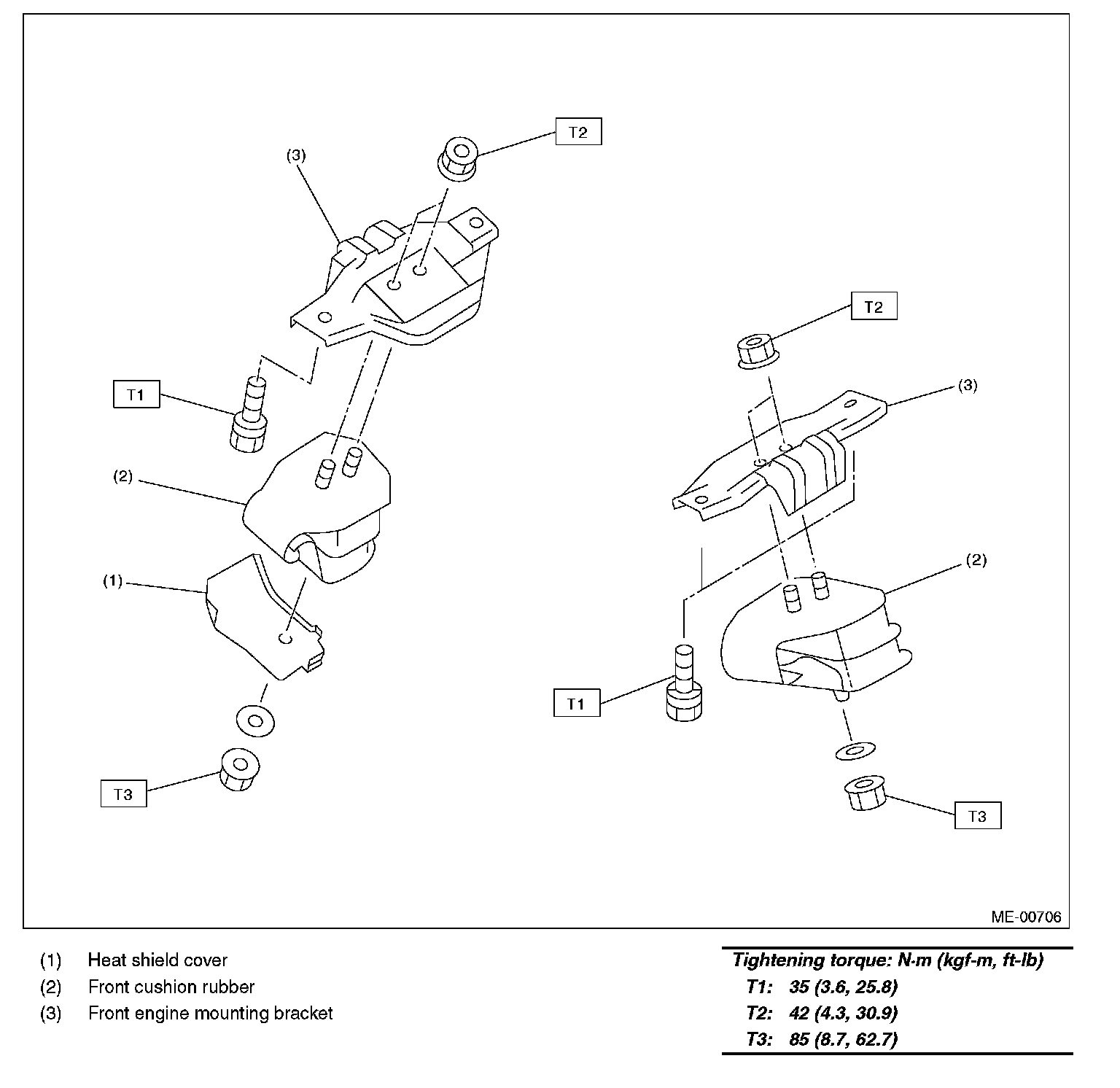

ENGINE MOUNTING:
