2.5L SOHC
2.5L SOHC

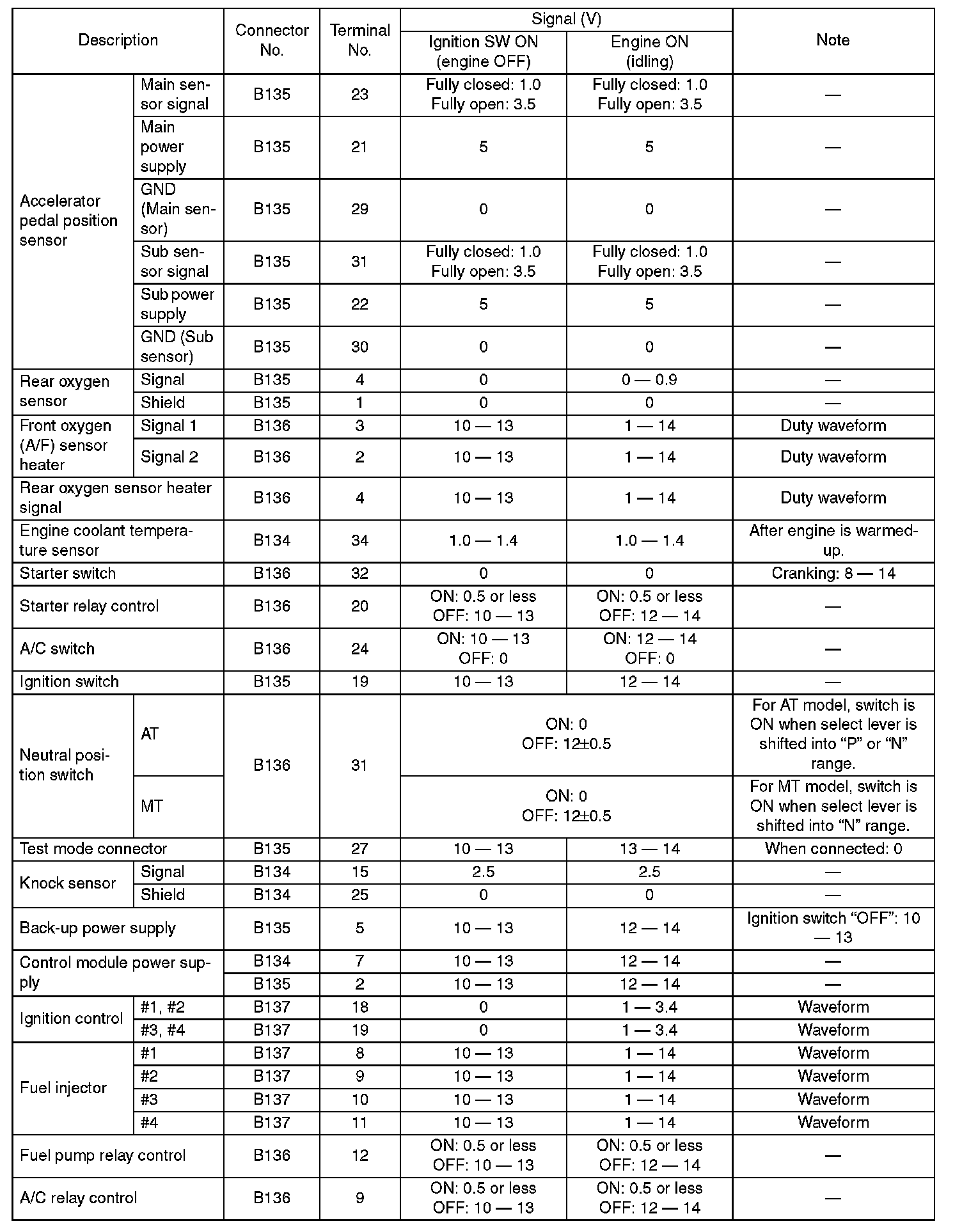

Engine Control Module I/O Signal (Part 1):

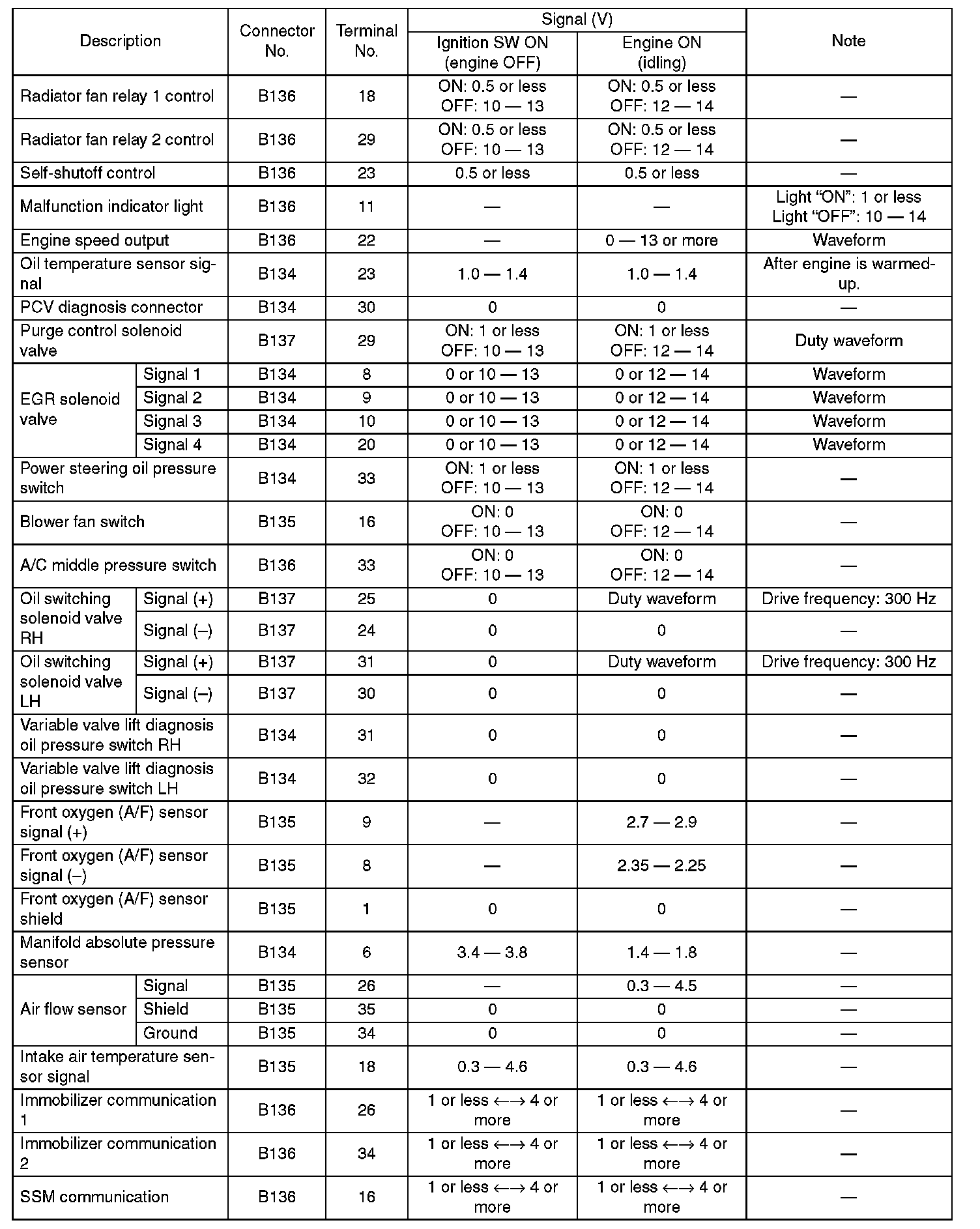

Engine Control Module I/O Signal (Part 2):

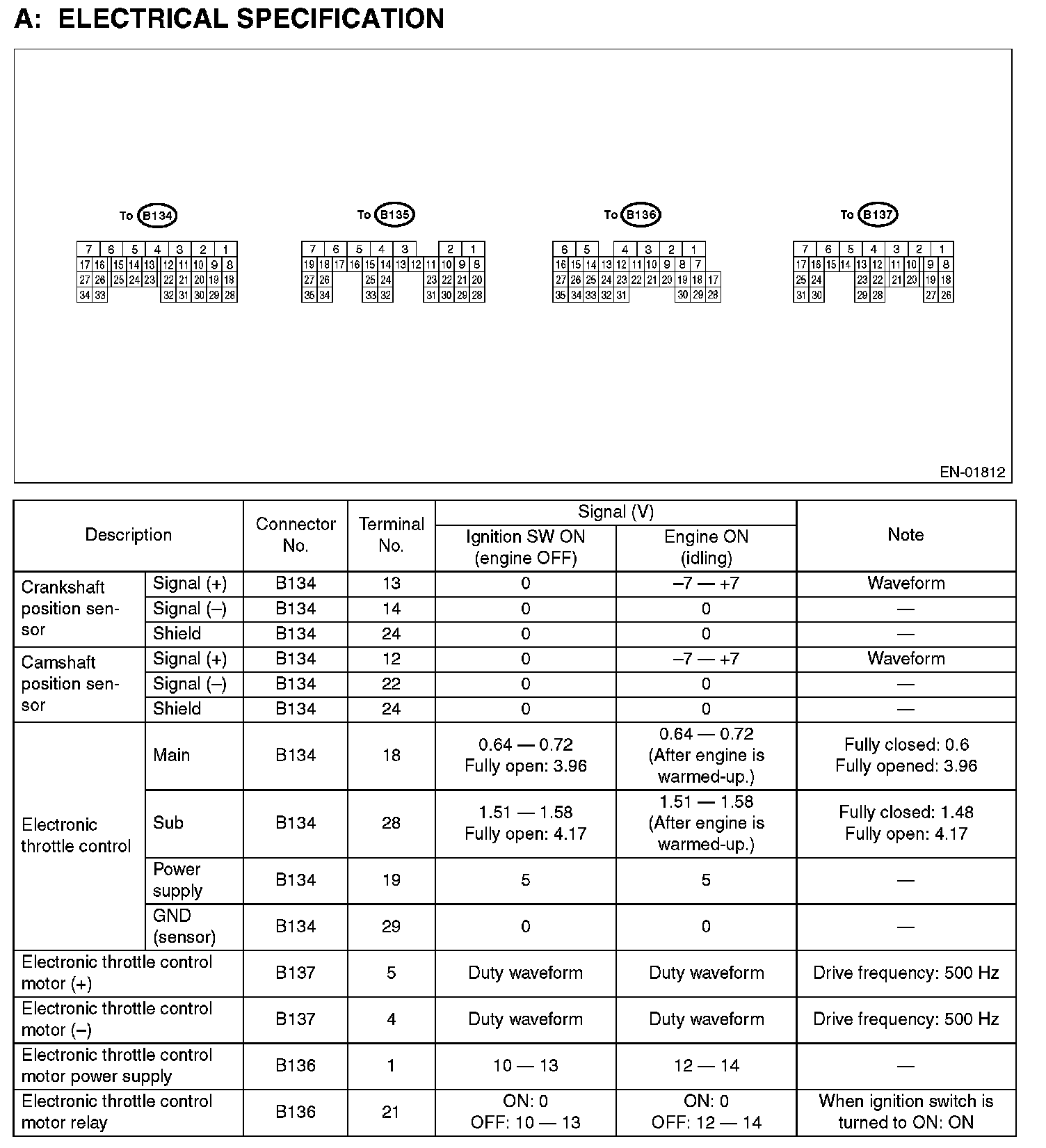

Engine Control Module I/O Signal (Part 3):

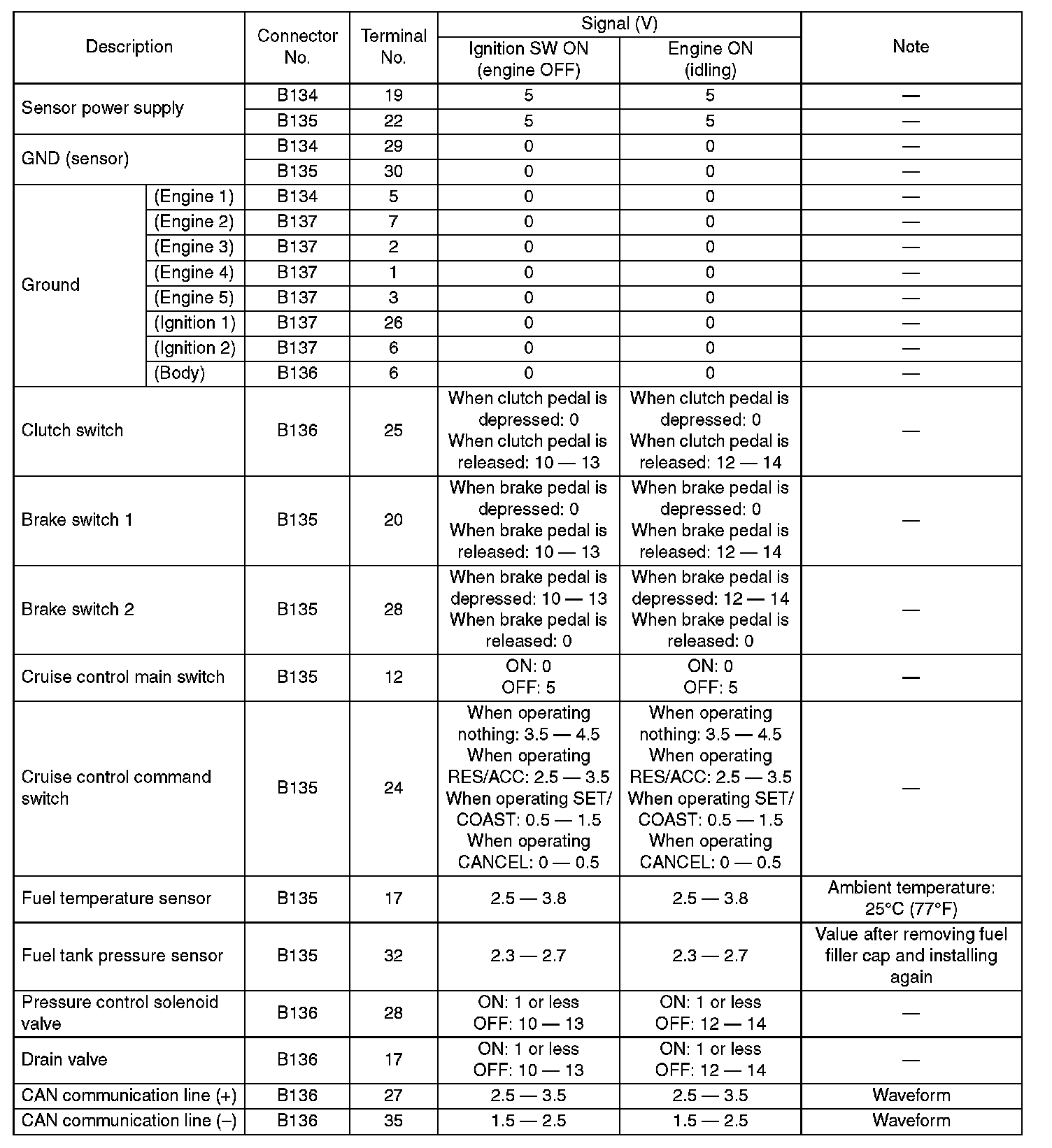

Engine Control Module I/O Signal (Part 4):
