Subaru
>>
2006
>>
Baja F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R15-R156
R15-R156

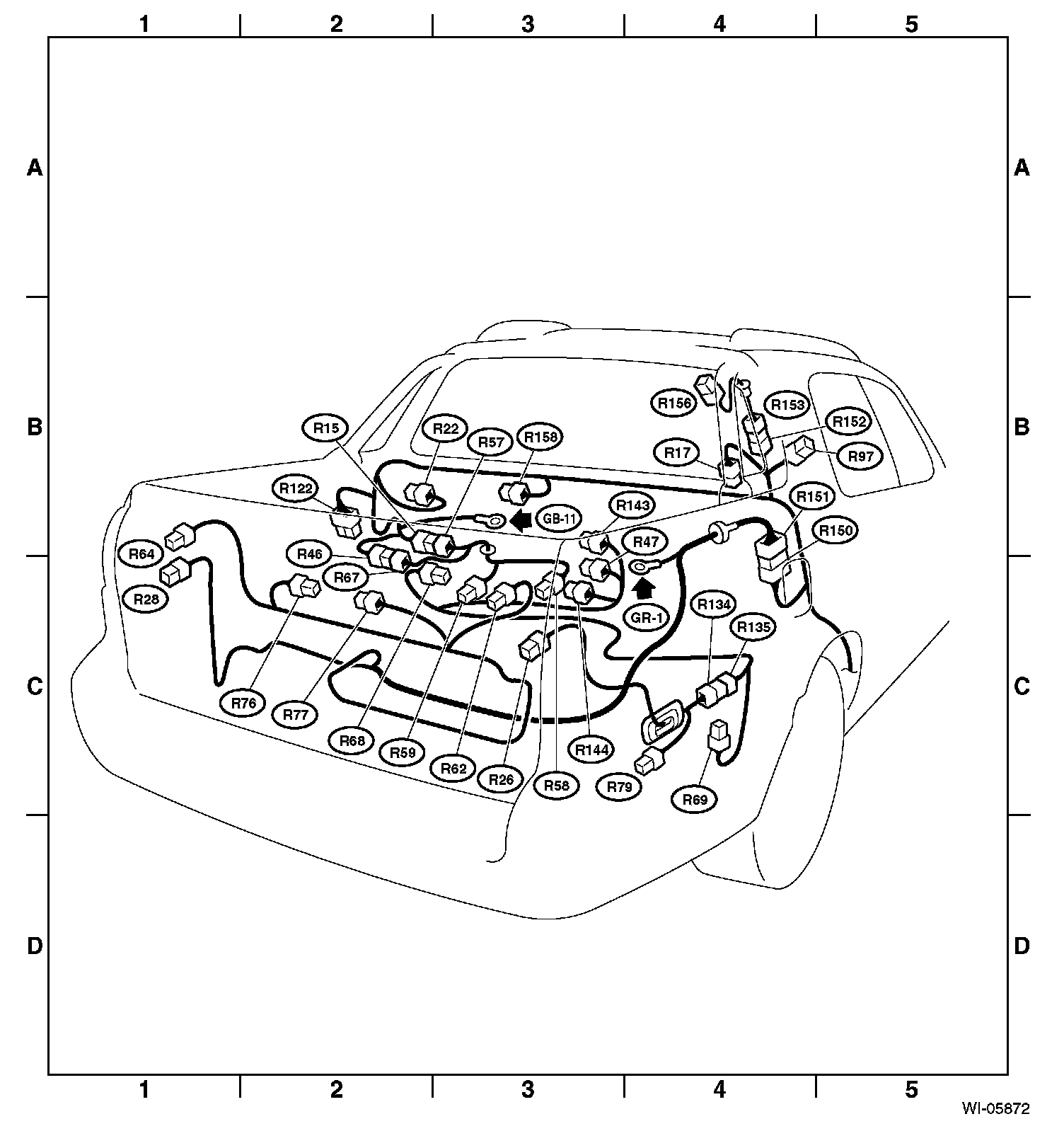

Rear Wiring Harness and Rear Tail Gate Cord

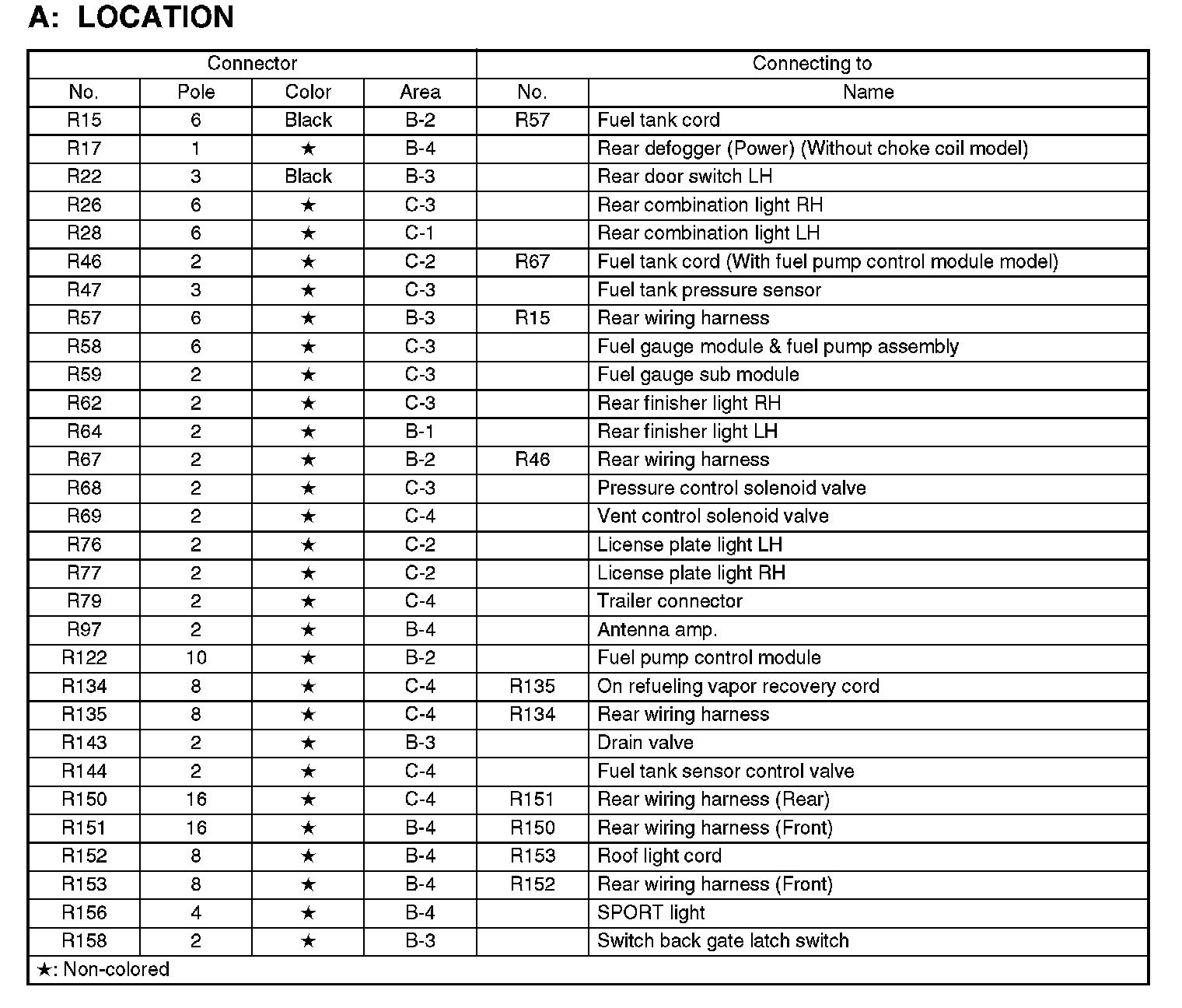

R15-R158:
Area View:
