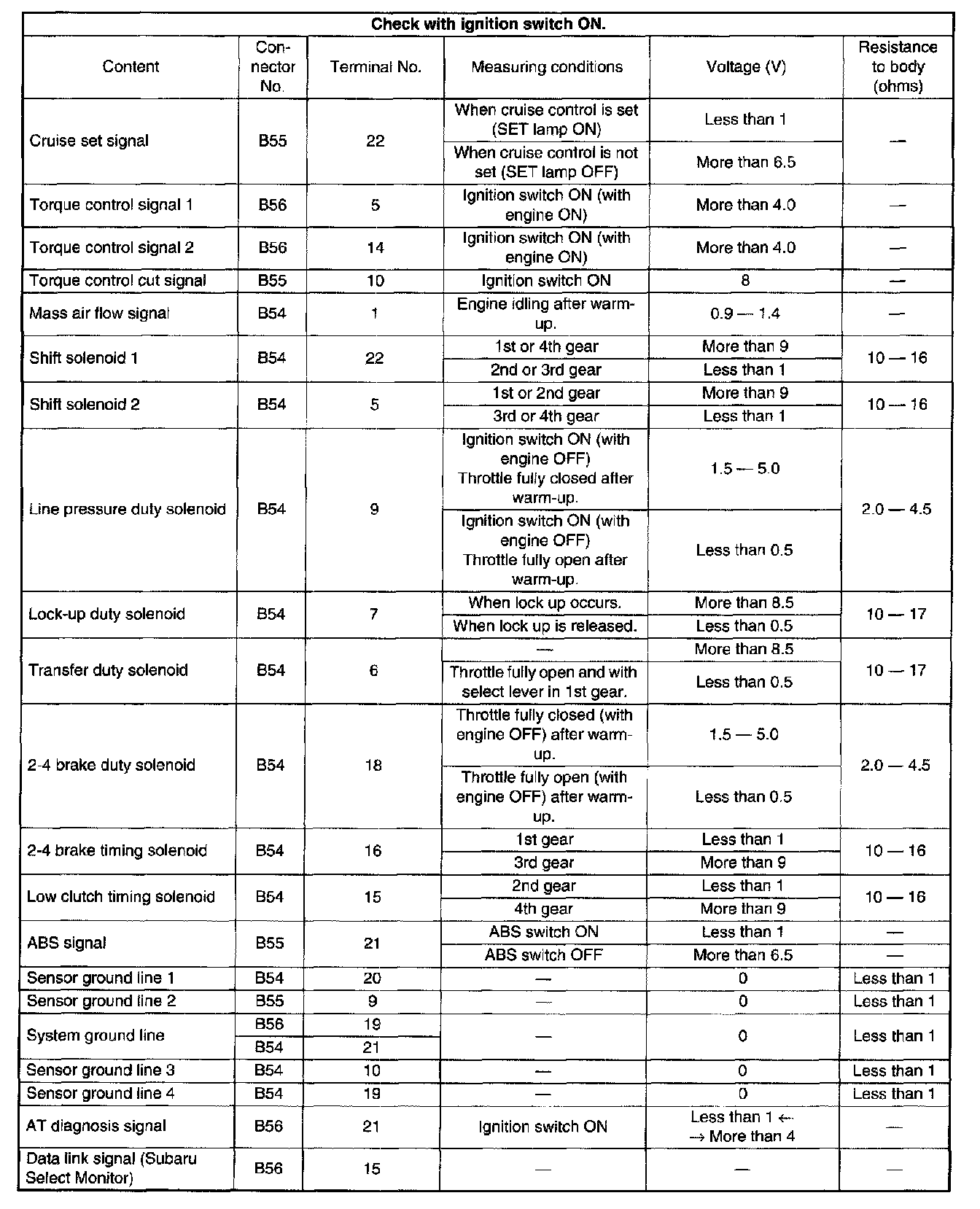

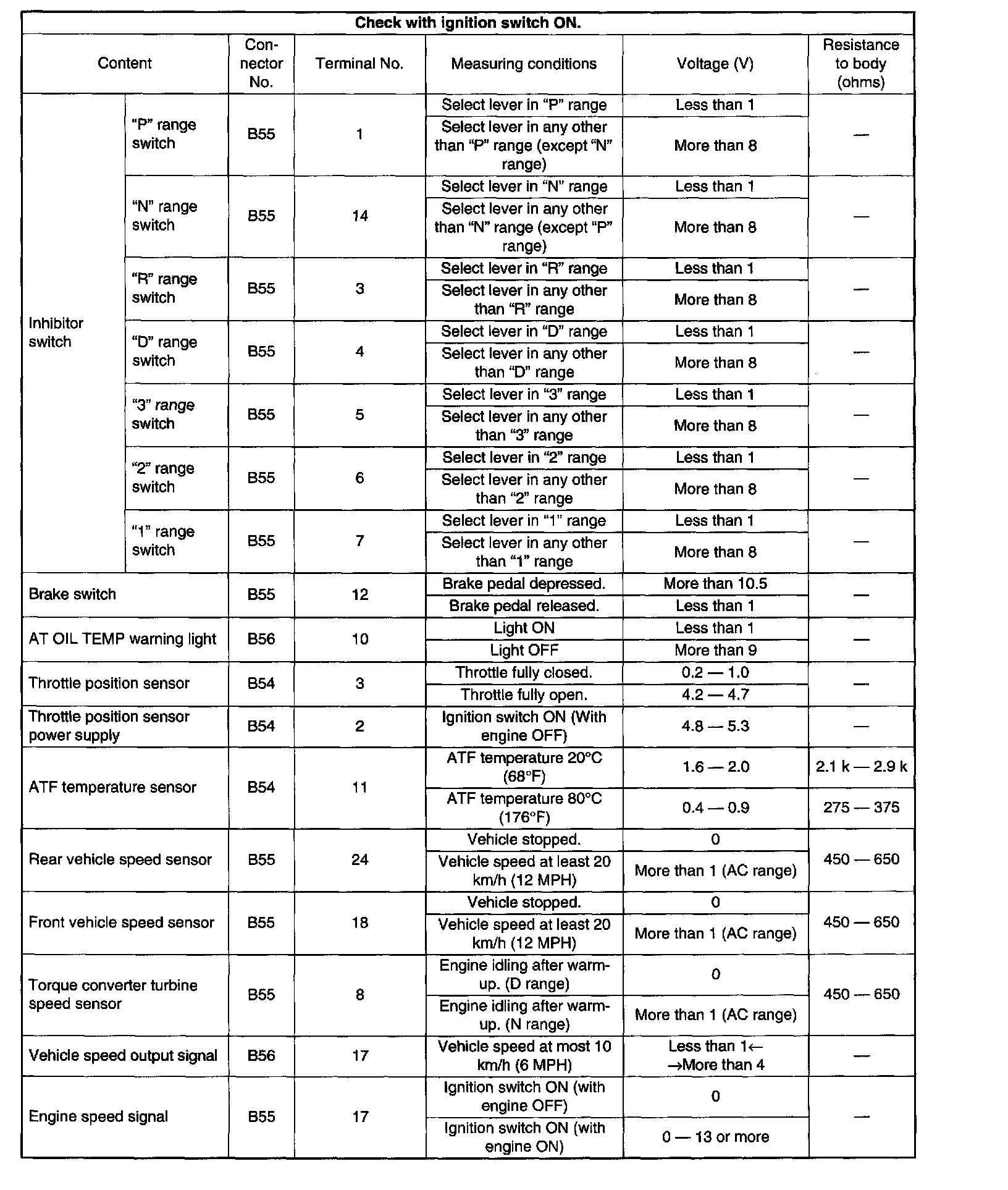

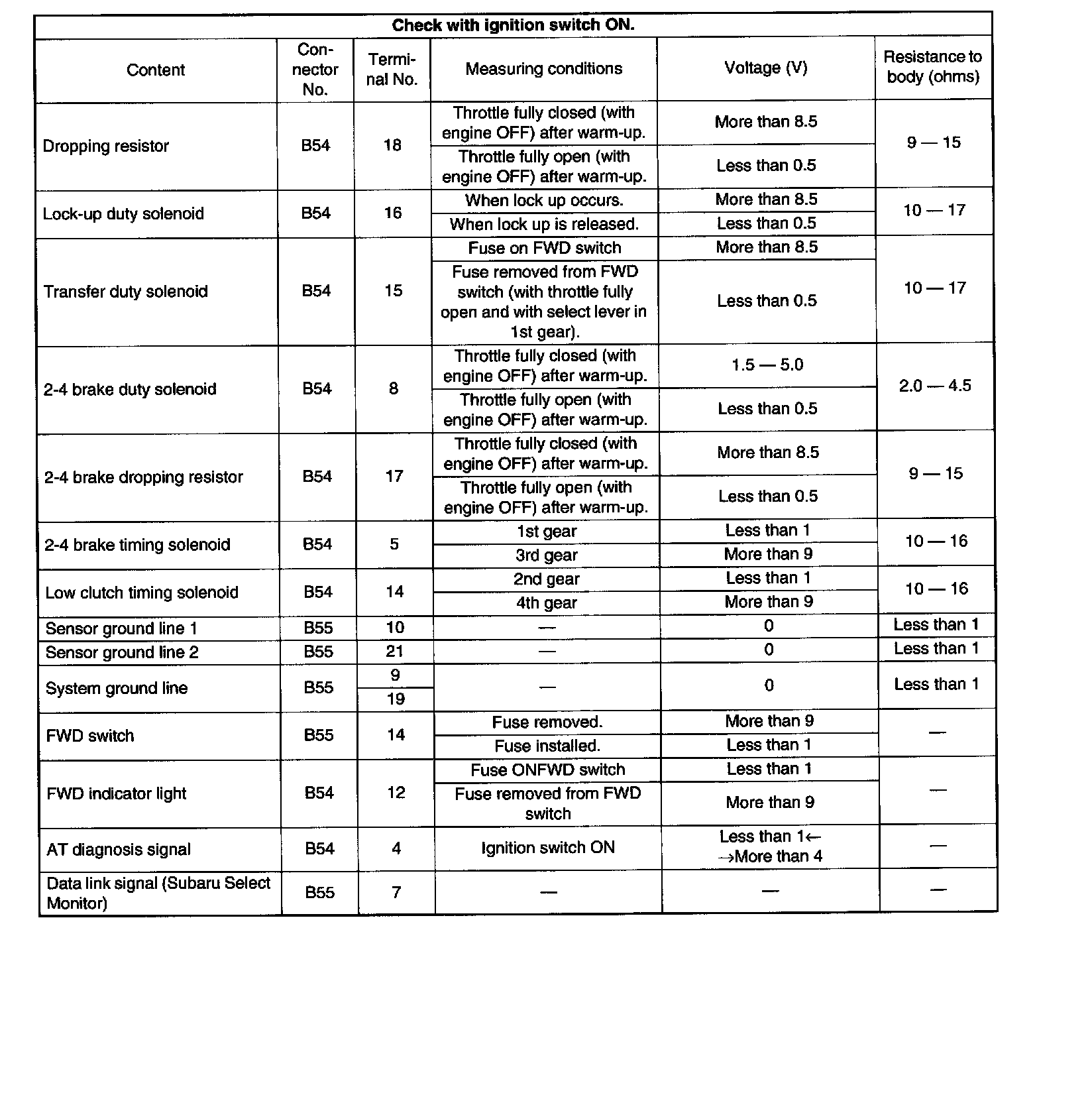

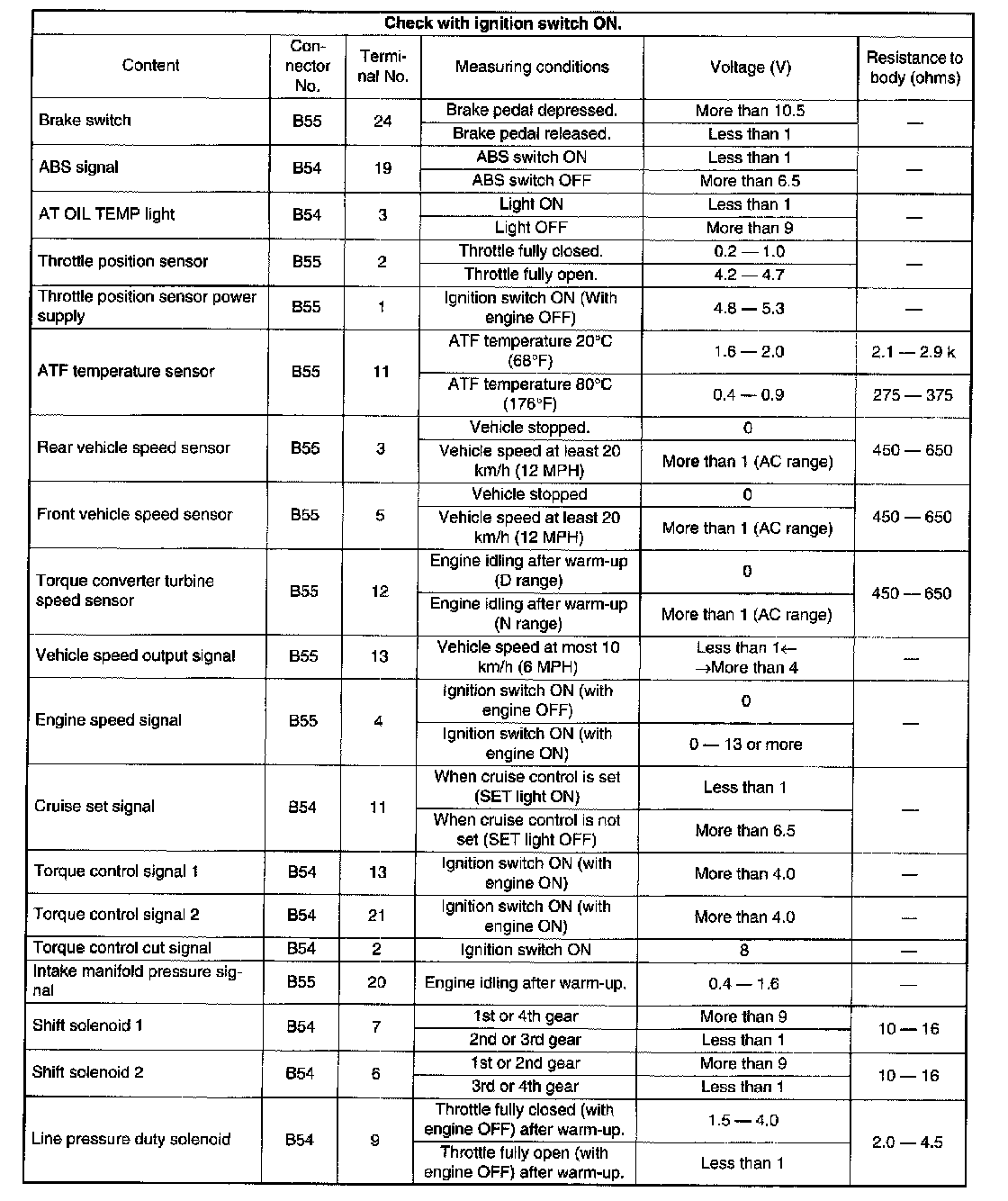

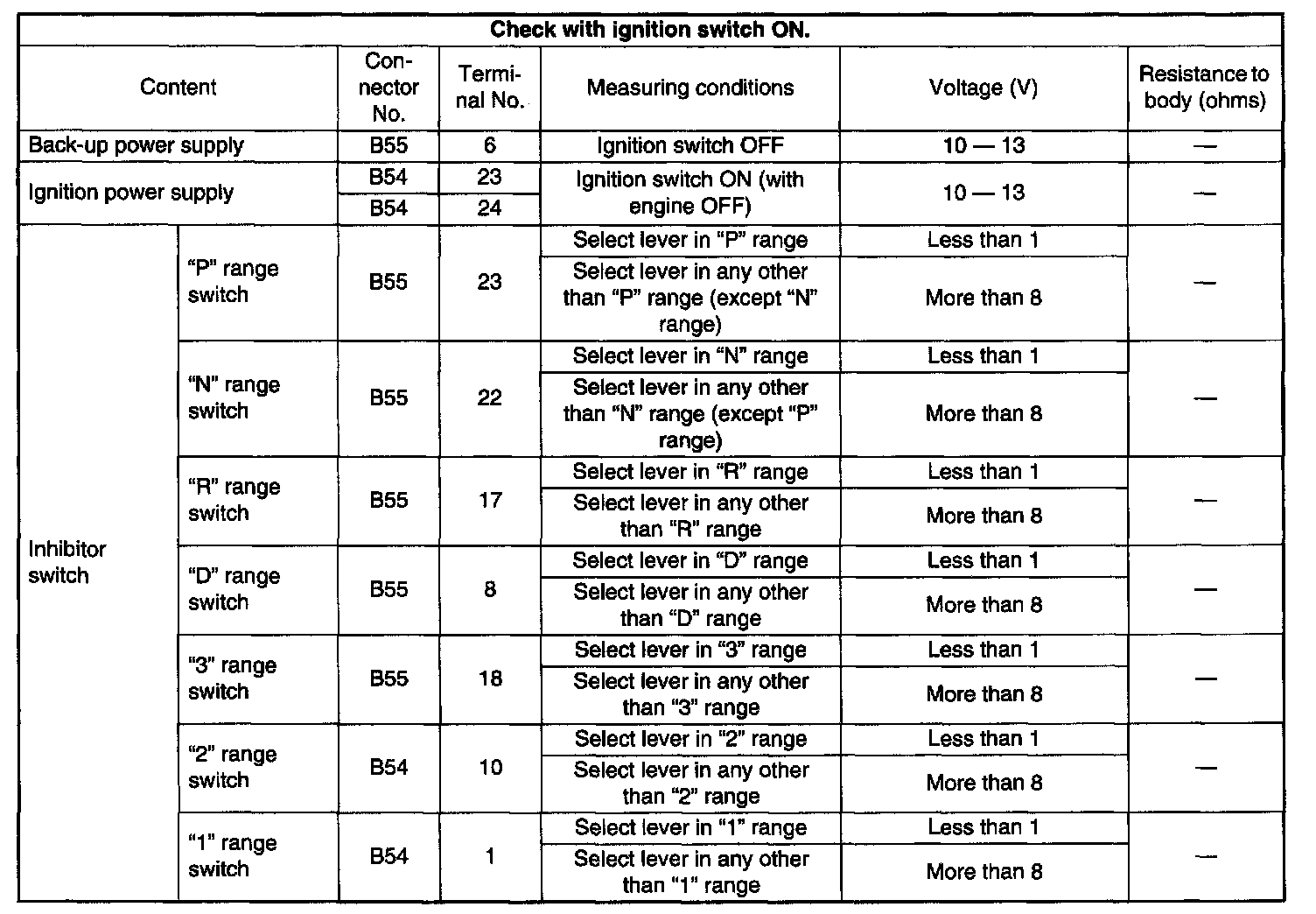

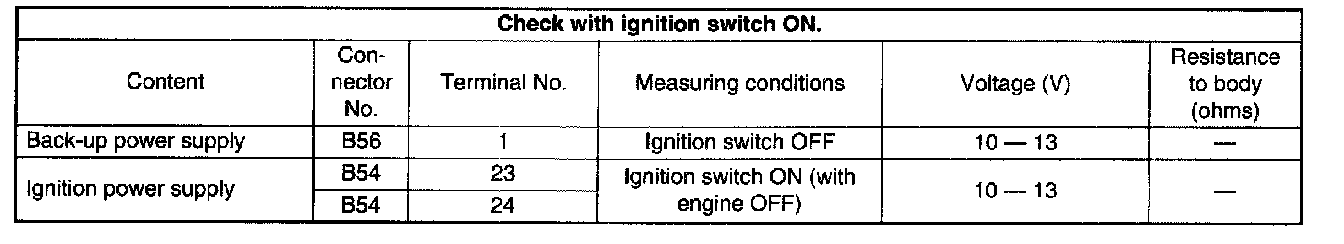

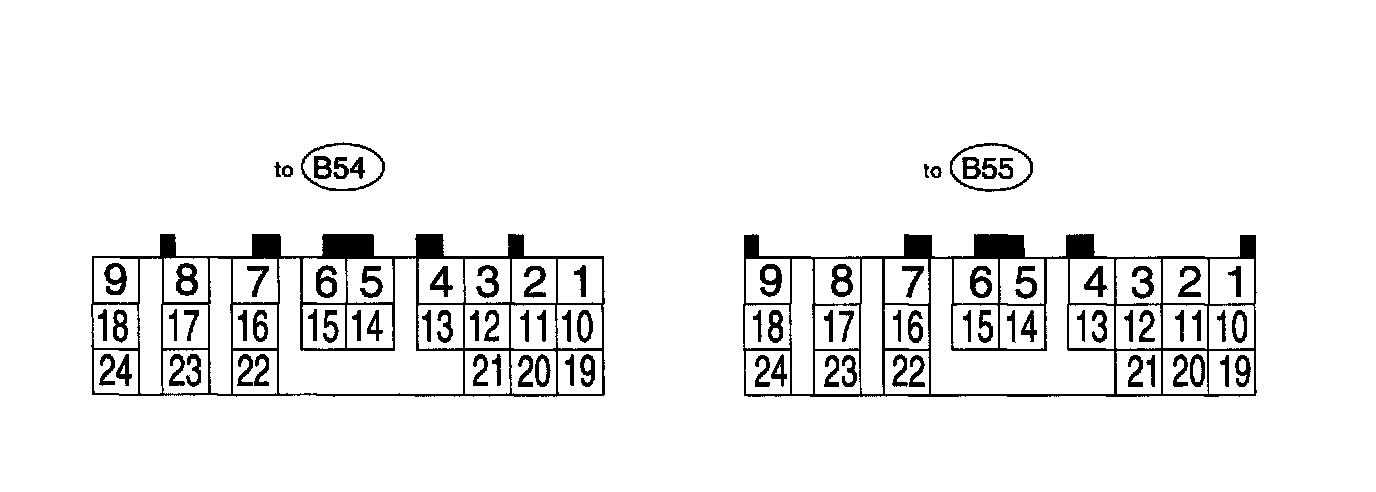

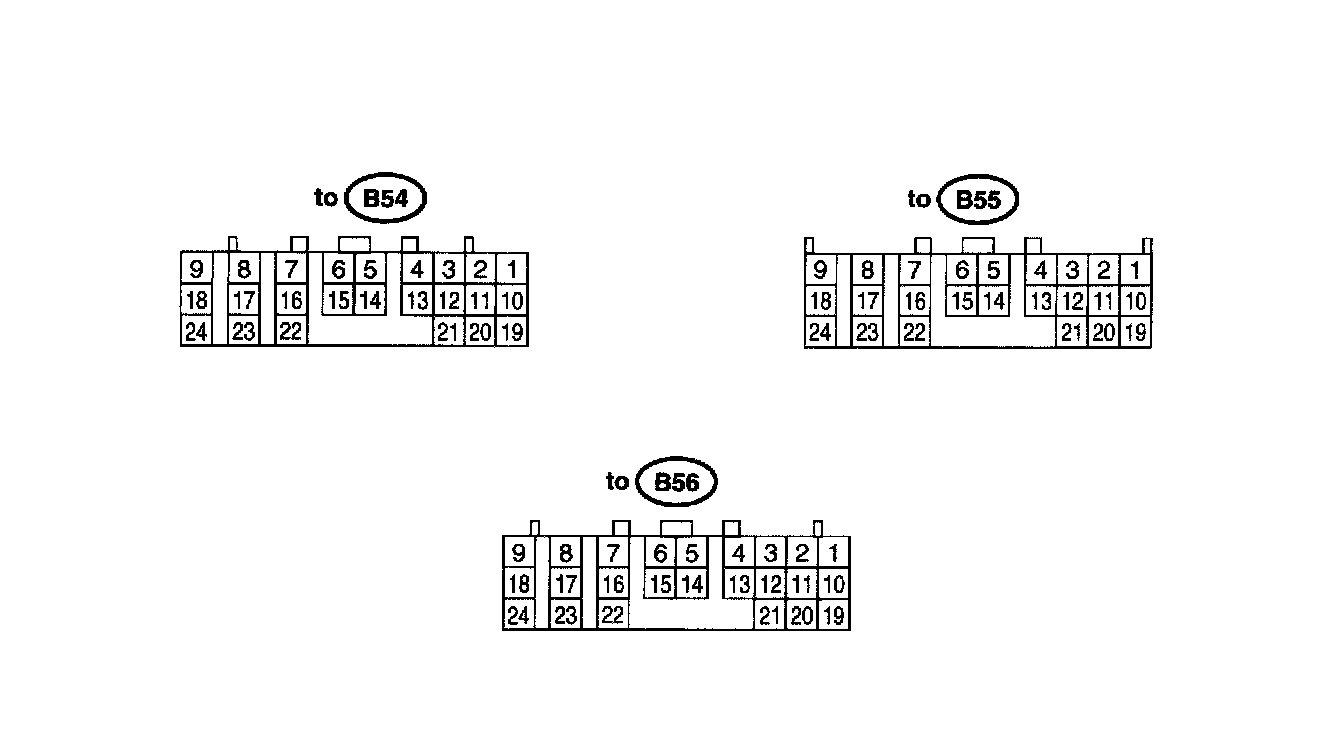

Home >> Subaru >> 2005 >> Outback Sport F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values
