Front Suspension

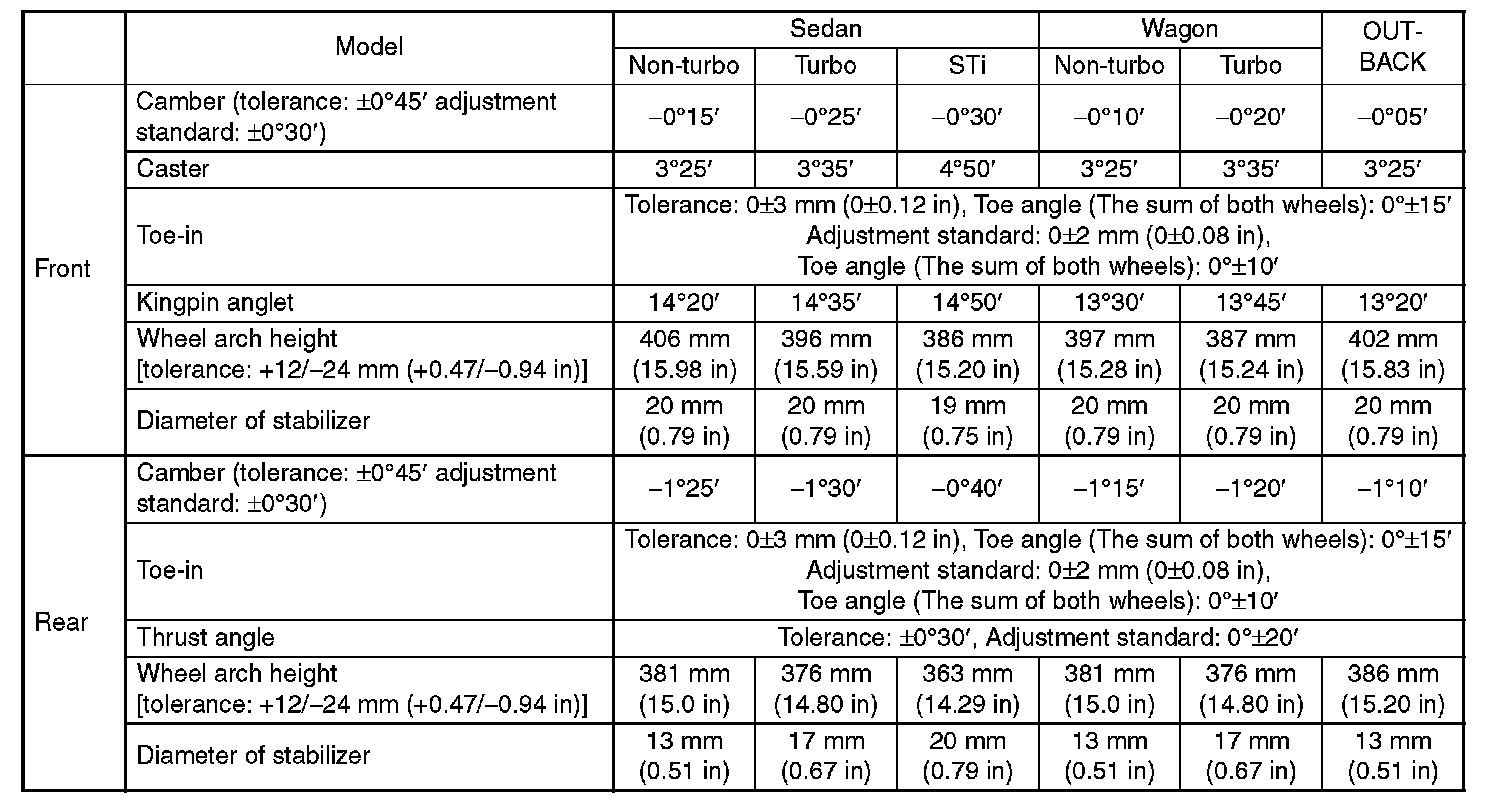

SPECIFICATION








NOTE:

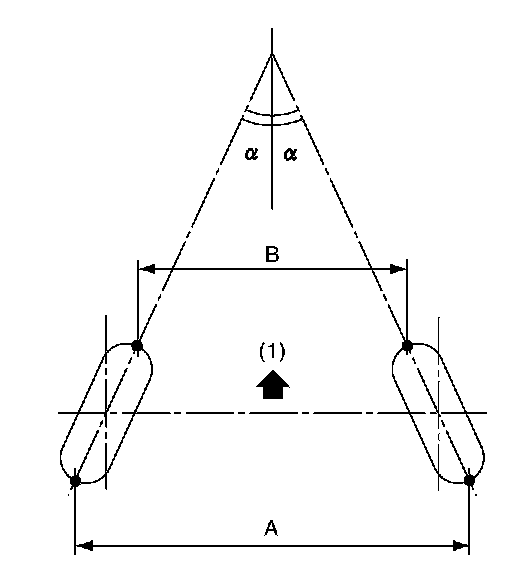

^ Front and rear toe-in and front camber can be adjusted. If toe-in or camber exceeds tolerance, adjust toe in and camber to the adjustment standard.
^ The other items indicated in the specification table cannot be adjusted. If the other items exceed specifications, check suspension parts and connections for deformities; replace with new ones as required.
