Ignition Lock: Testing and Inspection

Ignition Key Lock

INSPECTION
1. Remove the instrument panel lower panel.
2. Remove the lower column cover.
3. Unfasten the fixing clip which secures harness, and then disconnect the connector of the ignition switch from body harness.

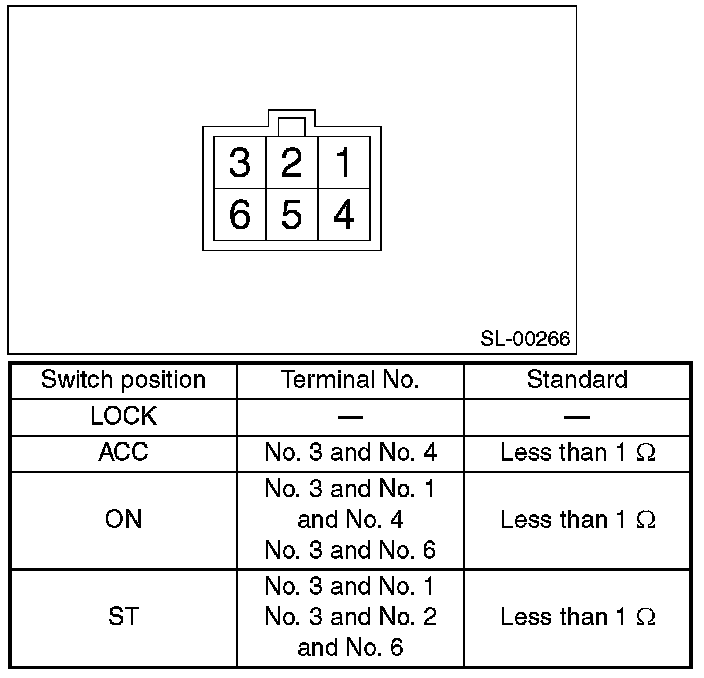

4. Turn the ignition key plate to each position and check the continuity between terminals of ignition connector.
If NG, replace the ignition switch.
