Combination Base Switch Assembly
Combination Base Switch AssemblyINSPECTION
1. COMBINATION BASE SWITCH ASSEMBLY
Inspect the combination base switch assembly and roll connector for crack or deformation. If any damage is found, replace with a new one.

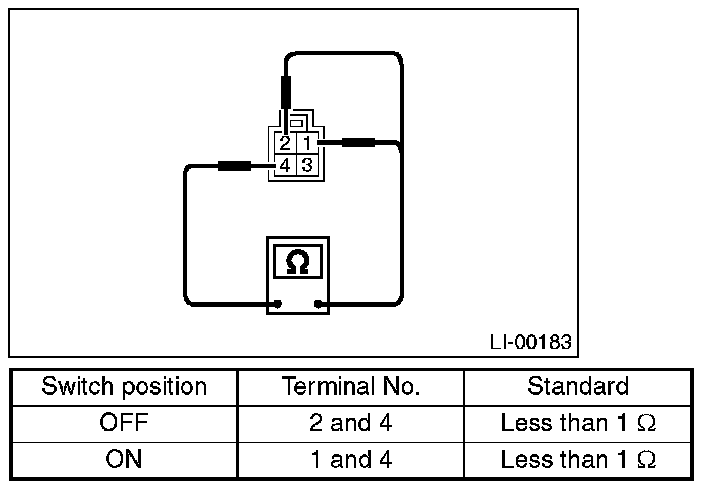

2. PARKING SWITCH
Measure the resistance between parking switch terminals.
