Power Transistor HVAC: Service and Repair

Power Transistor (Auto A/C Model)

REMOVAL
1. Remove the glove box lower cover on passenger side.
2. Disconnect the power transistor connector.

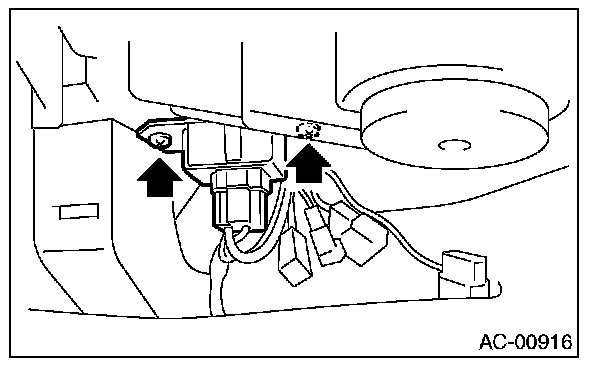

3. Remove the two screws, and then remove the power transistor.

INSTALLATION
Install in the reverse order of removal.
