Heater Core: Service and Repair
Heater CoreREMOVAL
1. Remove the heater and cooling unit.

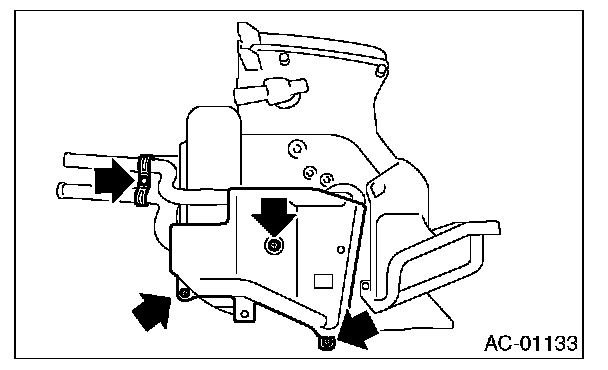

2. Remove the screws and remove the heater core cover and pipe clamp.

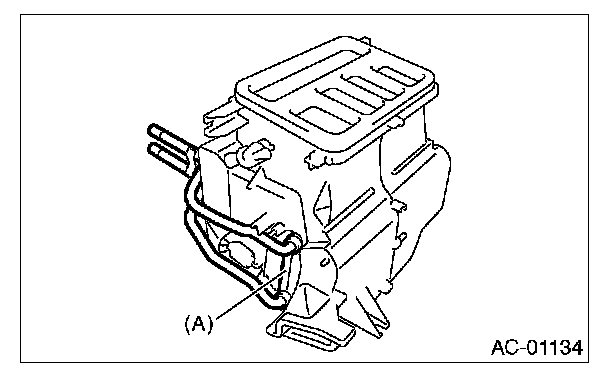

3. Remove the heater core (A).
INSTALLATION
Install in the reverse order of removal.
REMOVAL
1. Remove the heater and cooling unit.
2. Remove the screws and remove the heater core cover and pipe clamp.
3. Remove the heater core (A).
INSTALLATION
Install in the reverse order of removal.
