Keyless Entry Transmitter Battery: Testing and Inspection

TRANSMITTER BATTERY

INSPECTION

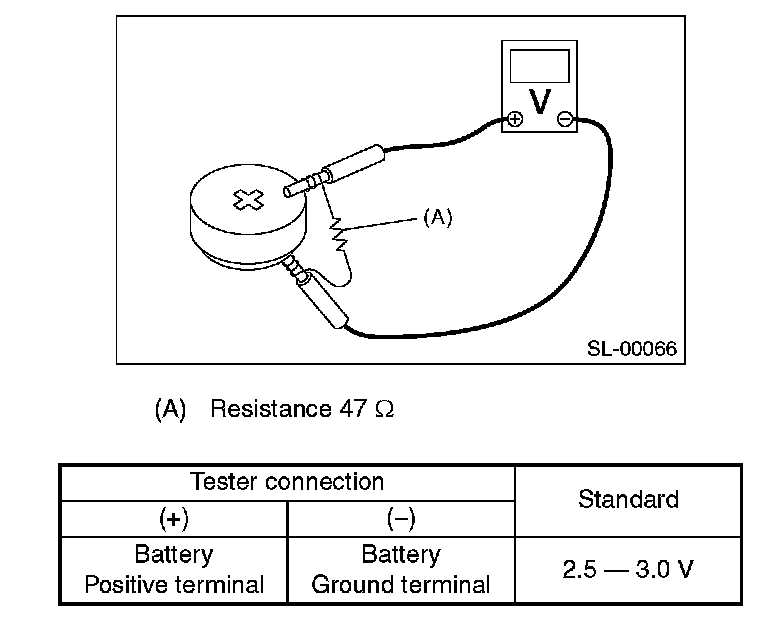

Measure the voltage between the transmitter battery (+) terminal and (-) terminal.

NOTE: Battery discharge occurs during the measurement. Complete the measurement within 5 seconds.

If NG, replace the battery. (Use CR2025 or equivalent.)
