Home >> Subaru >> 2005 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold >> 2.5L SOHC

2.5L SOHC

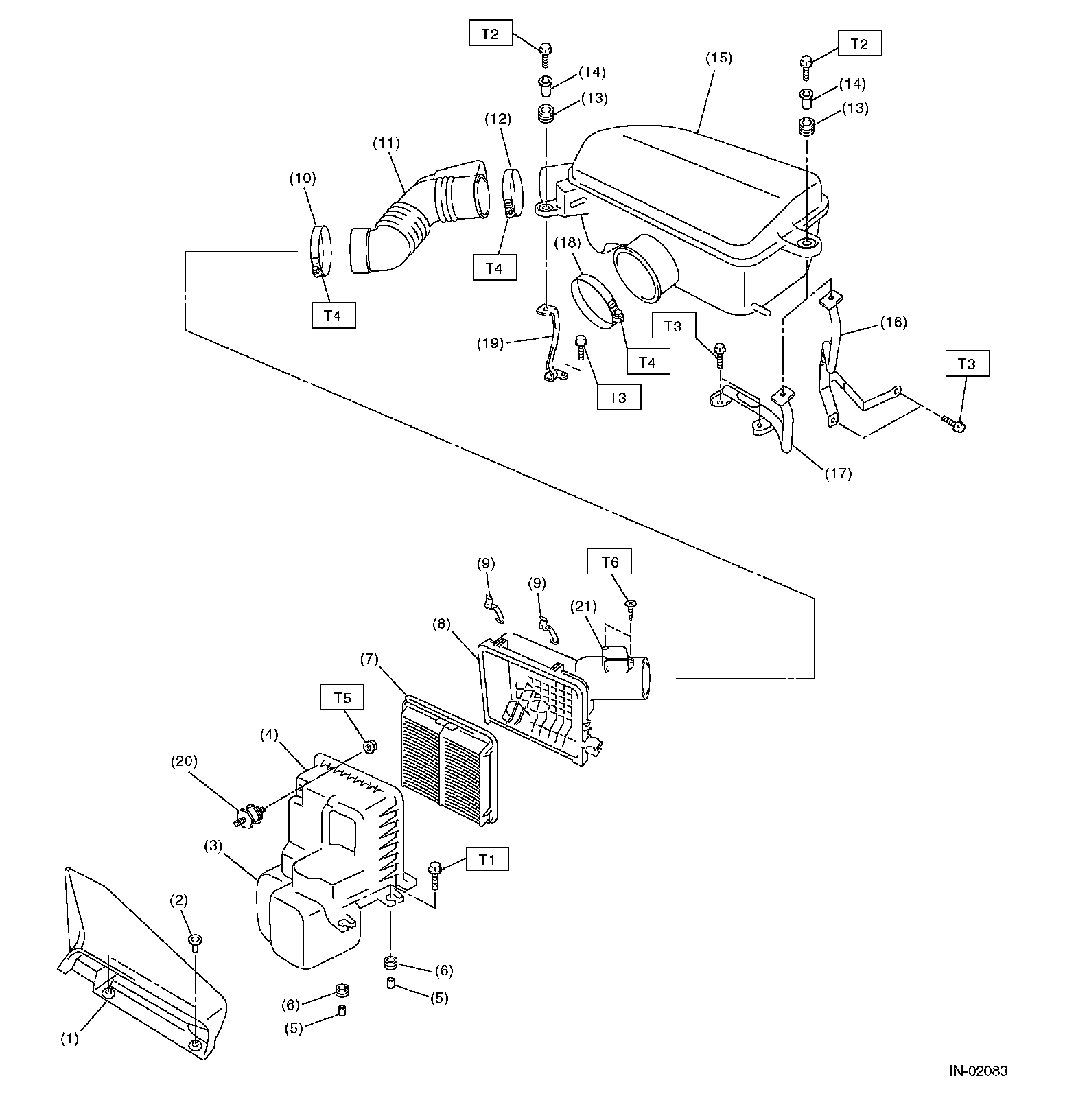

Intake (Part 1):

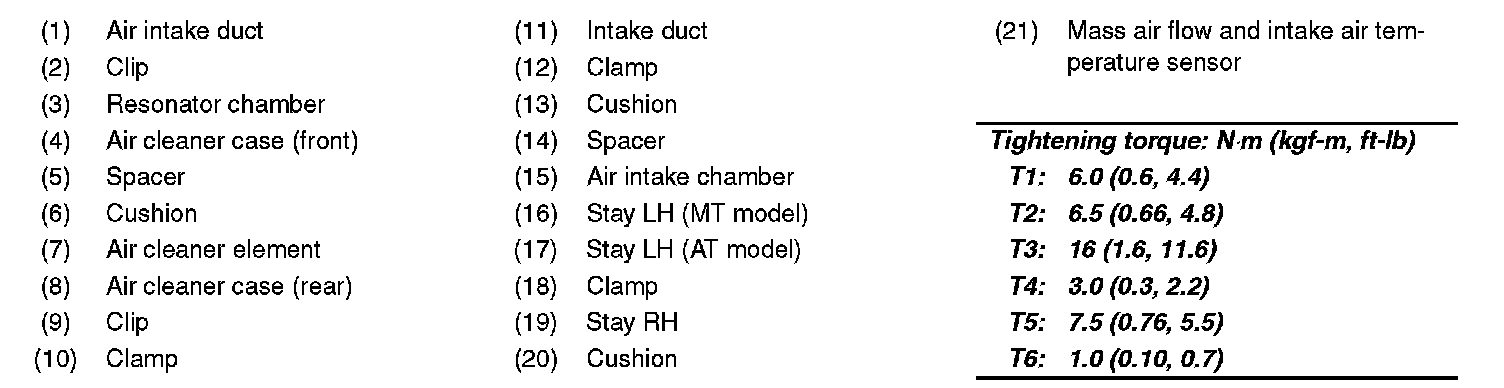

Intake (Part 2):
