Home >> Subaru >> 2005 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

ENGINE

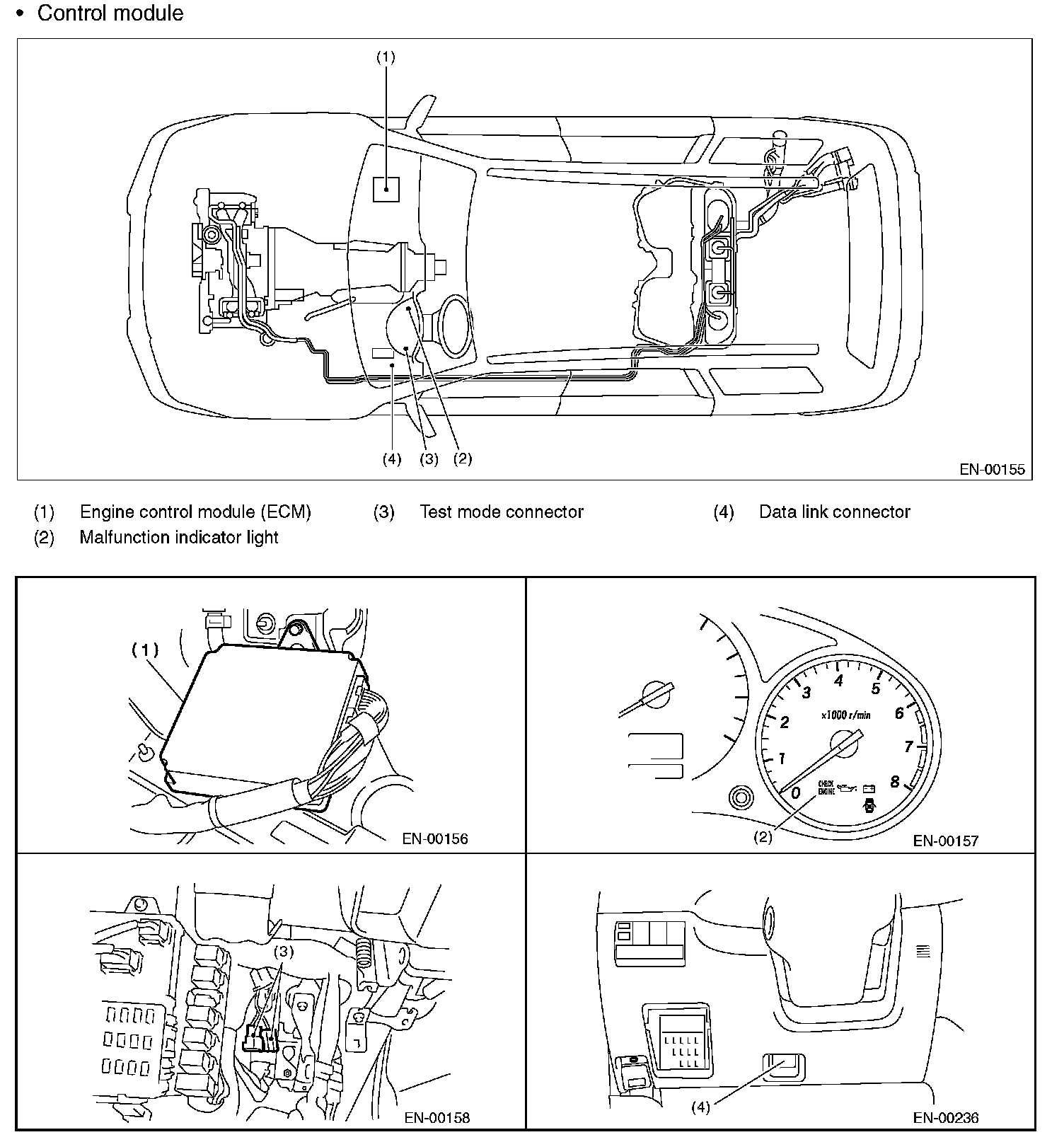

Control Module

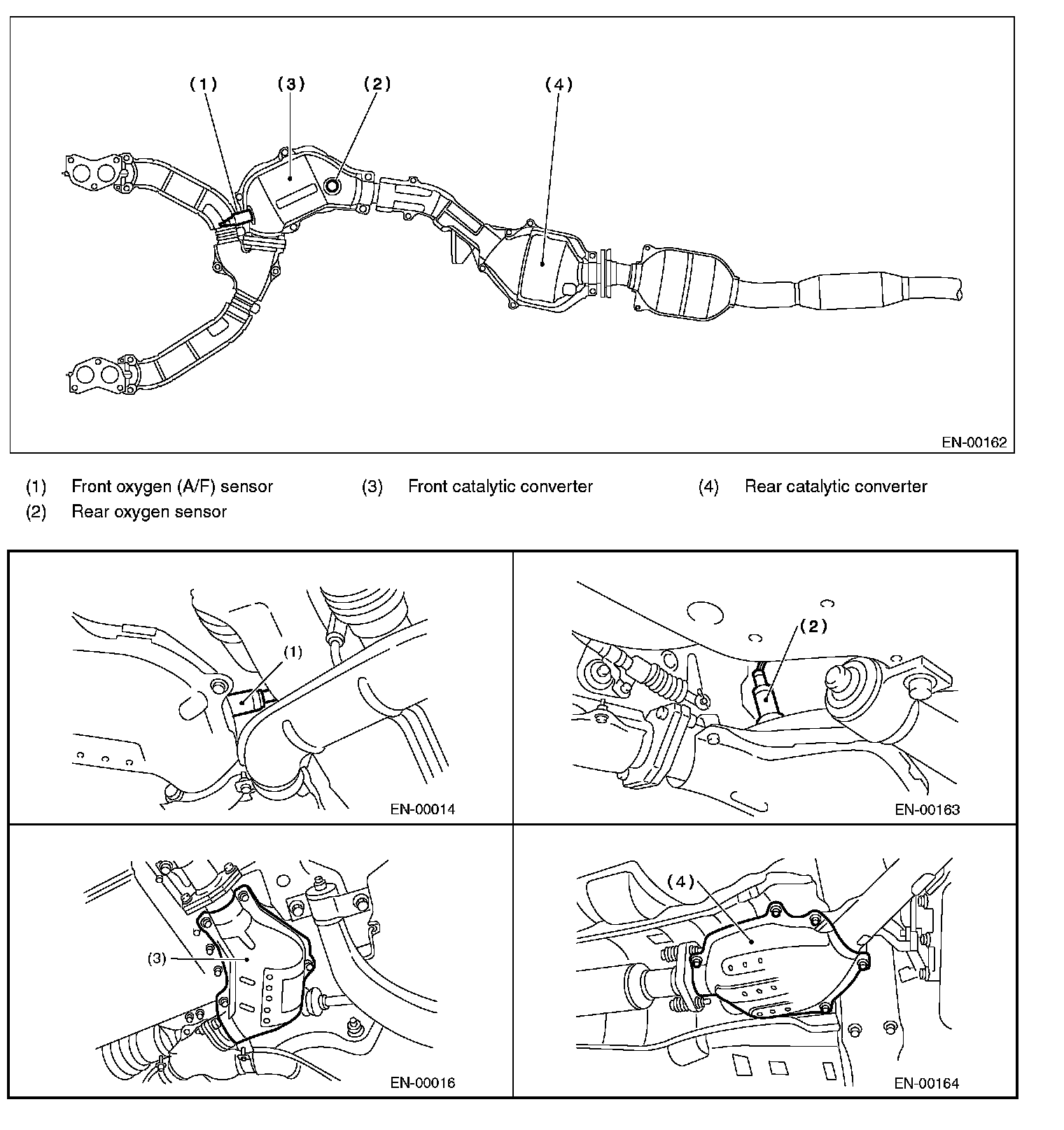

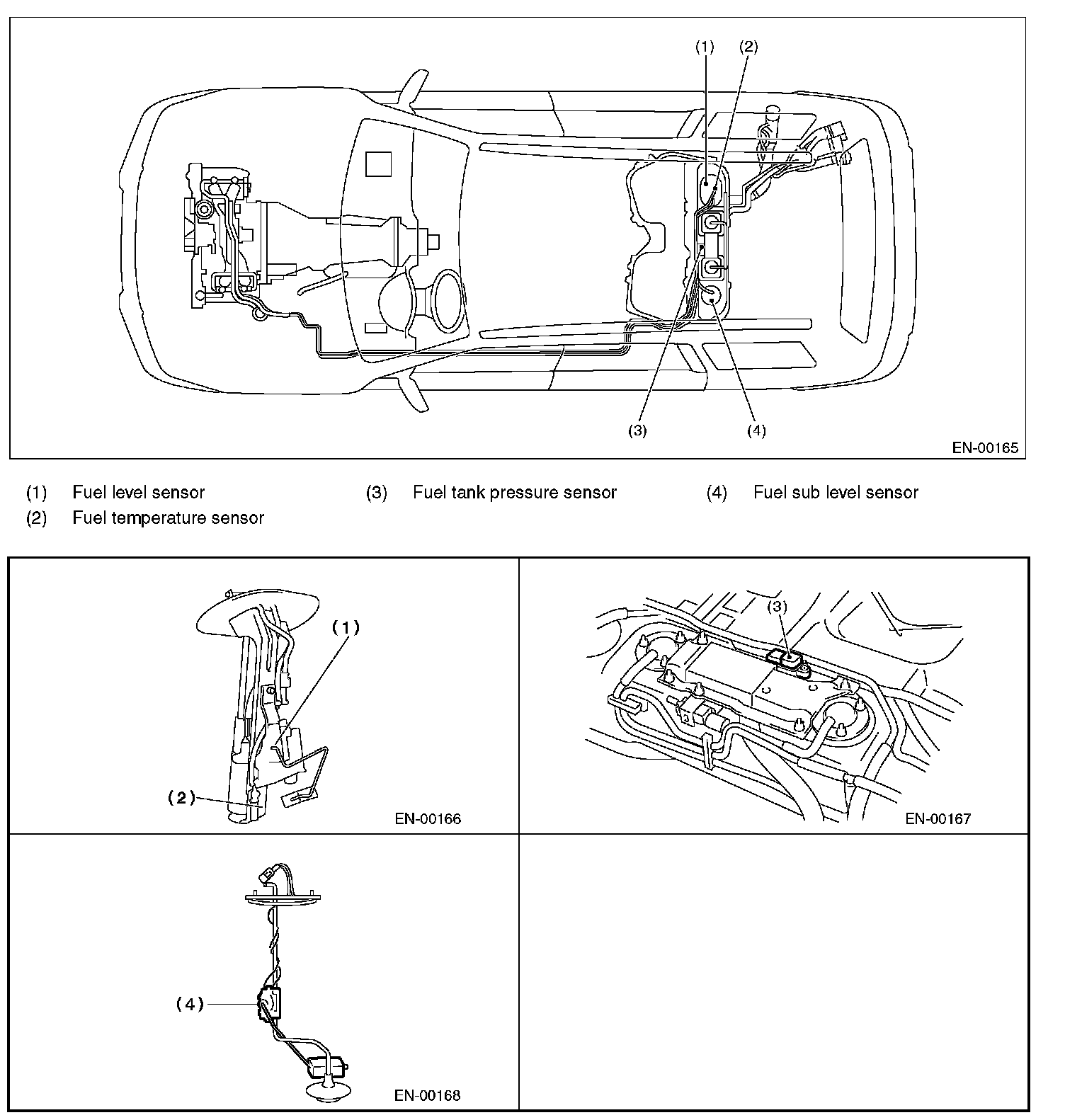

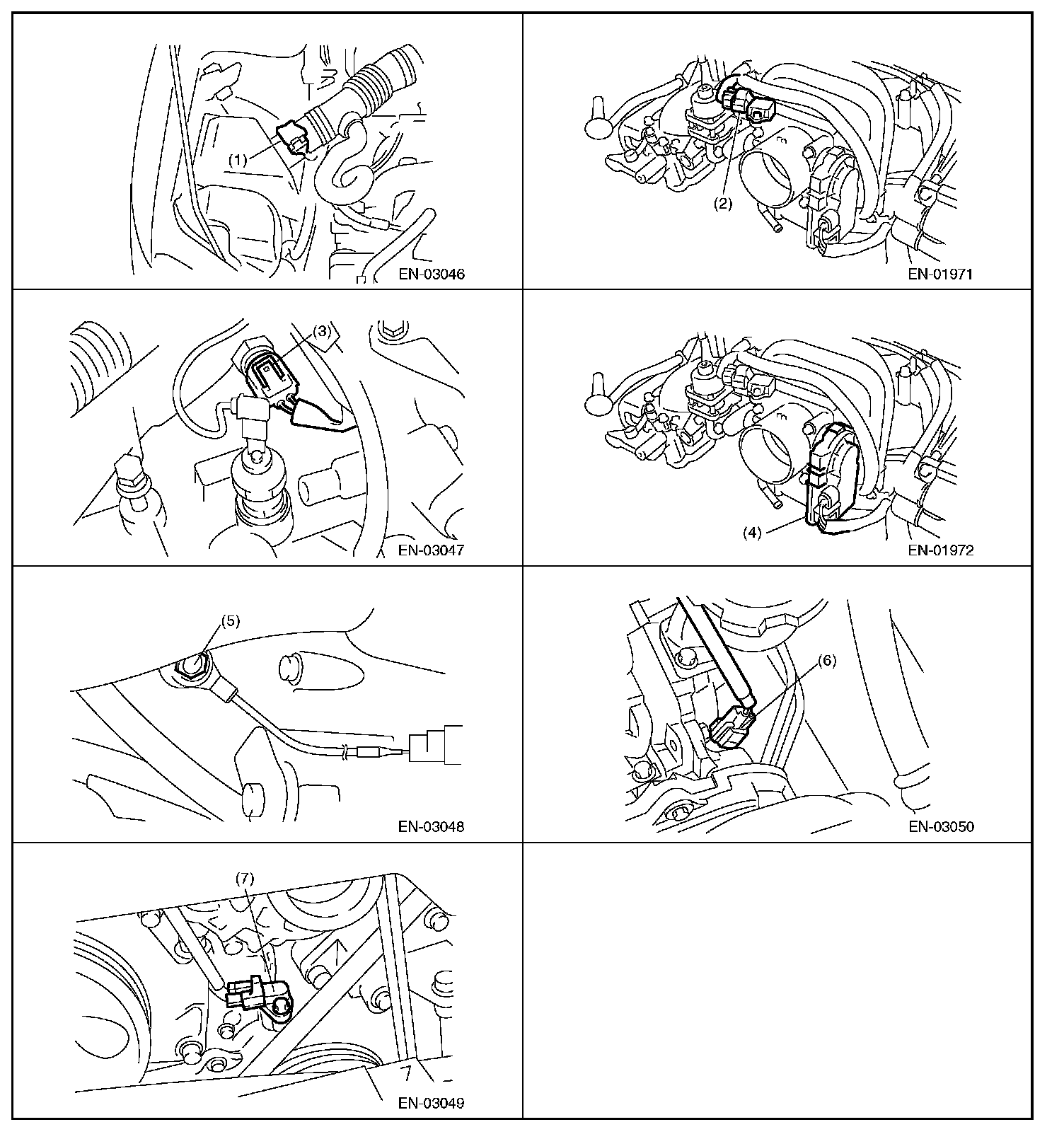

Sensor

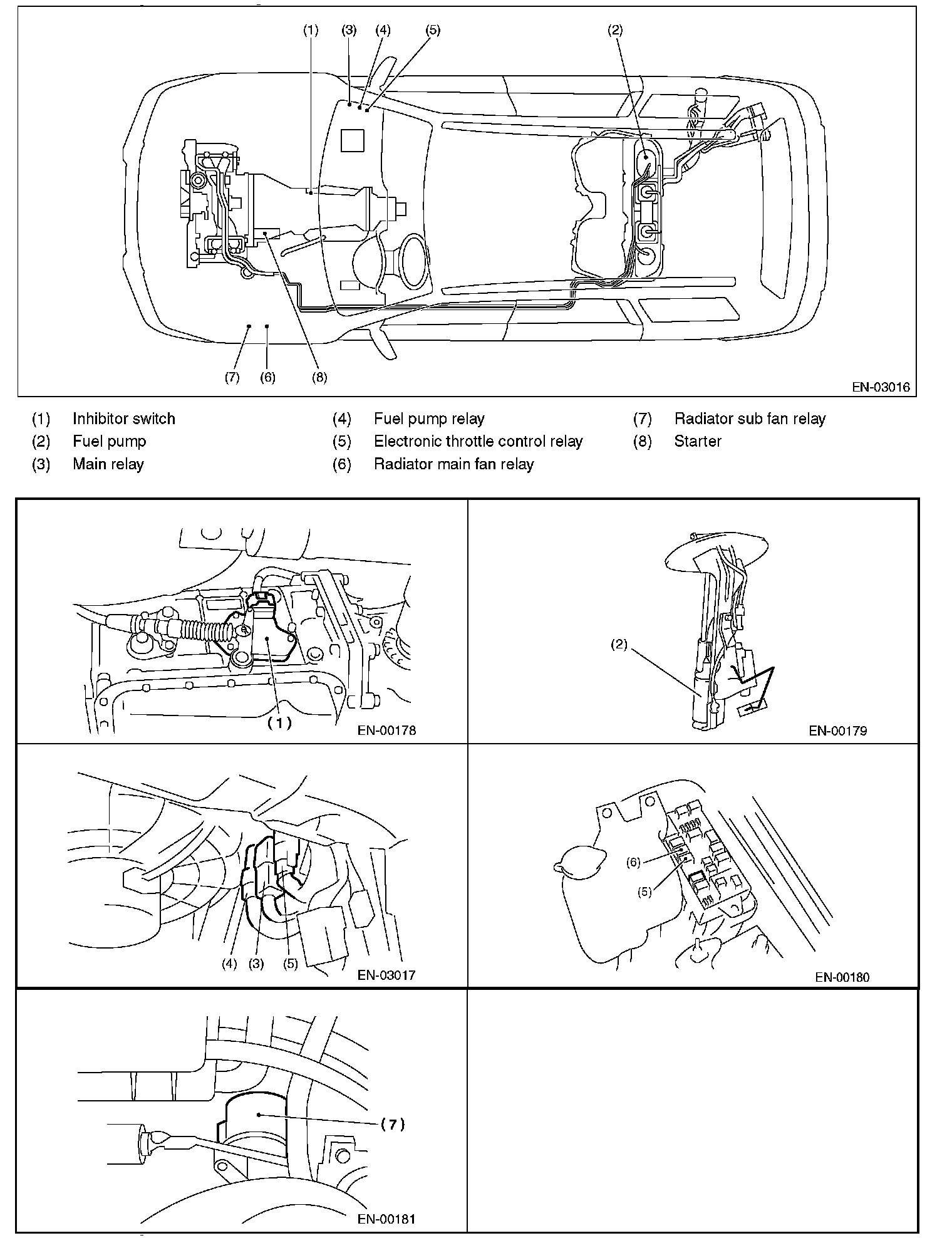

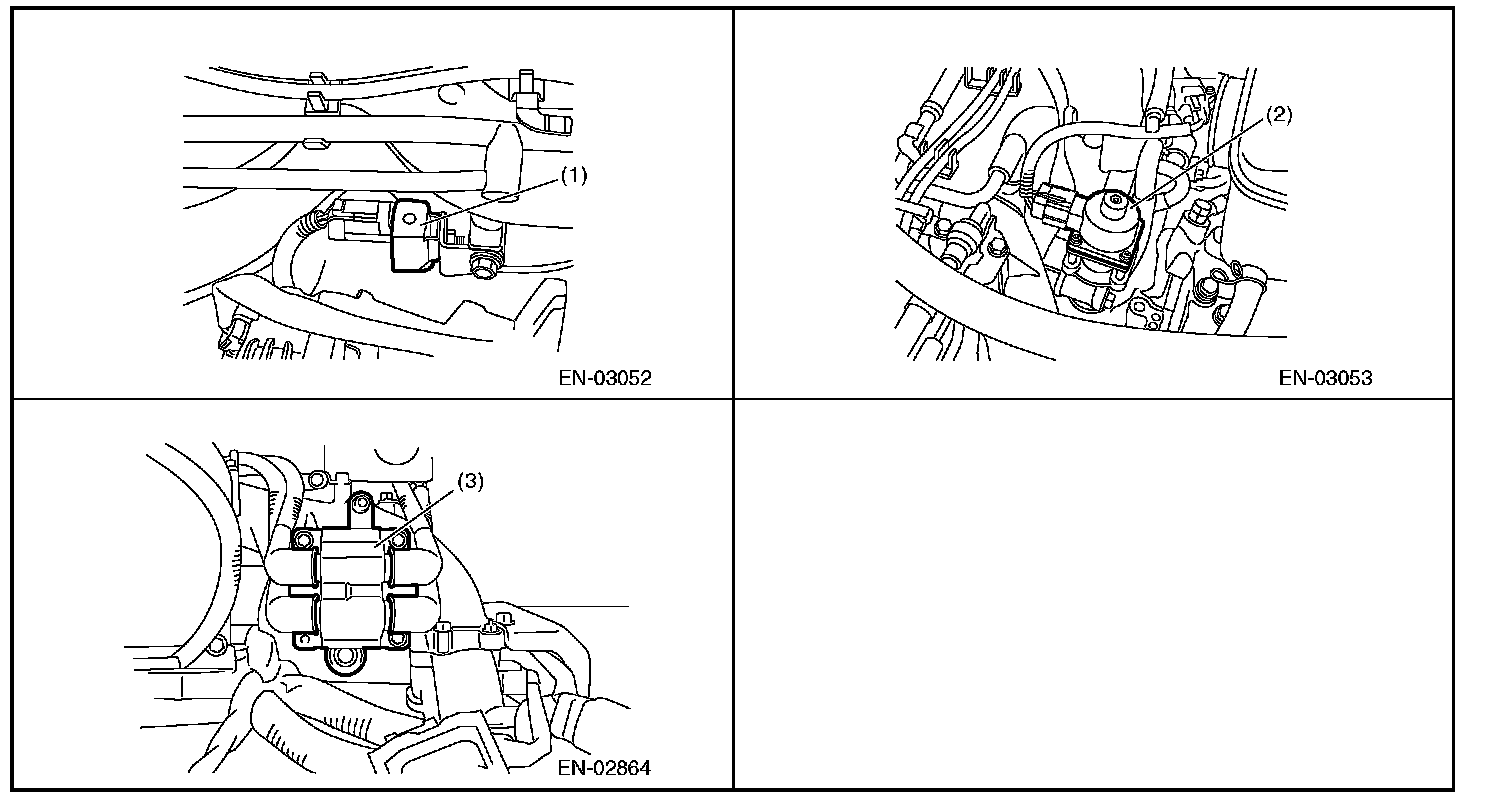

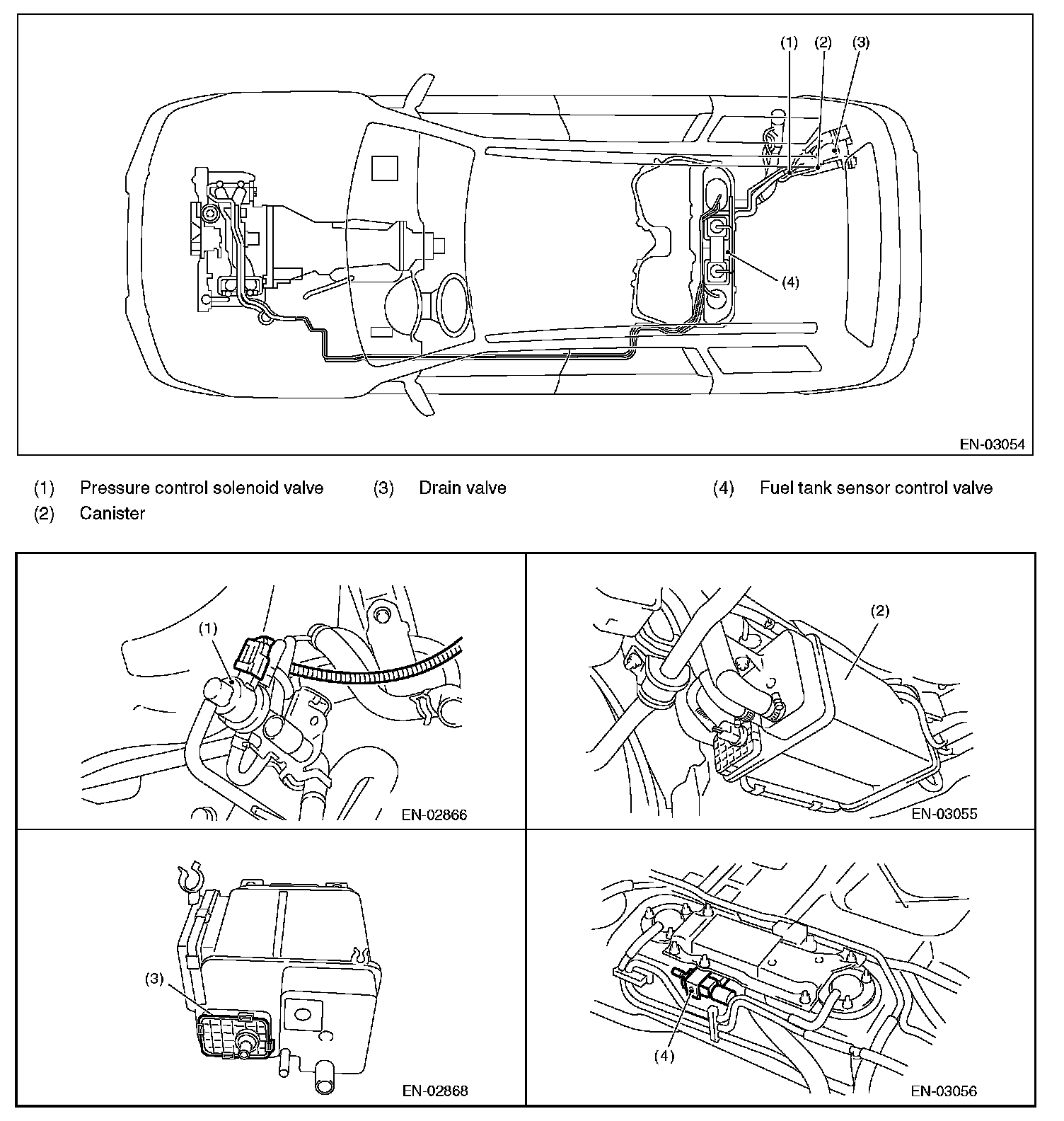

Solenoid valve, emission control system parts and ignition system parts
