System Diagram

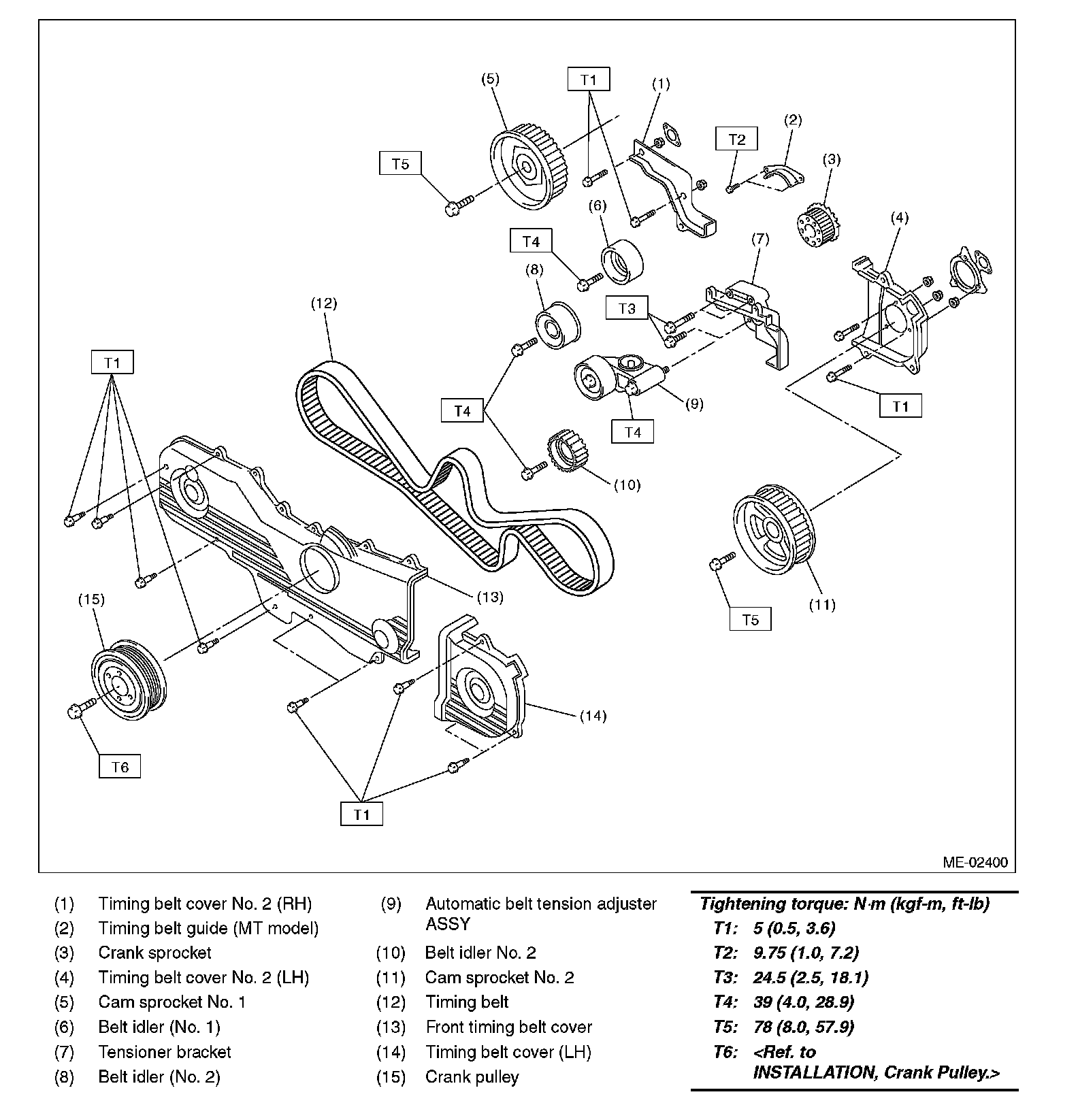

TIMING BELT

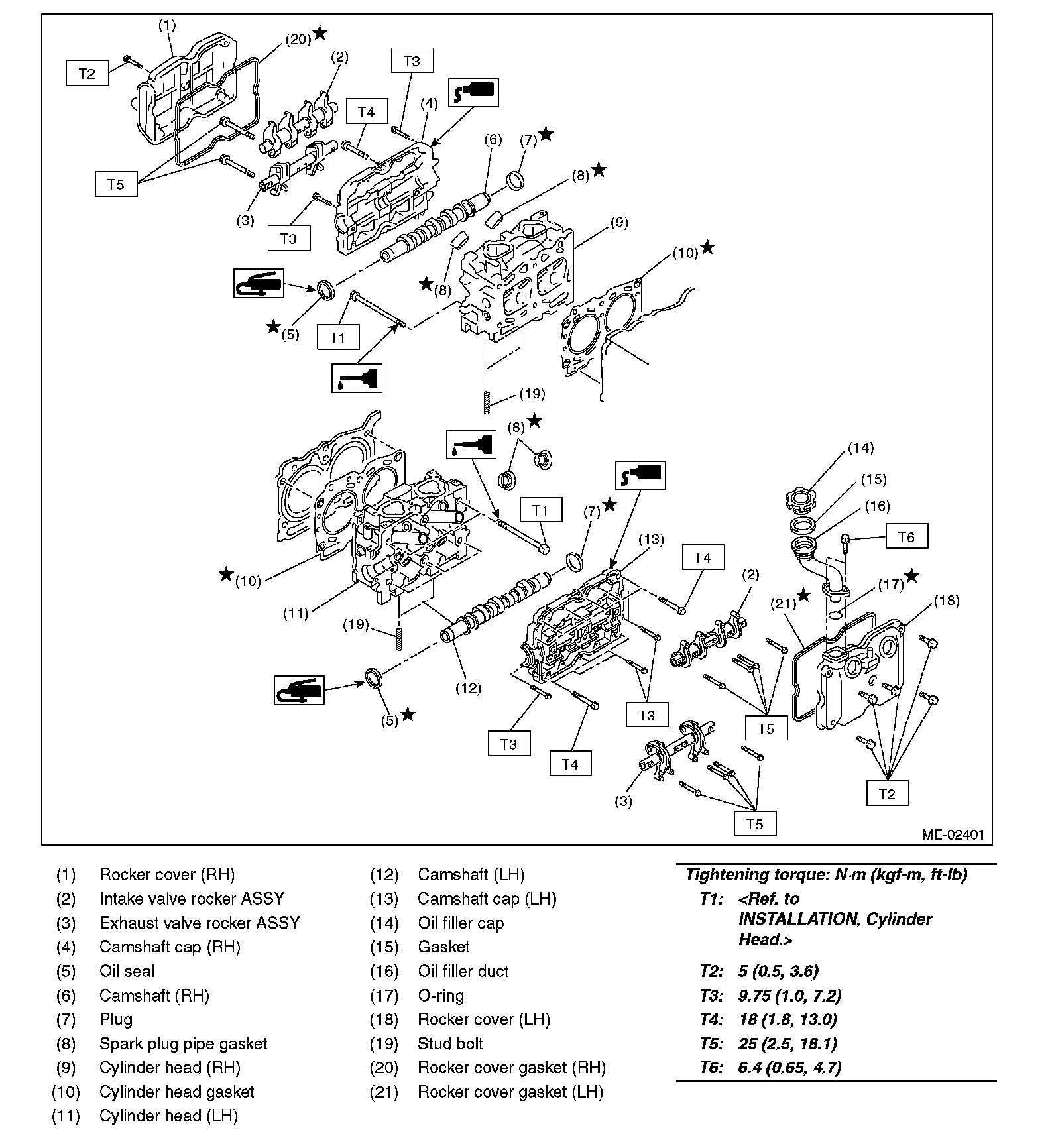

CYLINDER HEAD AND CAMSHAFT





VALVE ROCKER ASSEMBLY

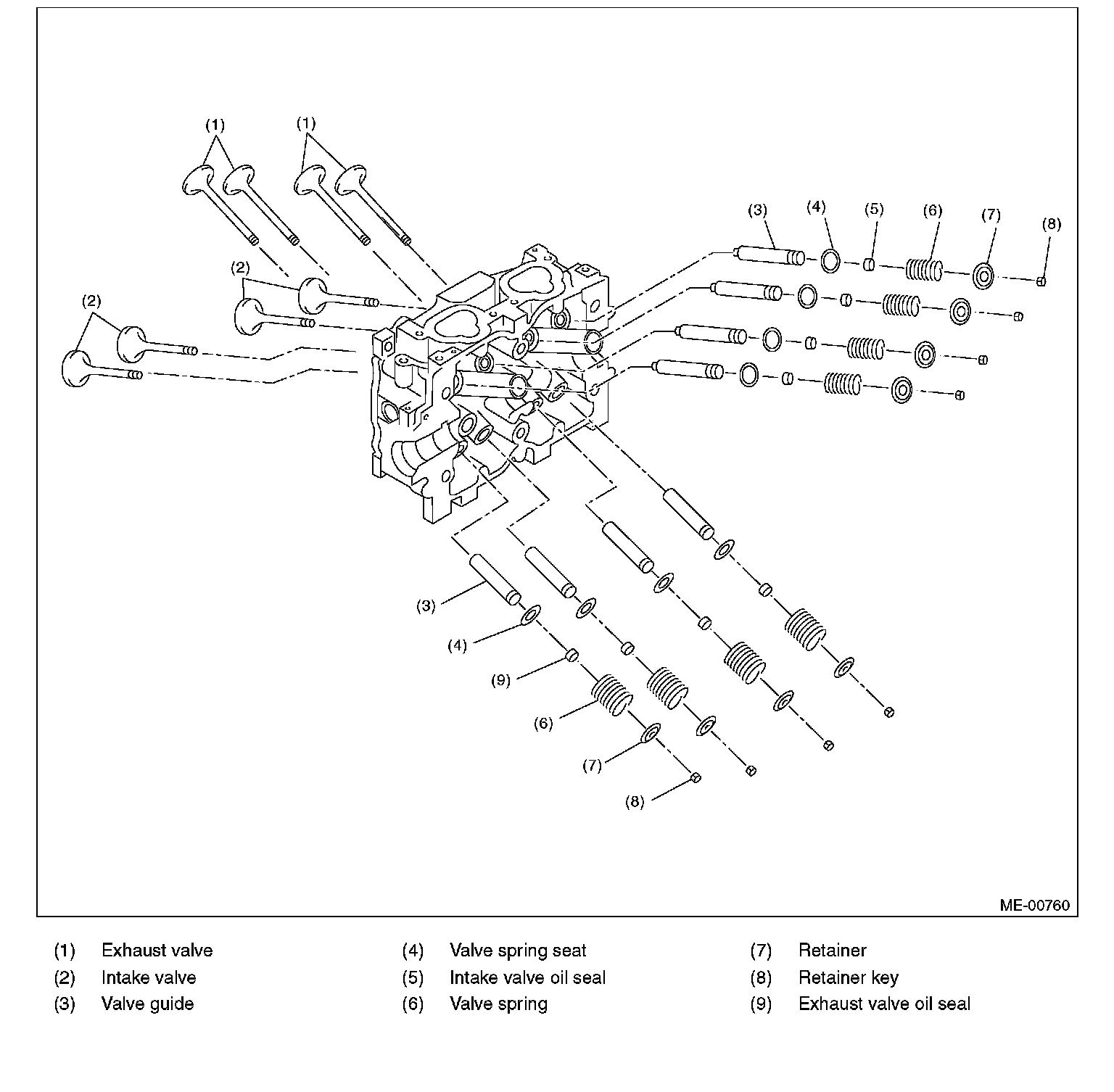

CYLINDER HEAD AND VALVE ASSEMBLY

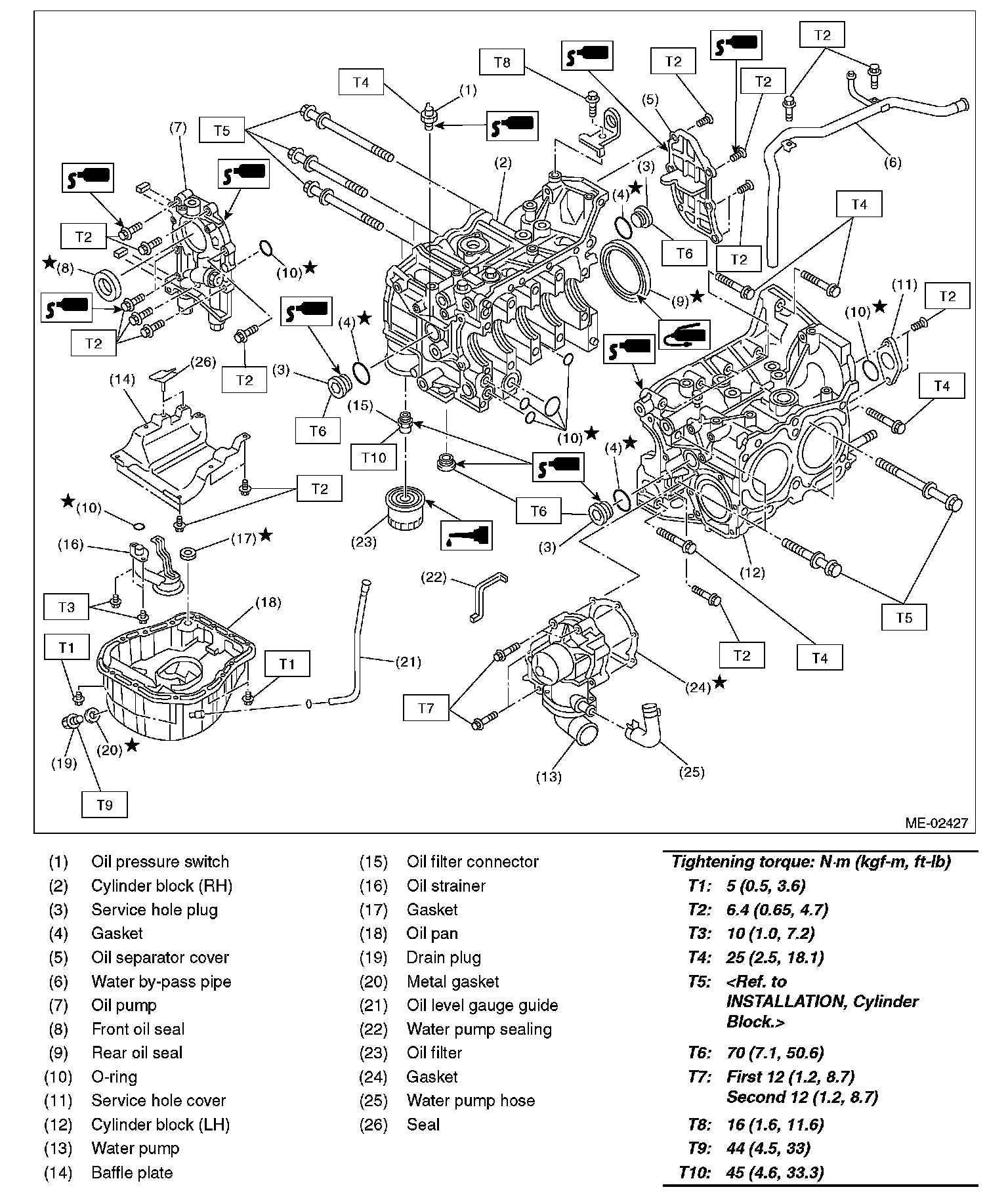

CYLINDER BLOCK

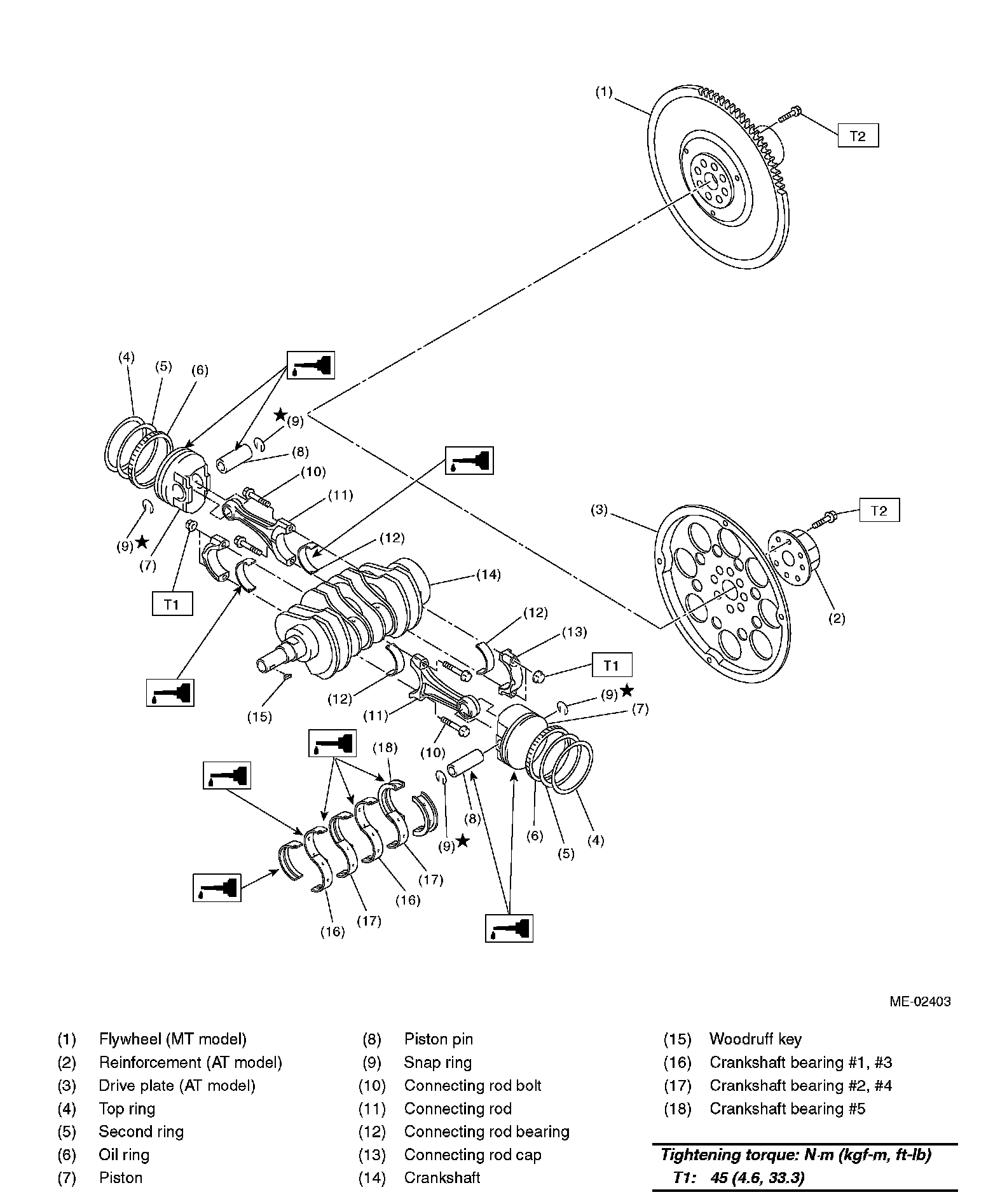

CRANKSHAFT AND PISTON

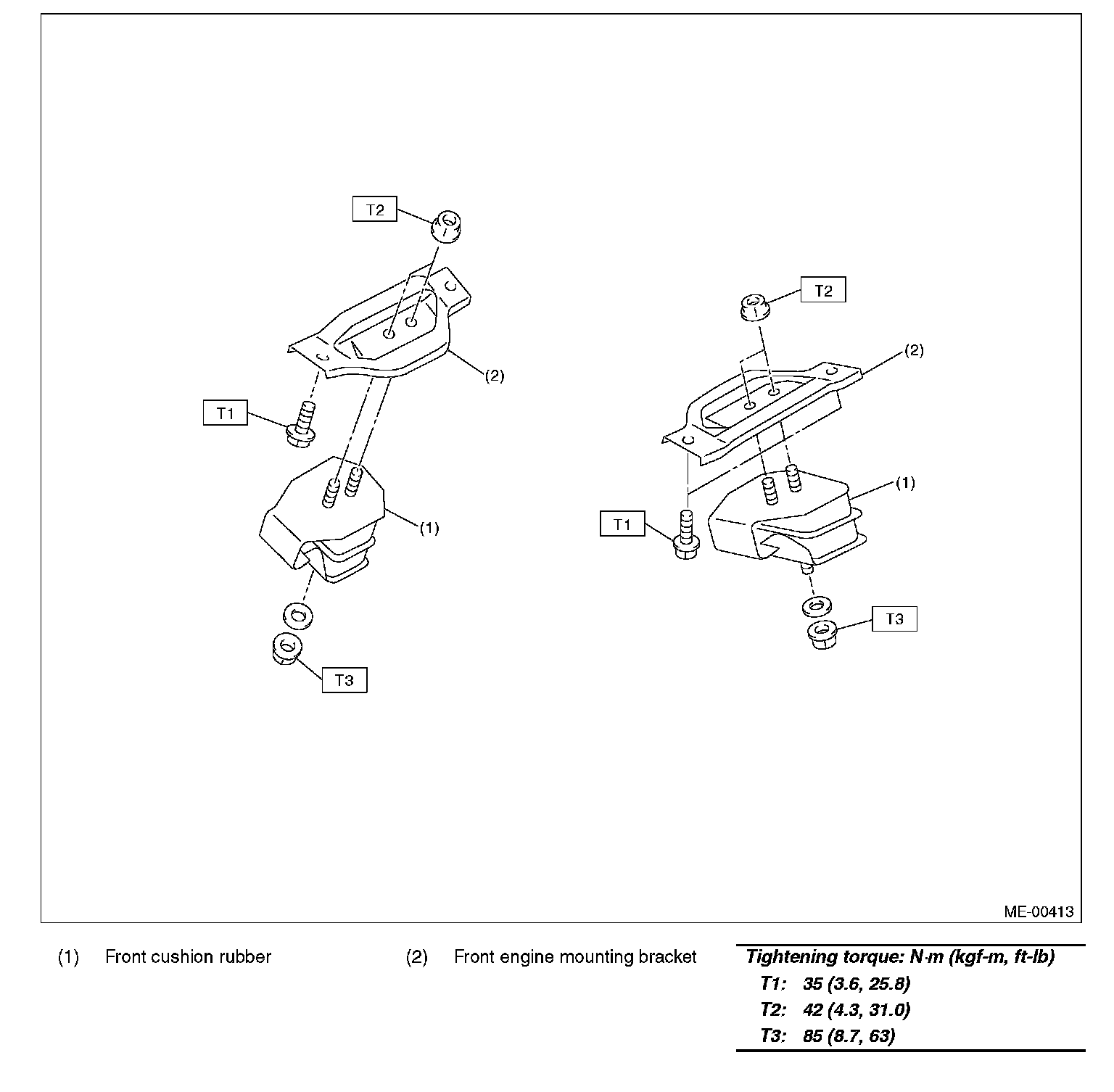

ENGINE MOUNTING
