Home >> Subaru >> 2005 >> Baja F4-2.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection

Control Module: Testing and Inspection

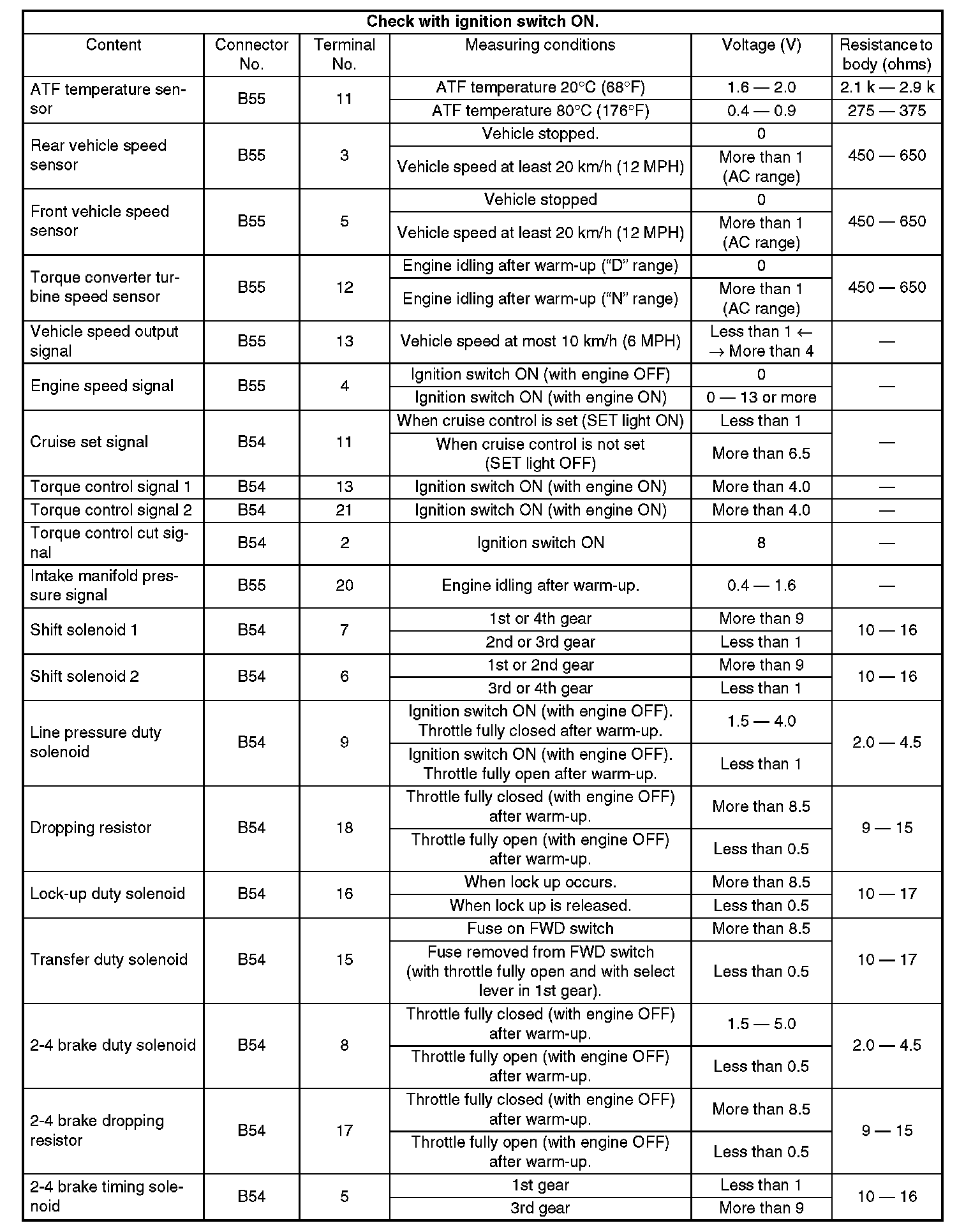

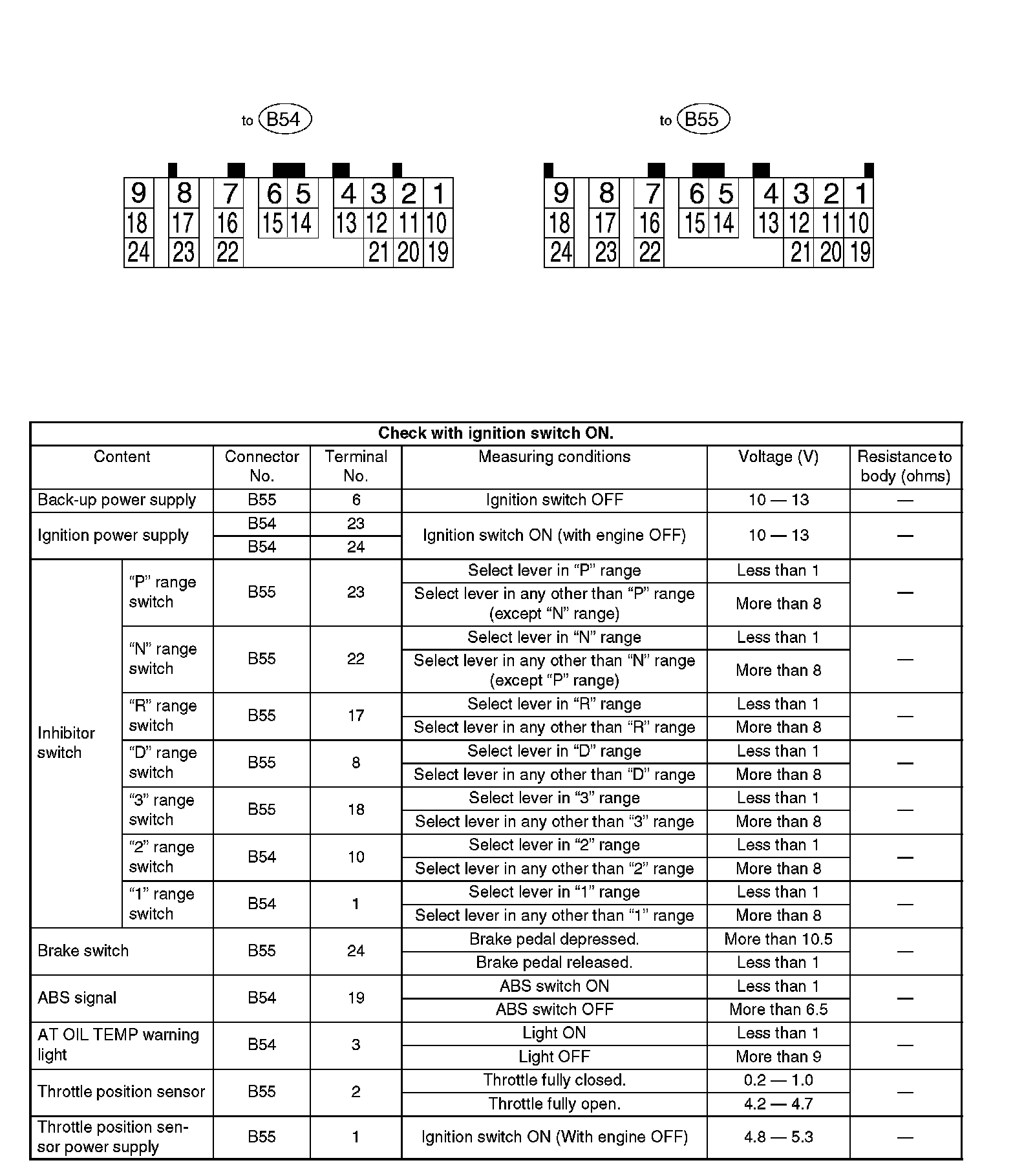

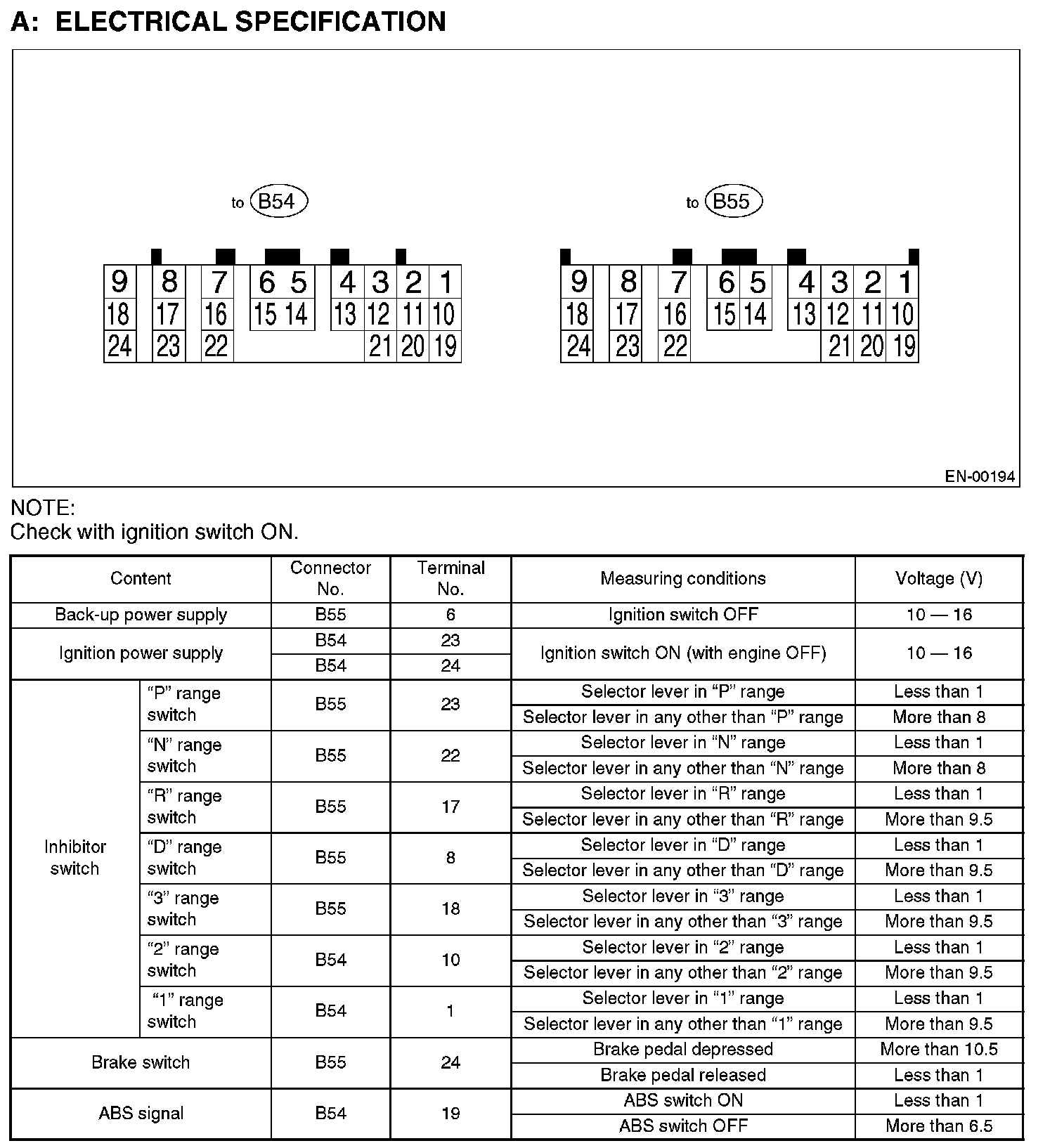

Transmission Control Module (TCM) I/O Signal (Part 1):

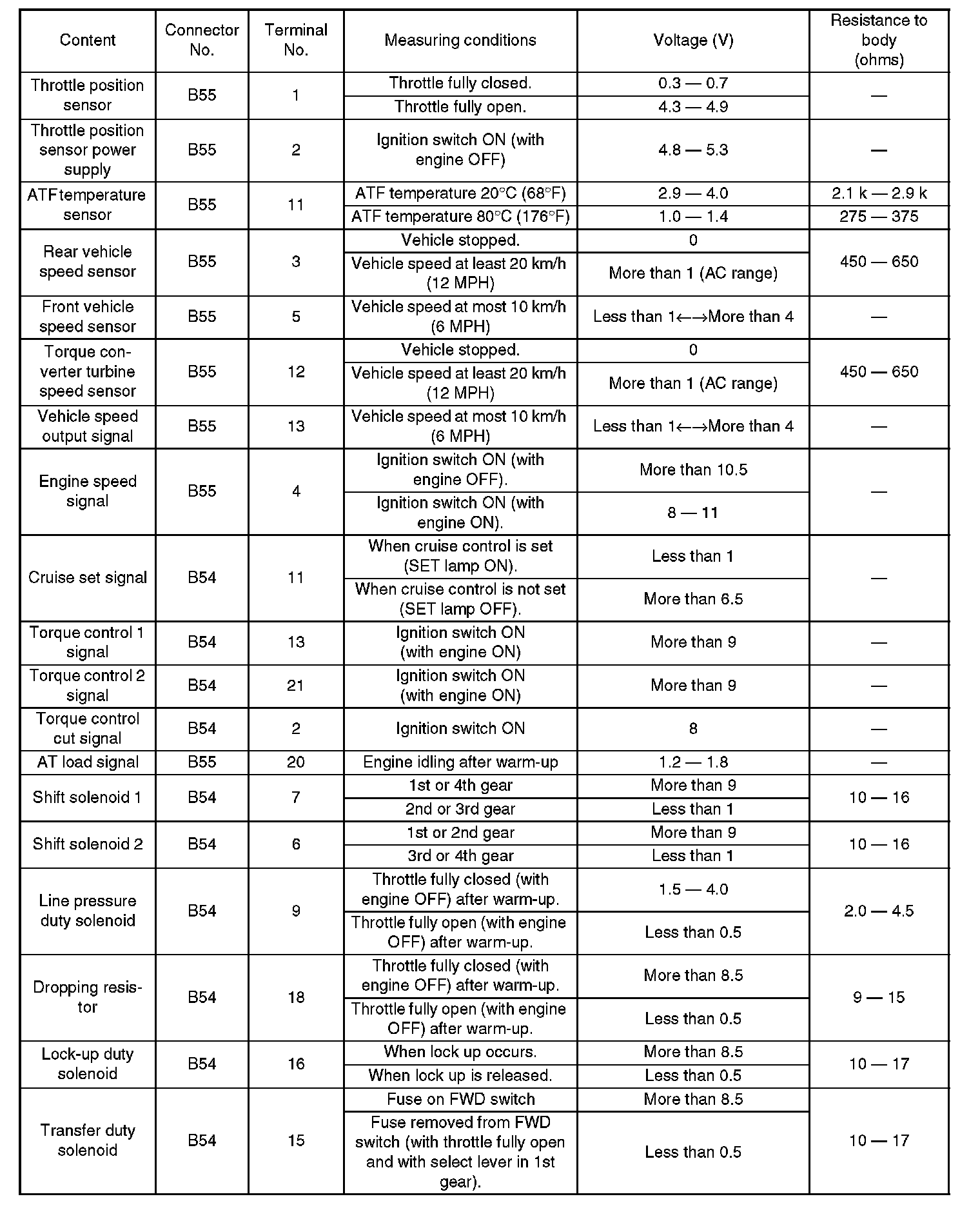

Transmission Control Module (TCM) I/O Signal (Part 2):

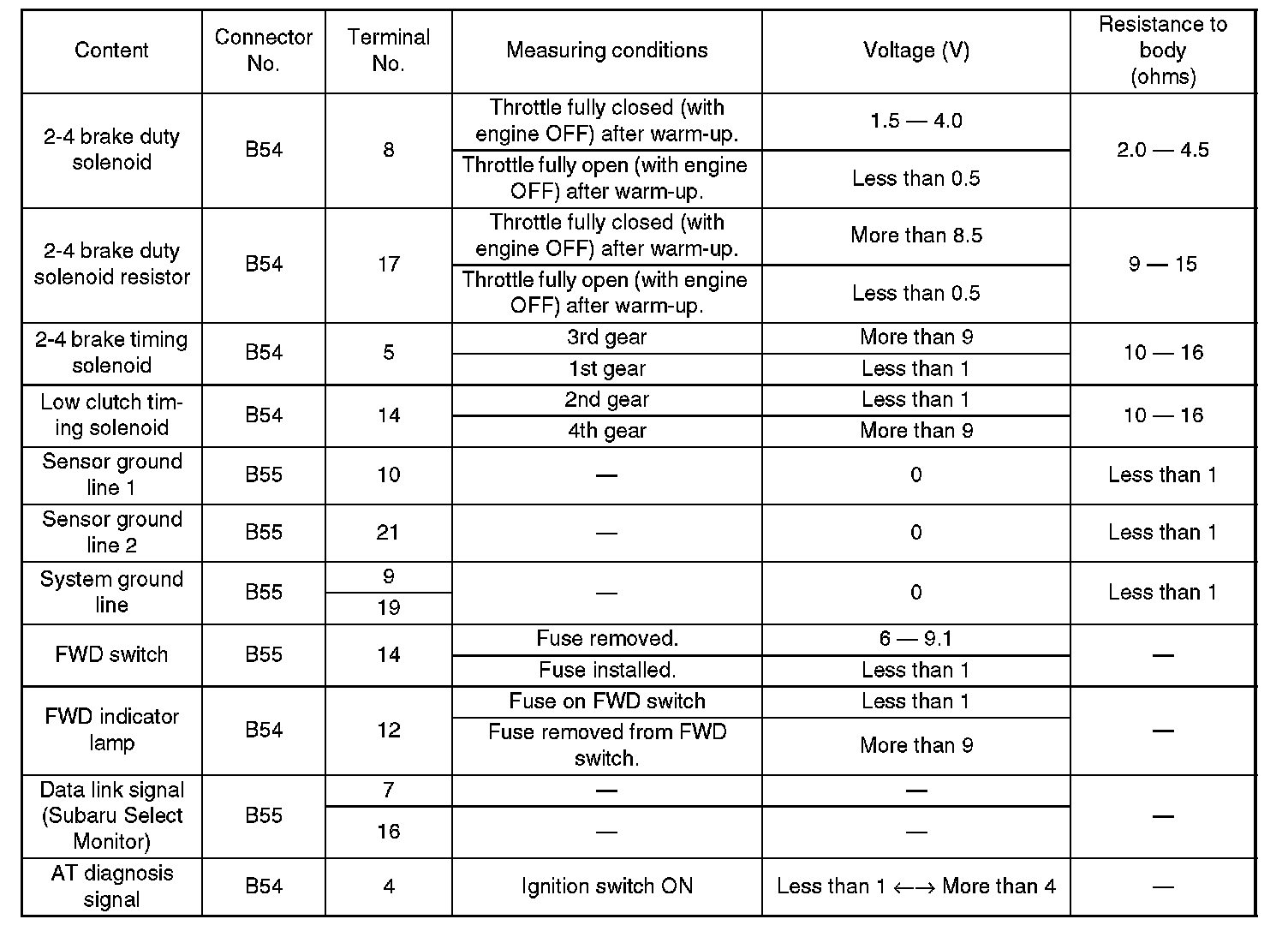

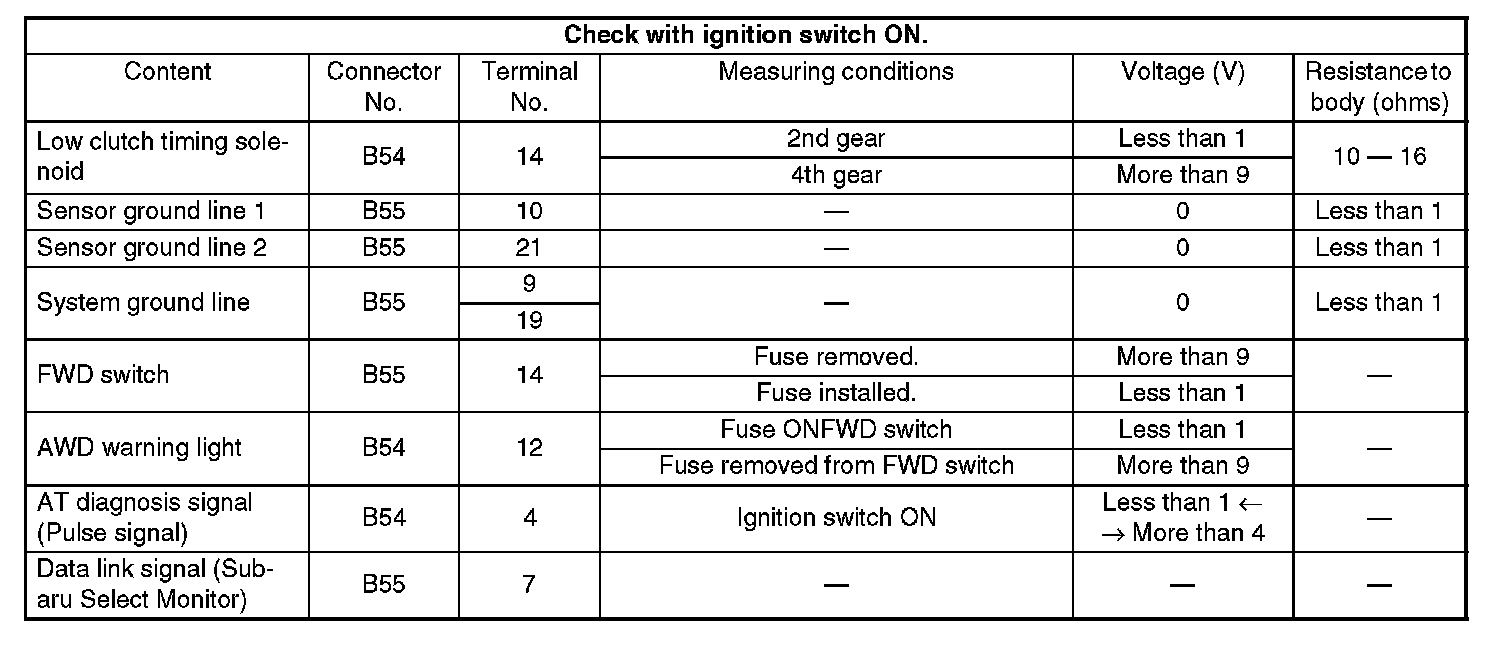

Transmission Control Module (TCM) I/O Signal (Part 3):
