Fuel Sub Level Sensor

Fuel Sub Level Sensor

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
- During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.

1. Drain fuel from fuel tank.
2. Remove rear seat.

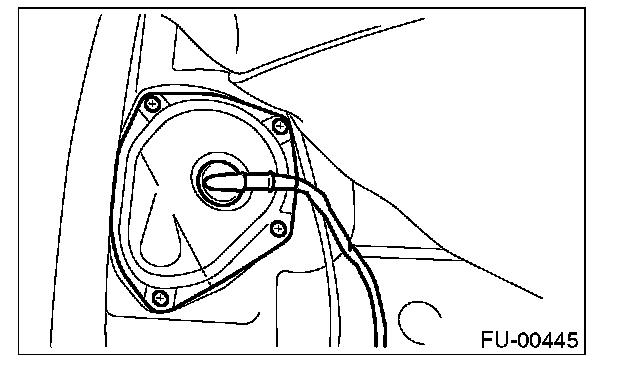

3. Remove service hole cover.

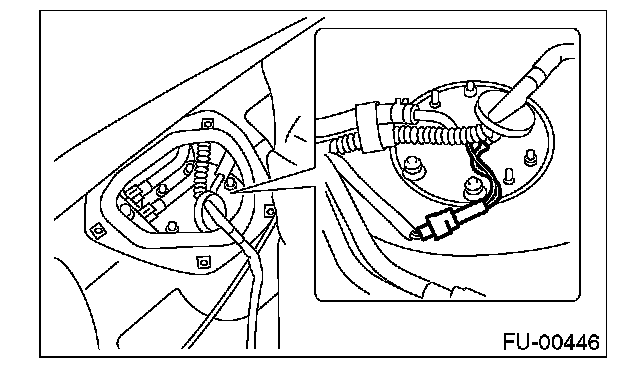

4. Disconnect connector from fuel sub level sensor.

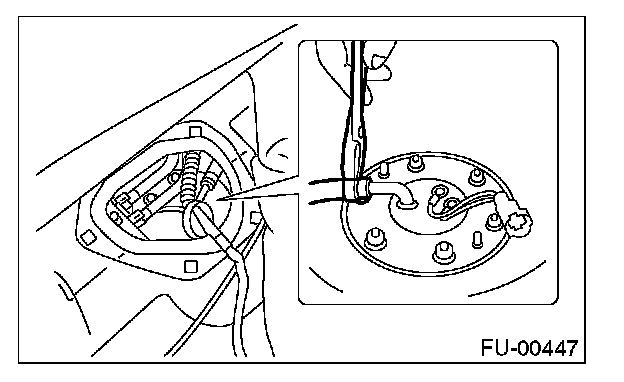

5. Disconnect fuel jet pump hose.

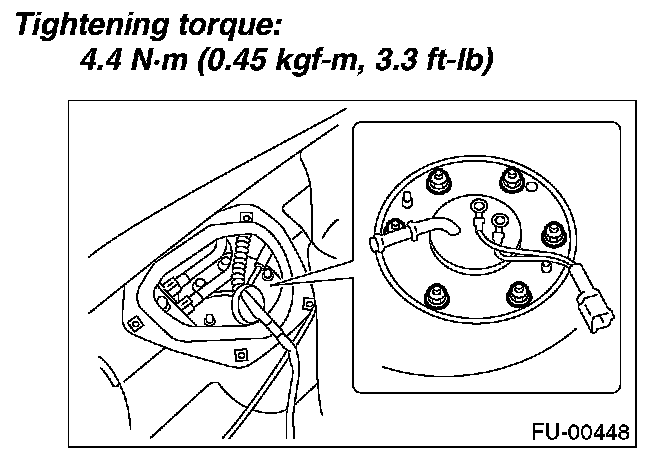

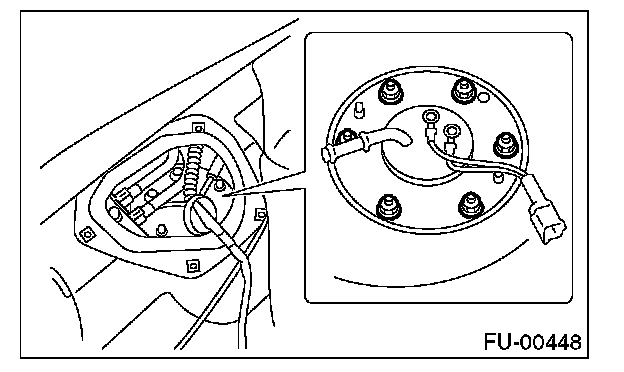

6. Remove bolts which install fuel sub level sensor on fuel tank.
7. Remove fuel sub level sensor.

INSTALLATION




Install in the reverse order of removal.
