Home >> Subaru >> 2004 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

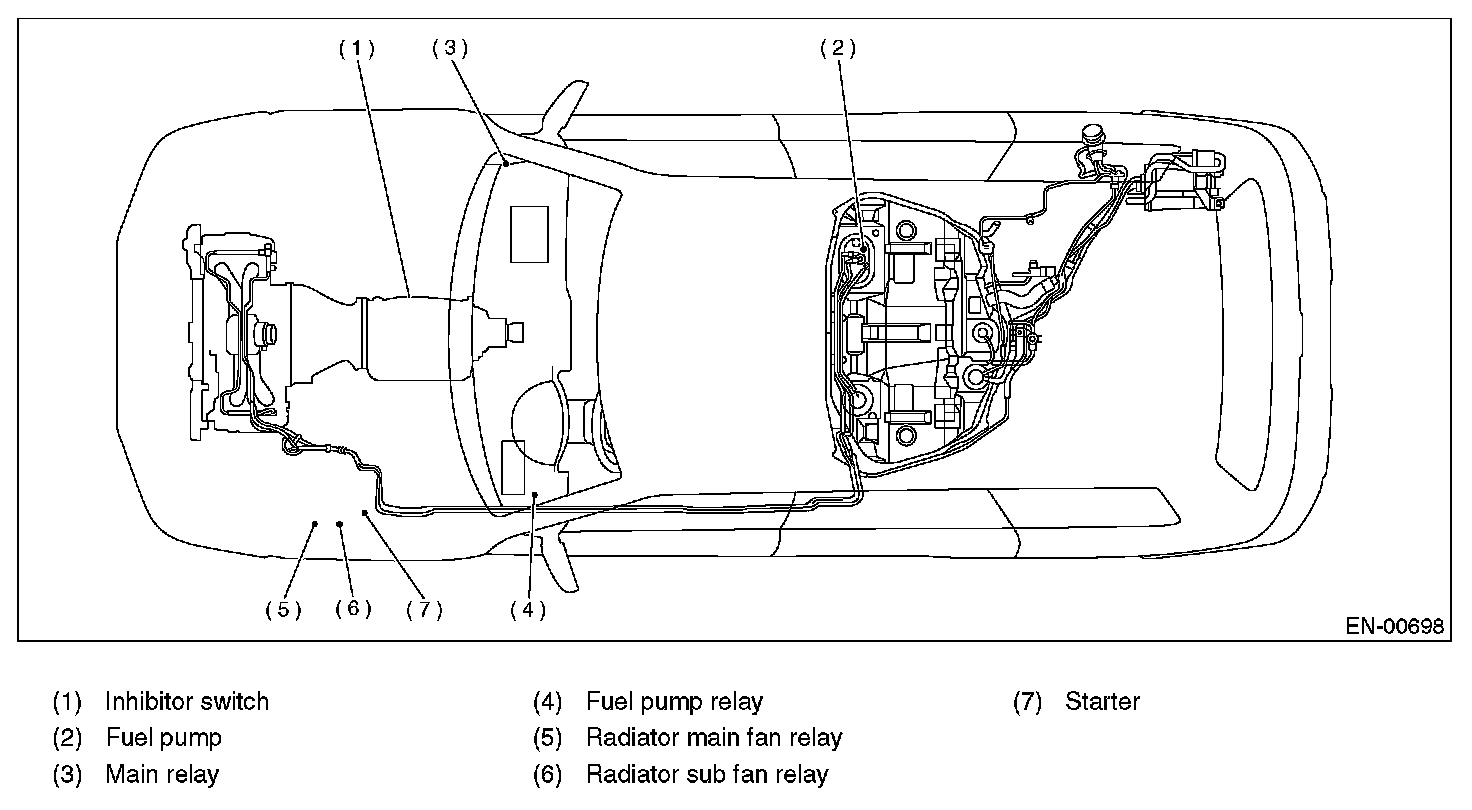

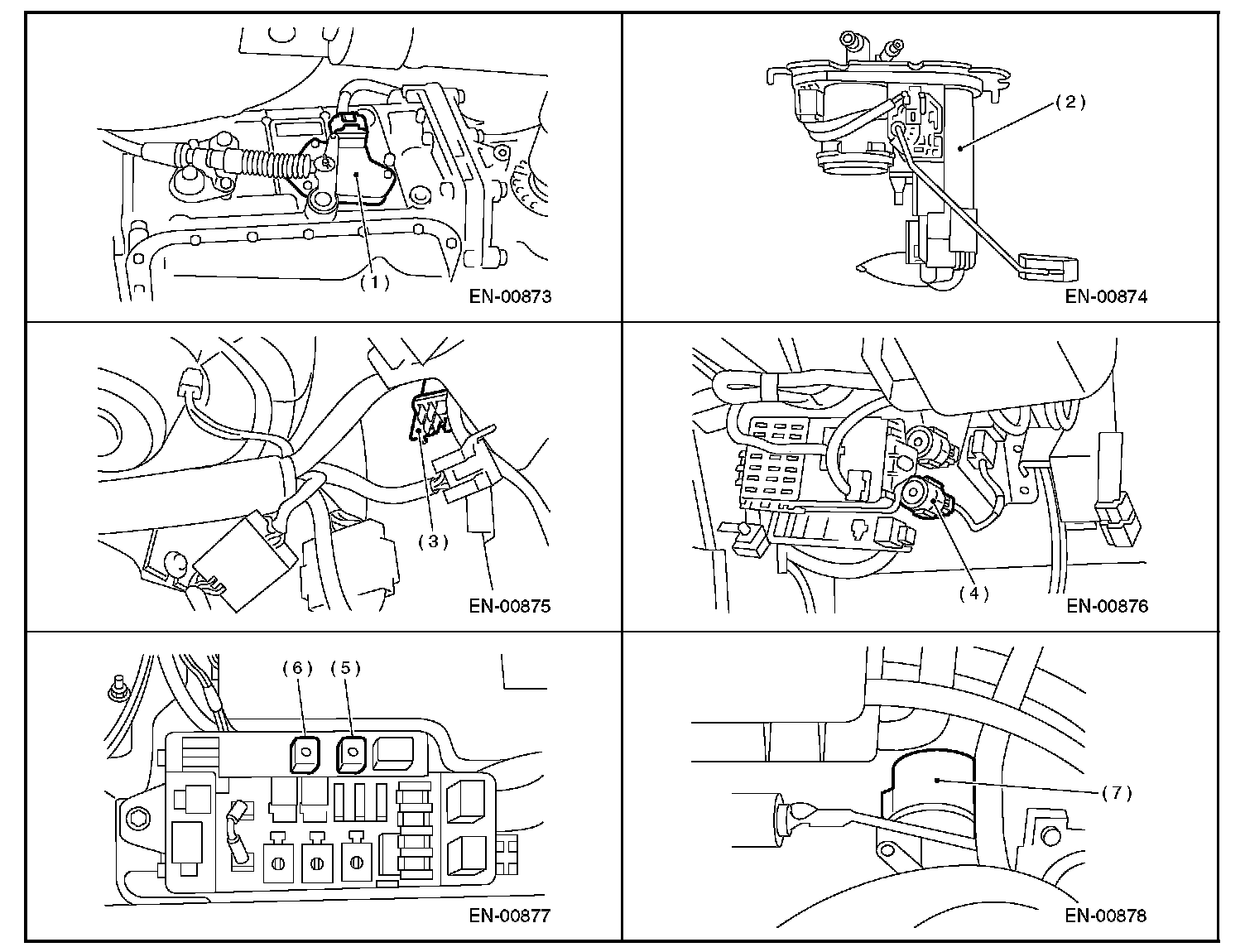

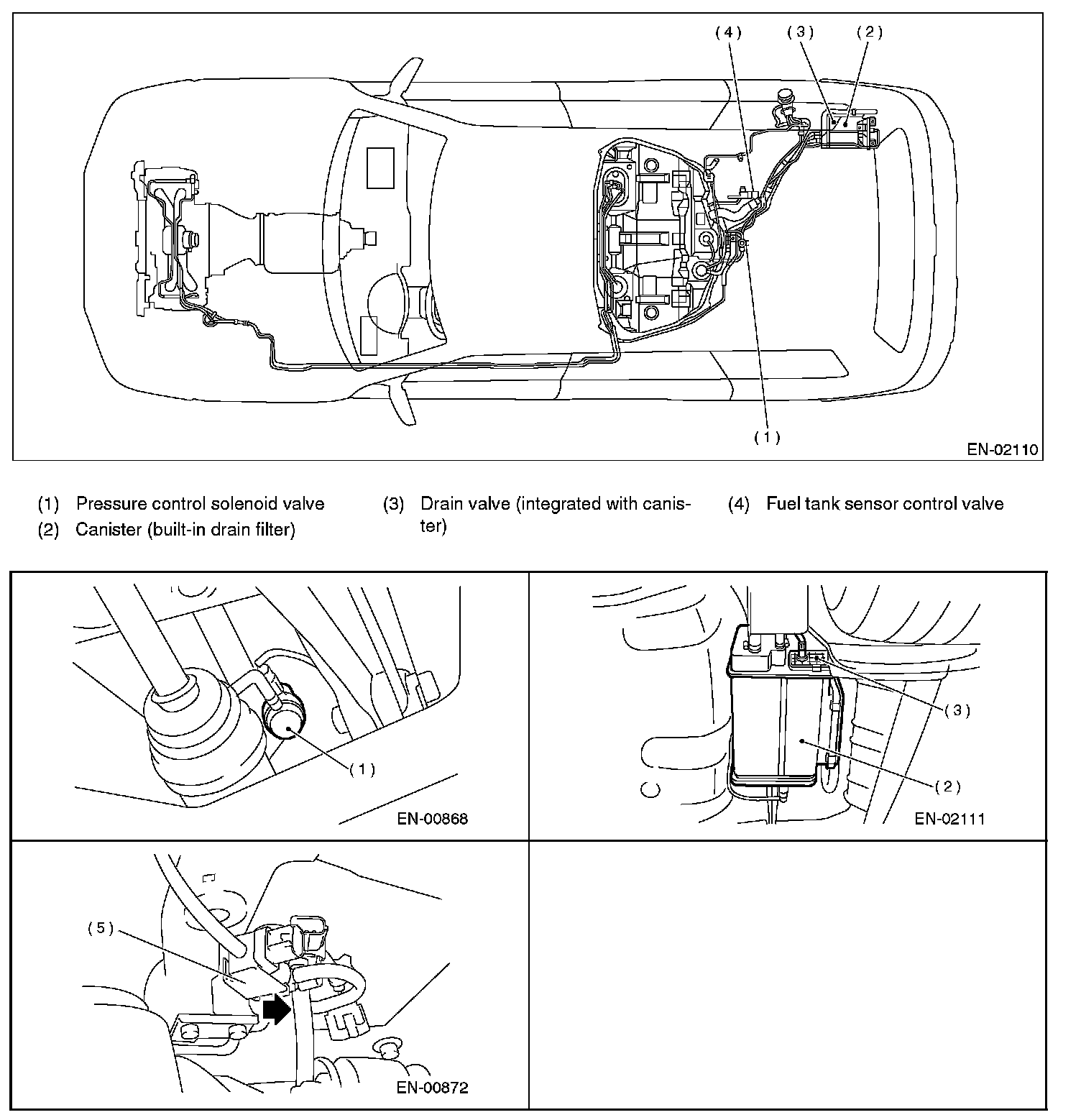

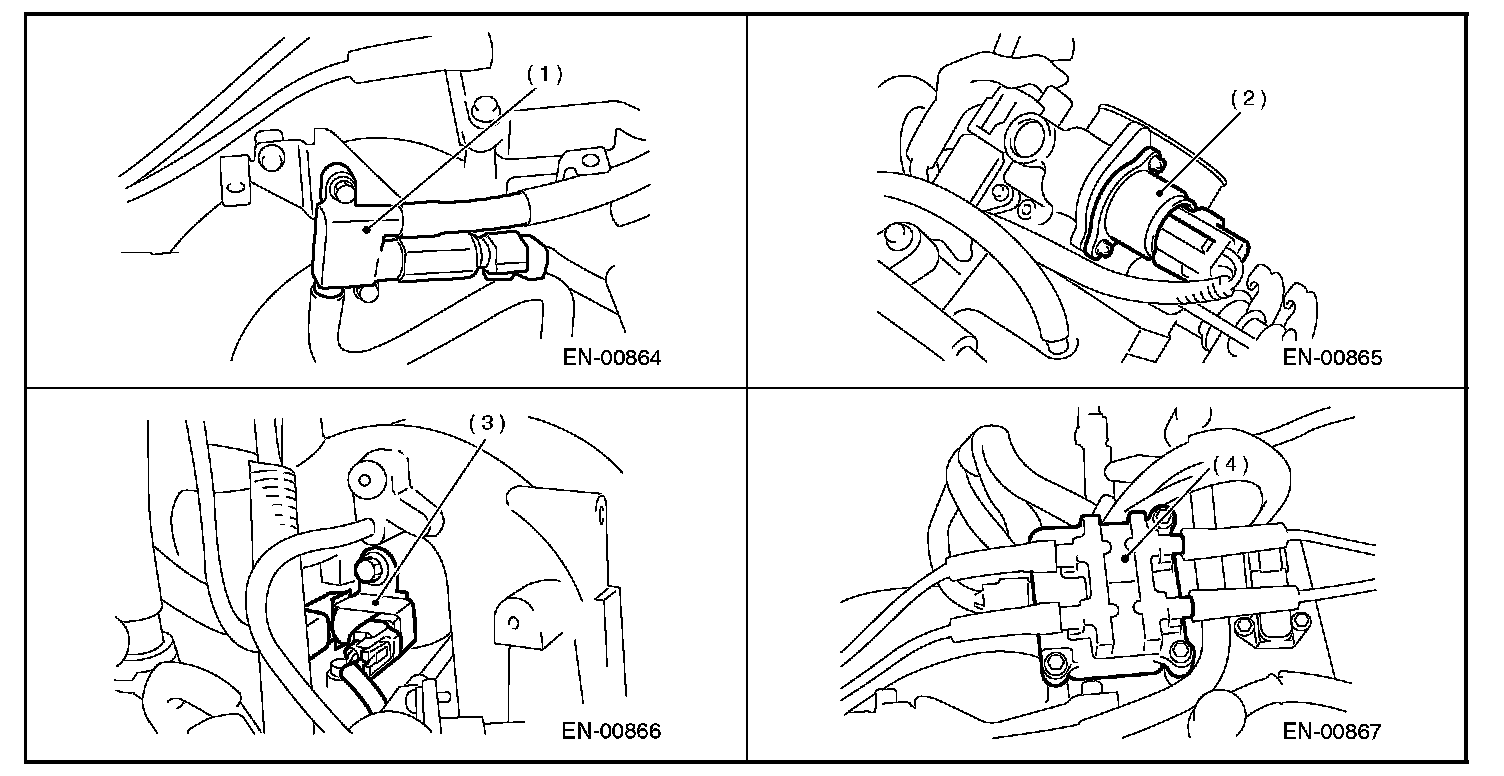

Computers and Control Systems: Locations

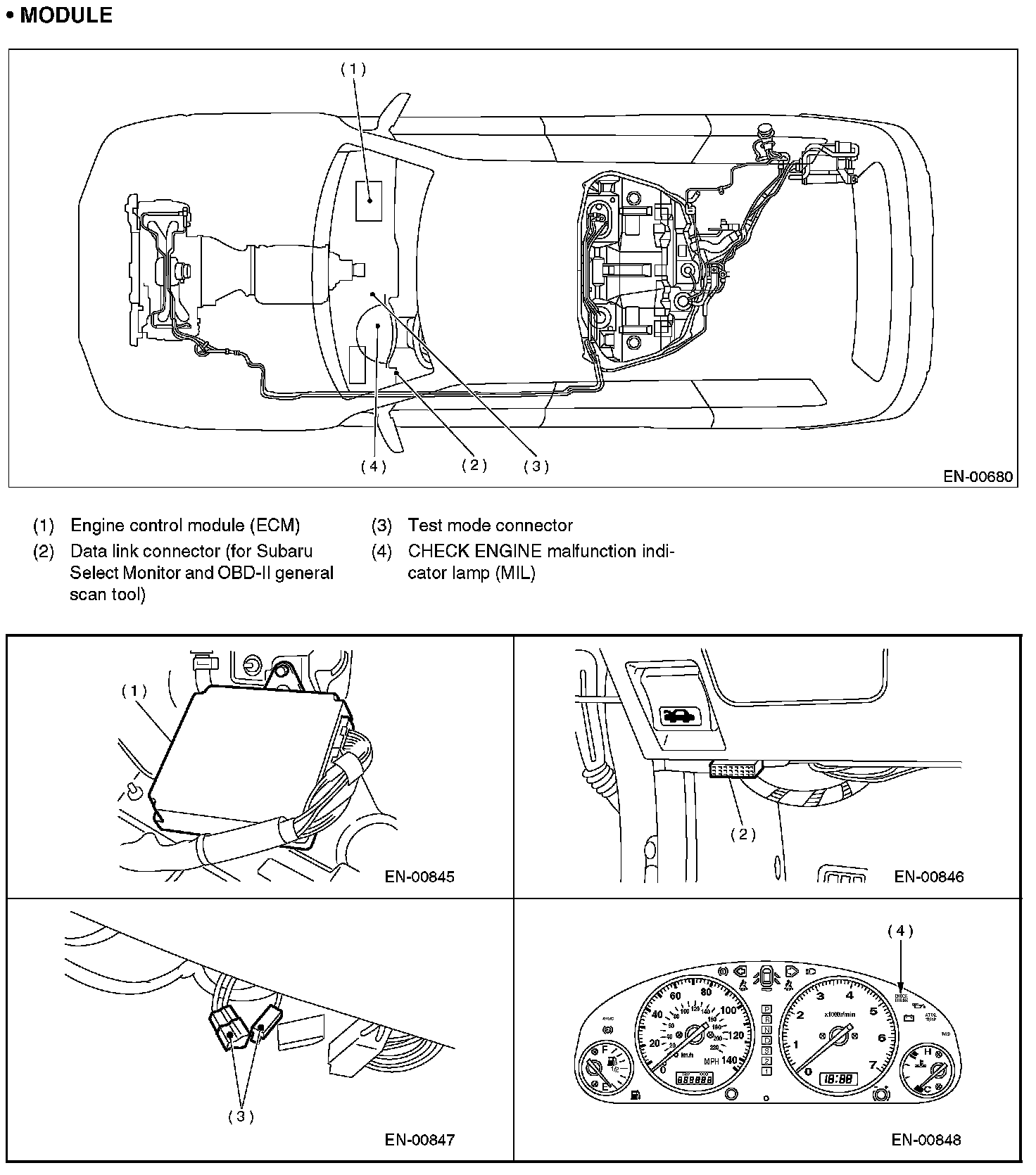

Electrical Components Location - Module:

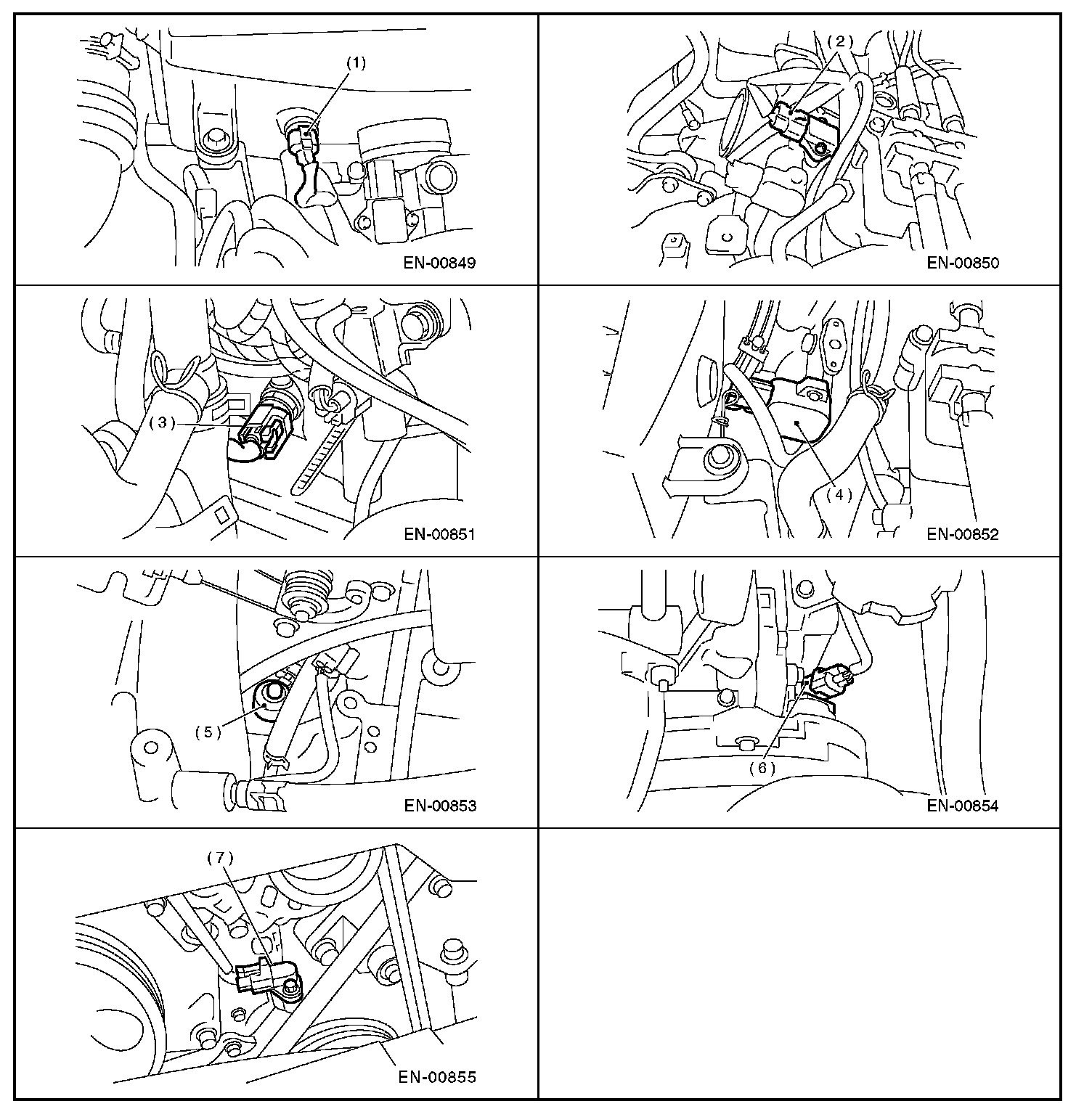

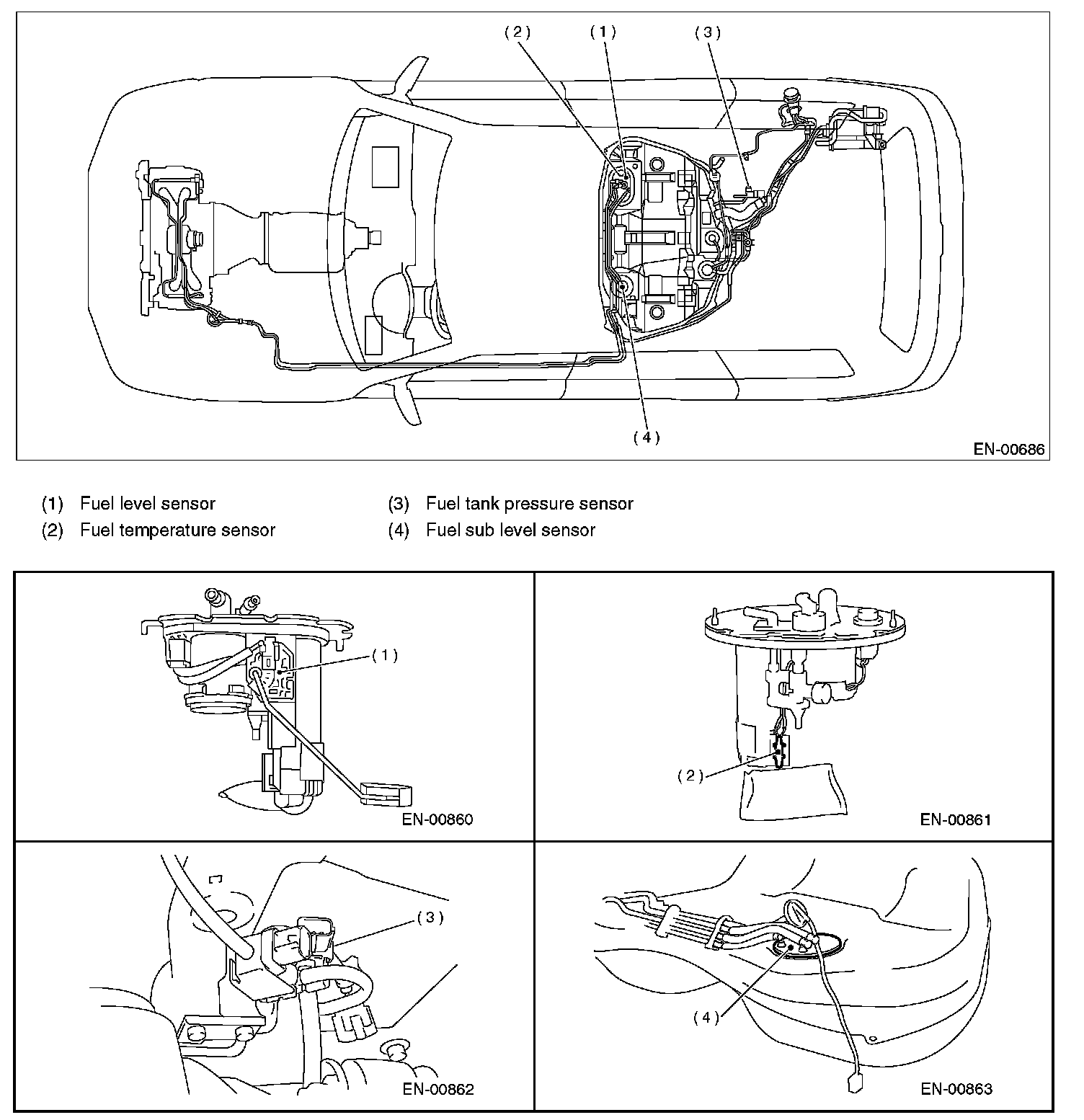

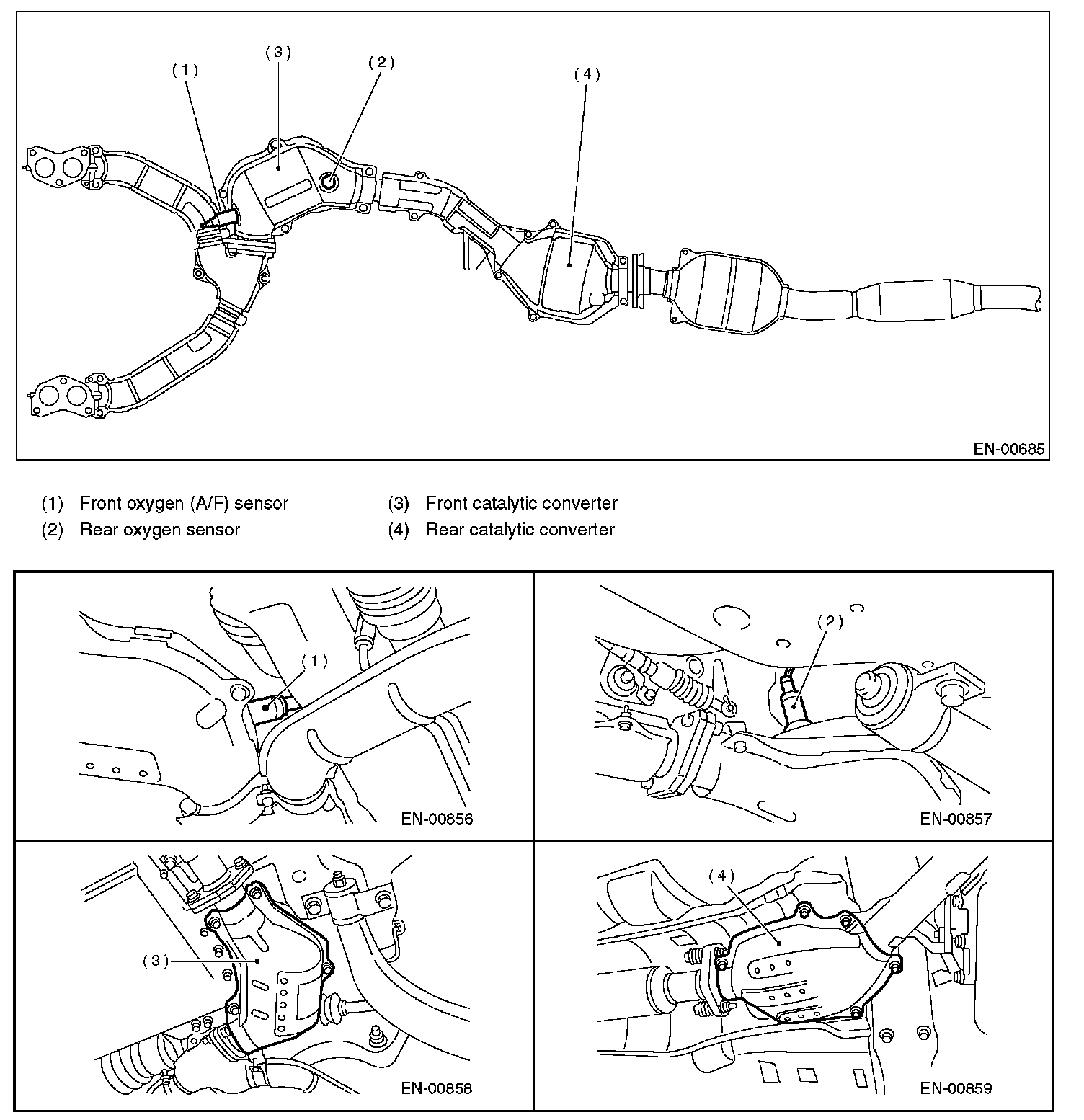

Electrical Components Location - Sensor:
