Control Module Schematic

SCHEMATIC

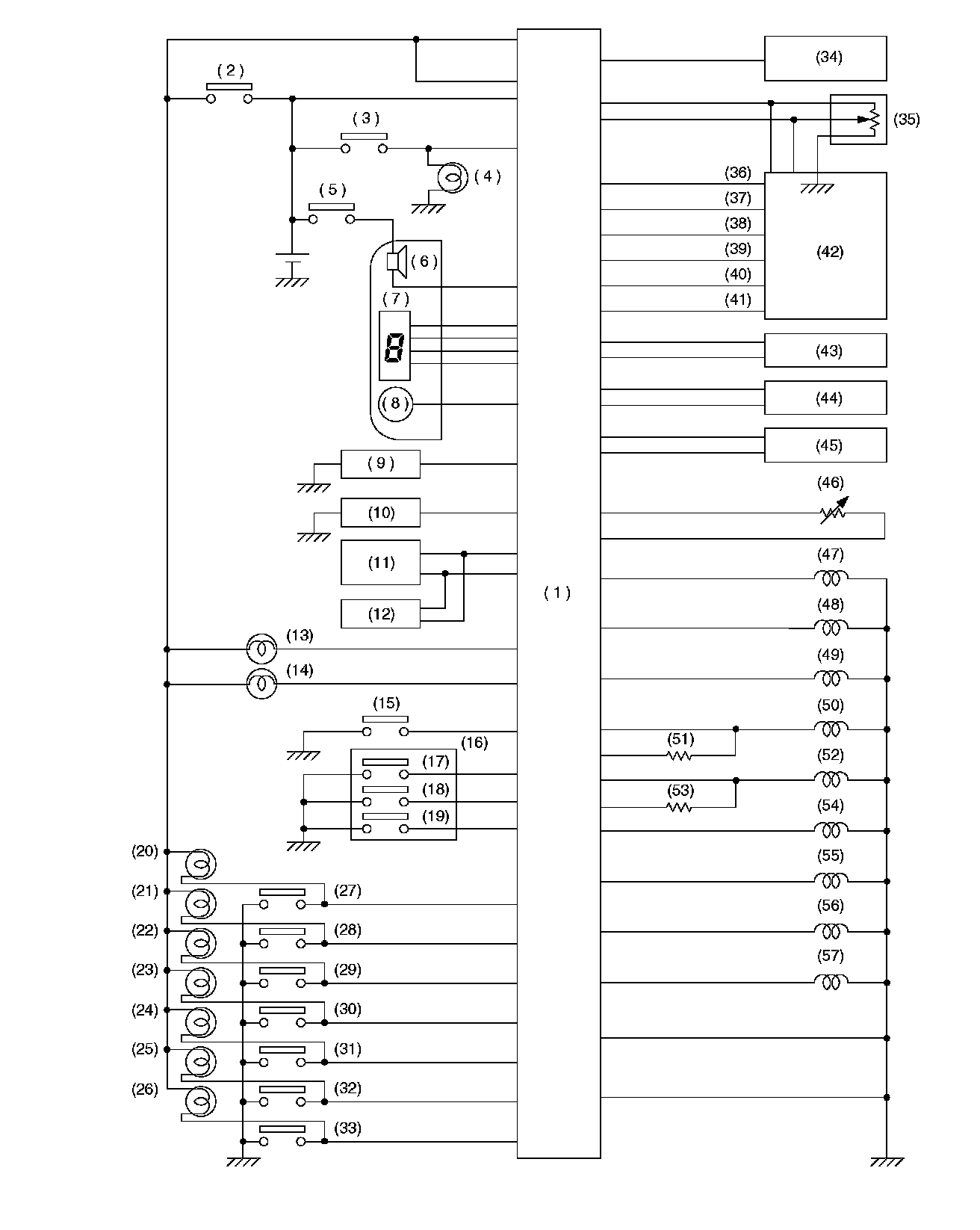

Part 1:

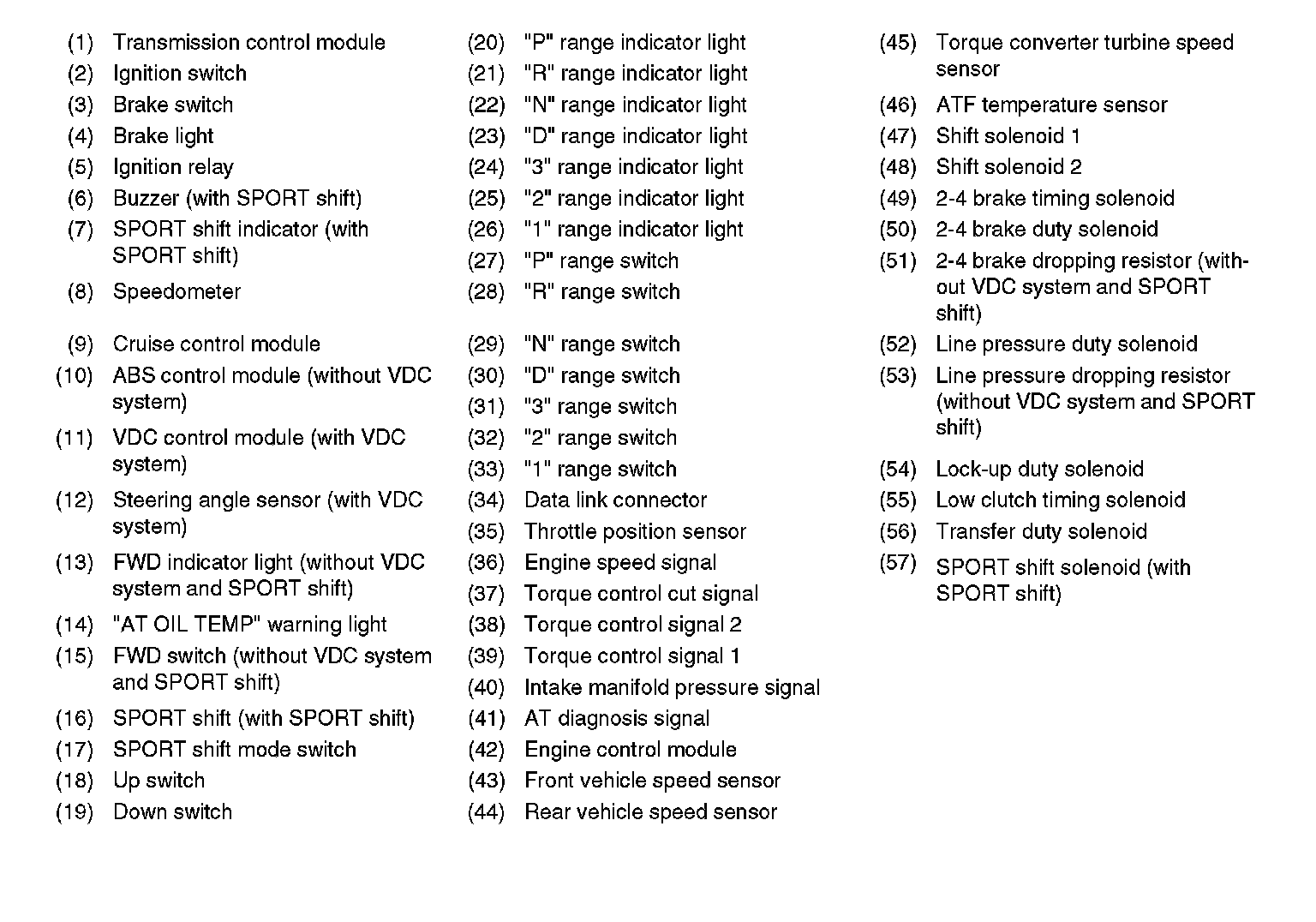

Part 2:





EXCEPT U5 MODEL

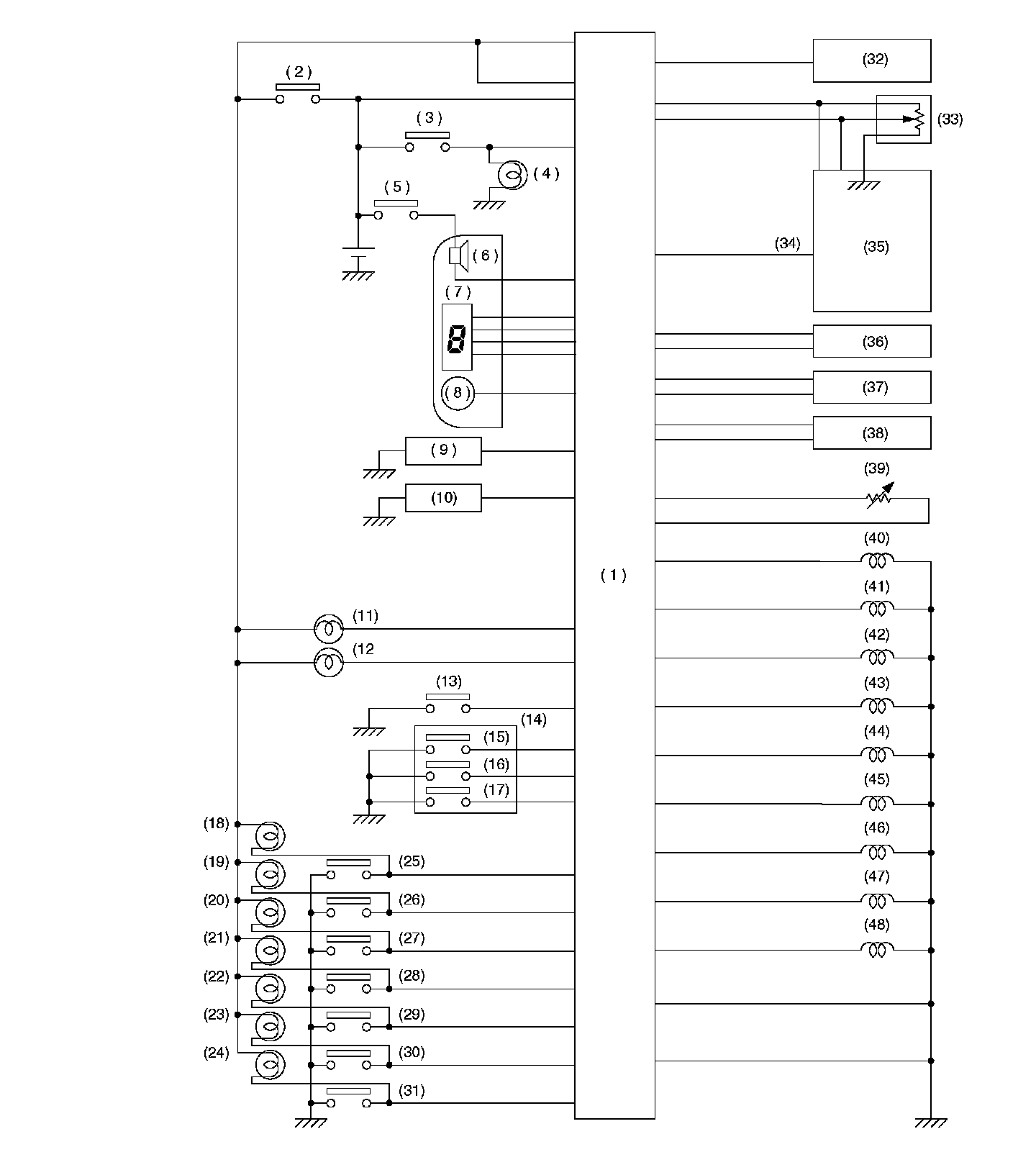

Part 1:

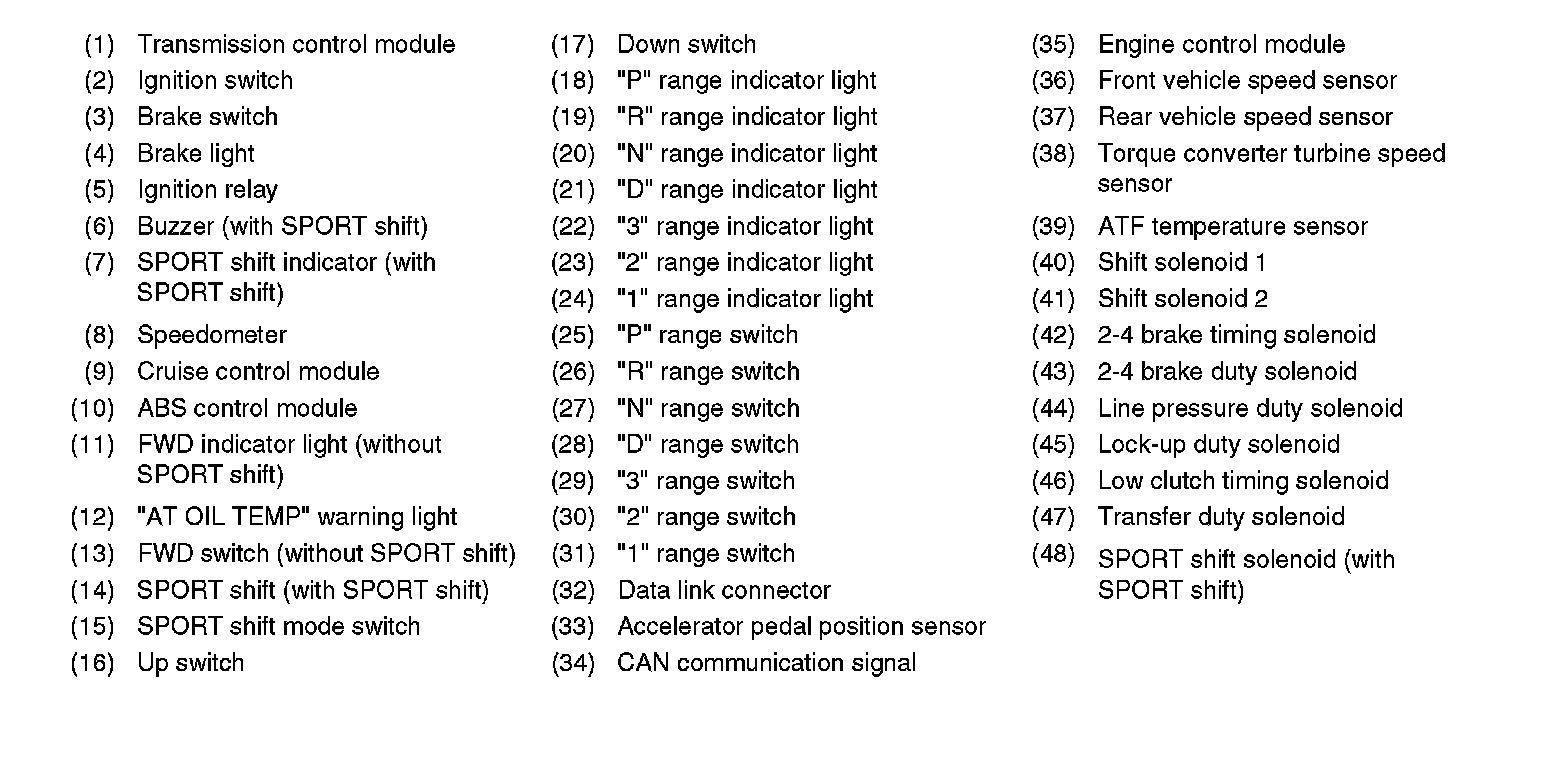

Part 2:





U5 MODEL
