Engine Control Module
Engine Control Module

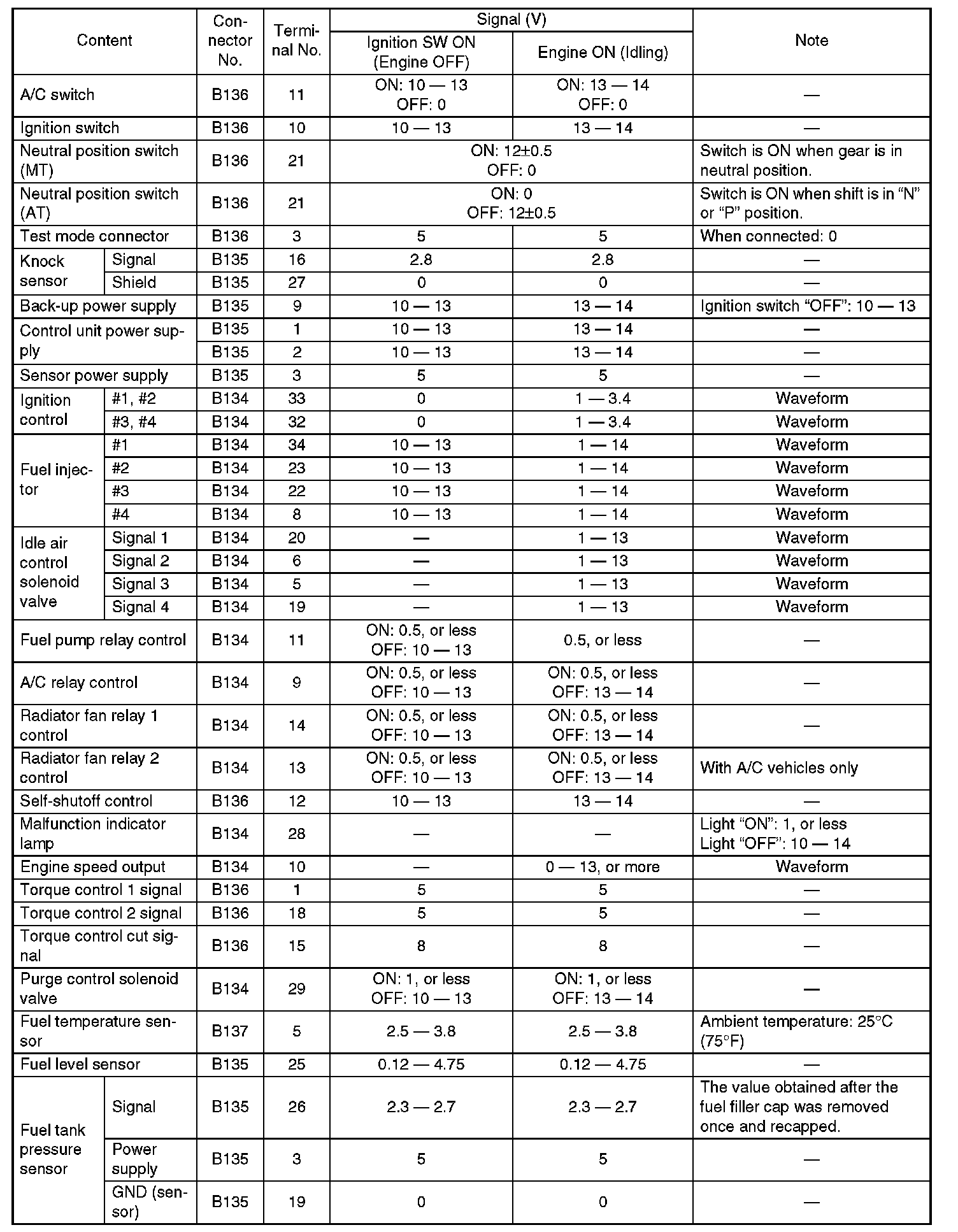

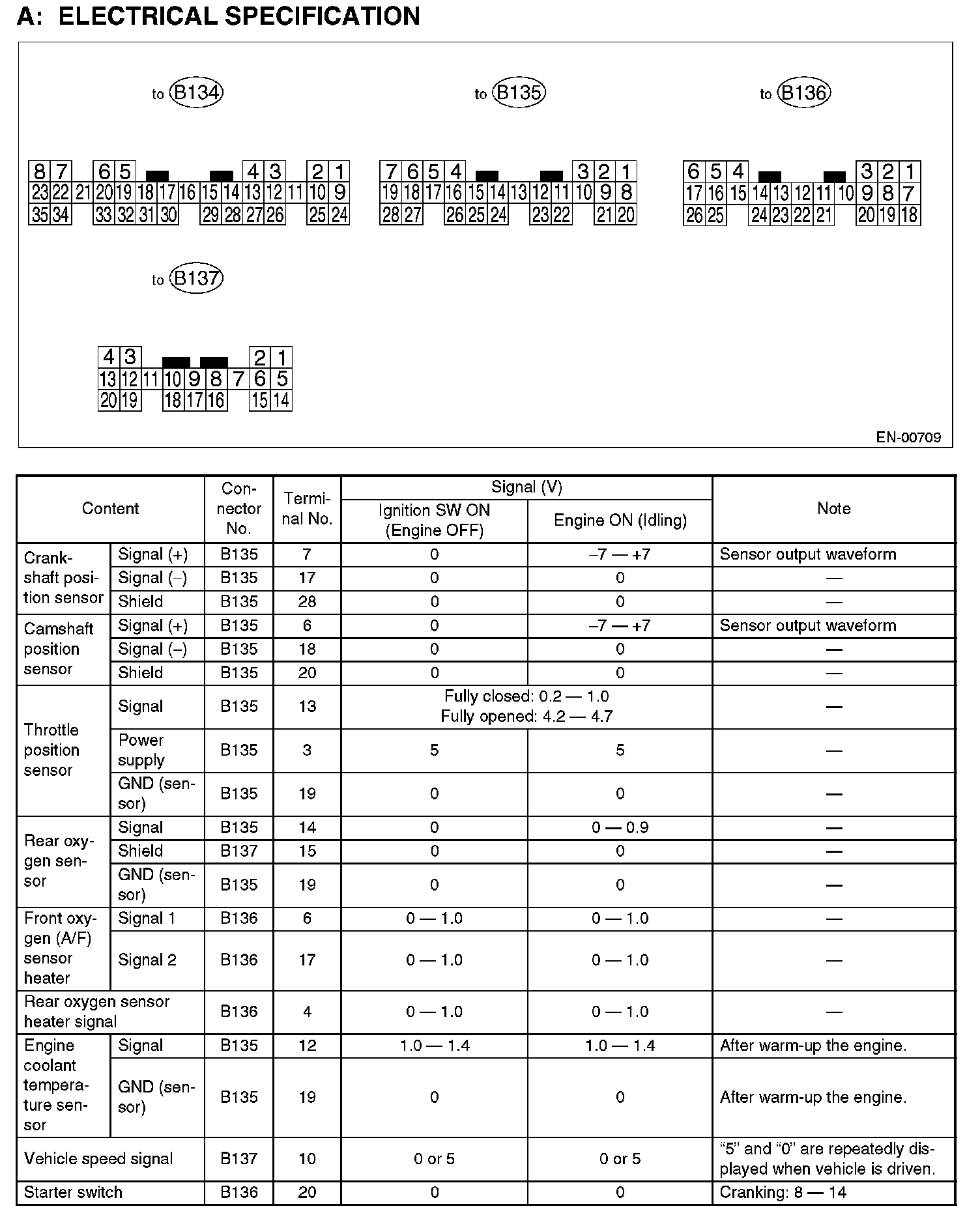

Engine Control Module (ECM) I/O Signal Part 1:

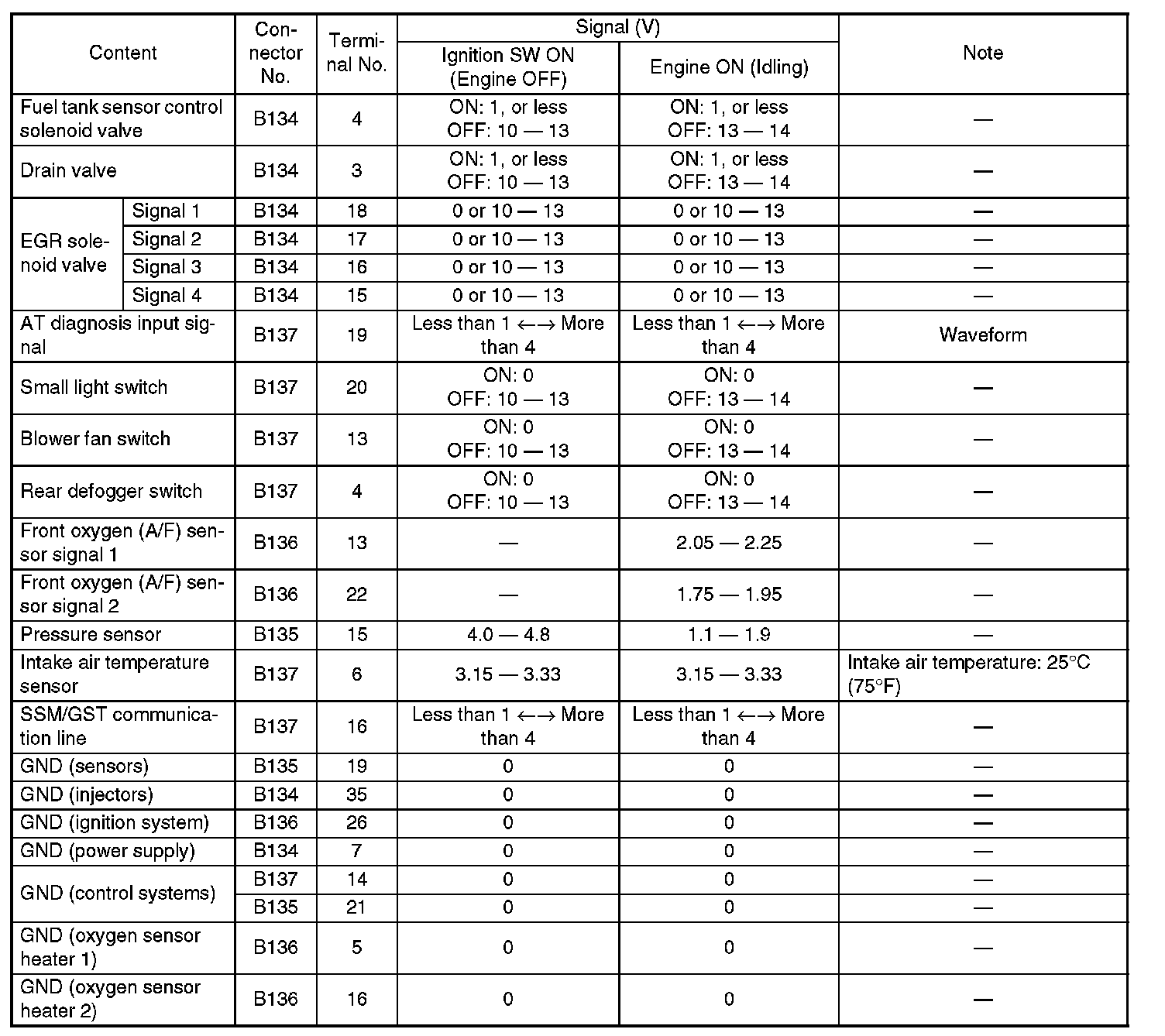

Engine Control Module (ECM) I/O Signal Part 2:
Engine Control Module (ECM) I/O Signal Part 3:
