Wiper Switch: Service and Repair

Combination Switch (Wiper)

REMOVAL

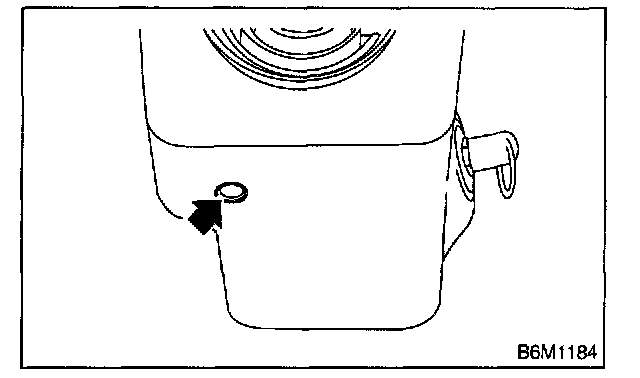

1. Loosen screw to remove a steering column cover.

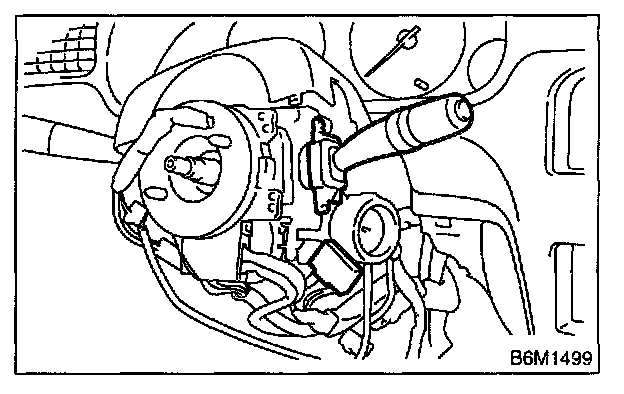

2. Disconnect connectors from combination switches.




3. Loosen screw to remove combination switch.

INSTALLATION

Install in the reverse order of removal.
