System Specifications

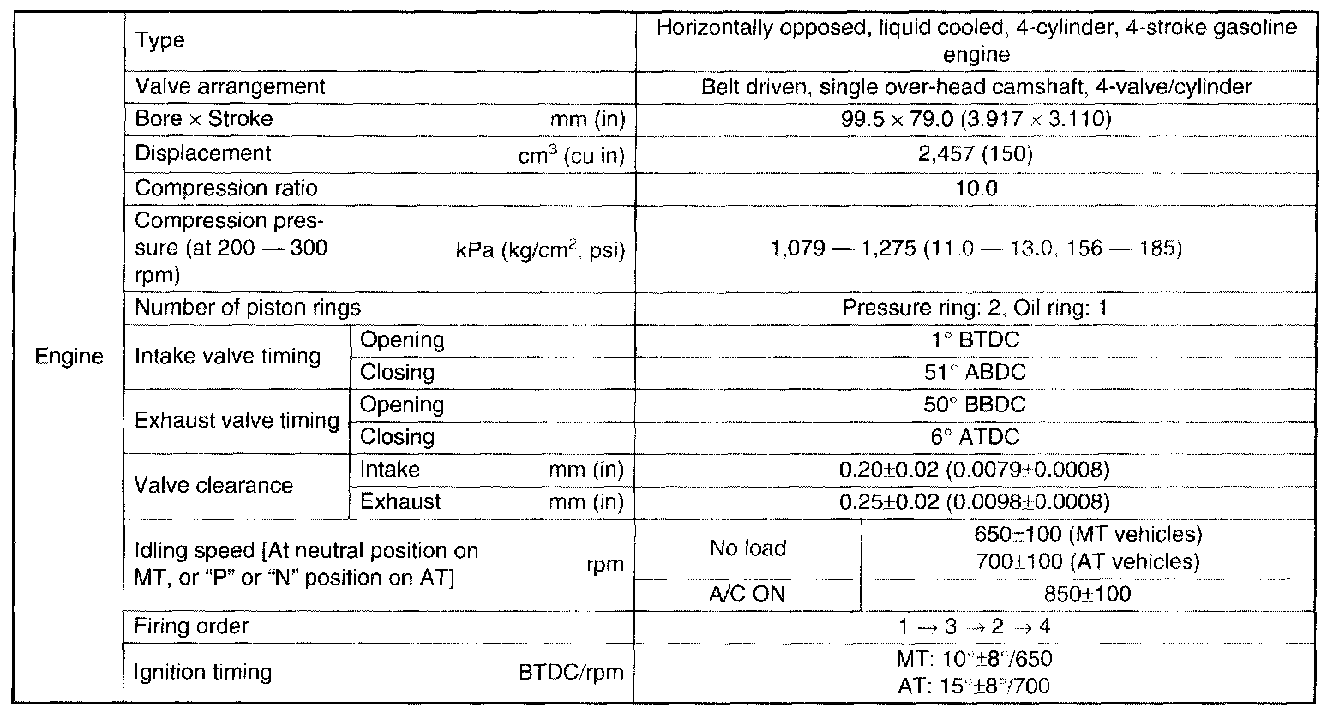

SPECIFICATIONS

















NOTE: US: Undersize OS: Oversize

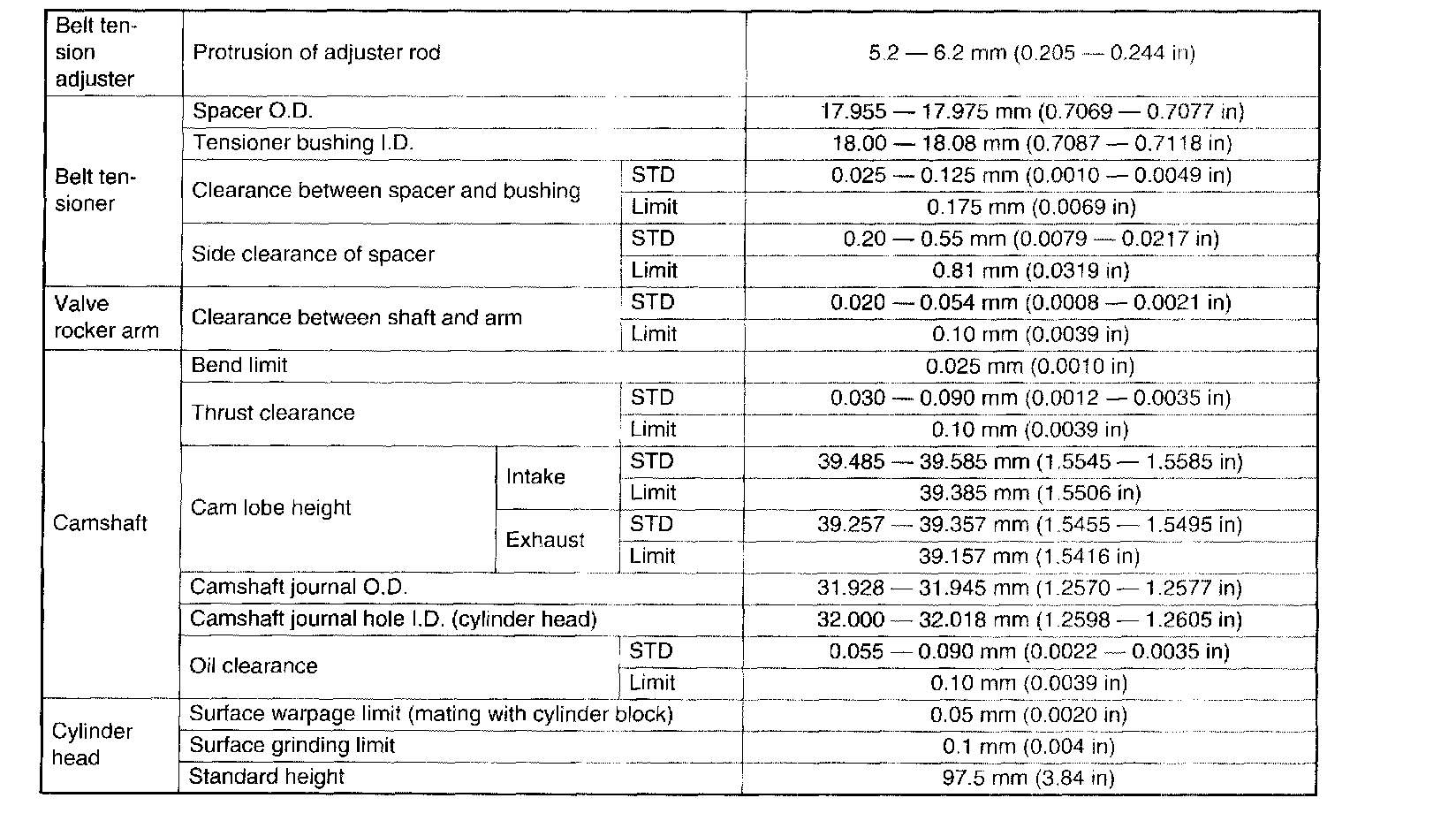

TIMING BELT

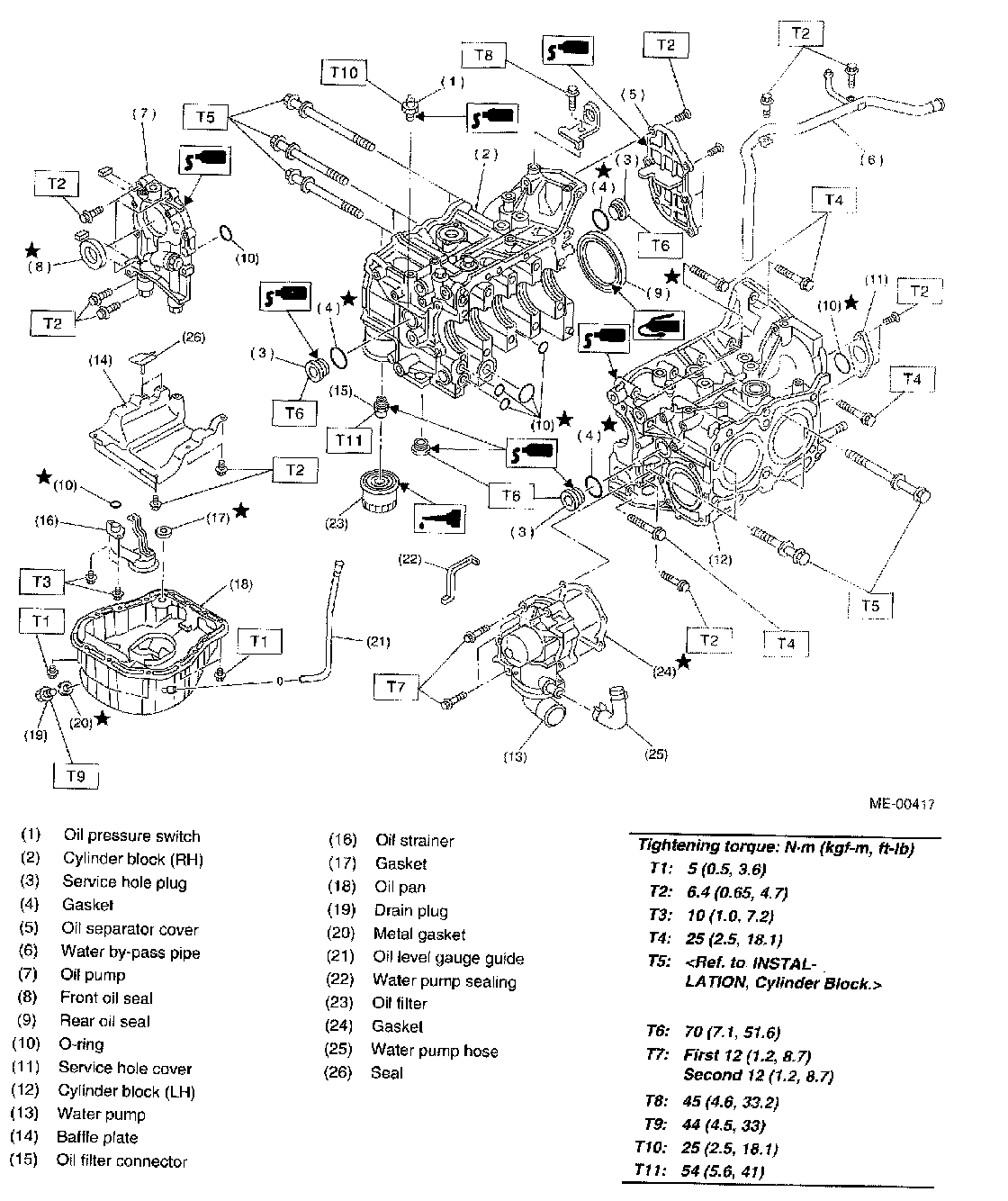

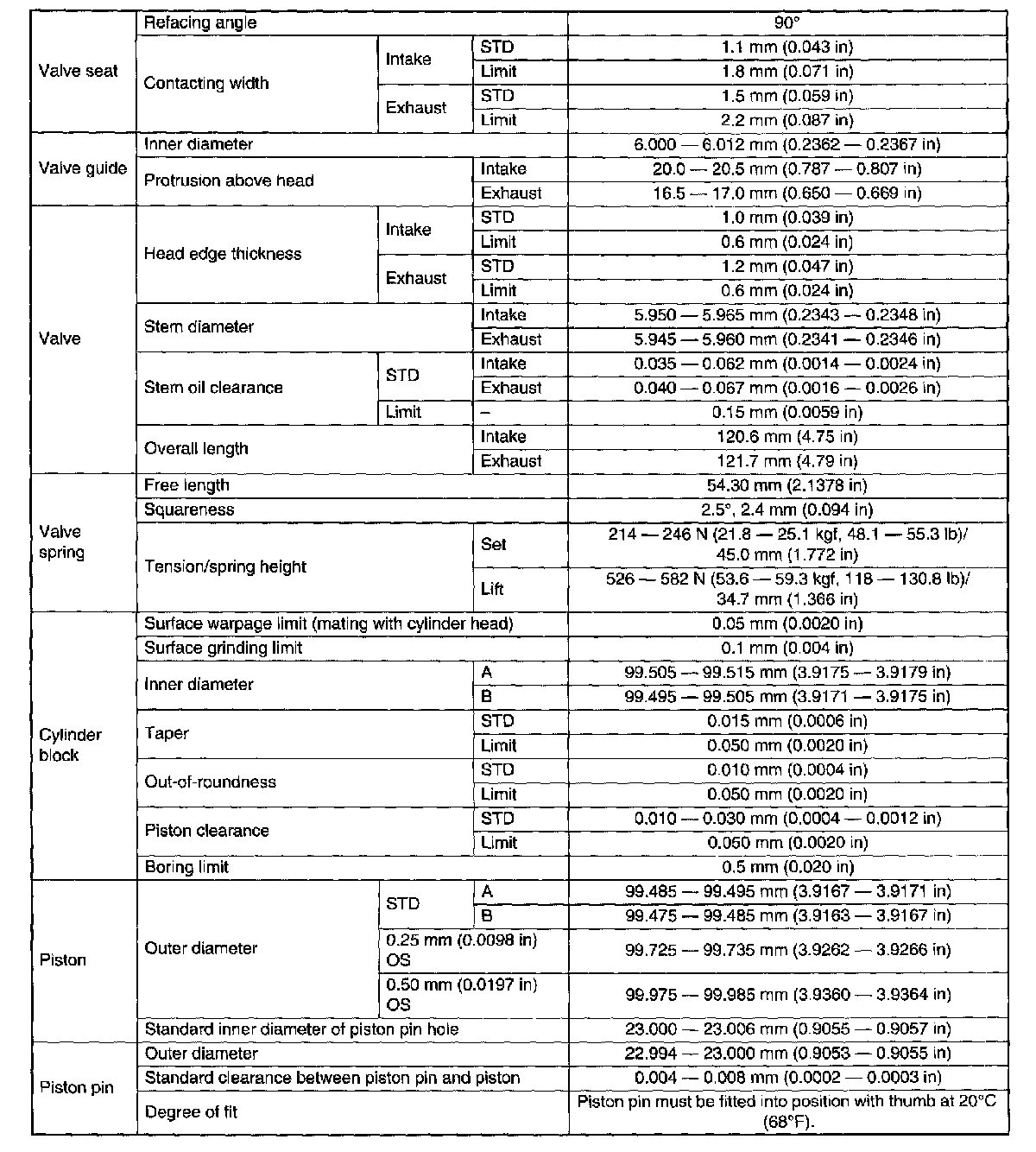

CYLINDER BLOCK

Part 1 Of 2:

Part 2 Of 2:

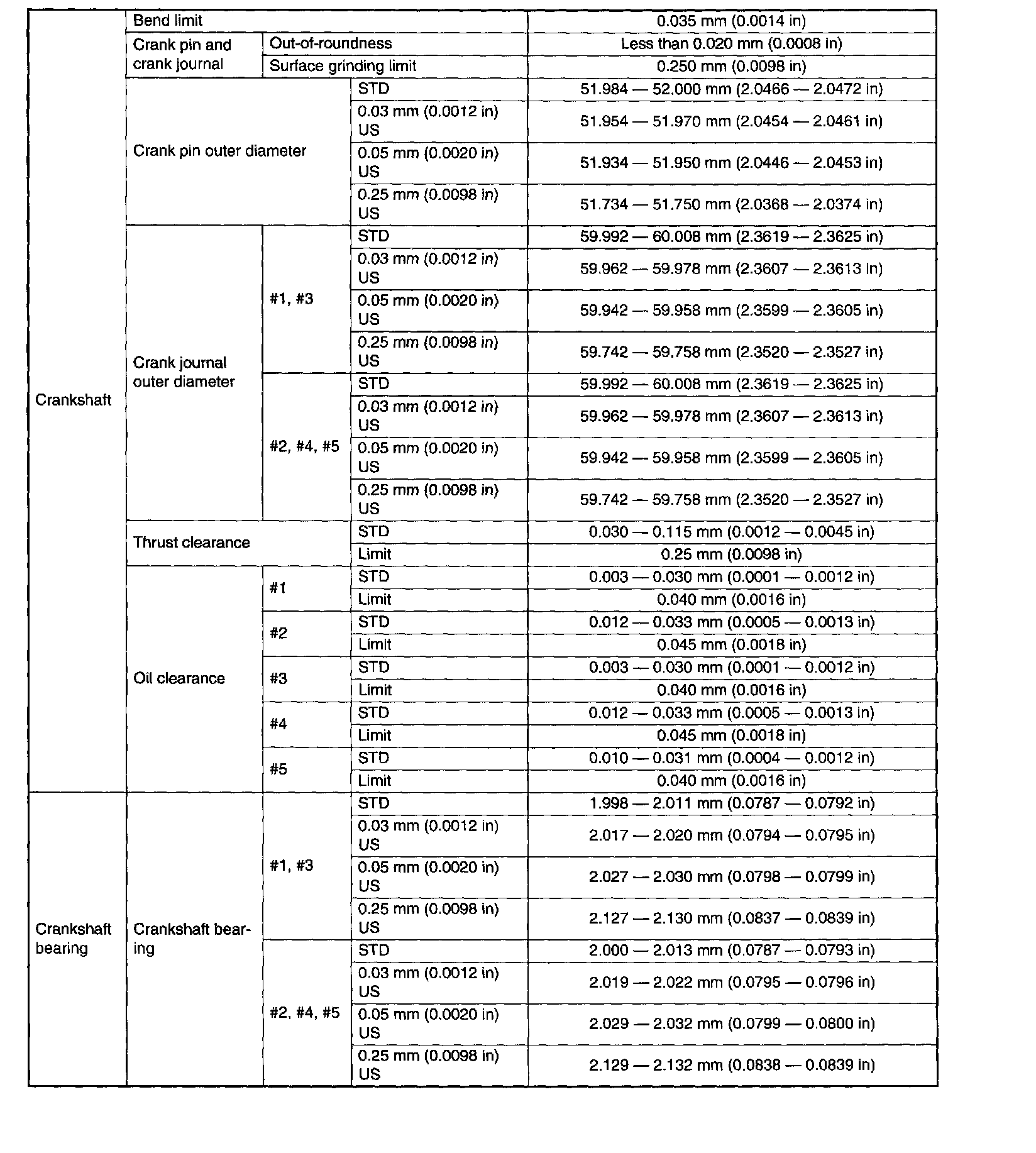

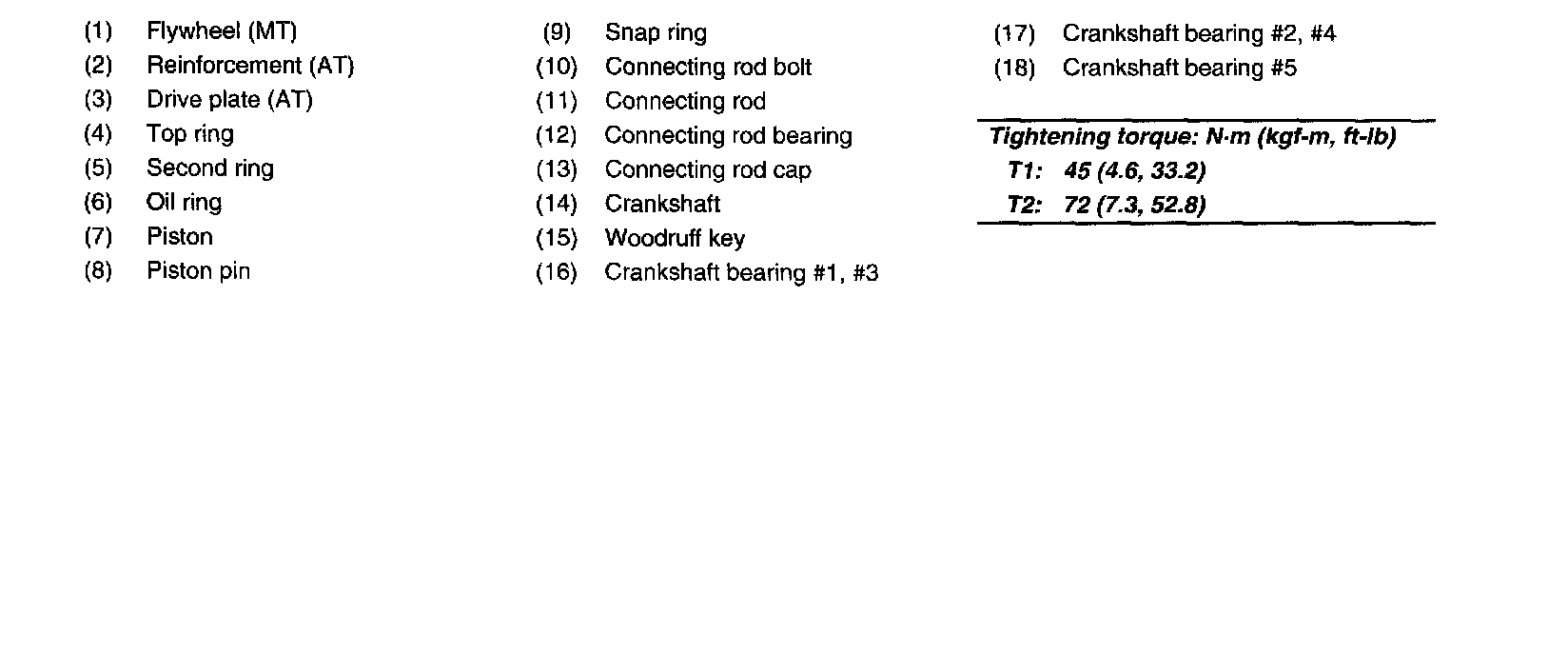

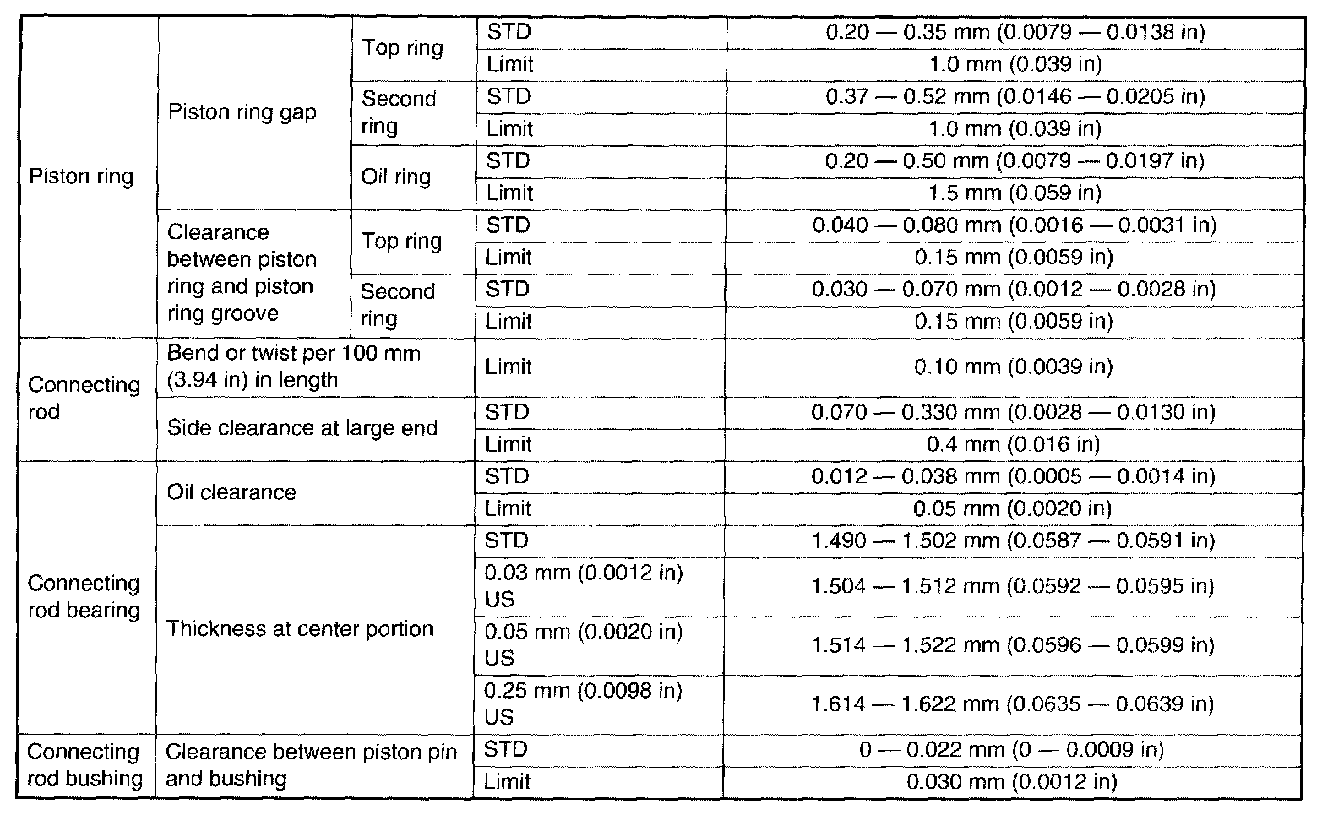

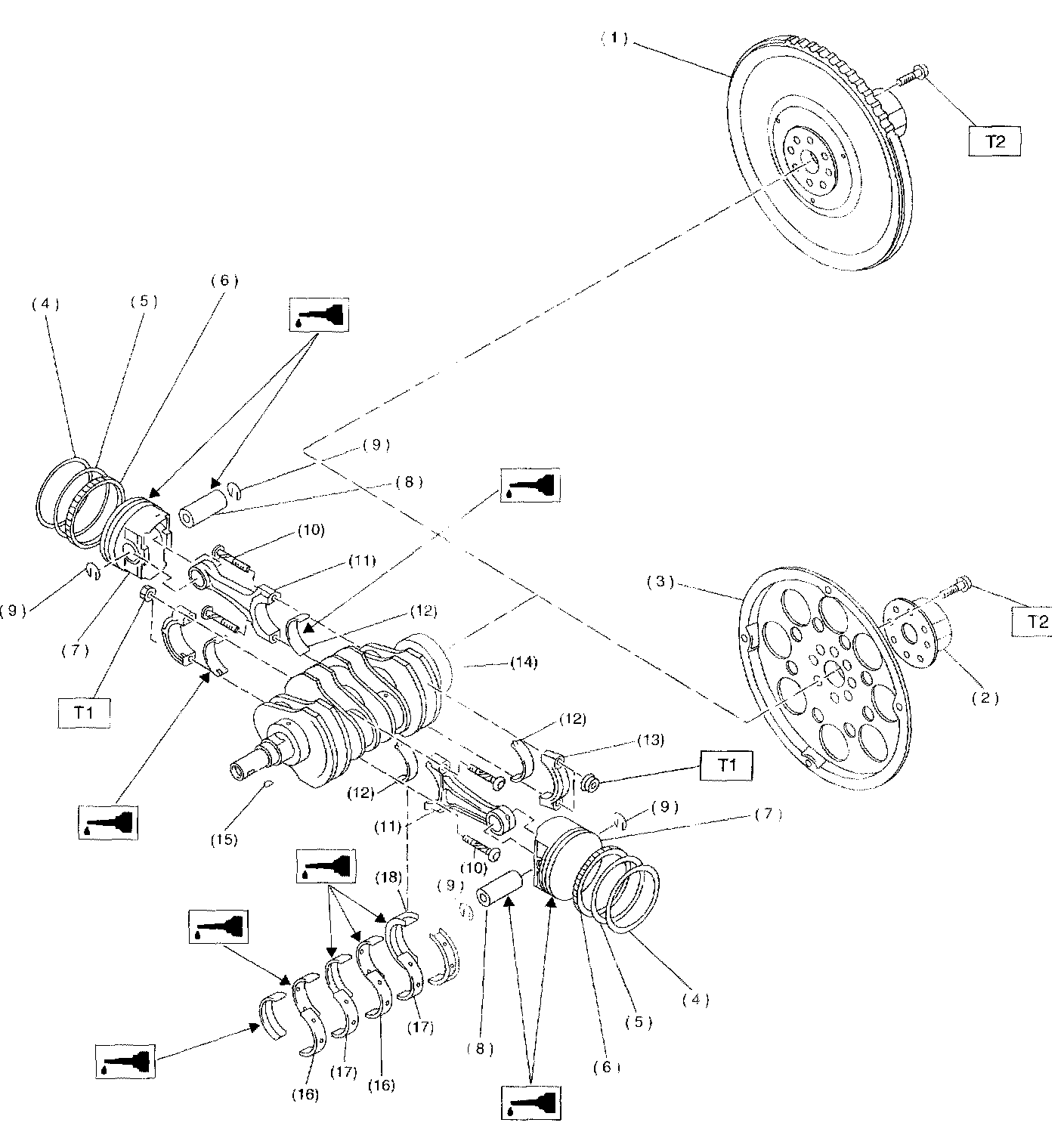

CRANKSHAFT AND PISTON

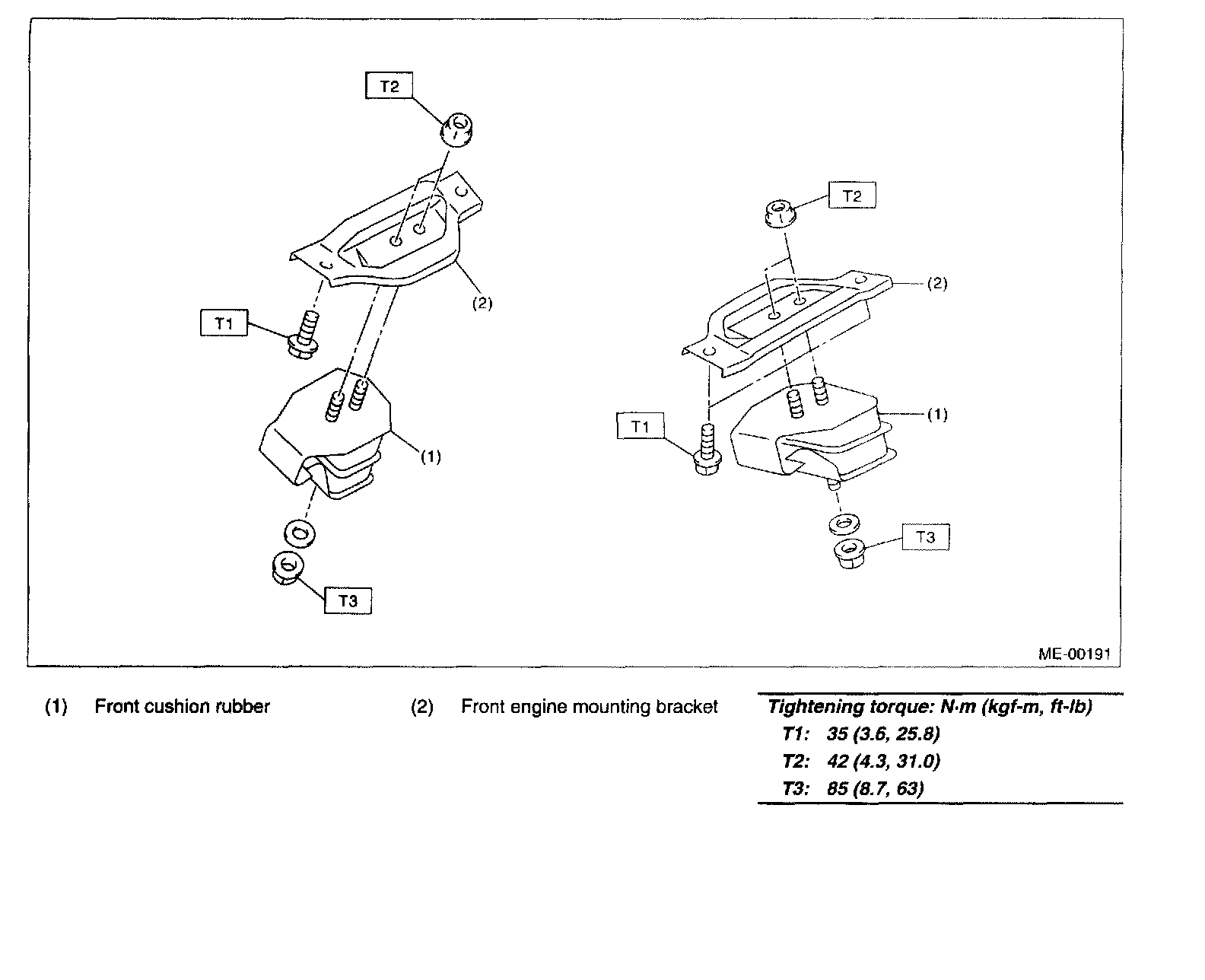

ENGINE MOUNTING

Crankshaft pulley bolt:
Stage 1 44 Nm (4.5 kgf-m, 33 ft. lbs.)
Stage 2 177 Nm (18.0 kgf-m, 130.2 ft. lbs.)
Stage 3 angle 65° or more
