Home >> Subaru >> 2003 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

FRONT DISK BRAKE

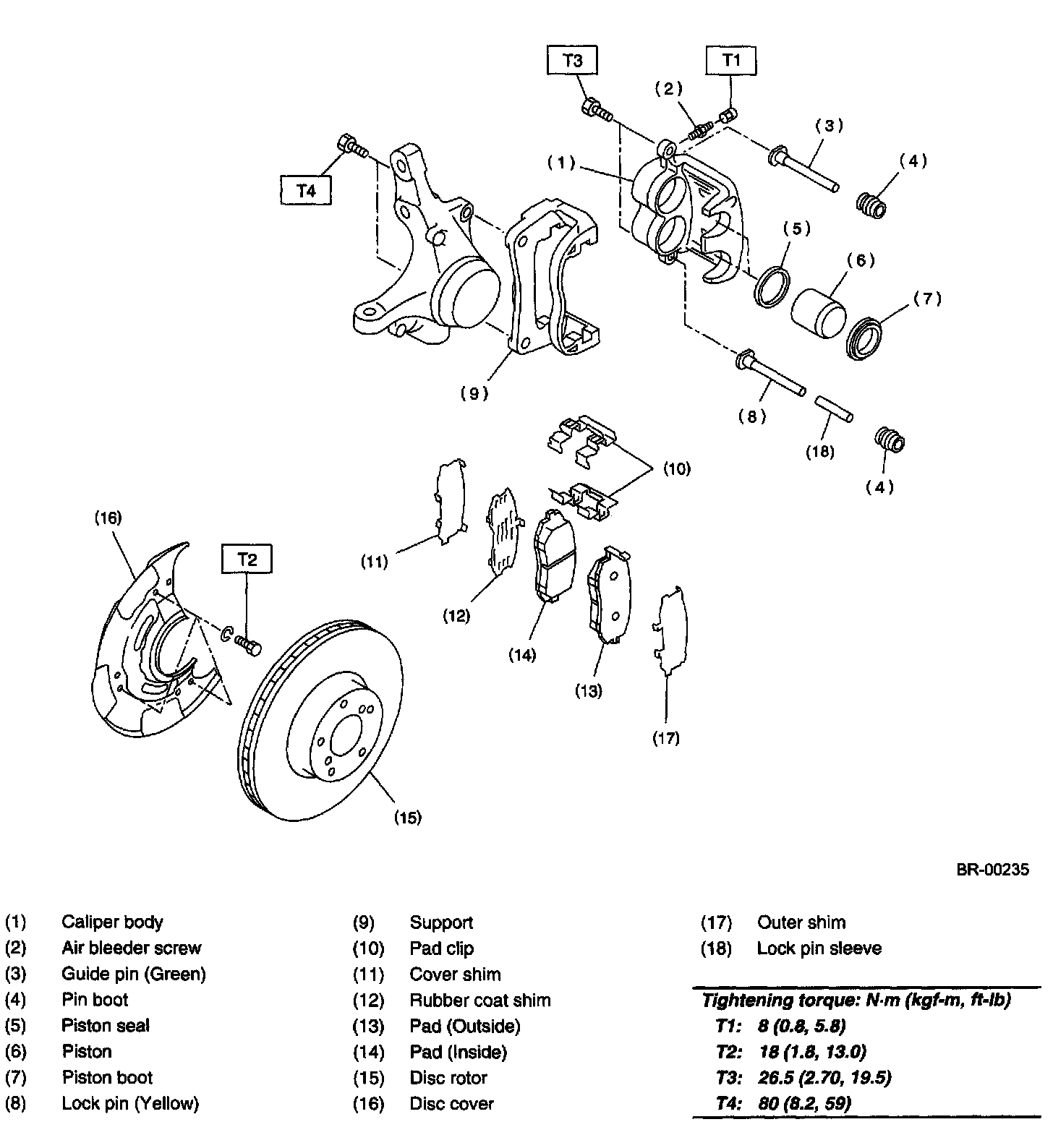

^ NON-TURBO MODEL

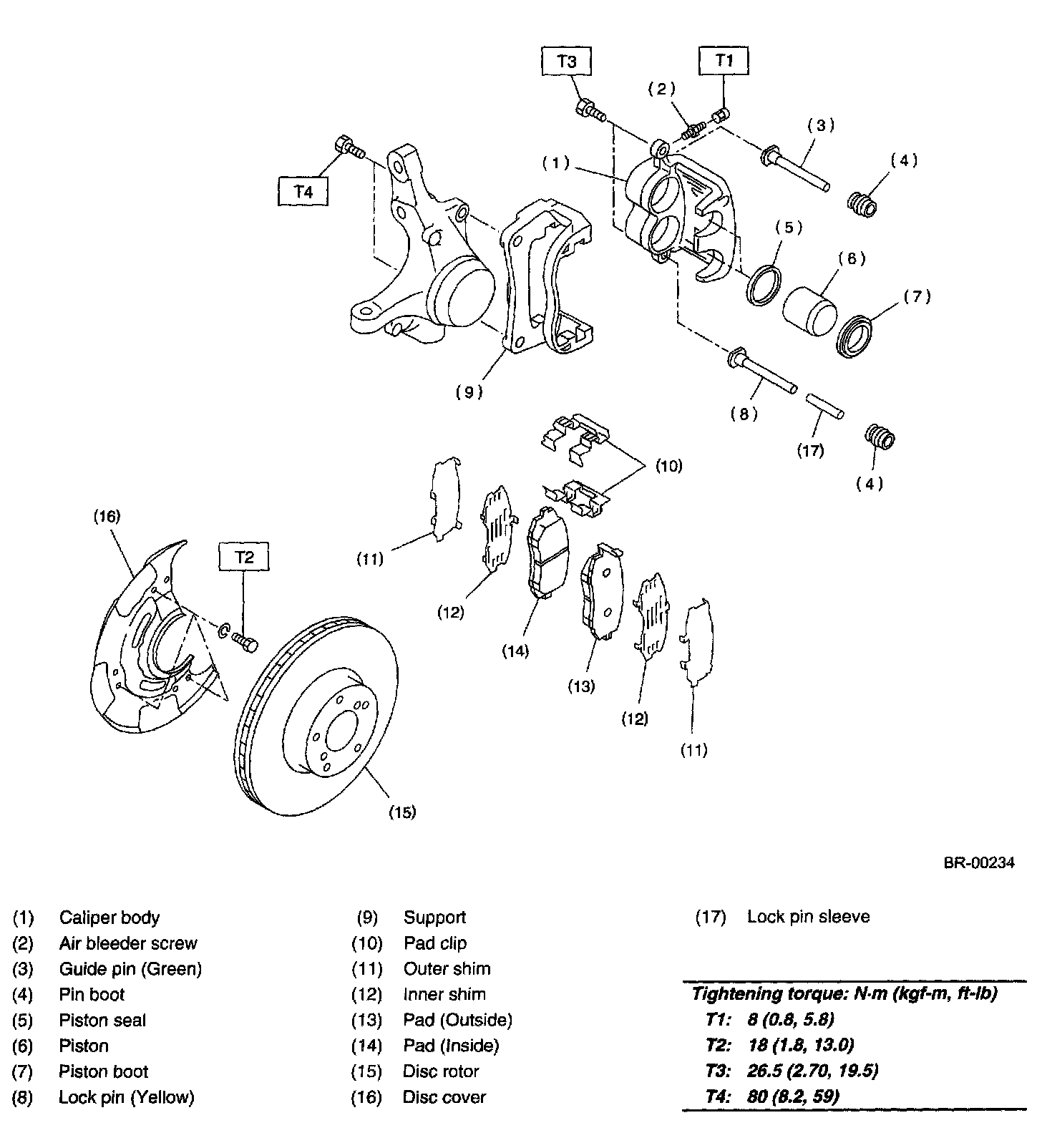

^ TURBO MODEL

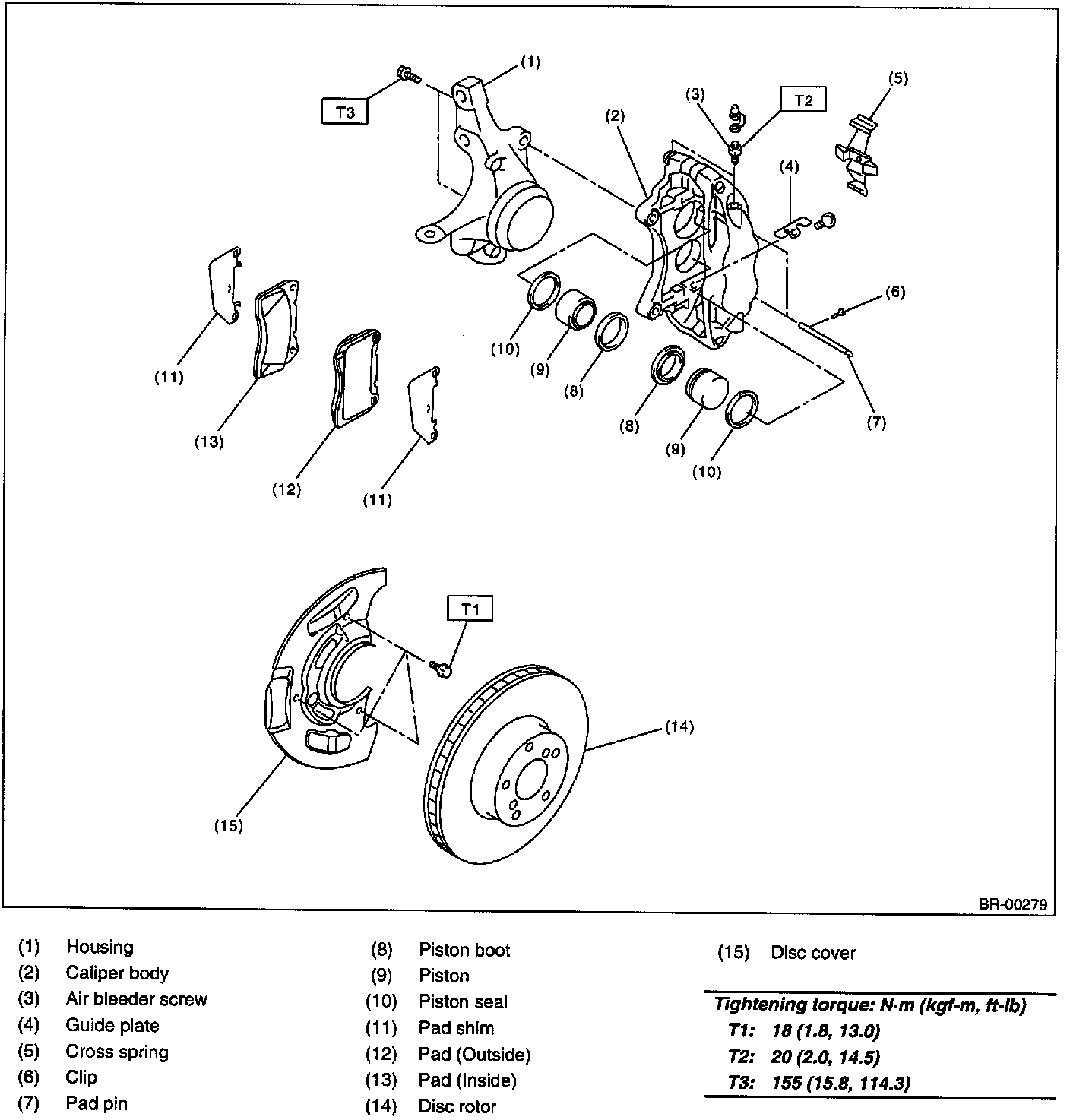

^ STi TURBO MODEL
