Ignition Cable: Testing and Inspection
Spark plug CordINSPECTION
Check for:
1. Damage to cords, deformation, burning or rust formation on terminals

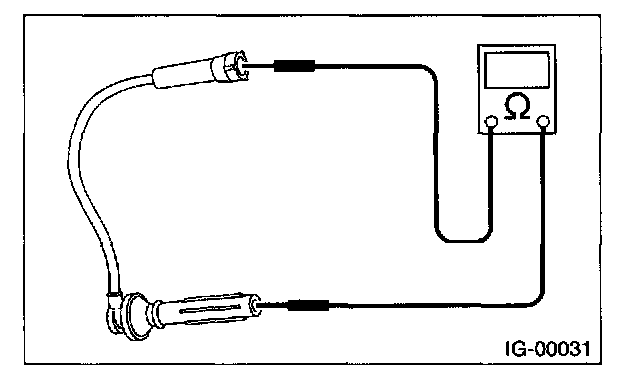

2. Resistance value of cords
Resistance values:
#1 cord: 5.6 - 10.6 kOhm
#2 cord: 7.3 - 13.7 kOhm
#3 cord: 5.9 - 11.1 kOhm
#4 cord: 7.3 - 13.7 kOhm
