Keyless Entry Module: Service and Repair

Keyless Entry Control Module

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the glove box.

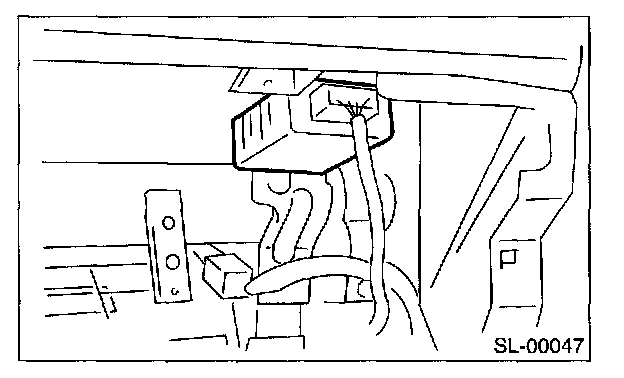

3. Remove the nut, and then remove the keyless entry control module while disconnecting connector.

INSTALLATION

Install in the reverse order of removal.
