Subaru
>>
2002
>>
Outback Wagon AWD F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

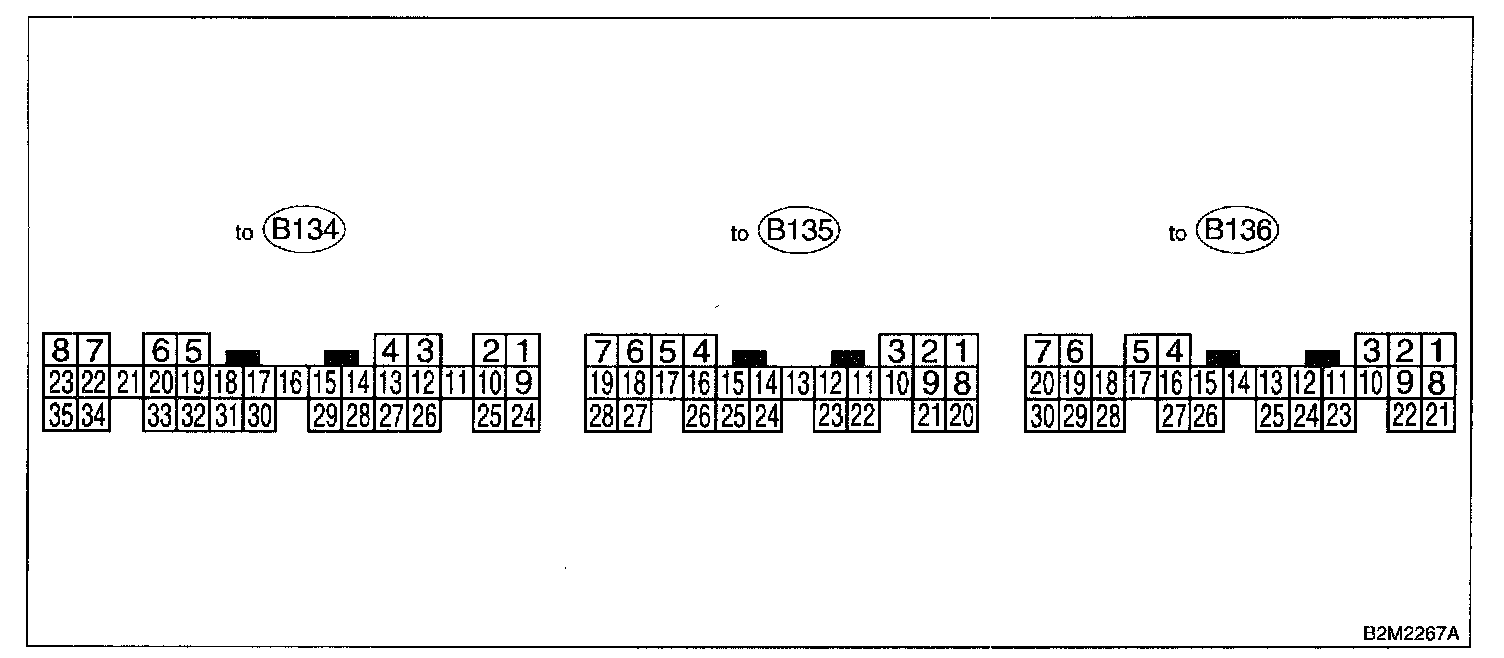

Connector Views
>>
Engine Control Module
Engine Control Module

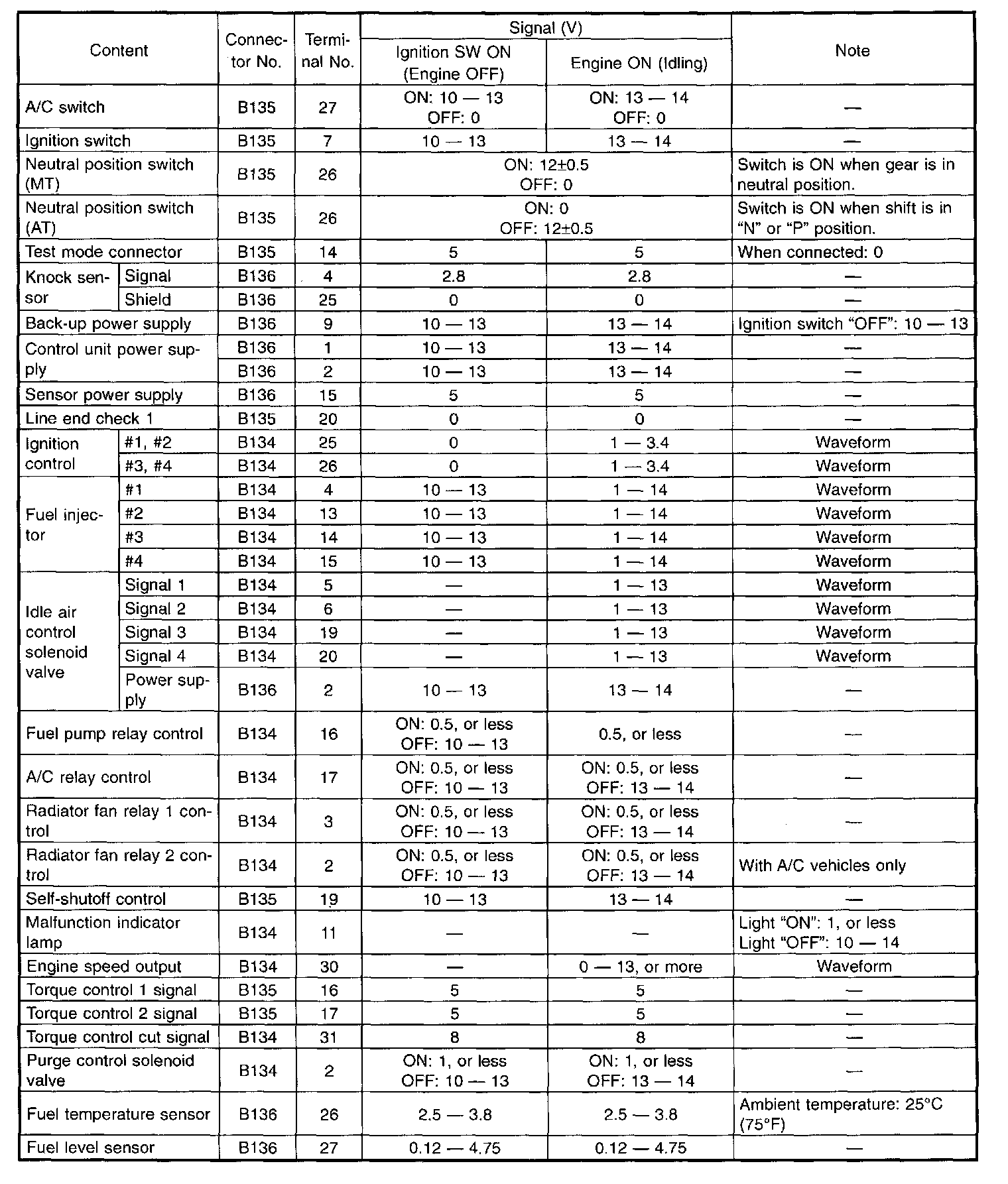

Electrical Specification Part 1:

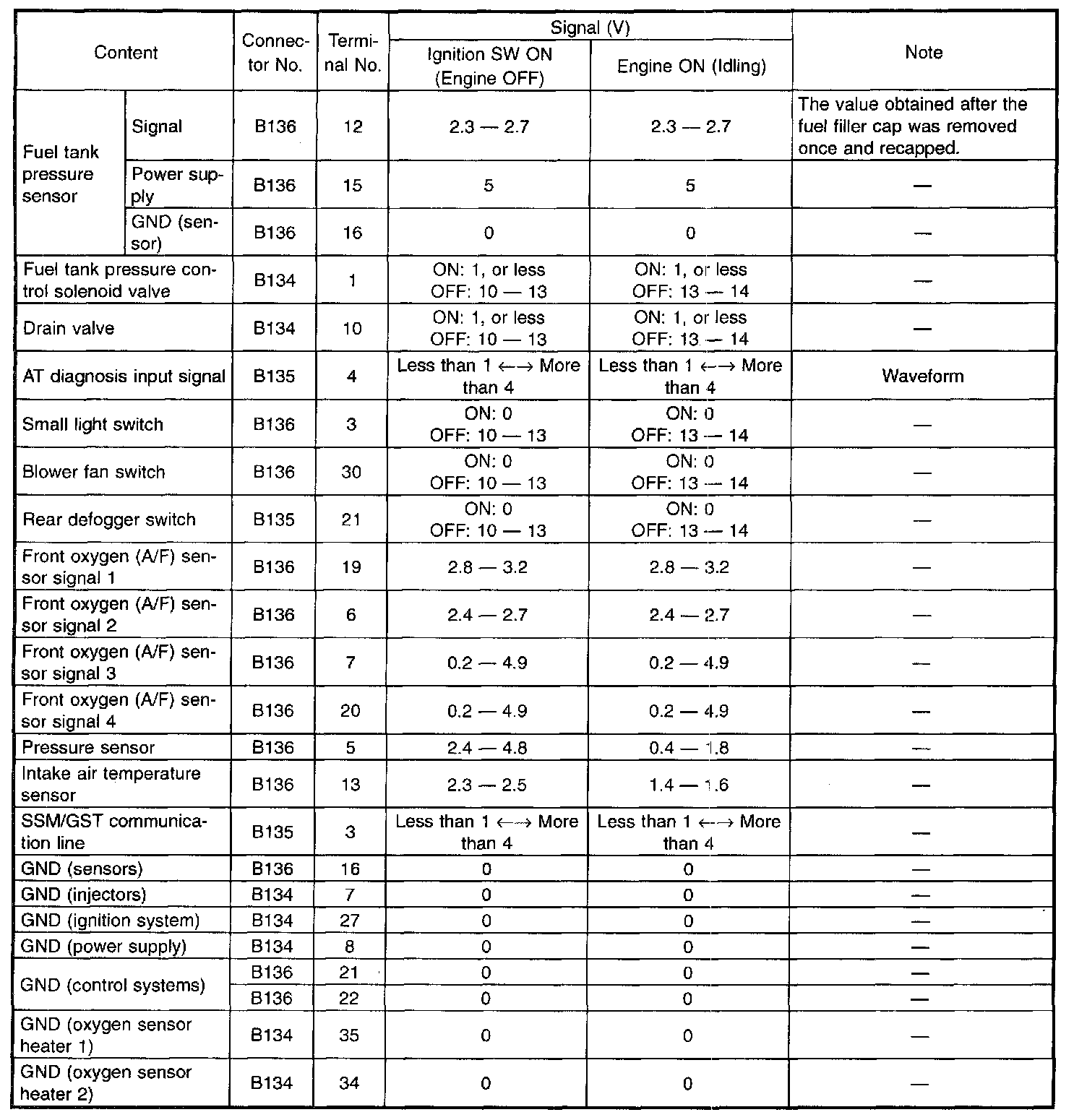

Electrical Specification Part 2:
Electrical Specification Part 3:
Electrical Specification Part 4:
