Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

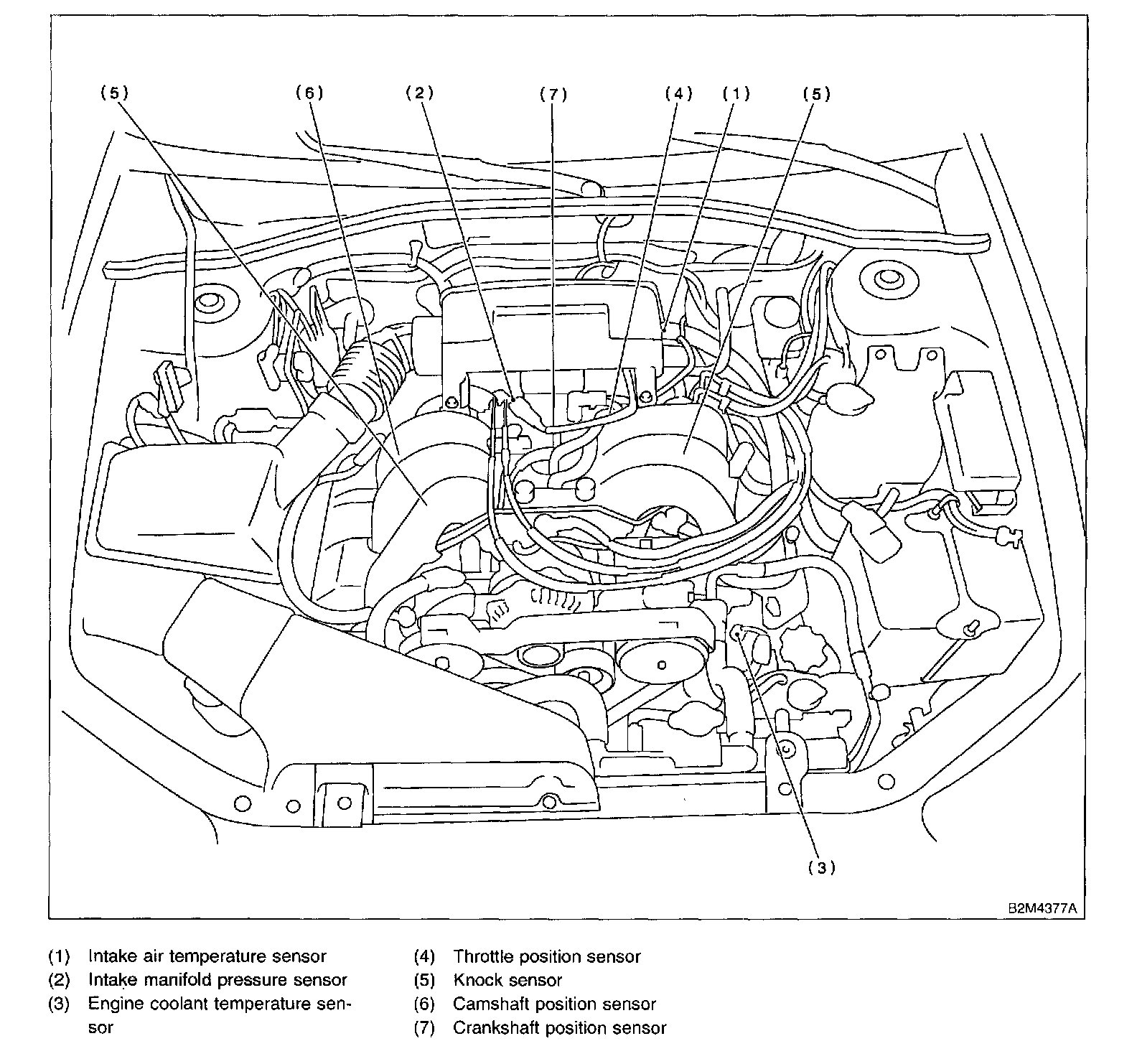

Sensor Part 1:

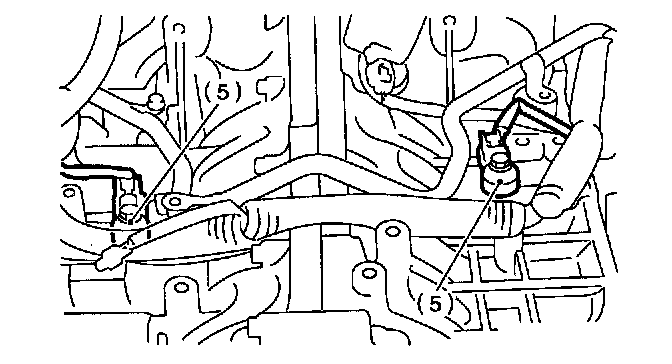

Knock Sensor:

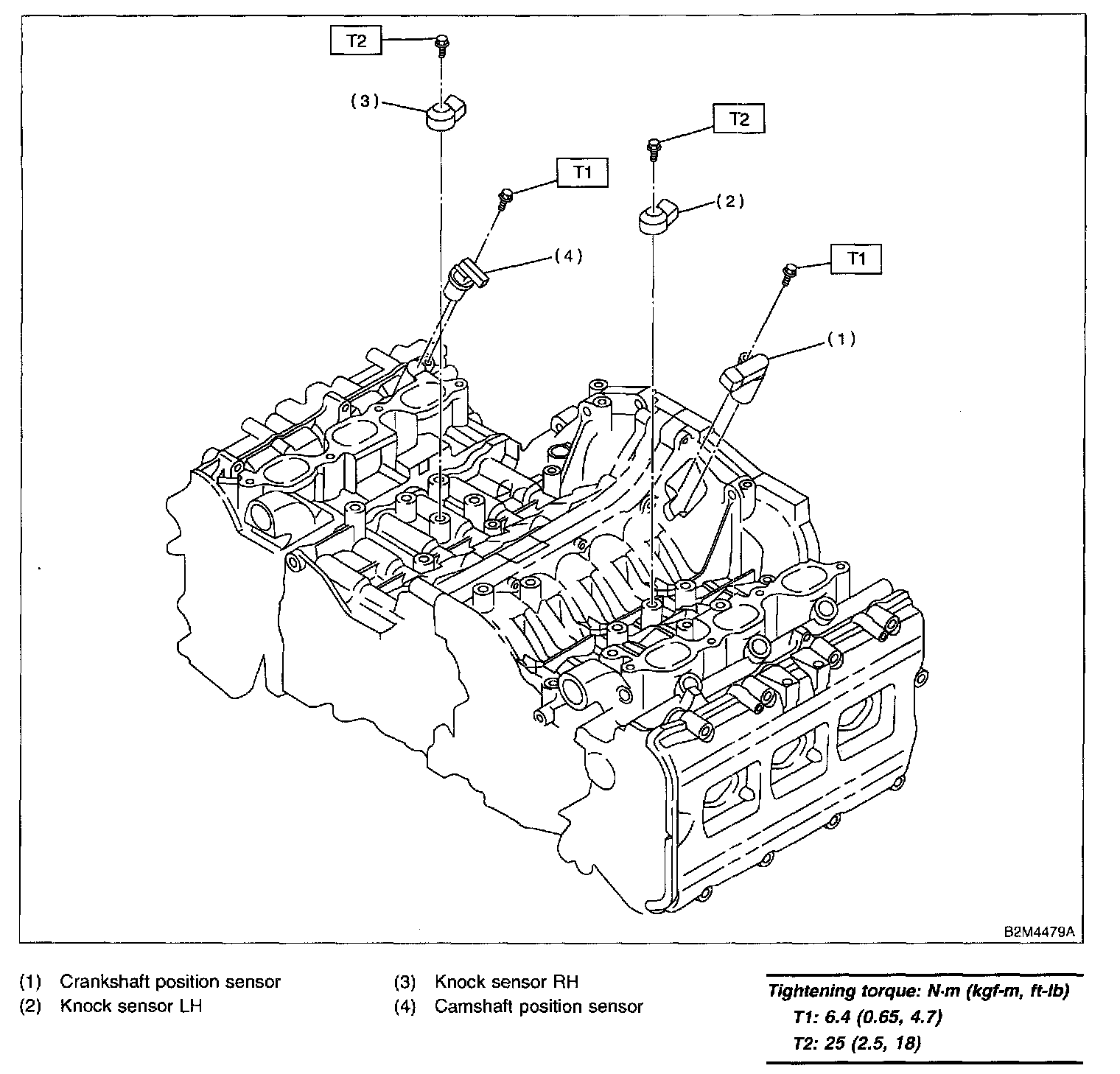

Crankshaft Position, Camshaft Position And Knock Sensors:
