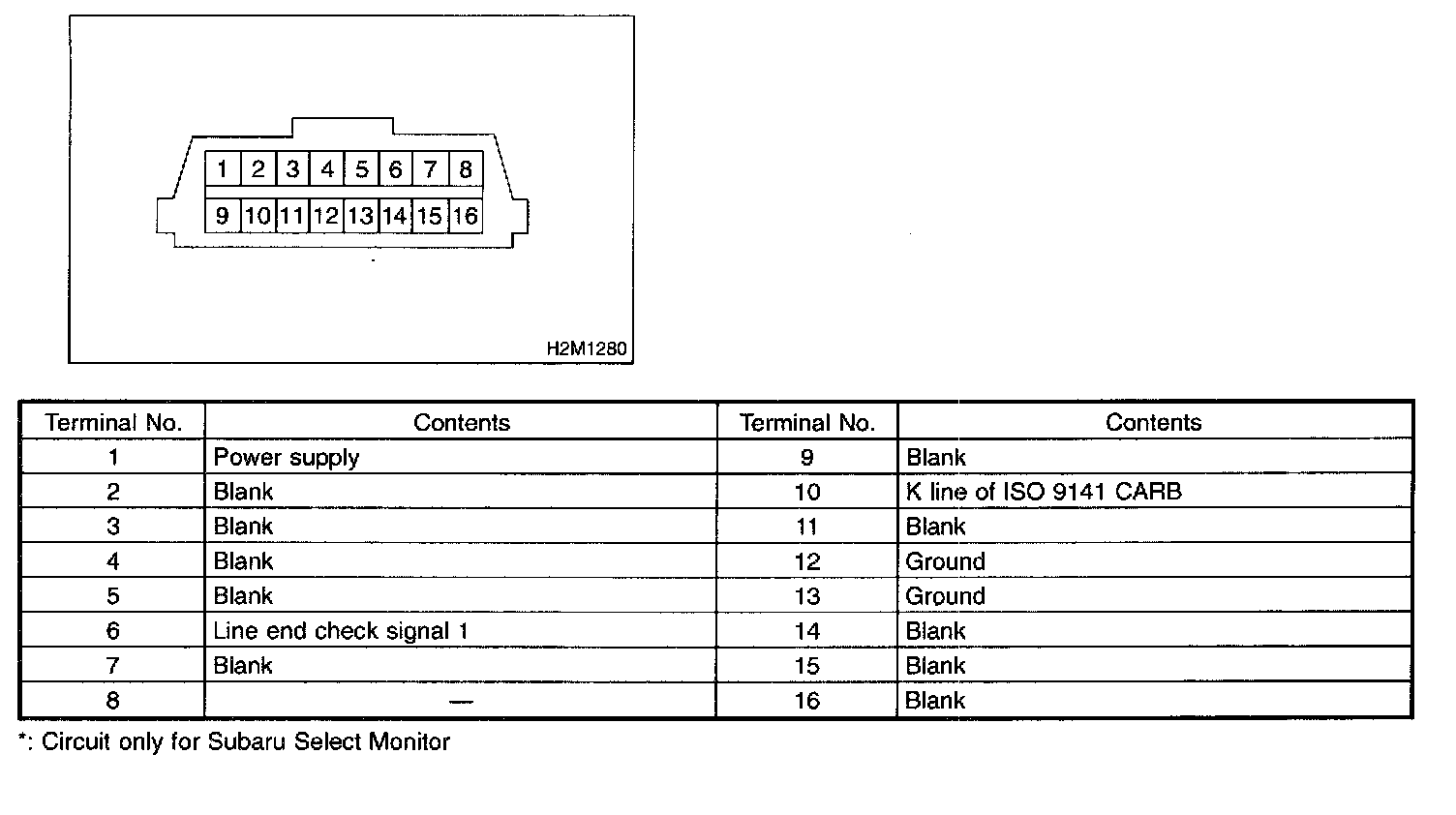

Data Link Connector: Diagrams

NOTE
1. This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
2. Terminal No.4 to No.6 of the data link connector is used for the Subaru Select Monitor signal.






CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.
