Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations

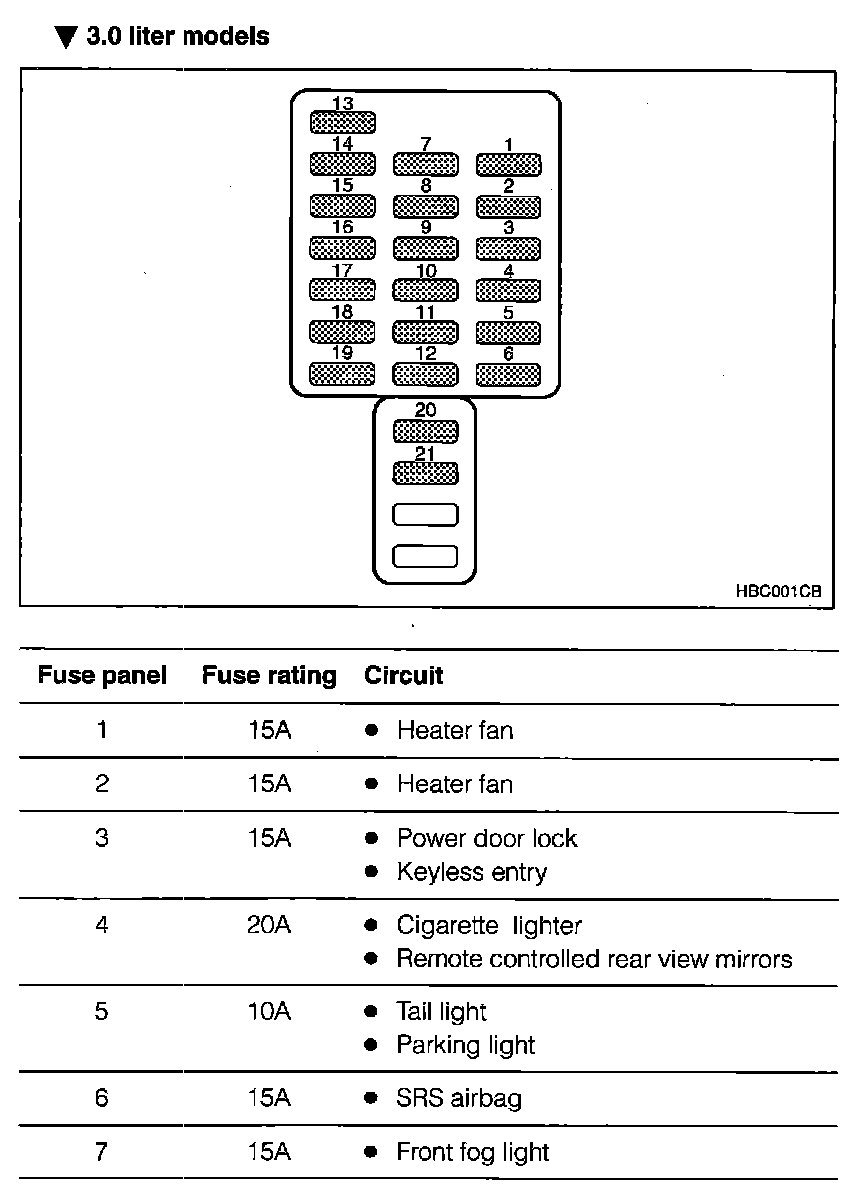

Fuse Panel Located Behind Coin Tray:

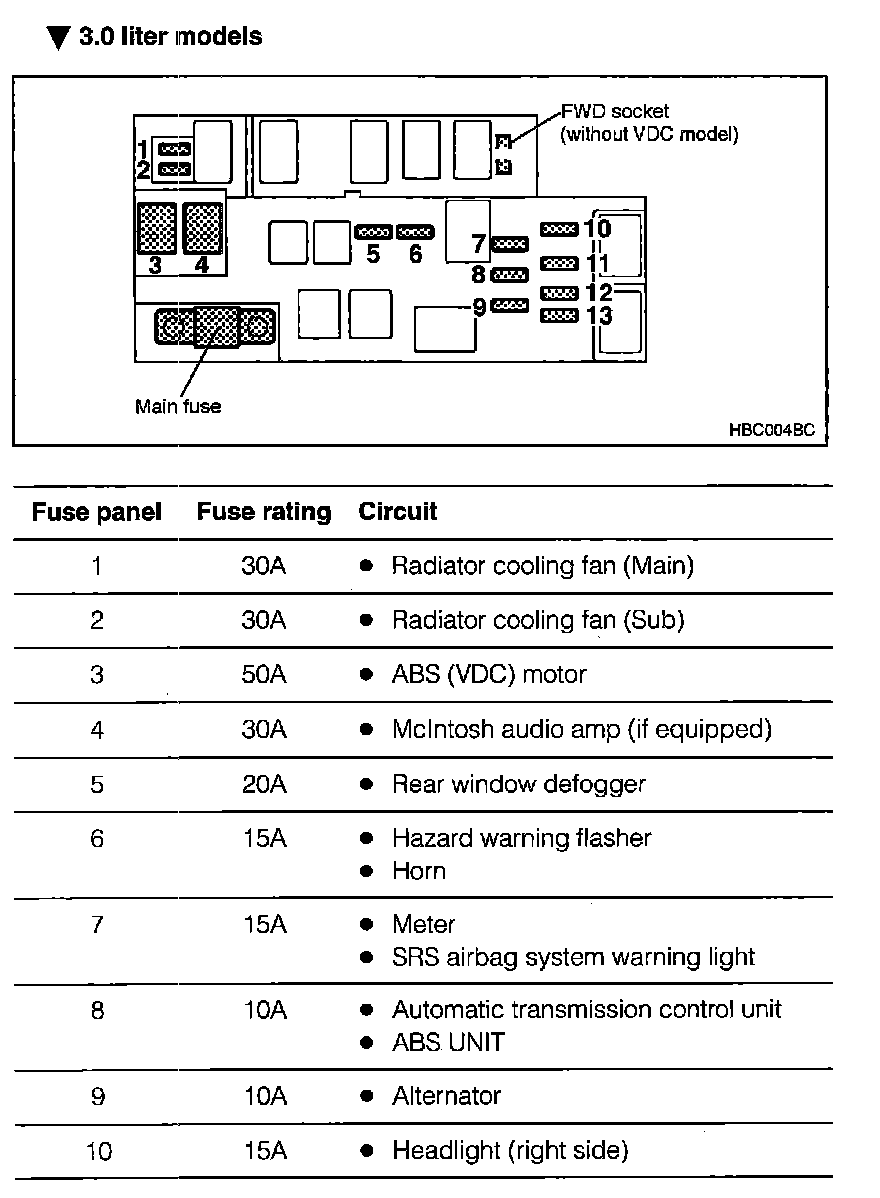

Fuse Box Locations

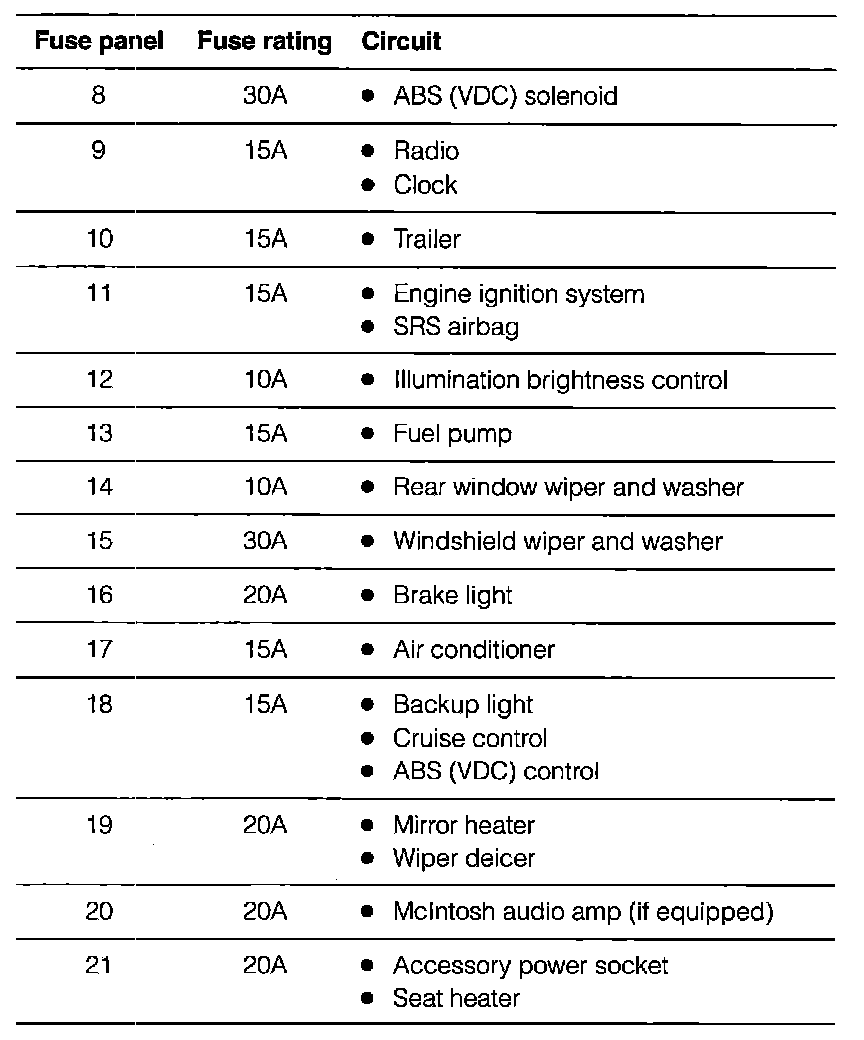

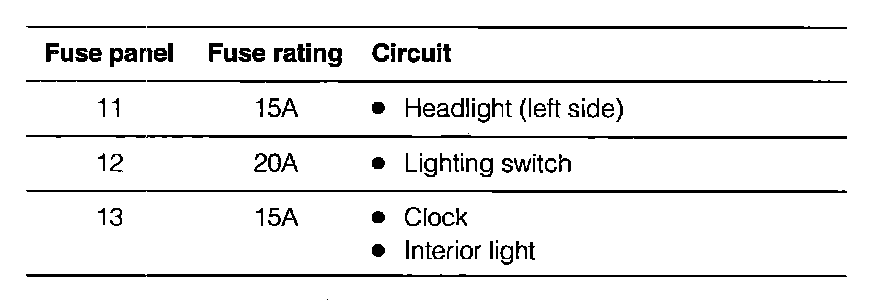

Fuse Panel/Relay Details
