Solar Sensor: Service and Repair

Sun-load Sensor (Auto A/C)

REMOVAL

1. Disconnect ground cable from battery.

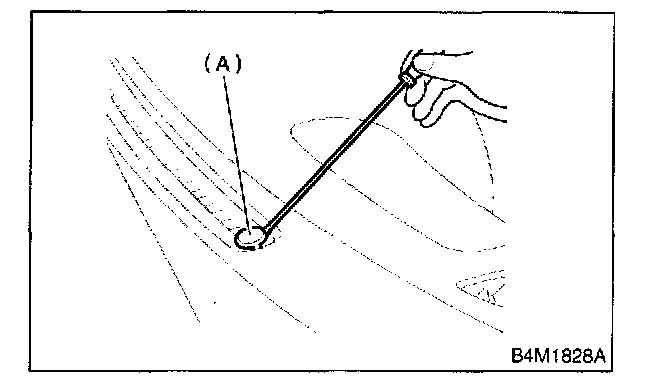

2. Insert a slot-type screwdriver to remove sun-load sensor.

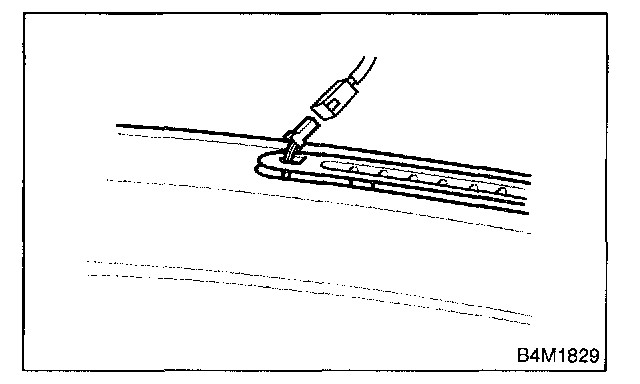

3. Disconnect sunload sensor connector.

CAUTION: Be careful not to damage sensors and interior trims when removing them.

INSTALLATION

Install in the reverse order of removal.
