lemon-mirror
:
Home
>>
Subaru
>>
2002
>>
Outback L.L.Bean Edition AWD F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>

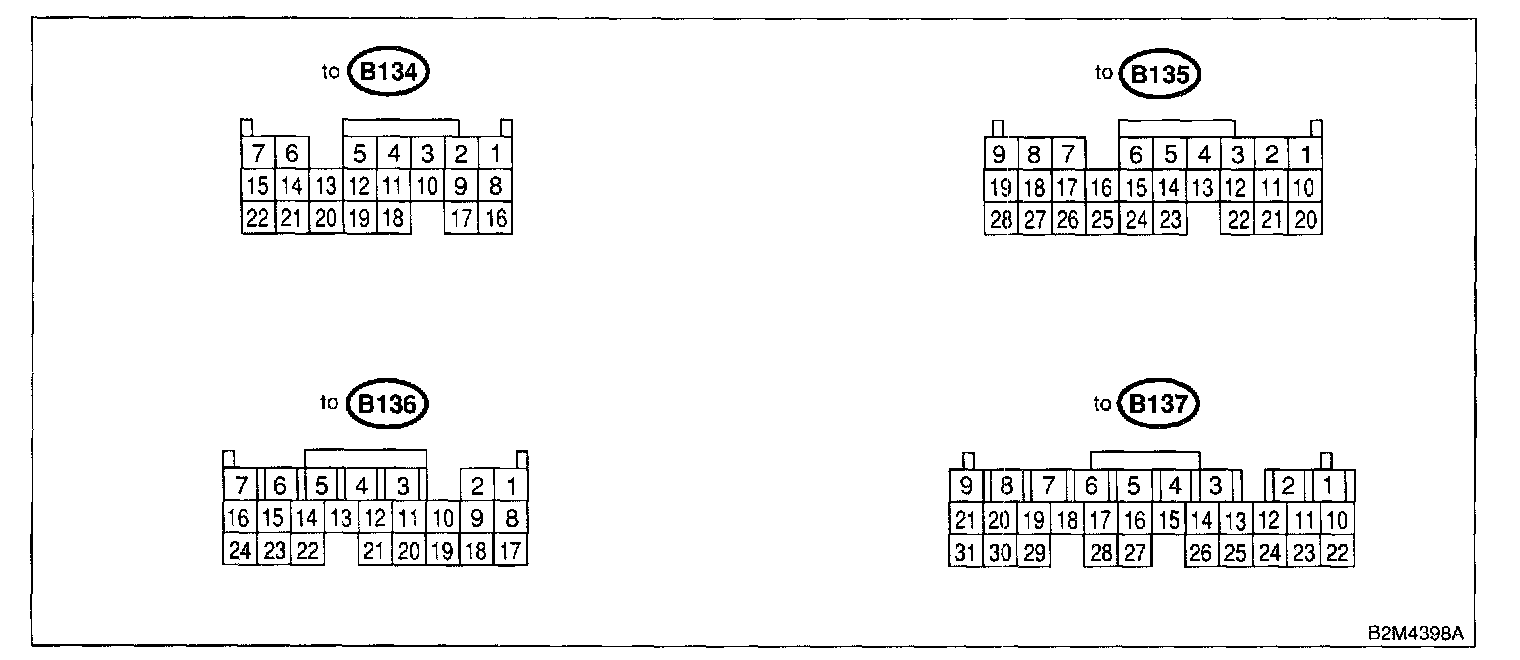

Connector Views
>>
Engine Control Module
Engine Control Module

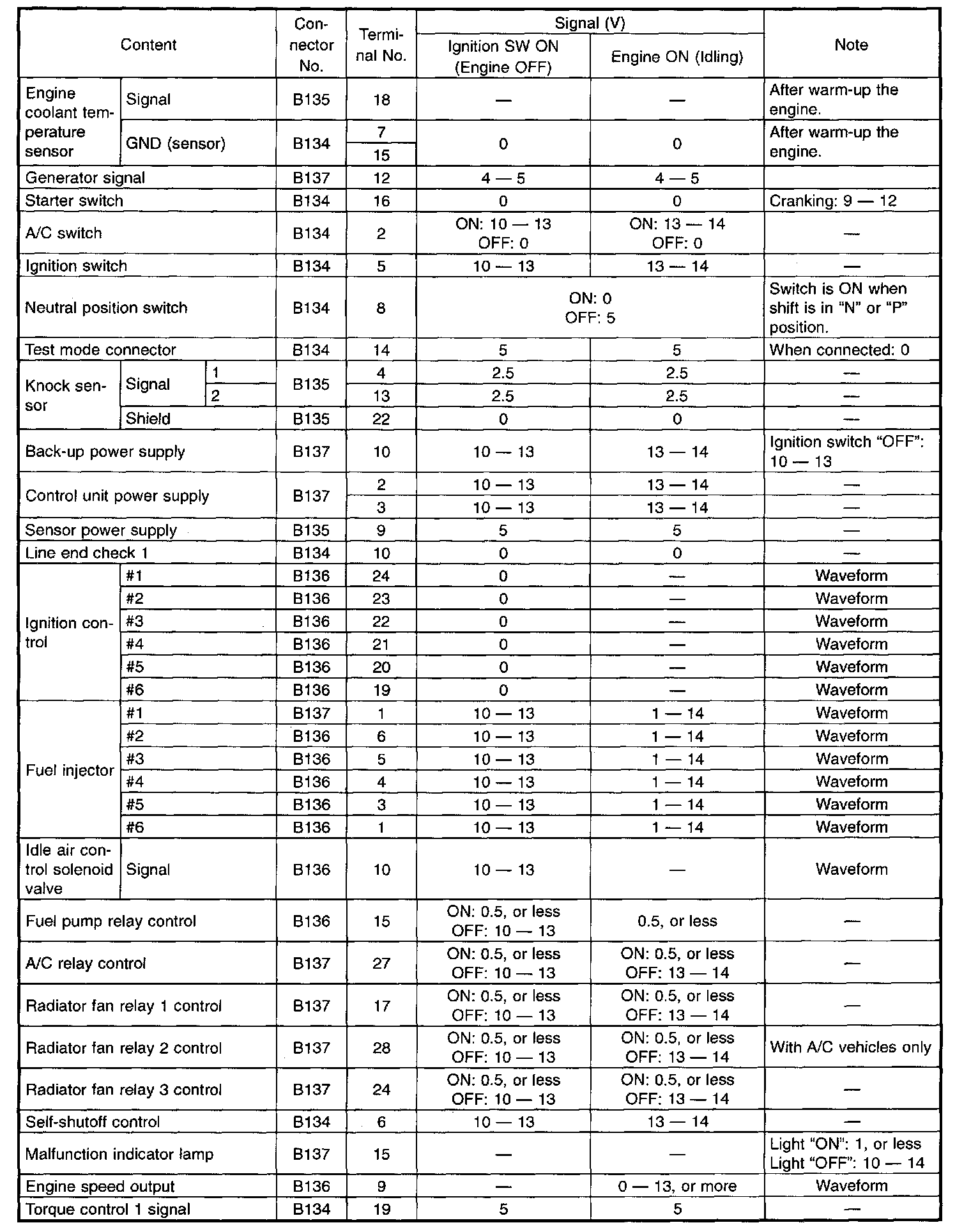

Electrical Specification Part 1:

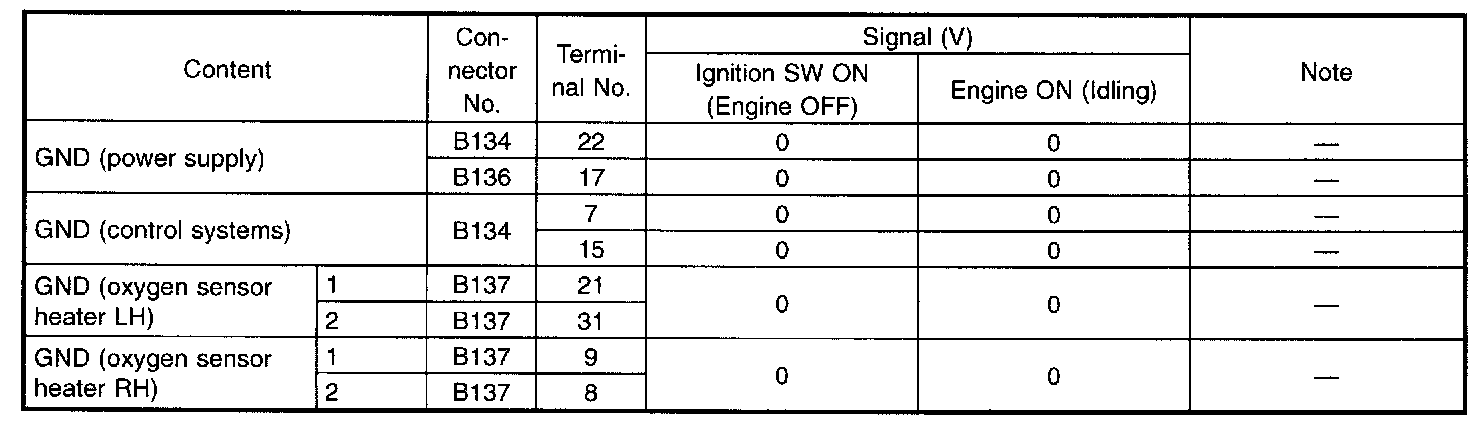

Electrical Specification Part 2:

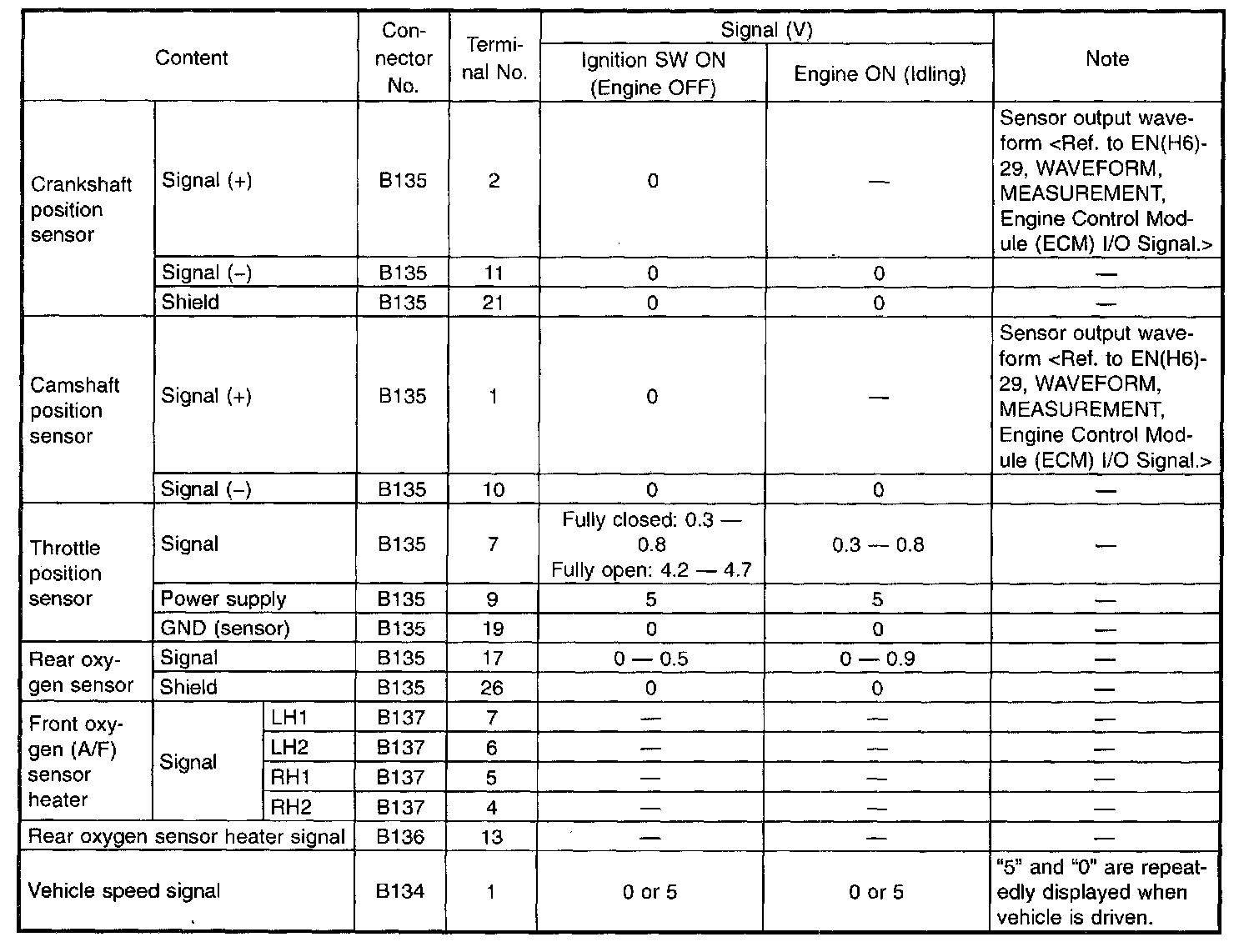

Electrical Specification Part 3:

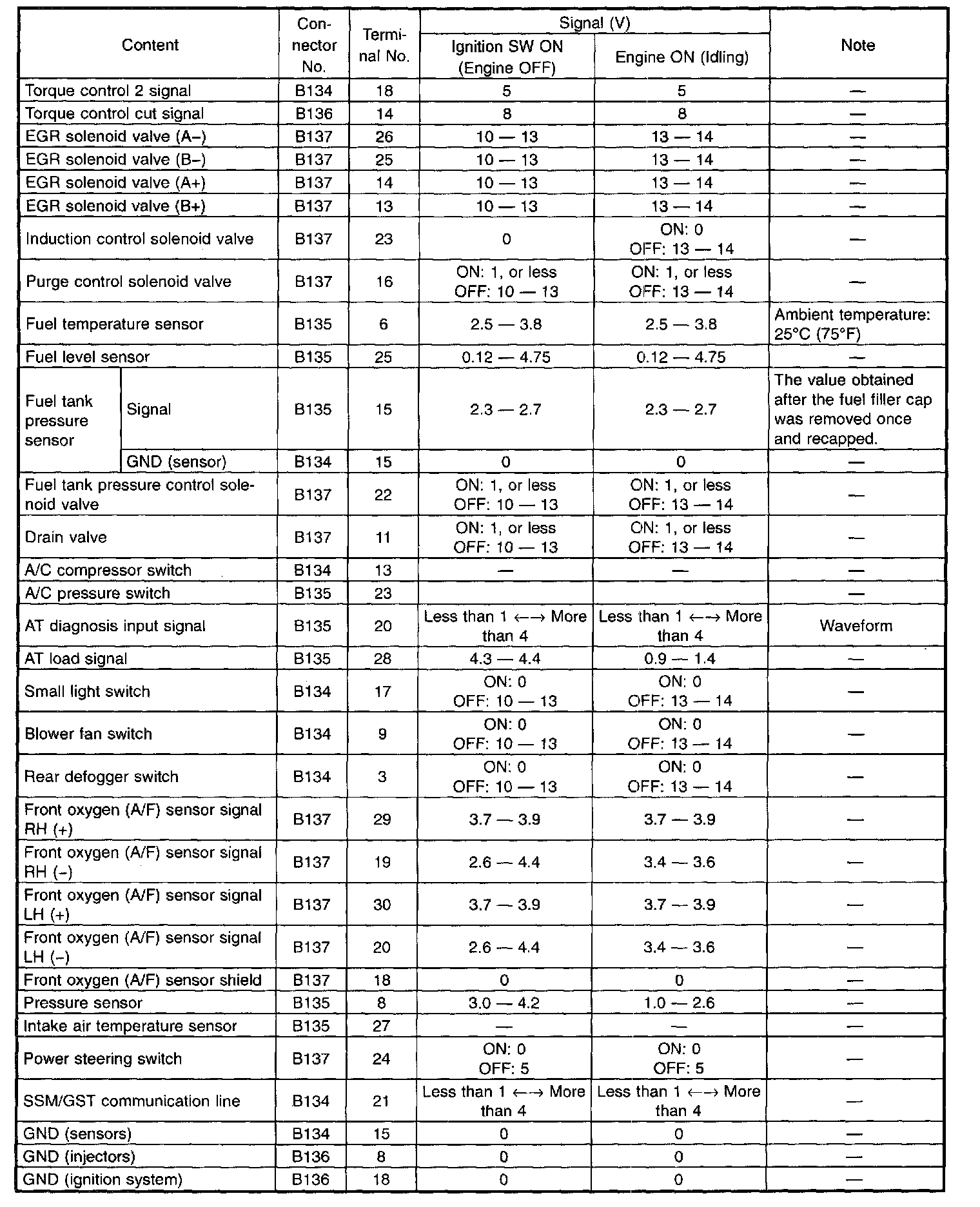

Electrical Specification Part 4:
Electrical Specification Part 5:
