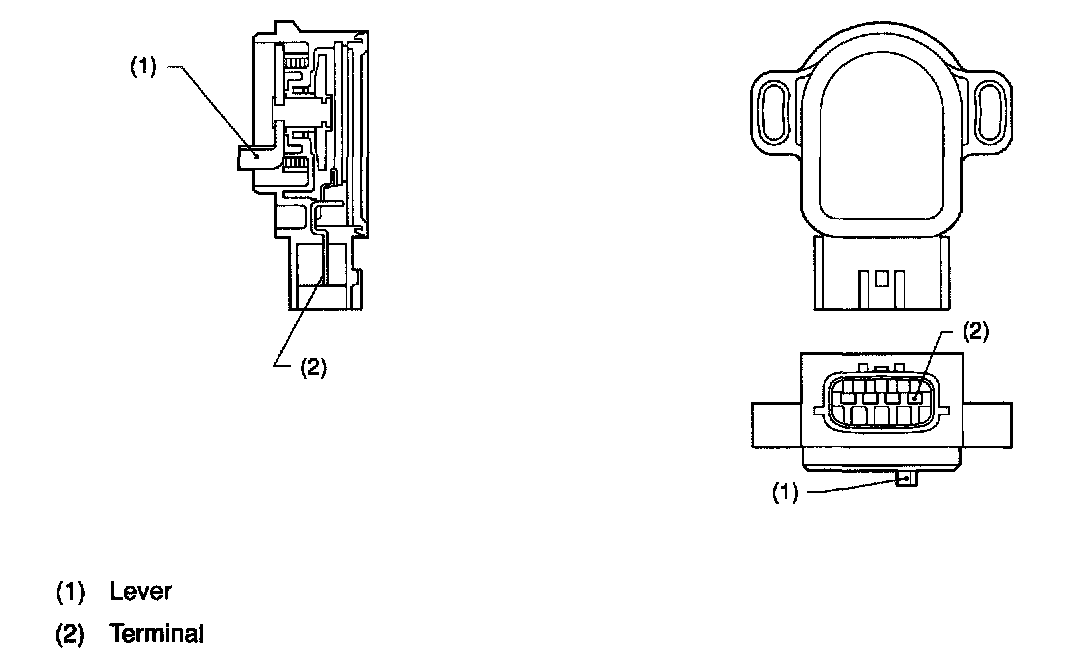

Throttle Position Sensor: Specifications

Throttle Position Sensor:

Tightening Torque: 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)


Condition: Throttle fully closed
Throttle opening angle 0.00 %
Throttle sensor voltage 0.50 V
