Differential Assembly
Differential Assembly

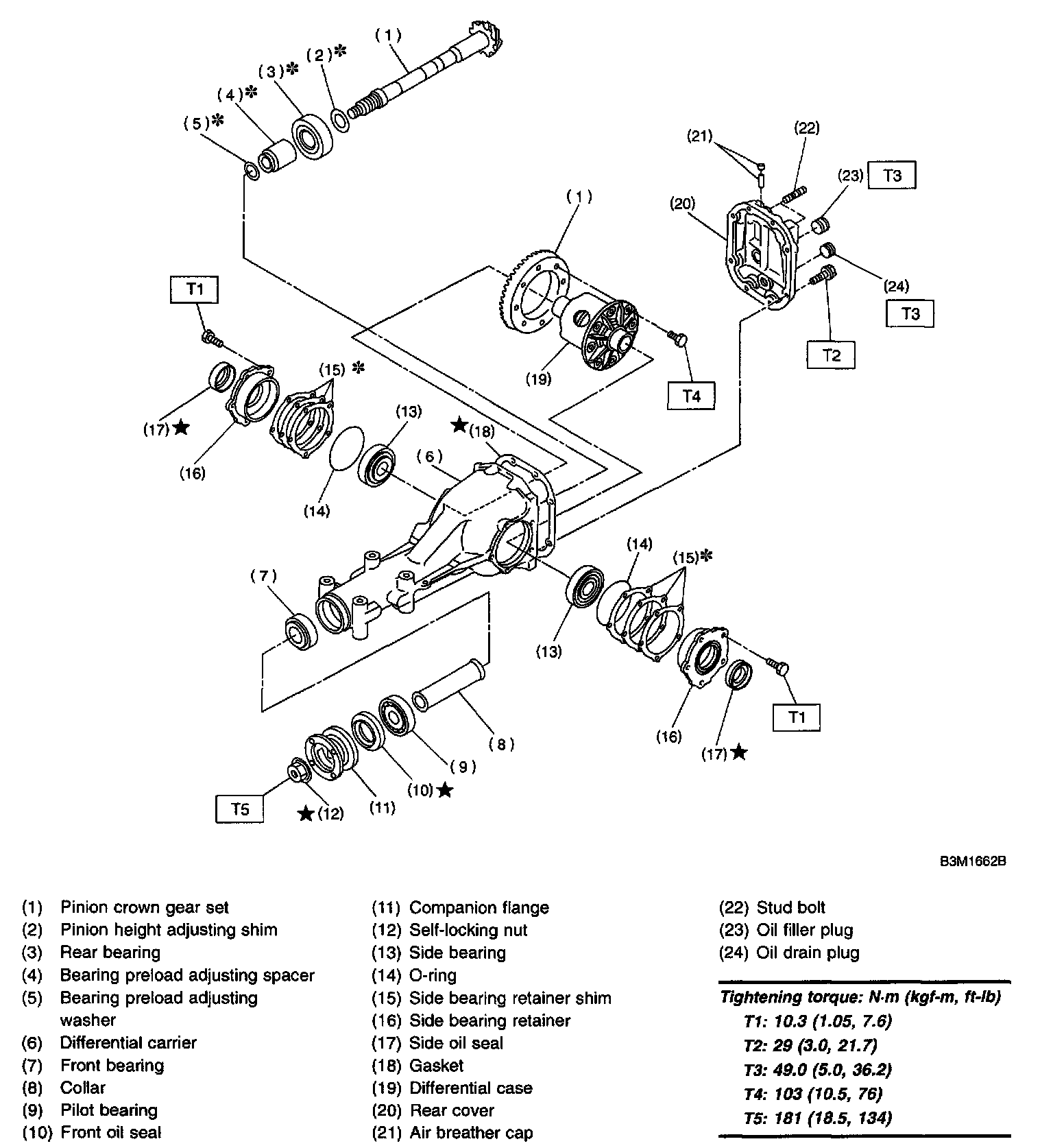

1. REAR DIFFERENTIAL WITHOUT LSD

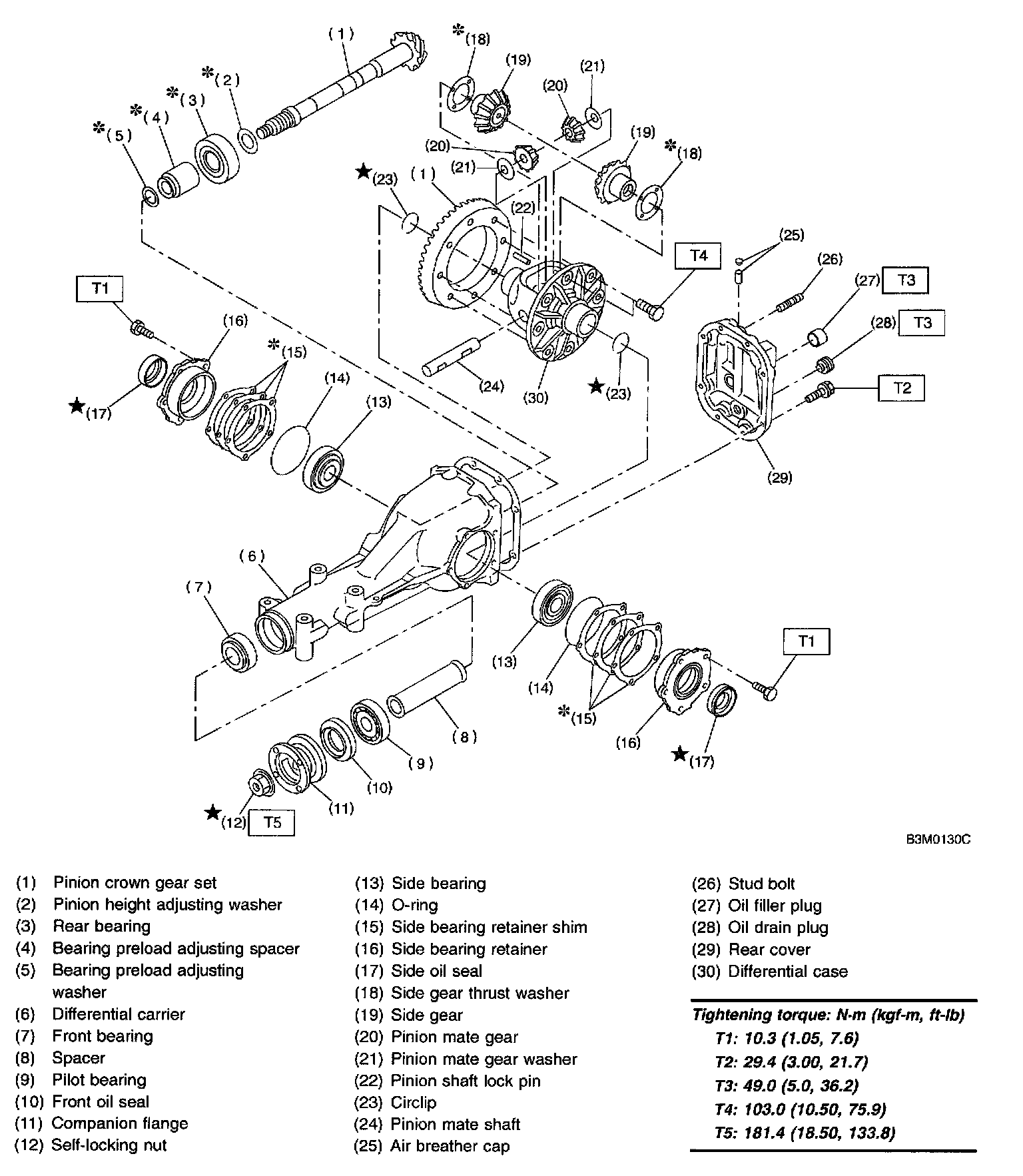

2. REAR DIFFERENTIAL WITH LSD

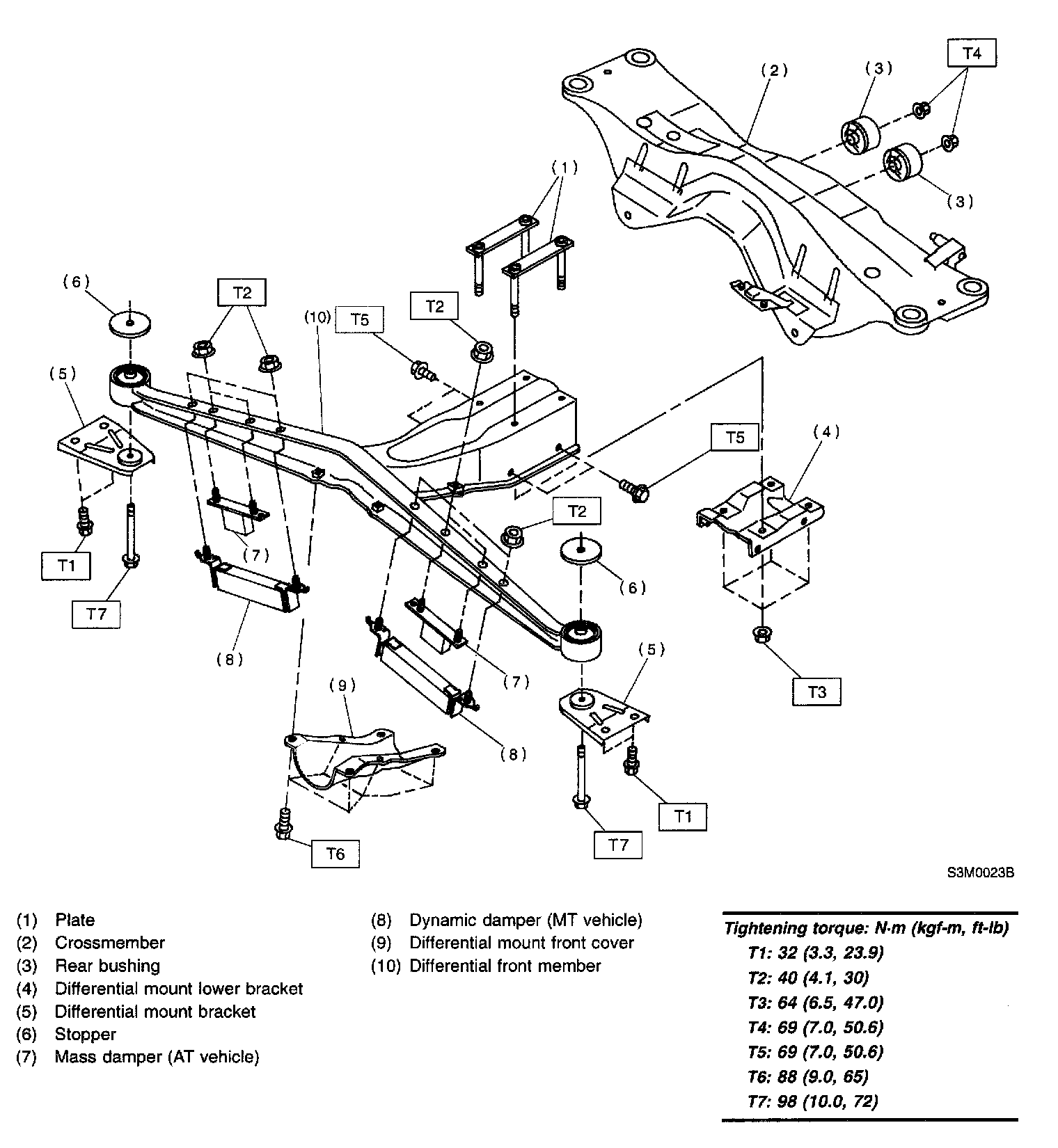

3. REAR DIFFERENTIAL MOUNTING SYSTEM
