Cruise Control Module: Description and Operation






CRUISE CONTROL MODULE
Based on signals from the related switches and sensors, the cruise control module performs all the following control functions:

Constant speed control; speed setting control; deceleration control; acceleration control; resume control; manual cancellation control; low speed limit control; release valve control

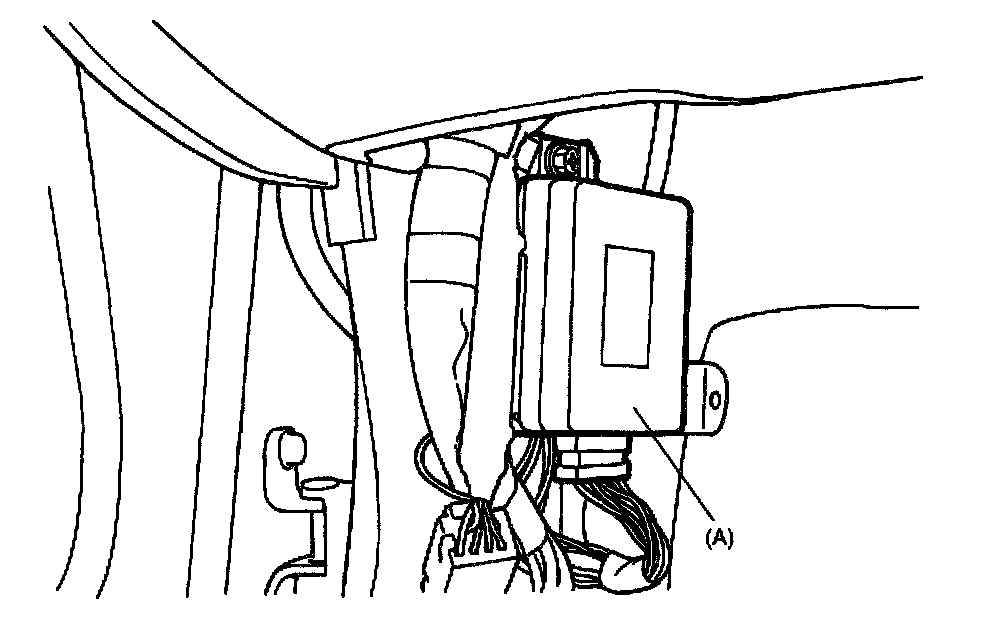

The control module (A) is located on the inside bottom portion of the passenger side front pillar.
