Keyless Entry Module: Service and Repair

Keyless Entry Control Module / REMOVAL
1. Disconnect battery ground cable.
2. Remove instrument panel lower cover. Instrument Cluster / Carrier>

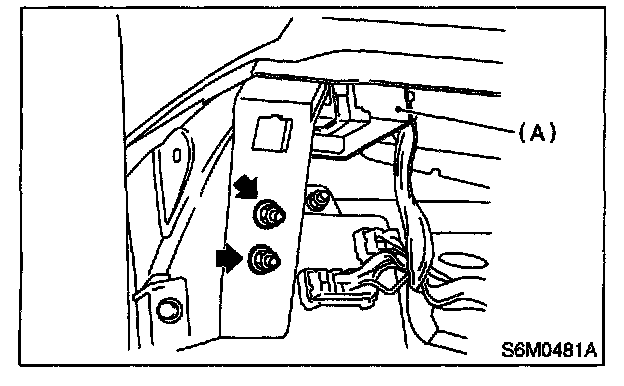

3. Remove nut, then remove keyless entry control module (A) while disconnecting connector.
4. Disconnect keyless entry control module.


INSTALLATION
Install in the reverse order of removal.
