Keyless Entry Transmitter Battery: Testing and Inspection

1. TRANSMITTER BATTERY

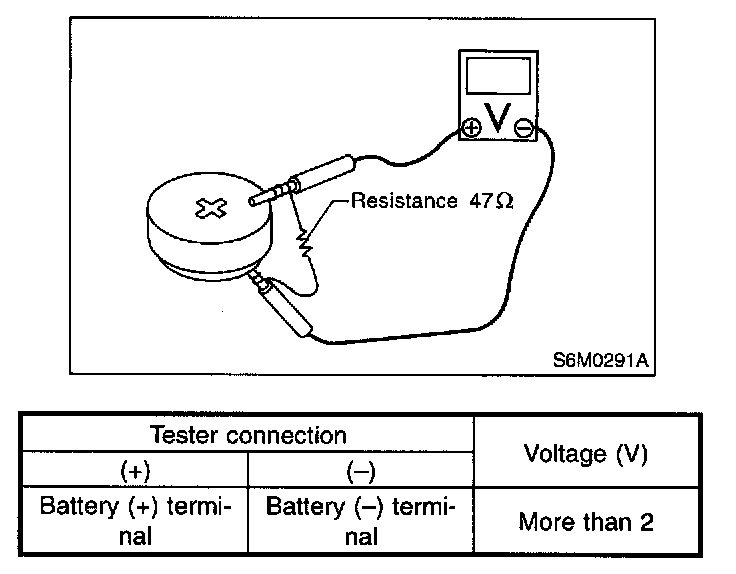

Measure voltage between battery (+) terminal and (-) terminal.

NOTE:
- Battery discharge occurs during measurement. Complete measurement within 5 seconds.




- During battery voltage measurement, voltage falls more than 1.8 volts in 3 seconds period.
If NG, replace the battery. (Use CR2032 or equivalent.)
