Control Module: Service and Repair

A: REMOVAL





1. Disconnect battery ground terminal.

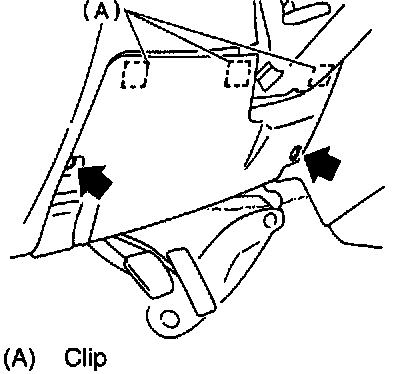

2. Remove lower cover and then disconnect connector.

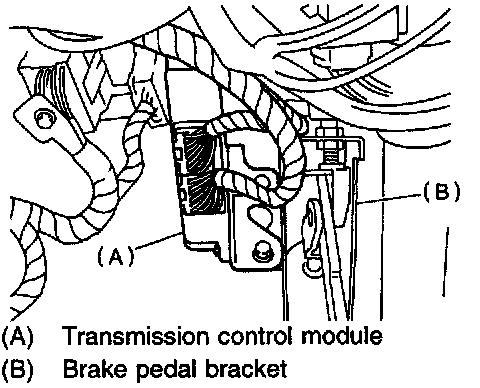

3. Disconnect connectors form TCM.





4. Remove transmission control module.

B: INSTALLATION

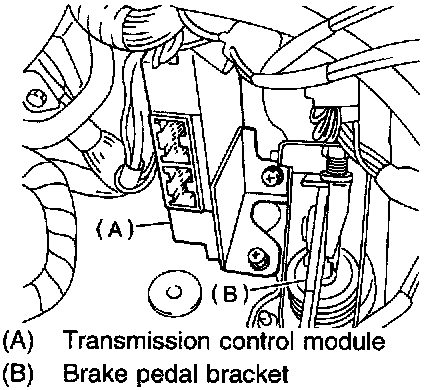

1. Install TCM to brake pedal bracket.
Tightening torque: 7.4 ± 2.0 Nm (0.75 ± 0.2 kg-m, 5.4 ± 1.4 ft. lbs.)
2. Connect connectors to TCM.
3. Install lower cover and then connect connector.
4. Connect battery terminal.
