Transmission Control Systems: Locations

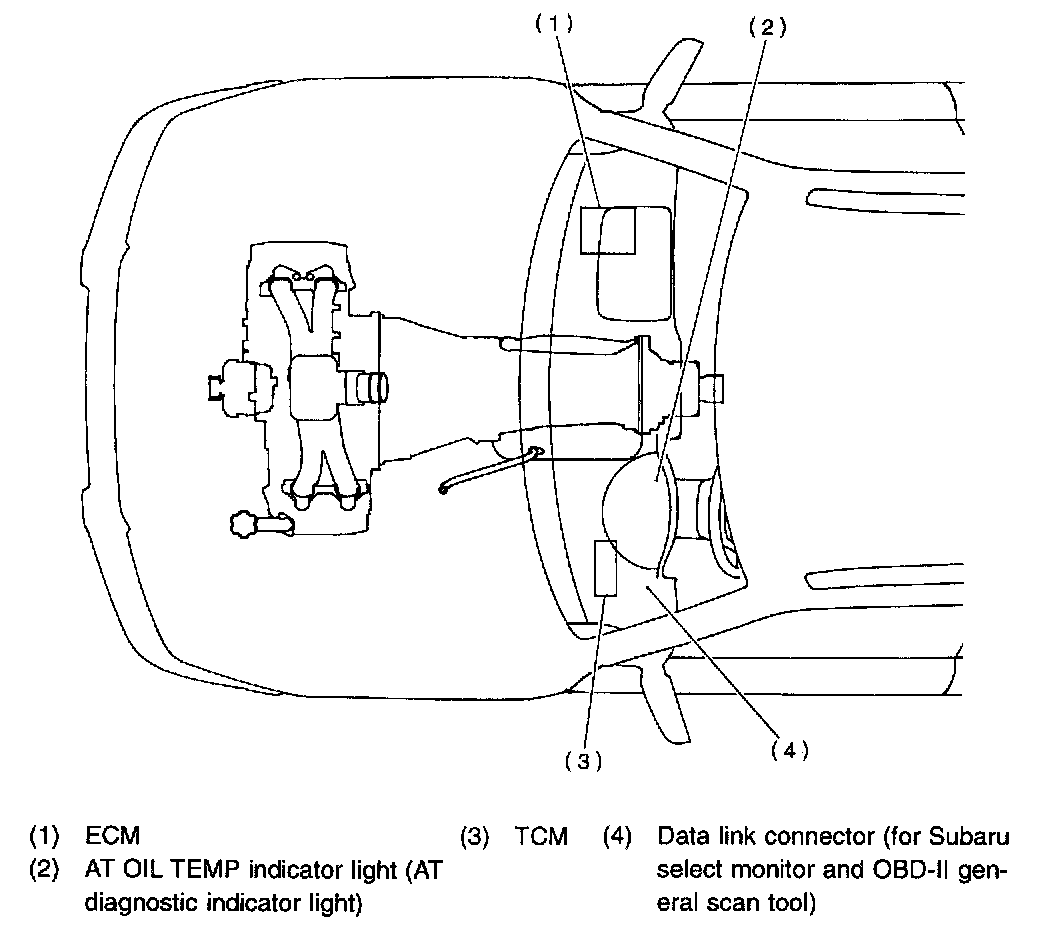

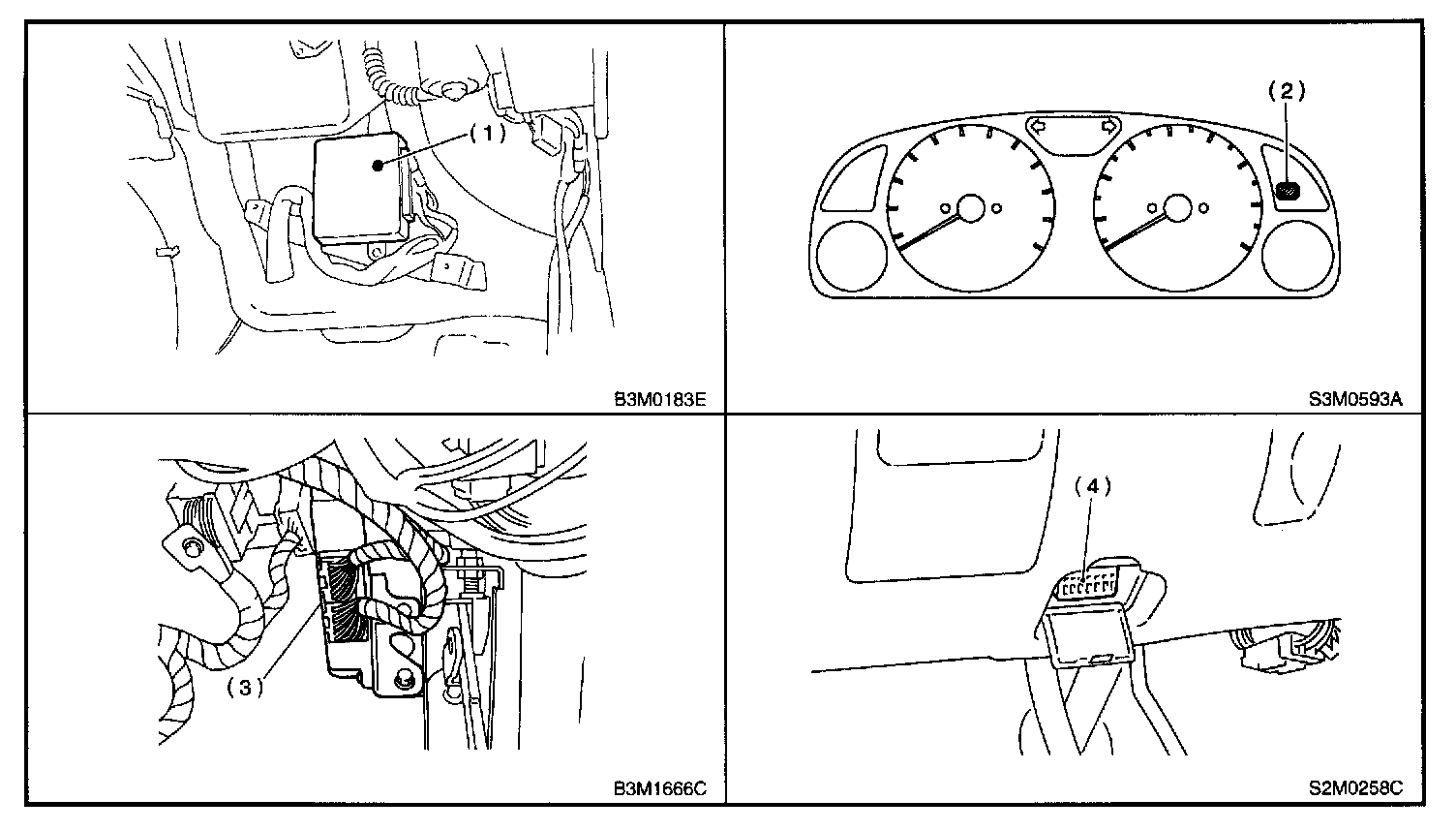

A: MODULE
1 of 2
2 of 2

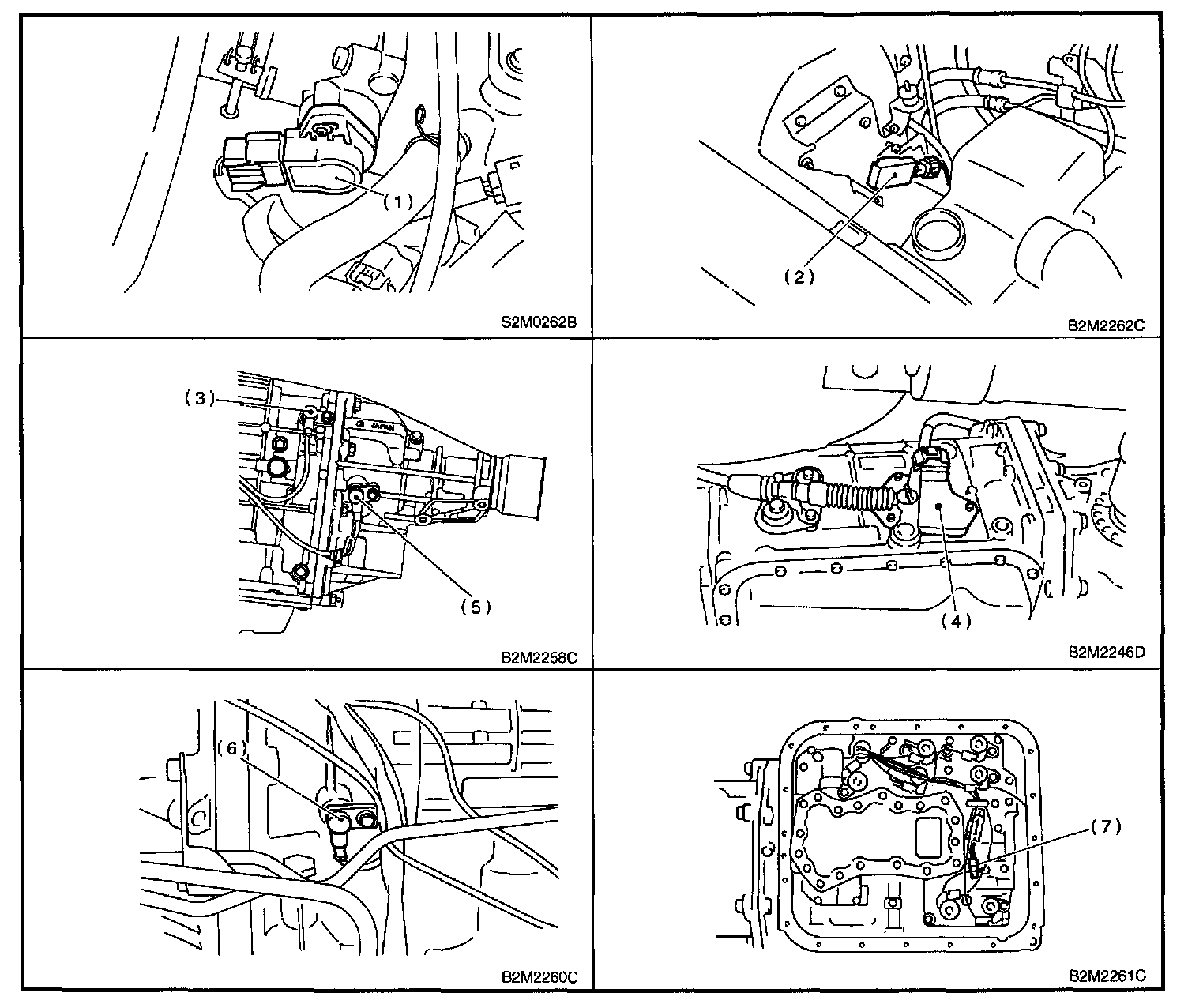

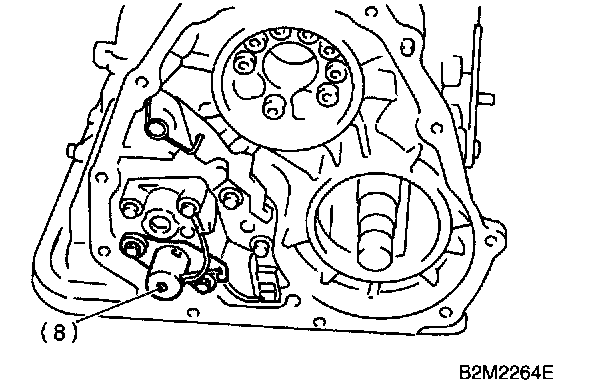

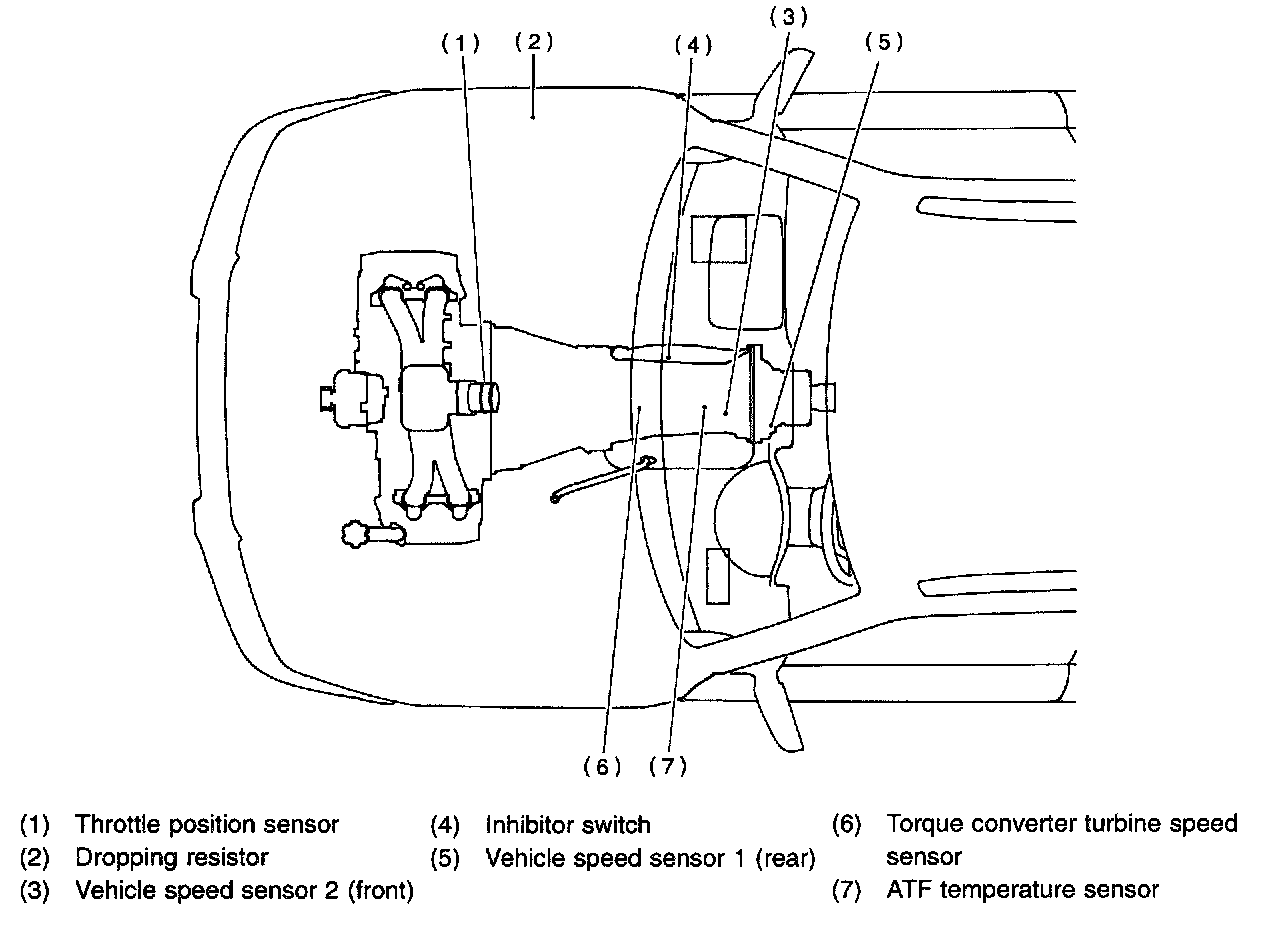

B: SENSOR
1 of 2
2 of 2

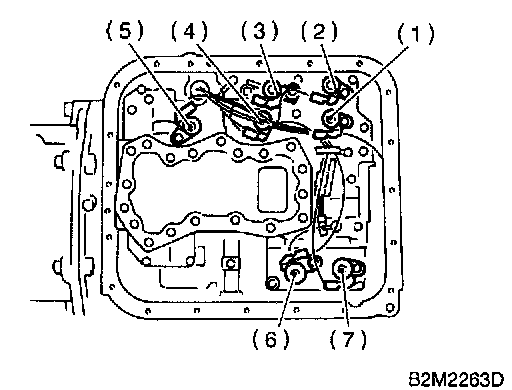

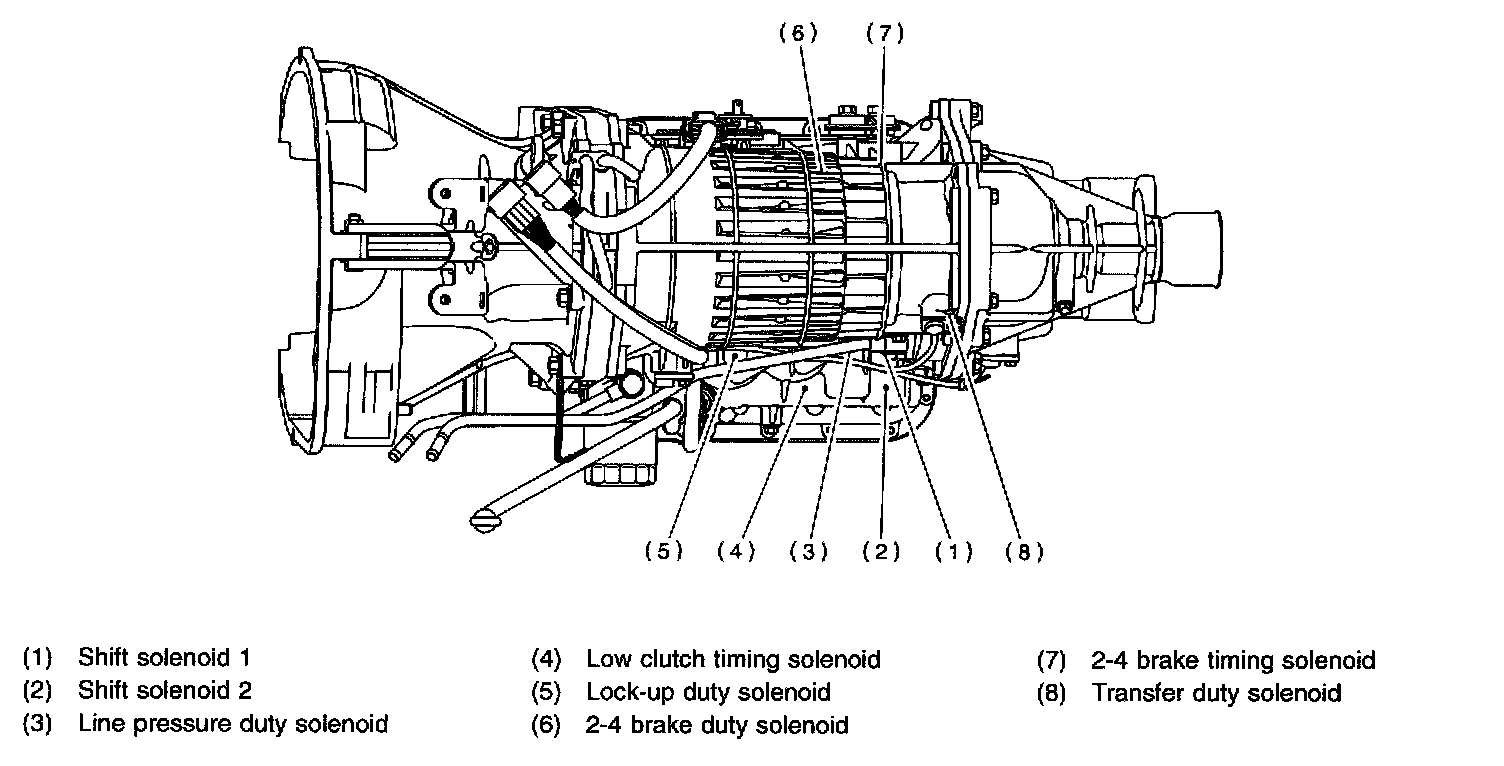

C: SOLENOID
1 of 3
2 of 3
3 of 3
