Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL AND INSTALLATION

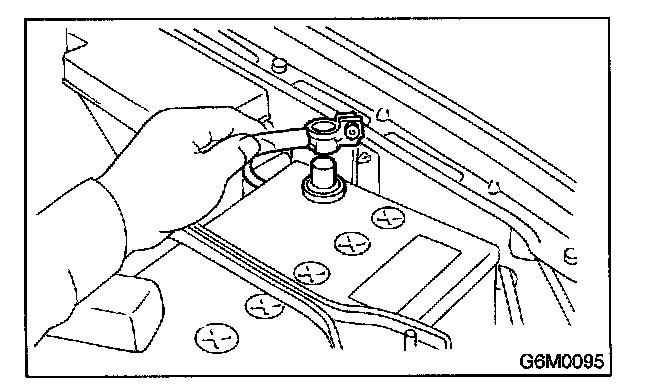

1. Disconnect battery ground cable.

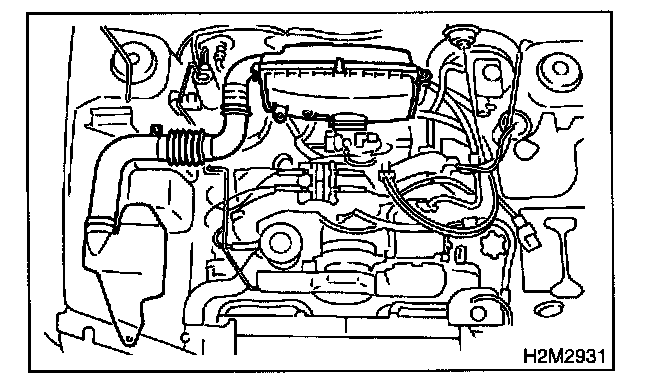

2. Remove air intake duct and air cleaner assembly.

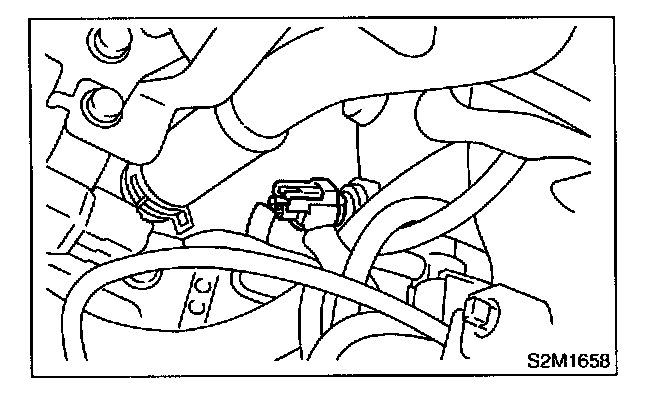

3. Disconnect connector from engine coolant temperature sensor.

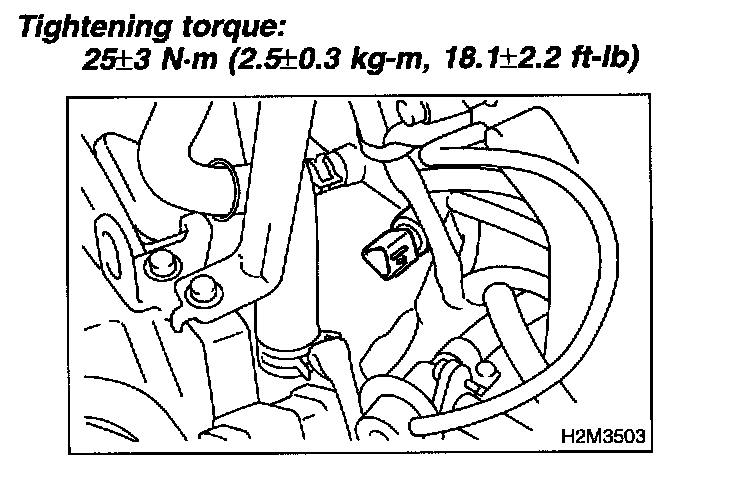

4. Remove engine coolant temperature sensor.




5. Install in the reverse order of removal.
