Control Module: Service and Repair

A: REMOVAL

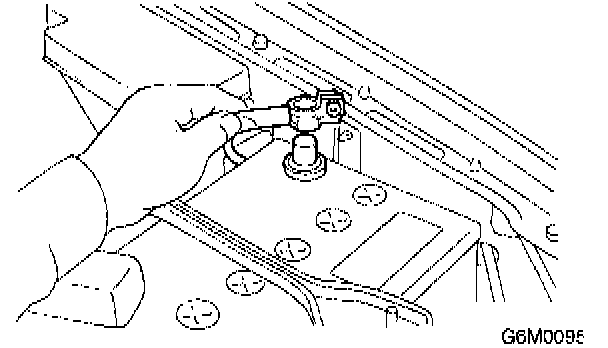

1) Disconnect battery ground cable.

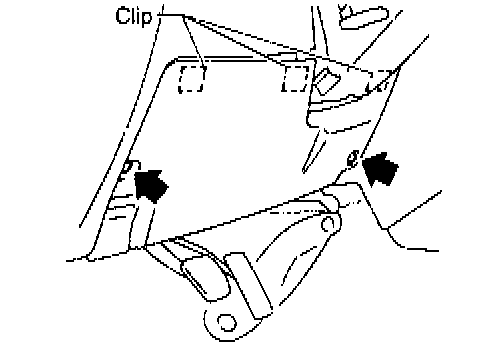

2) Remove lower cover and then disconnect connector.

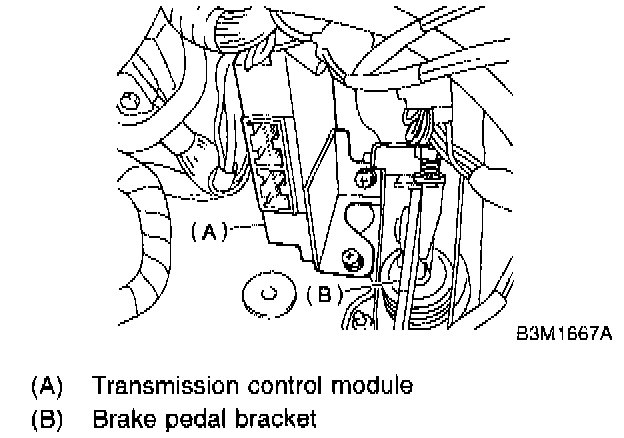

3) Remove transmission control module.
4) Disconnect connectors form TCM.

B: INSTALLATION
1) Connect connectors to TCM.

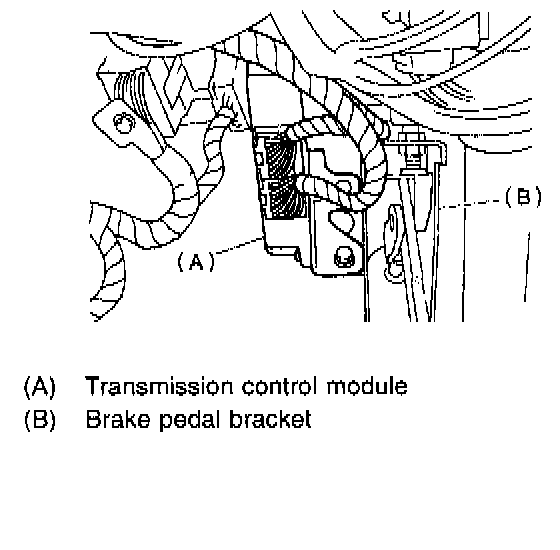

2) Install TCM to steering support beam.
Tightening torque: 7.4±2.0 Nm (0.75±0.2 kg-m, 5.4±1.4 ft. lbs.)
(A) Transmission control module
(B) Pedal bracket
3) Remove TCM from steering support beam.
