Installation

1. Install knock sensor to cylinder block.

Tightening torque:
23.5 ± 2.9 N.m (2.4 ± 0.3 kg.m, 17.4 ± 2.2 ft.lb)

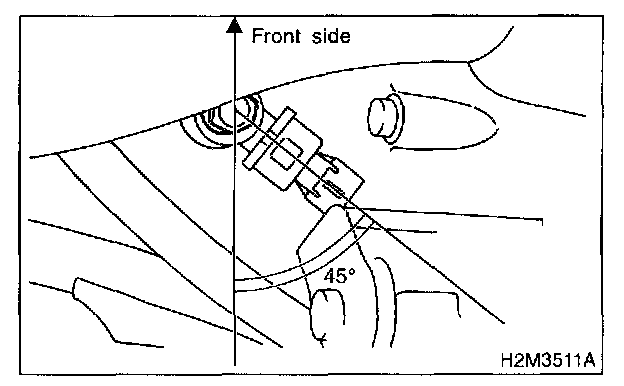

NOTE: The extraction area of the knock sensor cord must be positioned at a 45° angle relative to the engine rear.

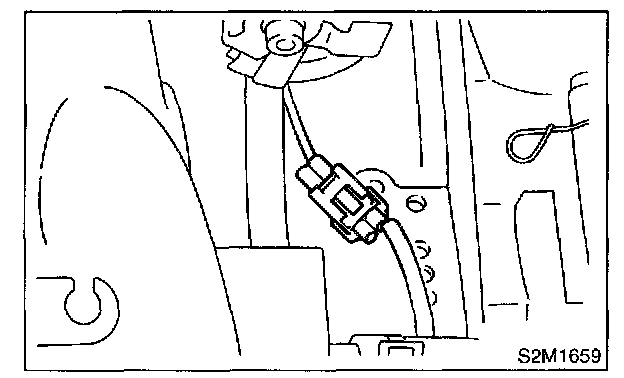

2. Connect knock sensor connector.

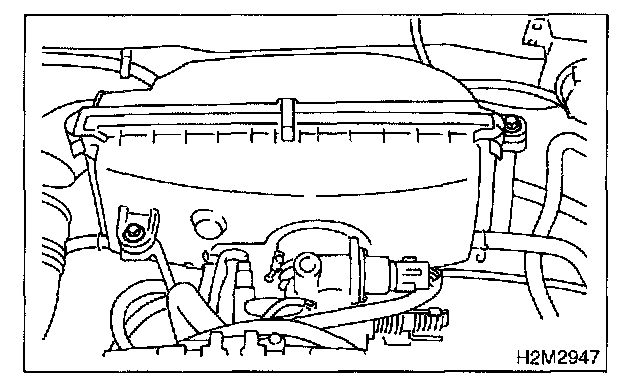

3. Install air cleaner case.

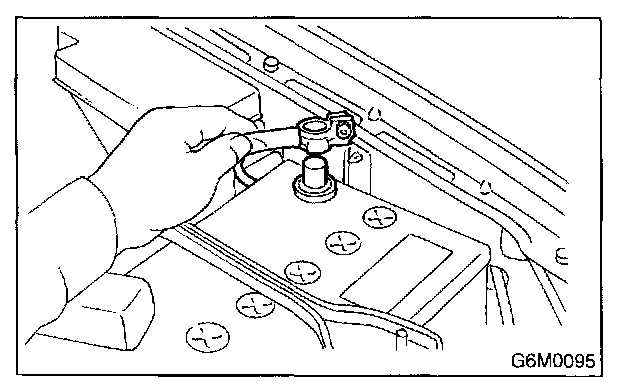

4. Connect battery ground cable.
