Home >> Subaru >> 2000 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

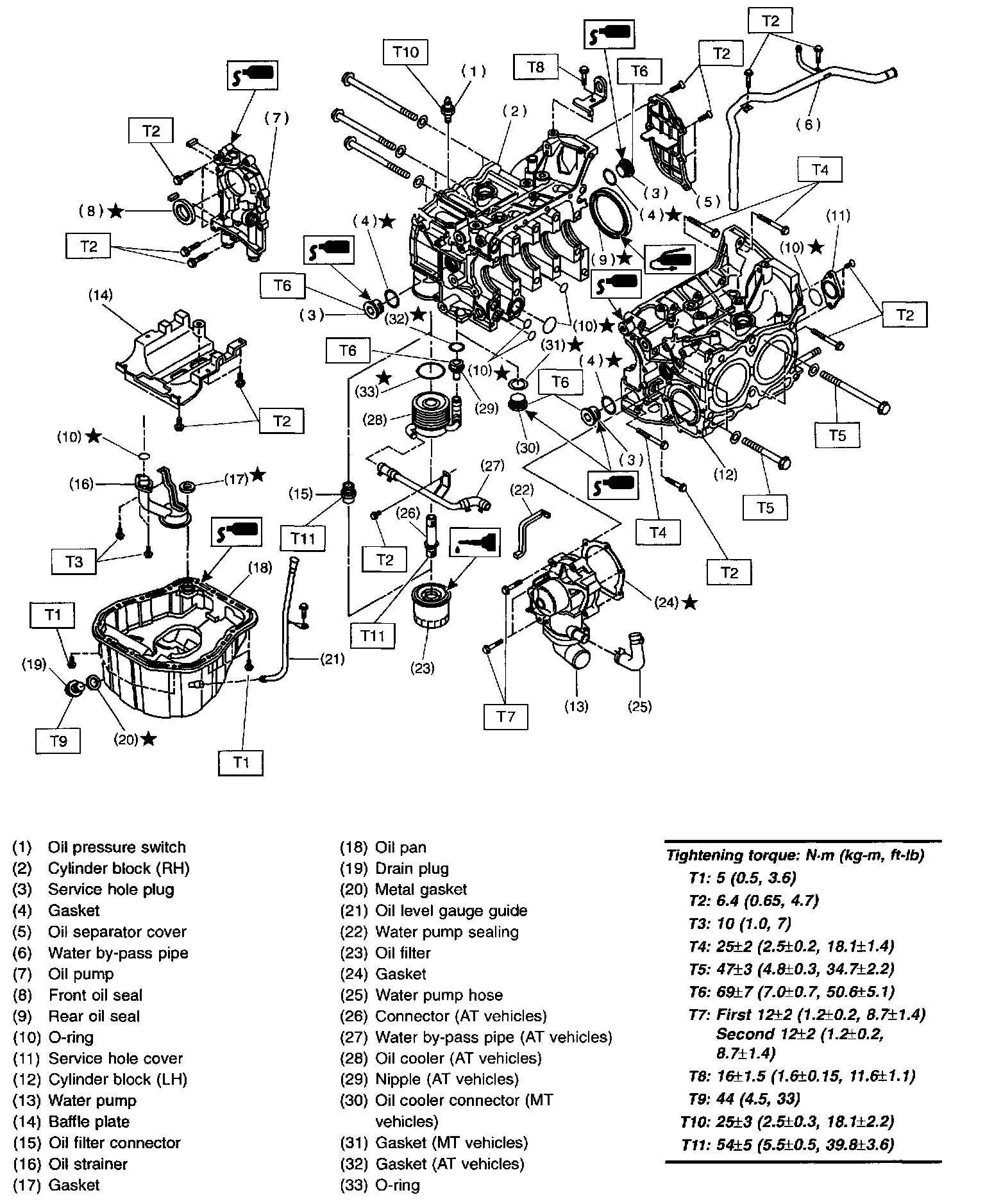

CYLINDER BLOCK ASSEMBLY W/ RELATED COMPONENTS
