Engine Control Module

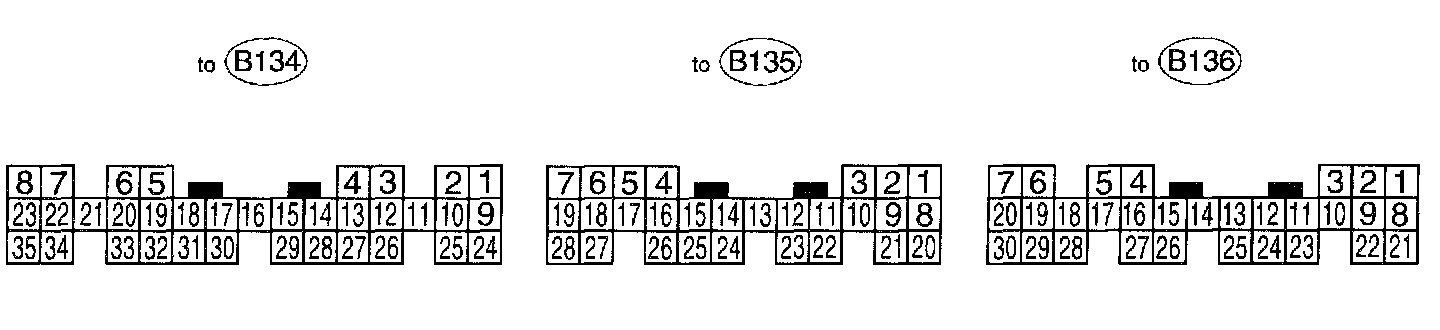

ECM I/O Signal - Connector View:

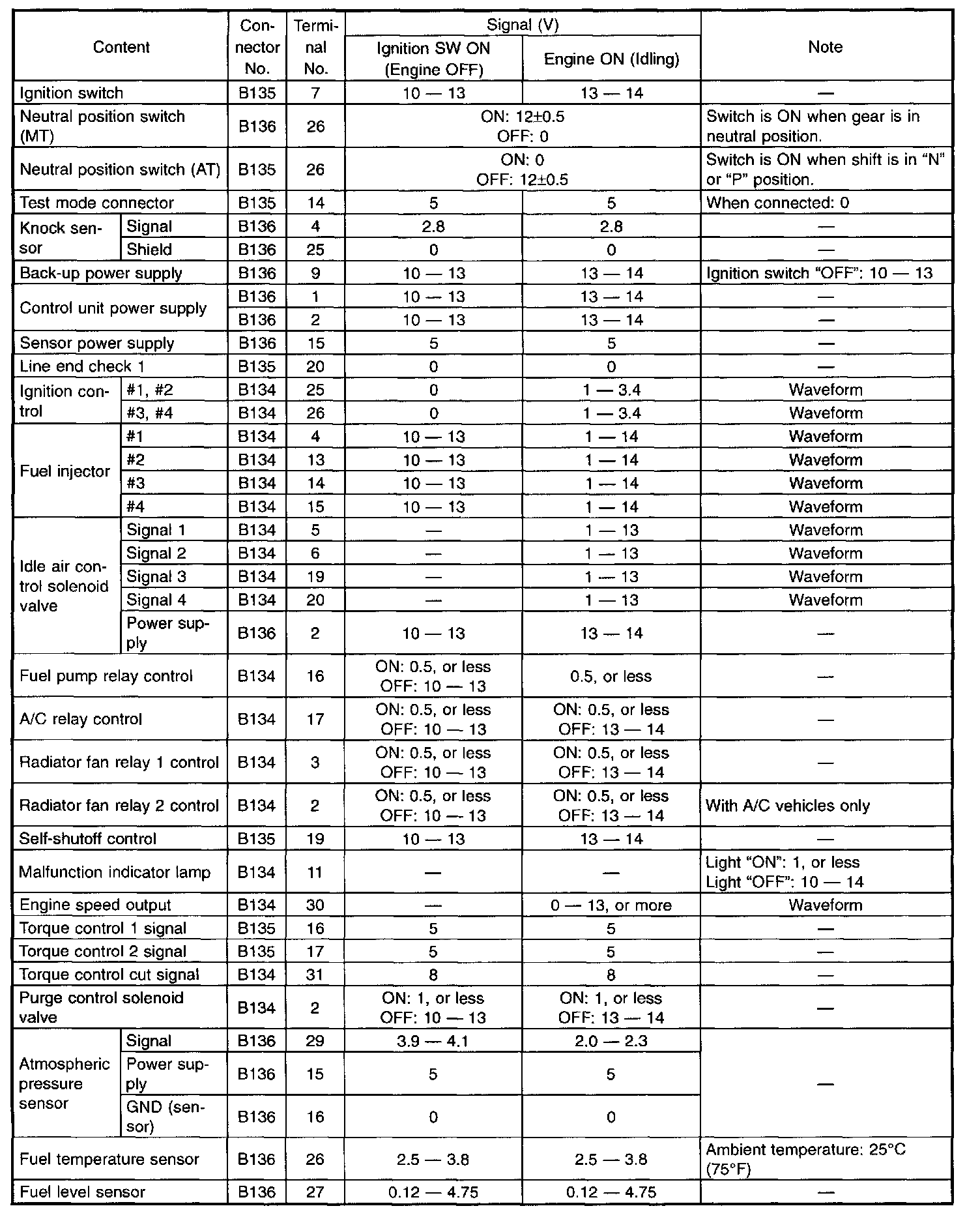

ECM I/O Signal - Pinouts, Part 1 Of 3:

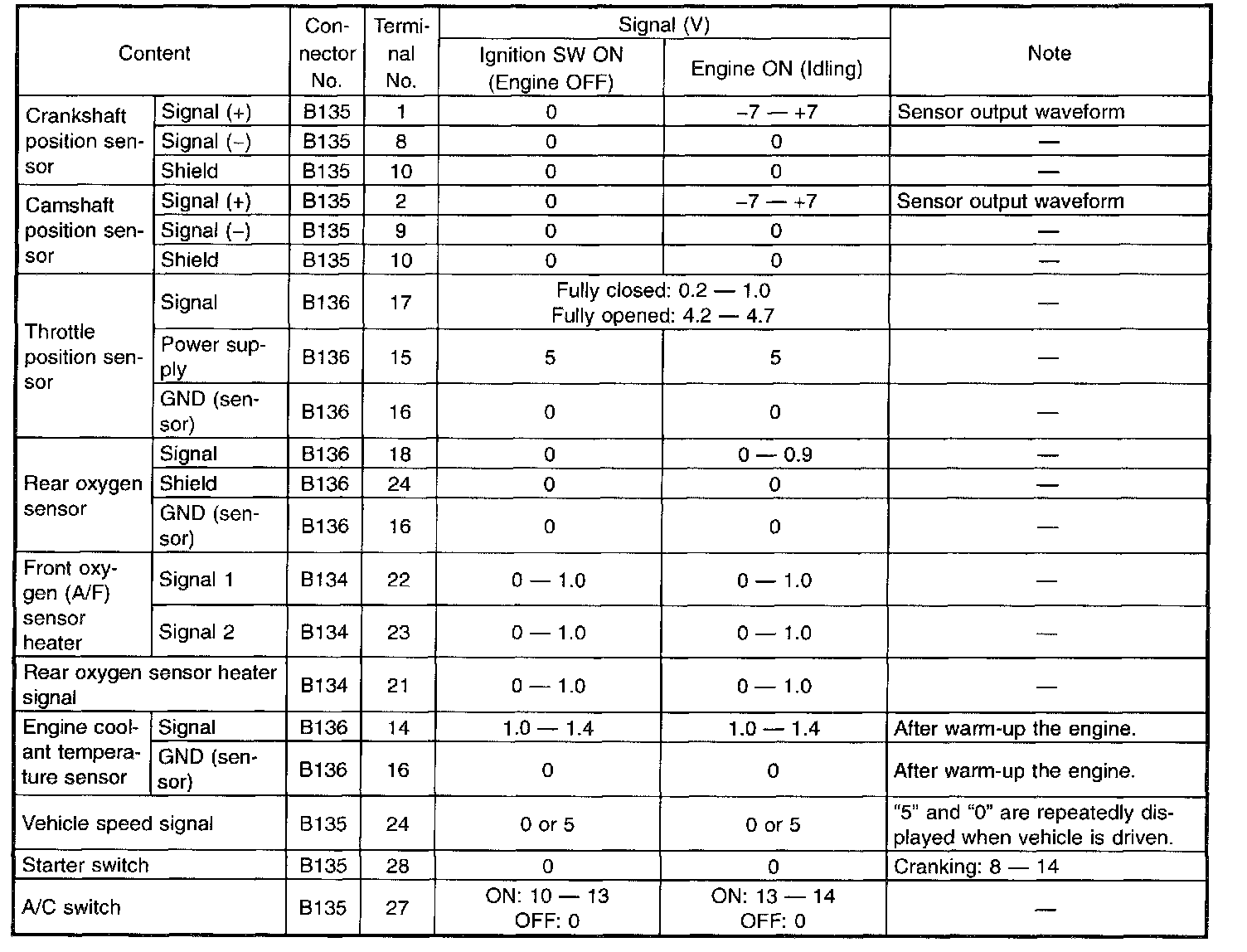

ECM I/O Signal - Pinouts, Part 2 Of 3:

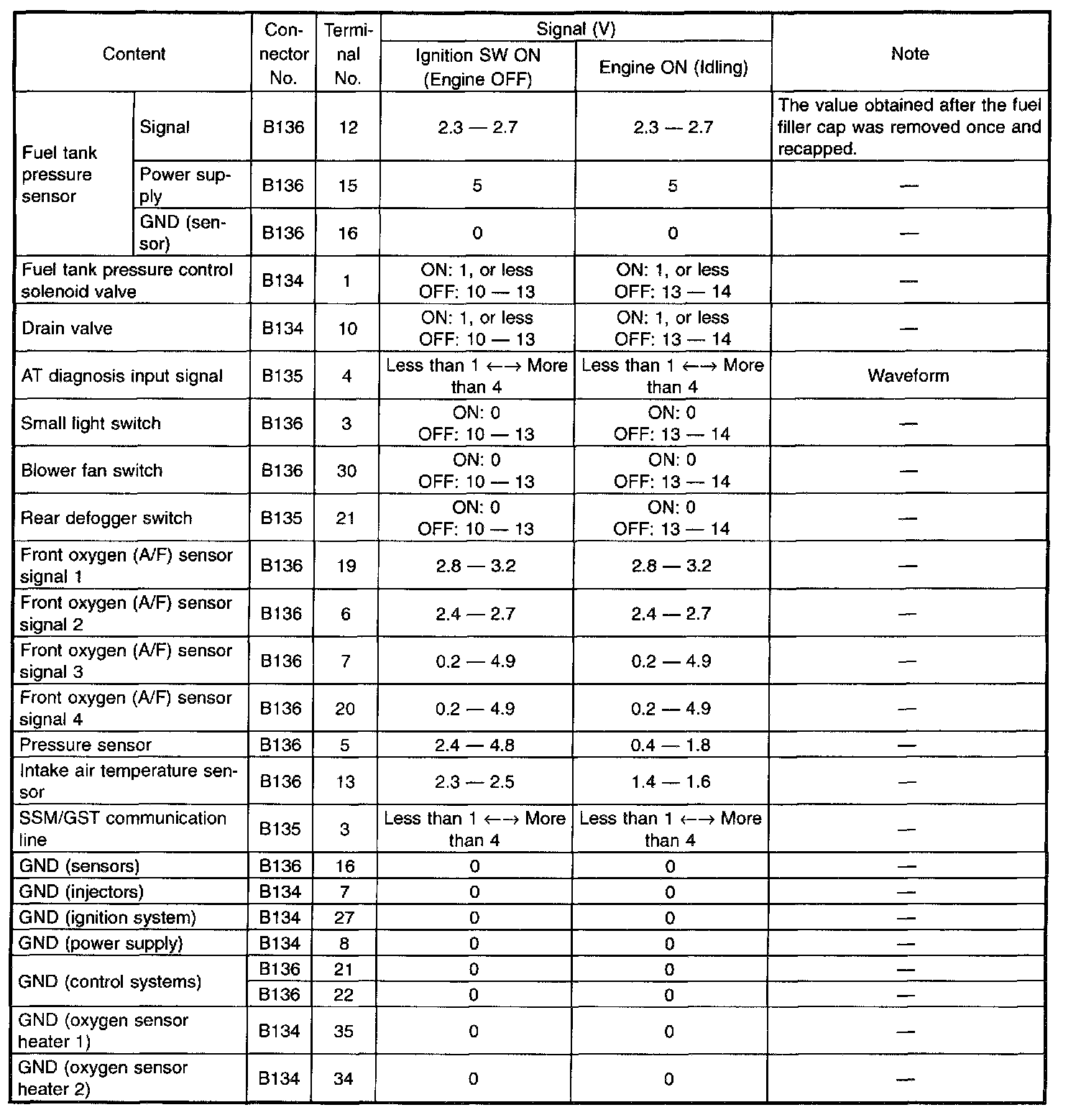

ECM I/O Signal - Pinouts, Part 3 Of 3:
