Home
>>
Subaru
>>
1999
>>
Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

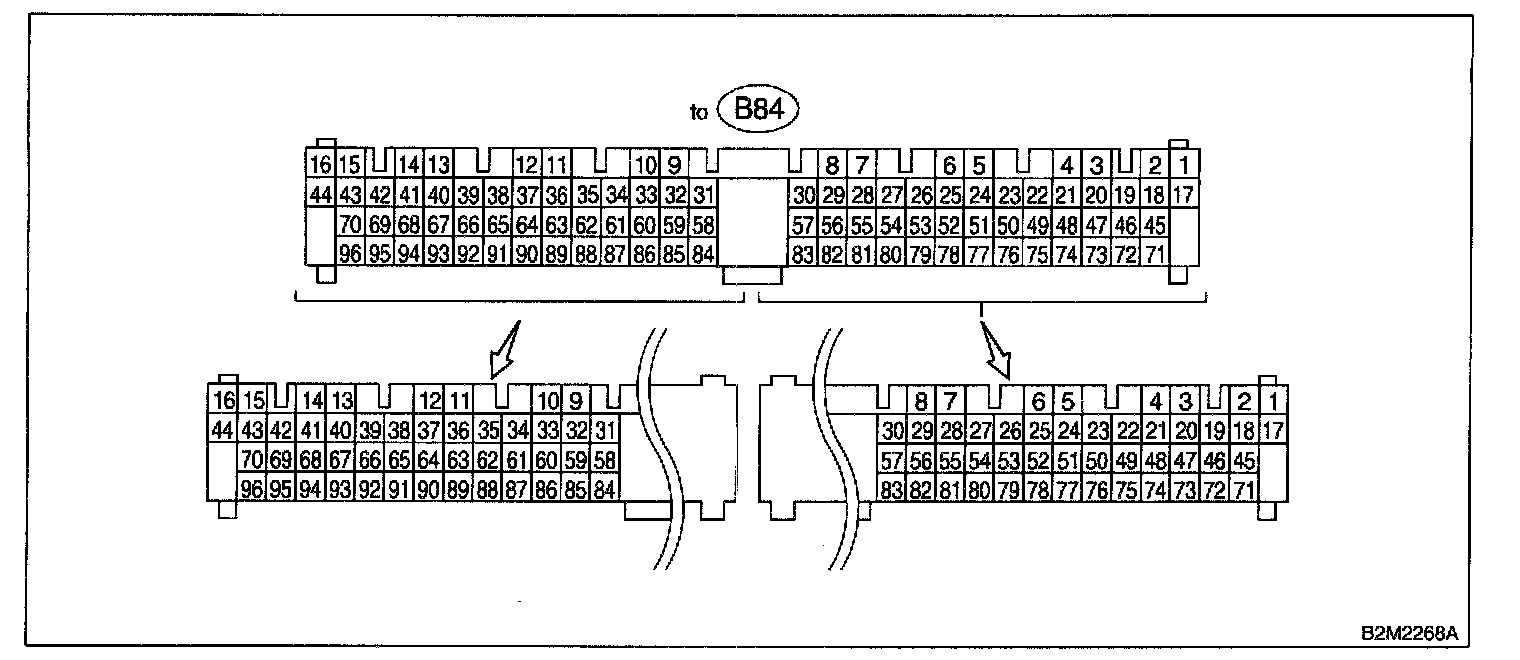

Connector View:

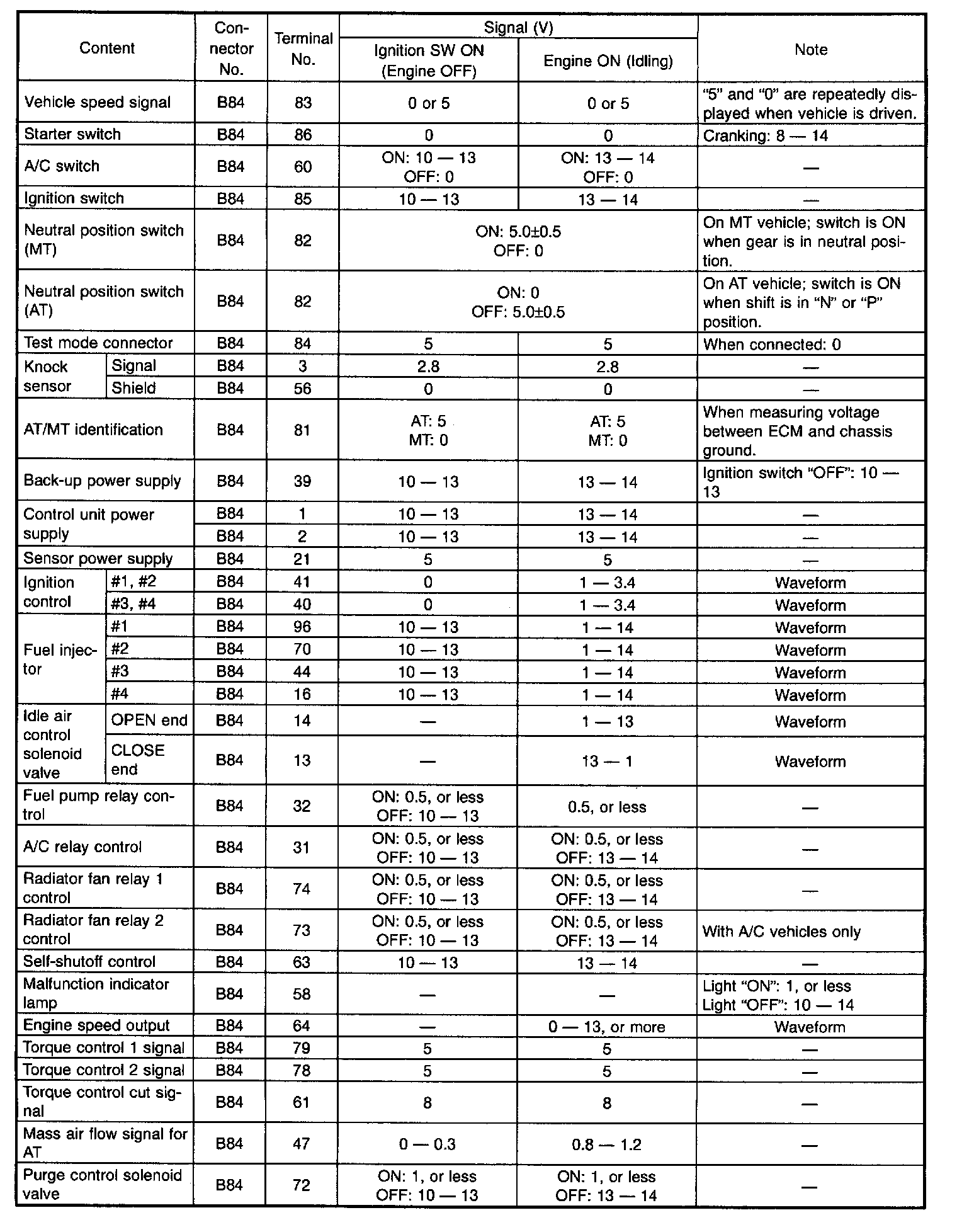

Connector Pin-outs (Part 1 Of 3):

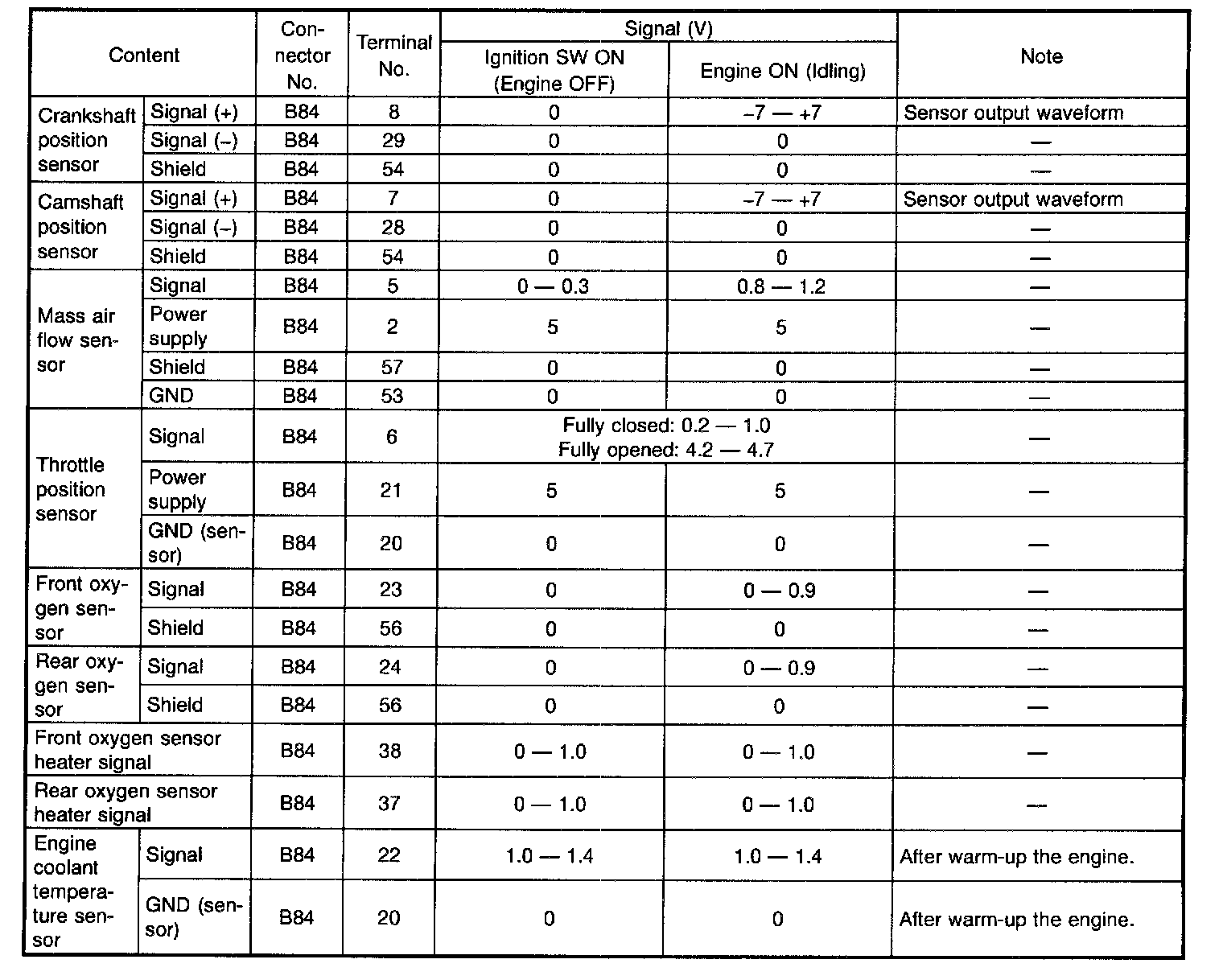

Connector Pin-outs (Part 2 Of 3):

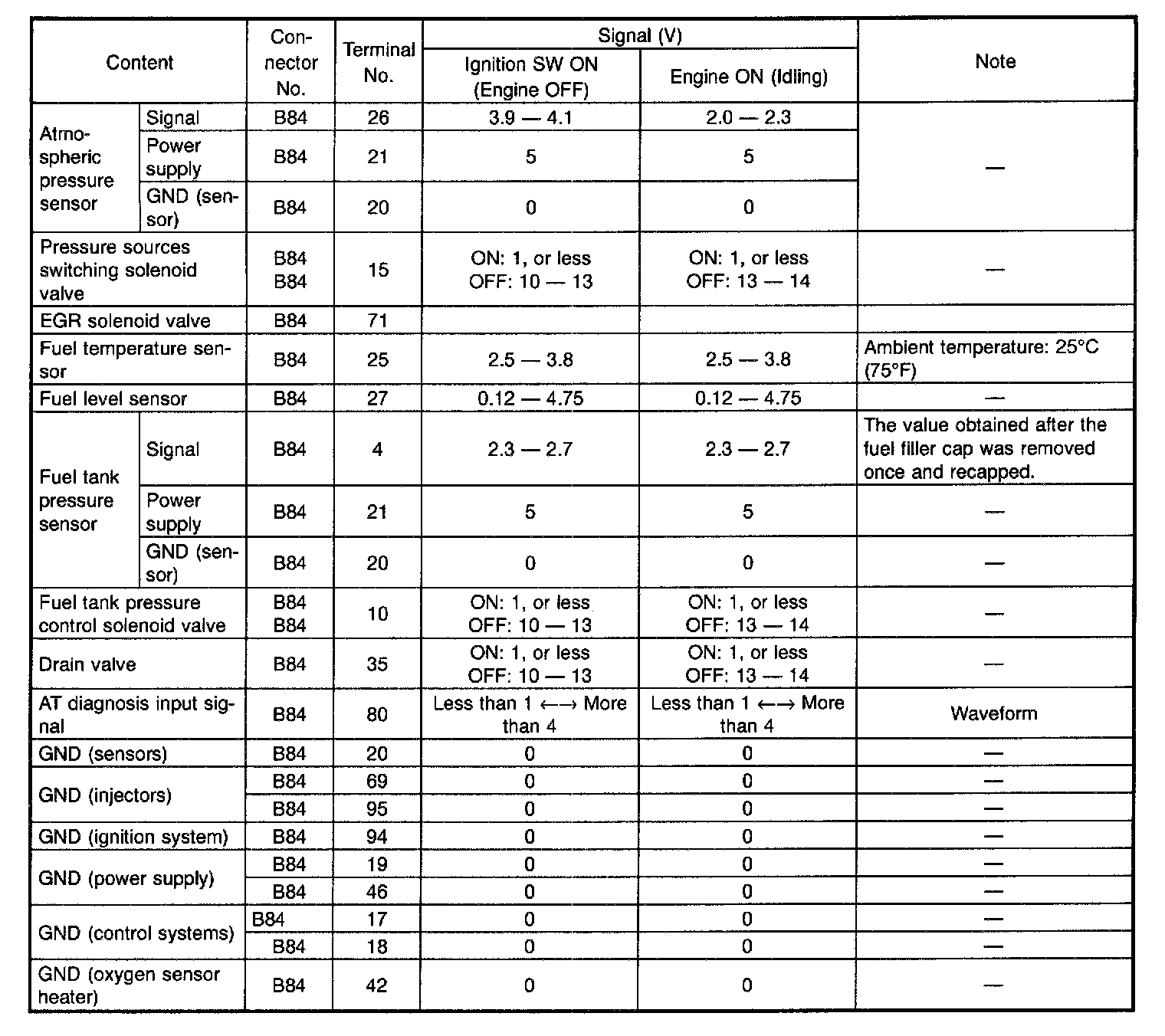

Connector Pin-outs (Part 3 Of 3):
