Subaru
>>
1998
>>
Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Connector Locations
Connector Locations

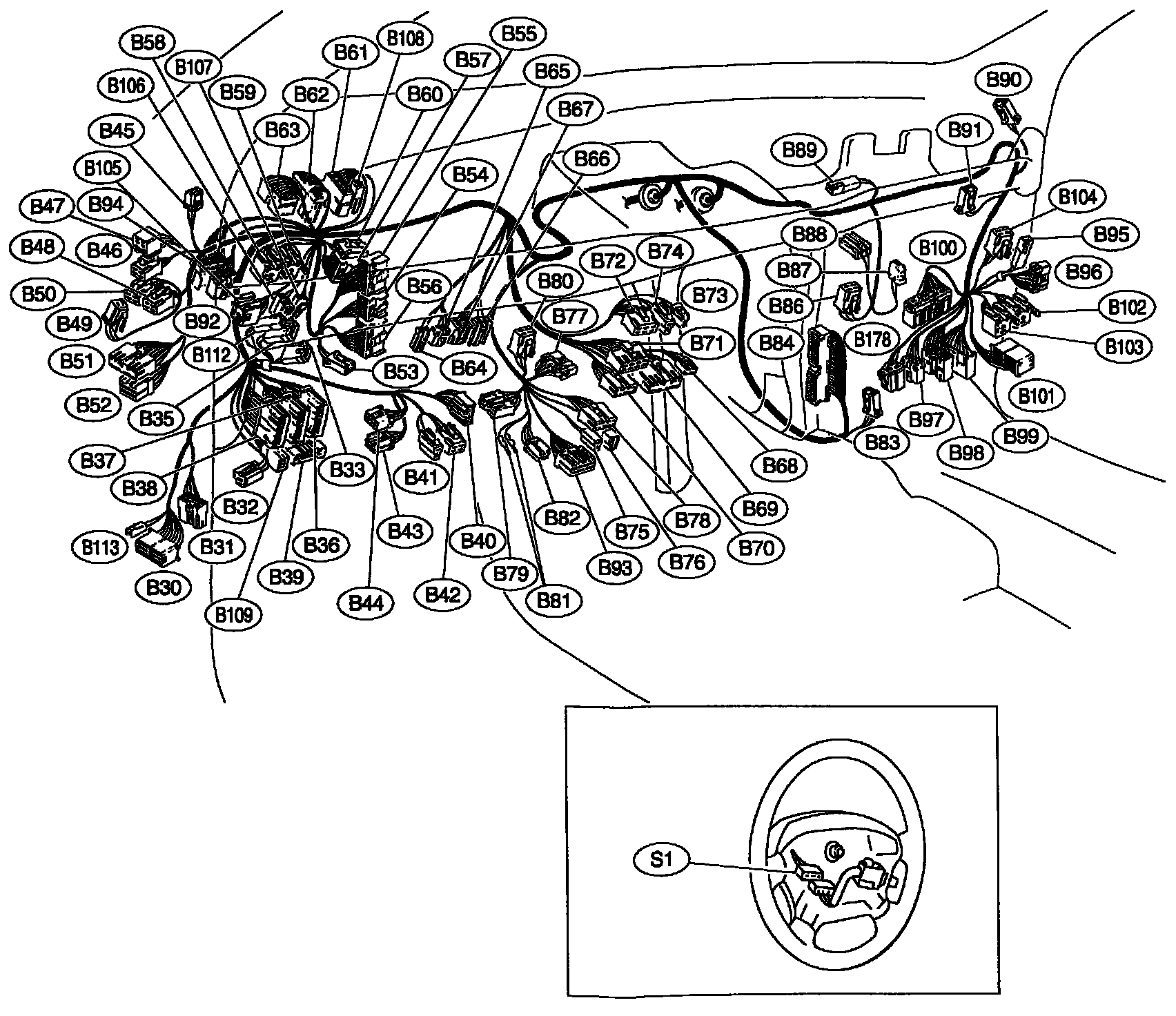

Bulkhead Wiring Harness Diagram LHD (In Compartment):
Rear Wiring Harness (B98-B99)
