Coolant Temperature Sensor/Switch (For Computer): Service and Repair

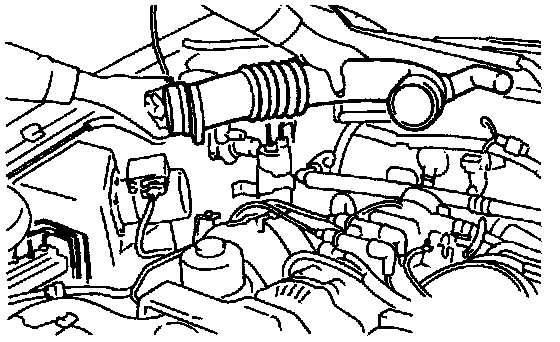

ENGINE COOLANT TEMPERATURE SENSORREMOVAL AND INSTALLATION
1. Remove Air Intake Duct.
2. Disconnect connector from engine coolant temperature sensor.
3. Remove Engine coolant temperature sensor.
4. Installation is in the reverse order of removal.
Tightening Torque: 25 ± 3 N.m (18.1 ± 2.2 ft-lb).
