Home >> Subaru >> 1998 >> Forester AWD F4-2.5L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection >> Control Module Power Supply and Ground

Control Module Power Supply and Ground

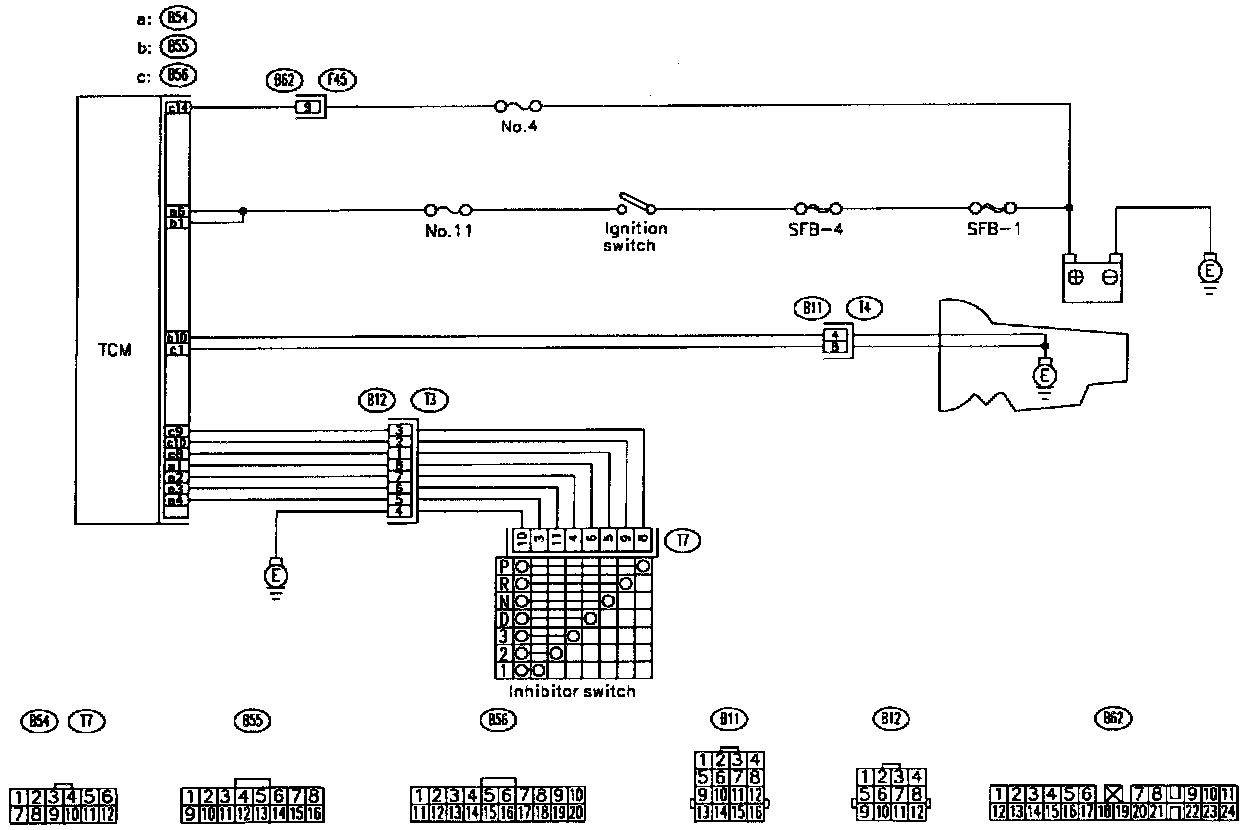

WIRING DIAGRAM

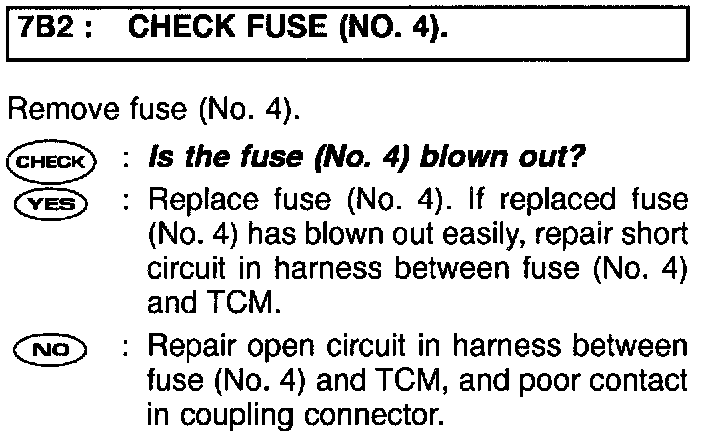

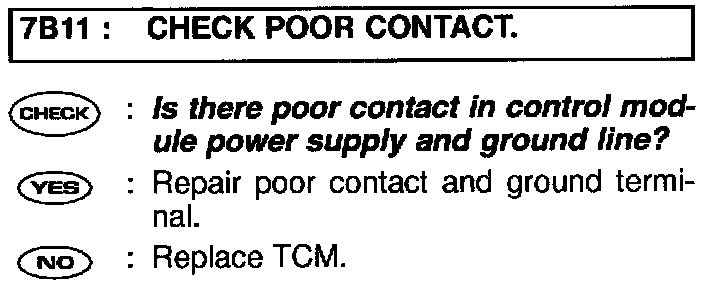

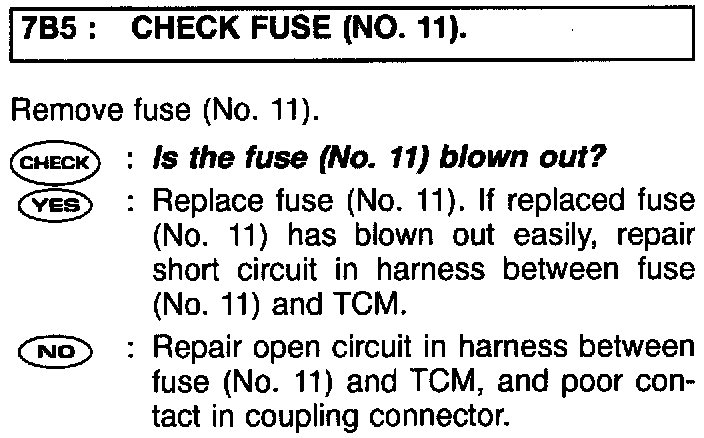

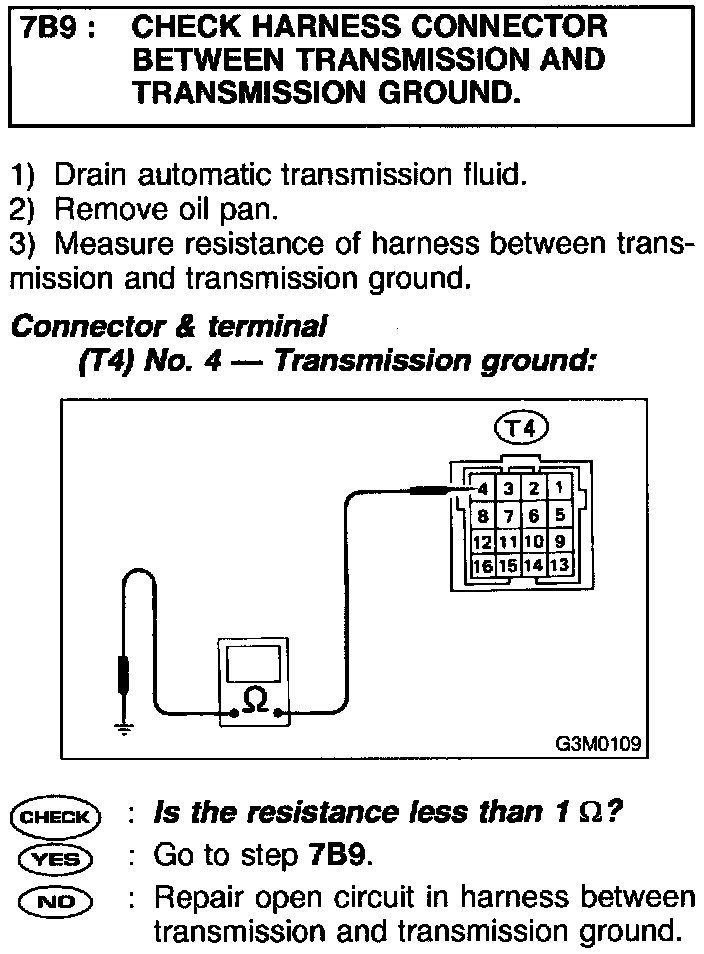

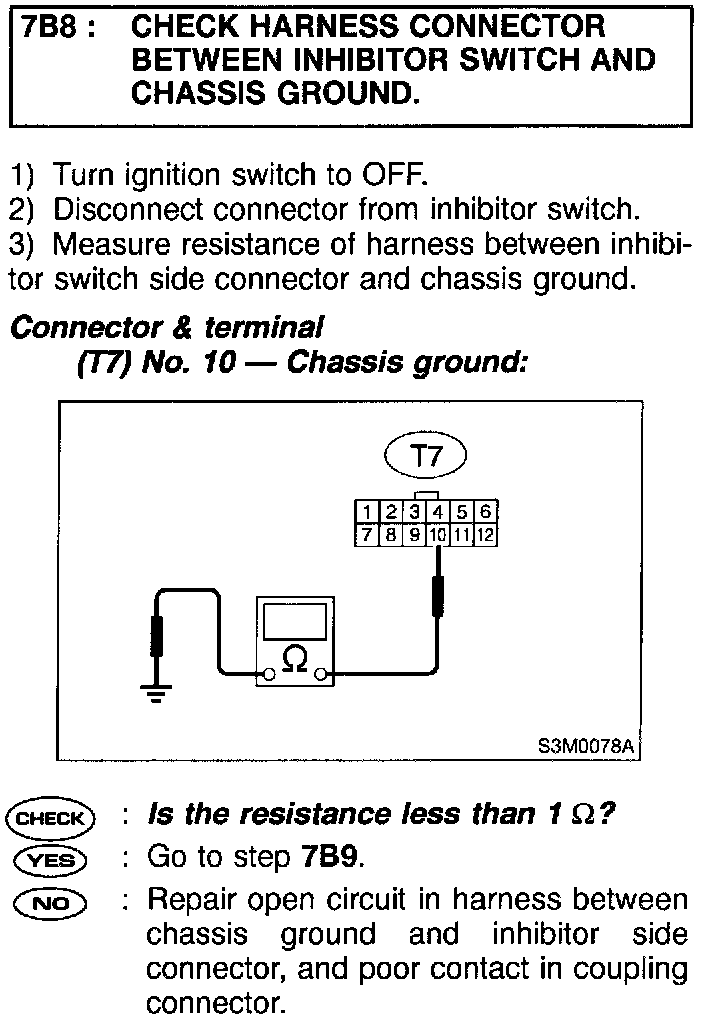

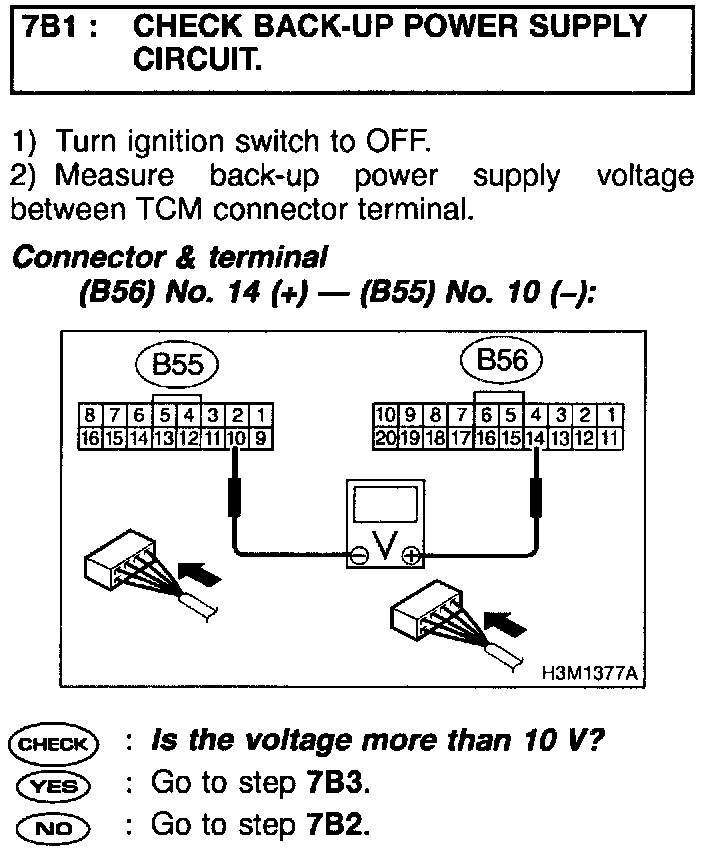

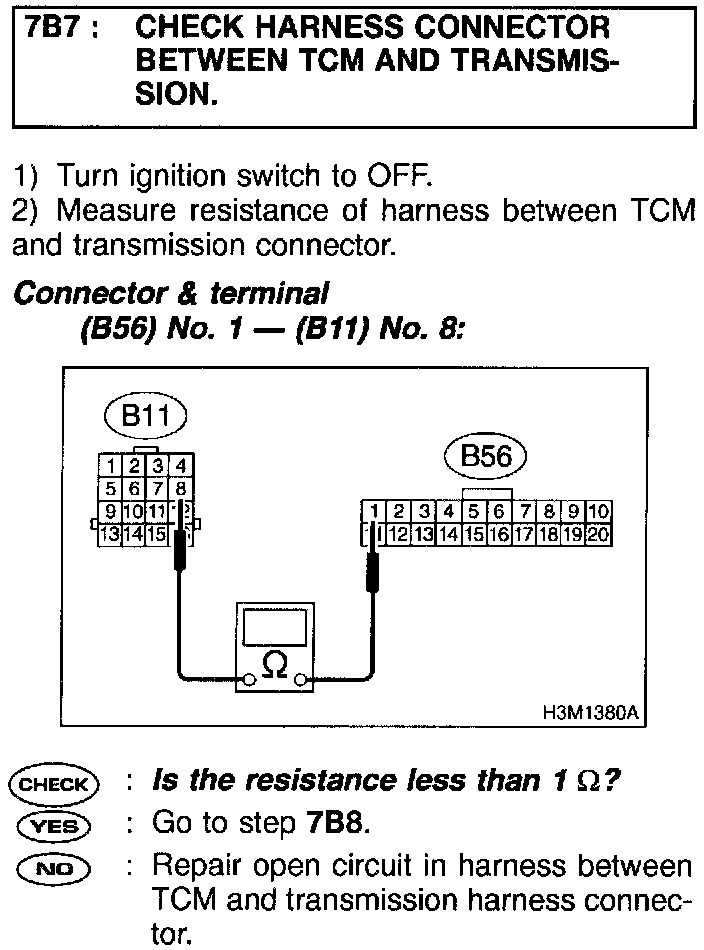

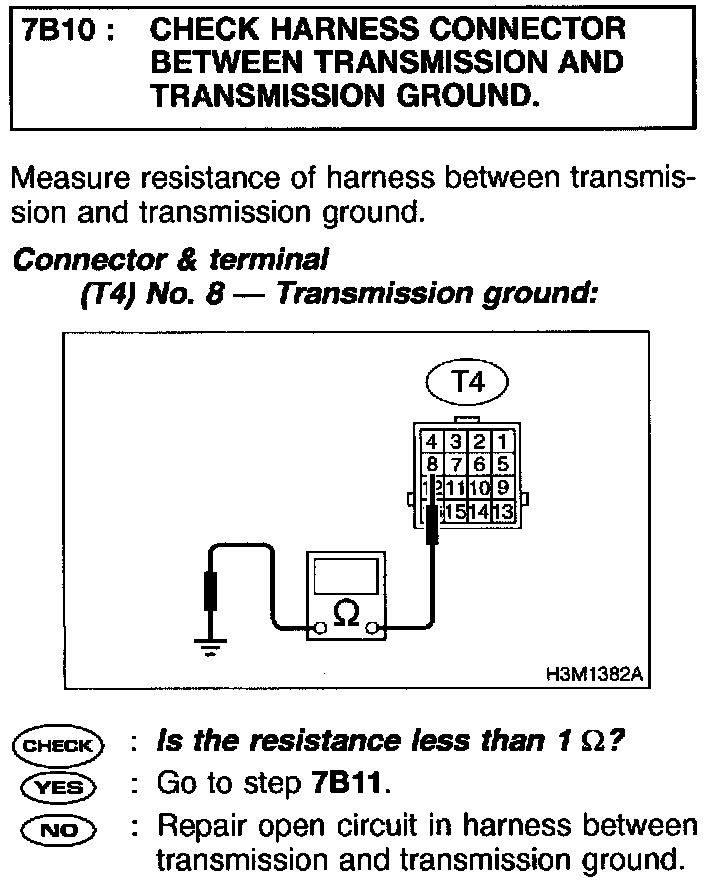

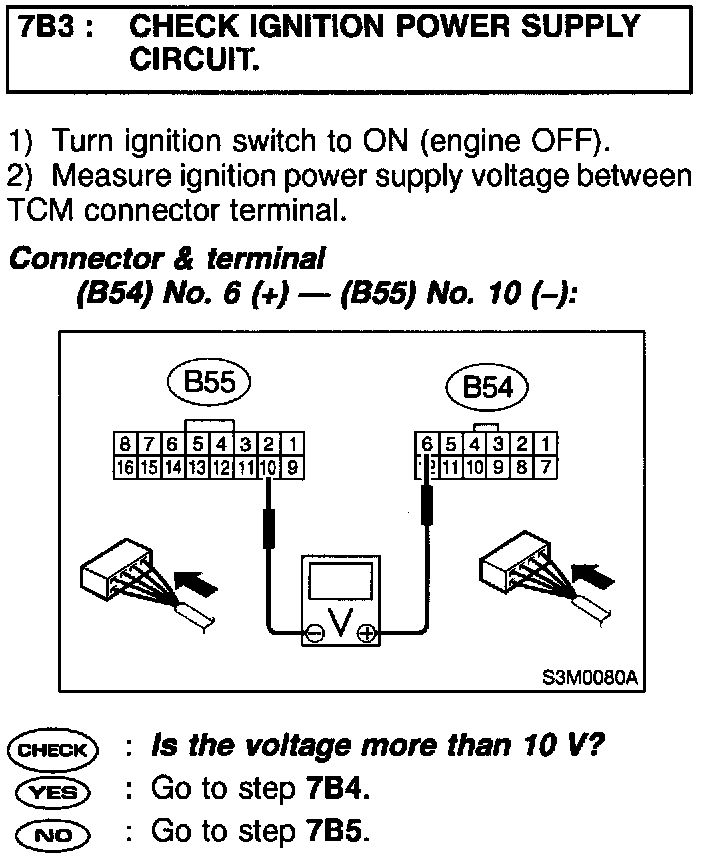

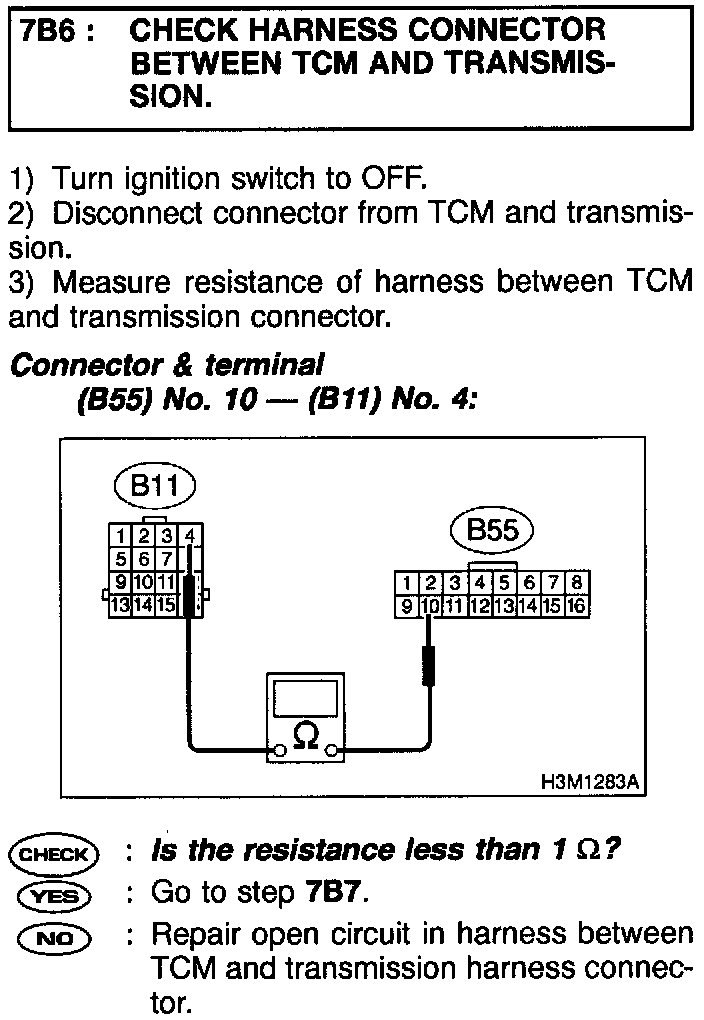

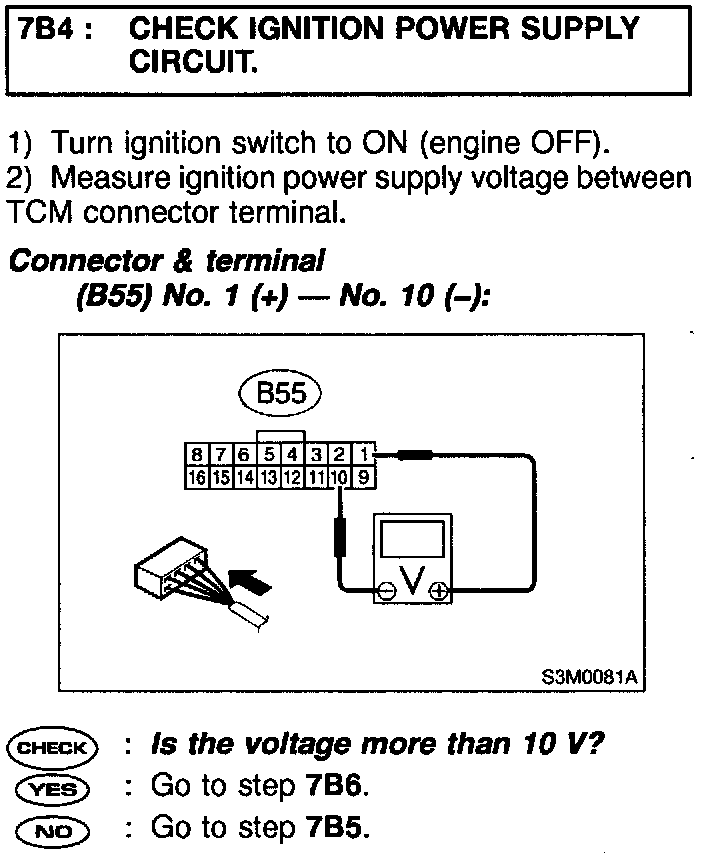

PROCEDURES
