Home >> Subaru >> 1998 >> Forester AWD F4-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

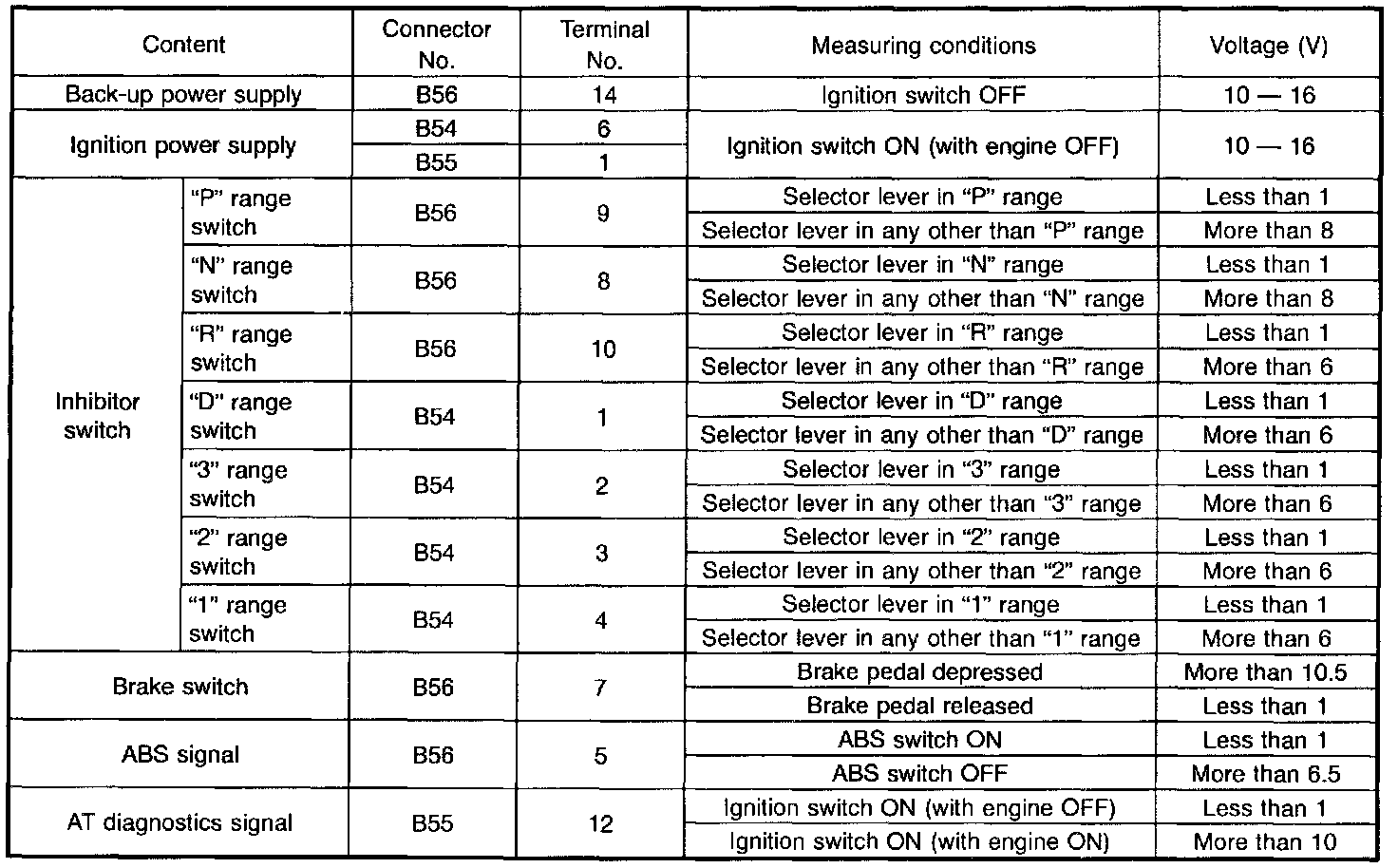

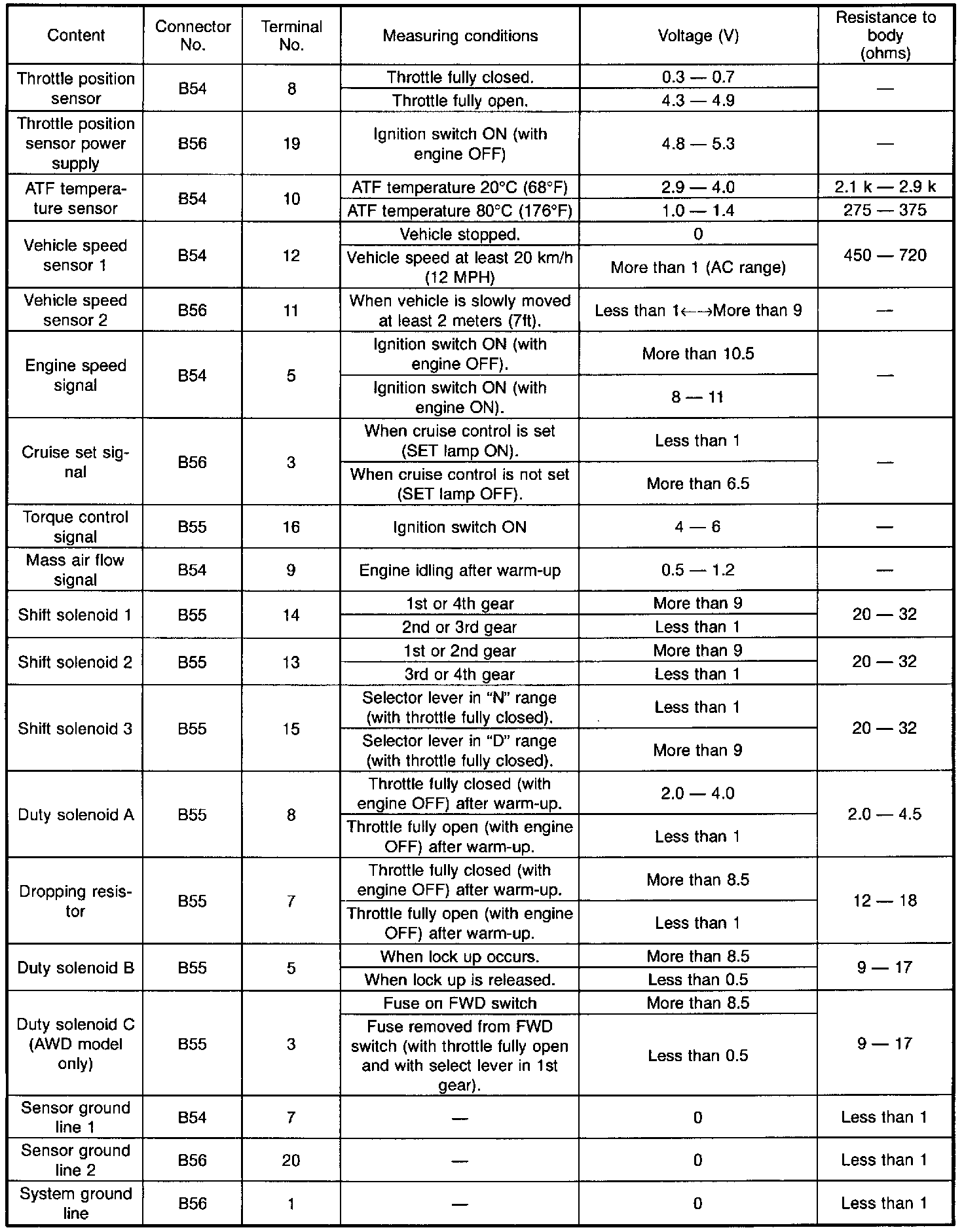

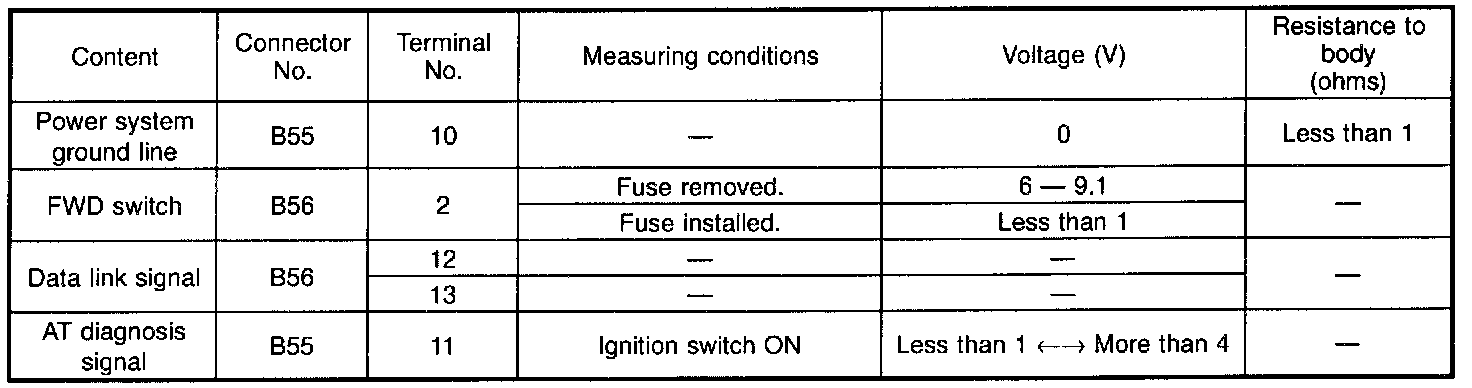

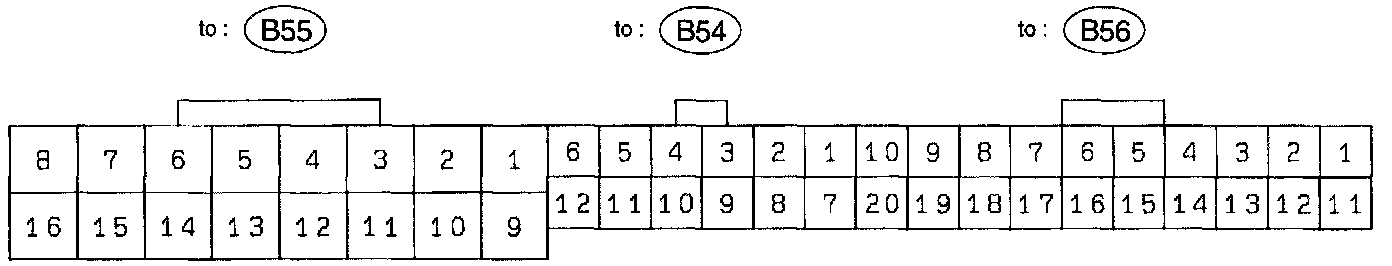

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL














NOTE: Check with ignition switch ON.
